Black square mini PC barebone, 155 mm sides, 80 mm tall, matte finish

ASRock

ASRock DESKMINI B760W/B/BB/BOX/US barebone mini PC

SKU CH-P16S-6VBG7 MPN DESKMINI B760W/B/BB/BOX/US

A 1.92 L barebone mini PC supporting 12th, 13th and 14th Gen Intel Core processors up to 65 W, dual-channel DDR4-3200 SO-DIMMs up to 64 GB, one PCIe Gen5 x4 M.2 slot, one PCIe Gen4 x4 M.2 slot.

  • CPU TypeSupports 14th, 13th & 12th Gen Intel Core Processors (LGA170
  • CPU SocketIntel Socket LGA1700
  • North BridgeIntel B760
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Support CPU Support Intel 14/13/12 Gen CPU

Support Memory Type

Struck-through versions exist but are not stocked here.

Support Max Memory 64GB

  • Supports 12th, 13th and 14th Gen Intel Core processors up to 65W TDP
  • Dual-channel DDR4-3200 SO-DIMM slots for up to 64GB memory capacity
  • PCIe Gen5 x4 M.2 slot delivers 128 Gb/s storage bandwidth
  • 5 Gigabit LAN and USB 3.2 Gen2x2 Type-C at 20 Gb/s front I/O
  • Compact 1.92L chassis measures 155 x 155 x 80 mm

Compact barebone for 65 W Intel CPUs

The DeskMini B760 Series is a 1.92 L barebone that accepts 12th, 13th and 14th Gen Intel Core processors up to 65 W TDP on an LGA1700 socket. It targets builders who want a small desktop foundation without a discrete graphics card. Buyers needing higher CPU power limits or a dedicated GPU slot should look elsewhere.

DDR4-3200 SO-DIMM ceiling and M.2 lane limits

Two 260-pin SO-DIMM slots support dual-channel DDR4 at 3200 MT/s with a 64 GB maximum. Storage uses one PCIe Gen5 x4 M.2 2280 slot, one PCIe Gen4 x4 M.2 2280 slot and two SATA 6 Gb/s bays for 2.5-inch drives. The Key E 2230 slot is reserved for wireless modules, so it cannot host a third SSD.

Tool-less chassis with a few fitment traps

The 155 x 155 x 80 mm case opens without tools for CPU, memory and drive installation. The 65 W CPU limit restricts cooler choice to low-profile designs that fit the 80 mm height. Front-panel USB 3.2 Gen2x2 Type-C and Gen2 Type-A ports require compatible headers on the board, and the single D-Sub output caps legacy video at analogue resolutions.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors up to 65W TDP
  • Dual-channel DDR4-3200 SO-DIMM slots for up to 64GB memory capacity
  • PCIe Gen5 x4 M.2 slot delivers 128 Gb/s storage bandwidth
  • 5 Gigabit LAN and USB 3.2 Gen2x2 Type-C at 20 Gb/s front I/O
  • Compact 1.92L chassis measures 155 x 155 x 80 mm

Specifications

BrandASRock
SeriesDeskMini B760 Series
ModelDESKMINI B760W
CPU TypeSupports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Max. TDP 65W
CPU SocketIntel Socket LGA1700
North BridgeIntel B760
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
Serial ATA2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)*
*Supports Intel Volume Management Device (VMD)
M.2 Slot1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
*Supports NVMe SSD as boot disks
SATA RAIDRAID 0, 1
Onboard AudioRealtek ALC269 Audio Codec
LAN2.5 Gigabit LAN (Dragon RTL8125BG)
Max LAN Speed2.5Gbps

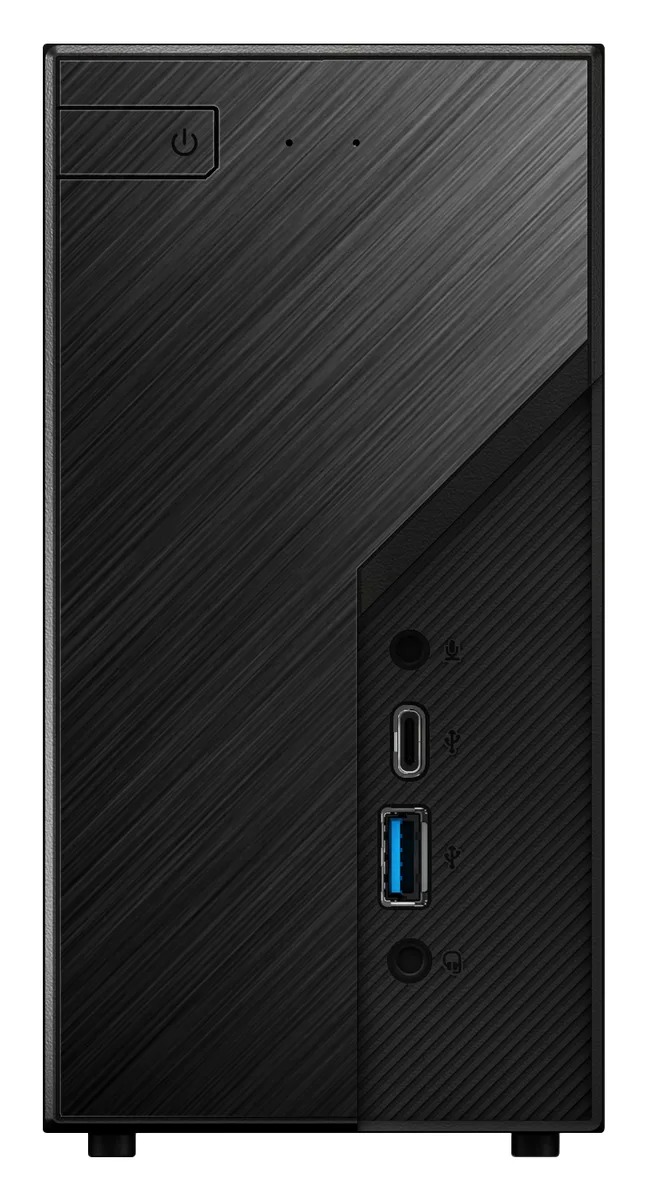

Front USB1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
Front Audio Ports1 x MIC-In
1 x Head Phone with MIC Jack

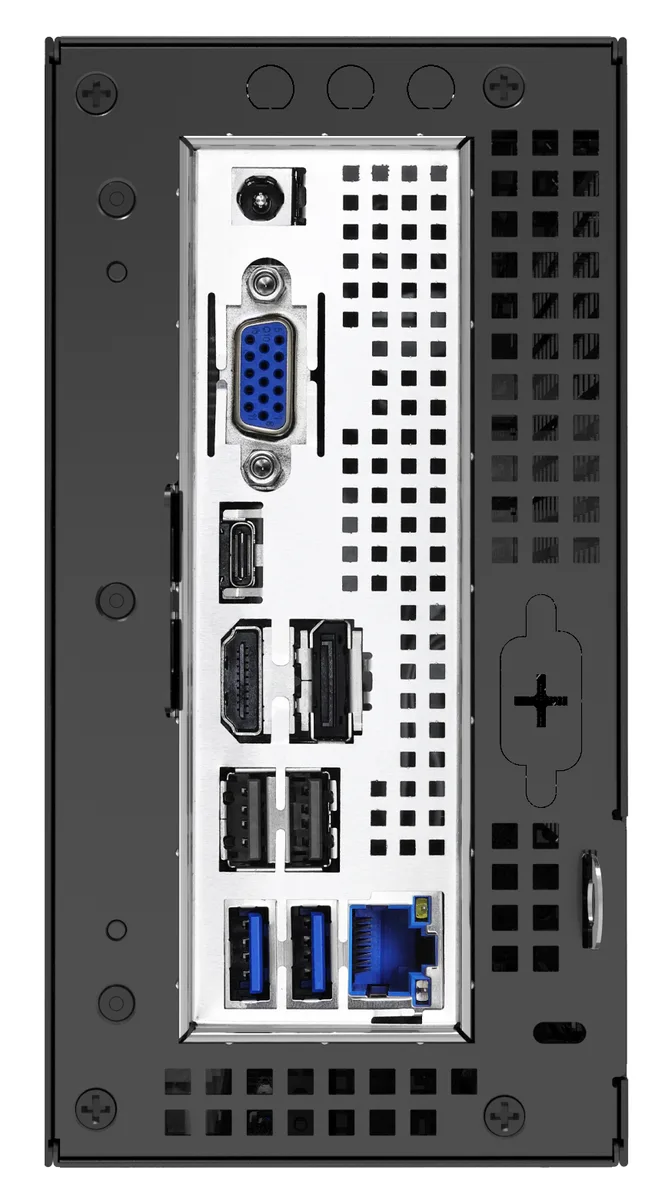

VGA1 x D-sub
HDMI1
DisplayPort1 x DisplayPort 1.4
Rear USB1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
RJ451 x RJ-45 LAN Port with LED
Other Rear Ports1 x DC-In Jack (Compatible with the 19V power adapter)
Internal Connectors1 x USB 2.0 Header
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x Internal Speaker Header (4-Pin)
1 x Audio Header (4-Pin)
Dimensions155 x 155 x 80 mm (1.92L)

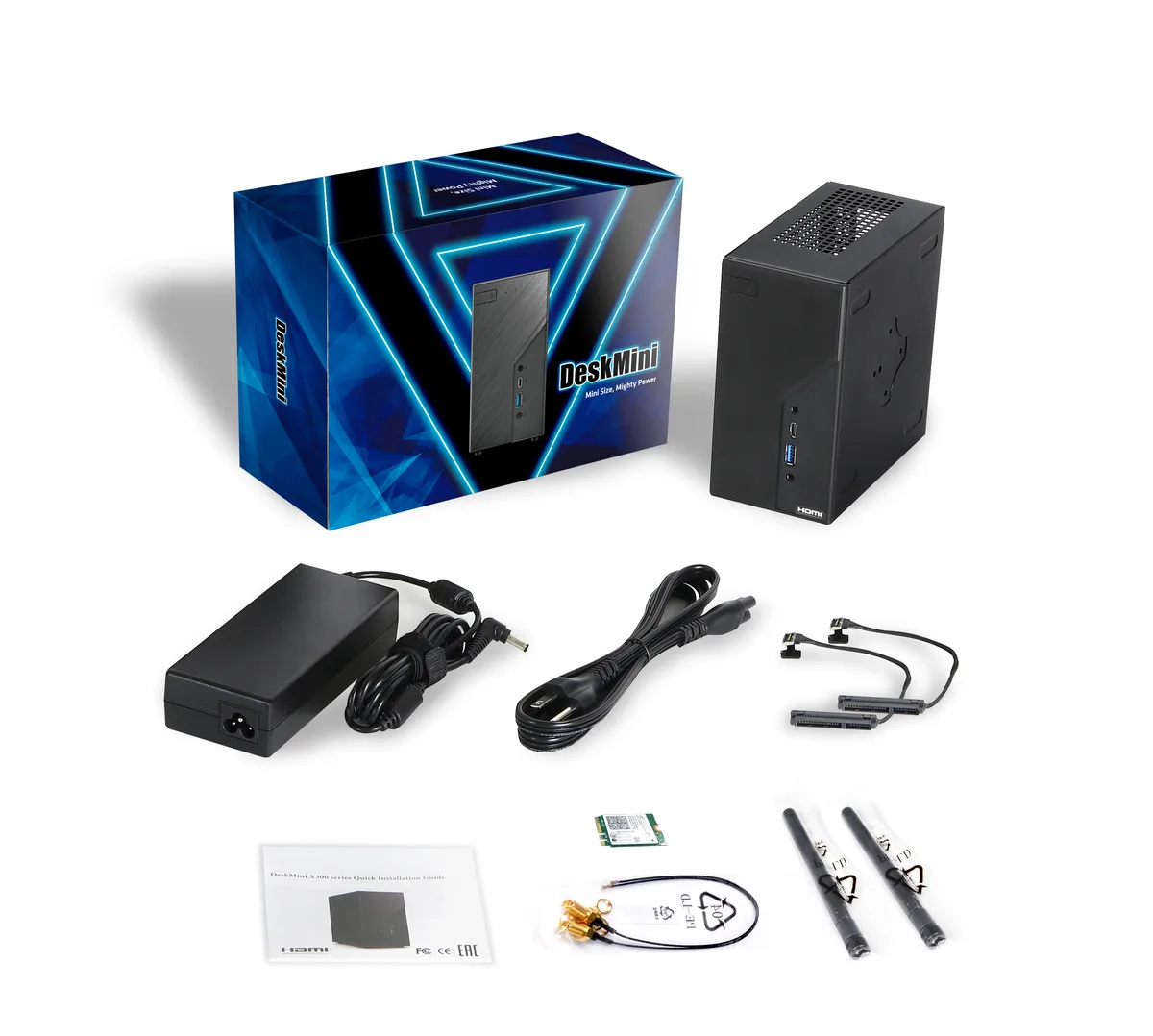

Packaging2 x SATA Data with Power Cable
1 x 120W/19V adapter
1 x Screws Pack
Shipping weight1.79 kg
Package size292 × 203 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the Blazing M.2 or the Hyper M.2 slot for my fastest drive?

Use the Blazing M.2 slot for the highest throughput; it runs at PCIe Gen5 x4 while the Hyper M.2 slot runs at Gen4 x4.

What does the 65 W TDP limit mean once I install a CPU?

The barebone will only support processors rated up to 65 W, so higher-power 12th, 13th or 14th Gen chips cannot be used.

What does the 2.5 Gbps LAN port cap in practice?

It caps wired network throughput at 2.5 Gbps, which is the maximum speed of the onboard RTL8125BG controller.
