Black rectangular mini PC barebone, slim chassis, front USB-C and Type-A ports, rear HDMI and DisplayPort

ASRock

ASRock DESKSLIM X600W barebone mini PC, AM5, DDR5 256GB, 240W

SKU CH-EA1Z-89623 MPN DESKSLIM X600W

Supports AMD Ryzen 9000, 8000 and 7000 processors up to 120W with four DDR5 DIMM slots for 256GB memory and dual M.2 plus SATA storage

  • ColorBlack
  • CPU TypeSupports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processo
  • CPU SocketAMD Socket AM5
  • North BridgeAMD X600
  • Memory installedNo Memory
  • Memory slot4 x 288Pin DIMM
  • Supports AMD Ryzen 9000, 8000 and 7000 series CPUs up to 120W
  • Four DDR5 DIMM slots accept up to 256GB at 7200 MHz
  • PCIe 5.0 x16 slot plus Gen5 and Gen4 M.2 2280 storage bays
  • 5Gbps LAN and USB4 port for fast wired connectivity
  • Compact 3.74 x 9.25 x 8.66 inch chassis with 240W power supply

Compact AM5 barebone for high-density builds

The DESKSLIM X600W is a new mini PC barebone that accepts AMD Socket AM5 Ryzen 9000, 8000 and 7000 series processors up to 120W. It ships without memory or storage, giving integrators full control over the final specification. The X600 chipset and 240W power adapter suit compact workstations and embedded deployments.

DDR5 ceiling and single PCIe 5.0 x16 lane budget

Four 288-pin DIMM slots support DDR5 up to 7200 MHz OC with a 256GB maximum, but the board offers only one PCI Express 5.0 x16 slot. Builders needing a second add-in card or additional high-speed lanes must look elsewhere. Storage expands through two SATA 6.0Gb/s ports, one M.2 2280 slot for PCIe Gen5x4 and one for PCIe Gen4x4.

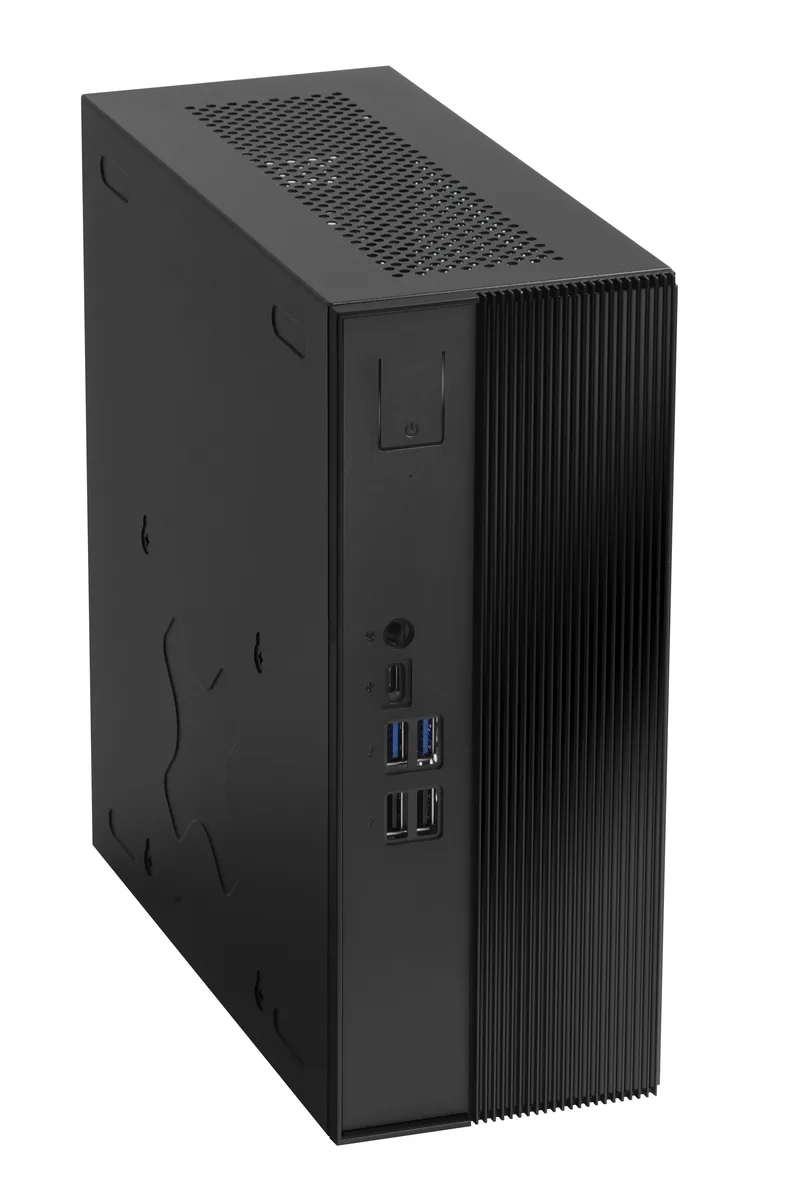

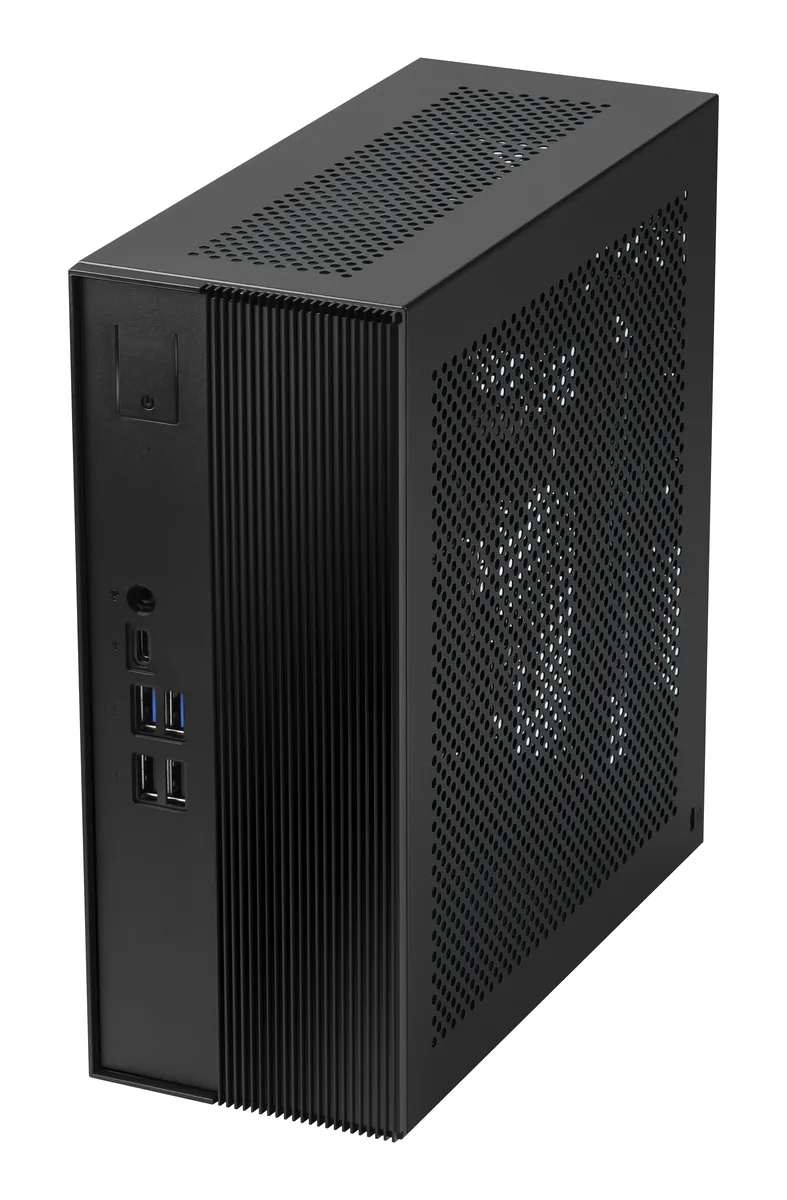

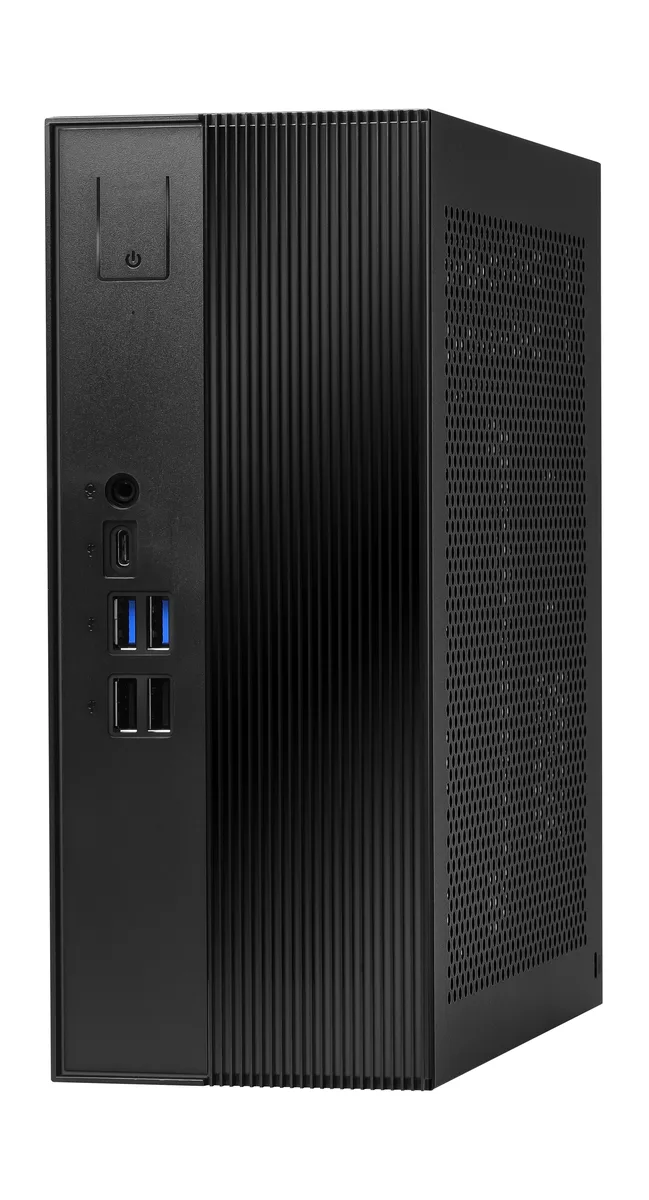

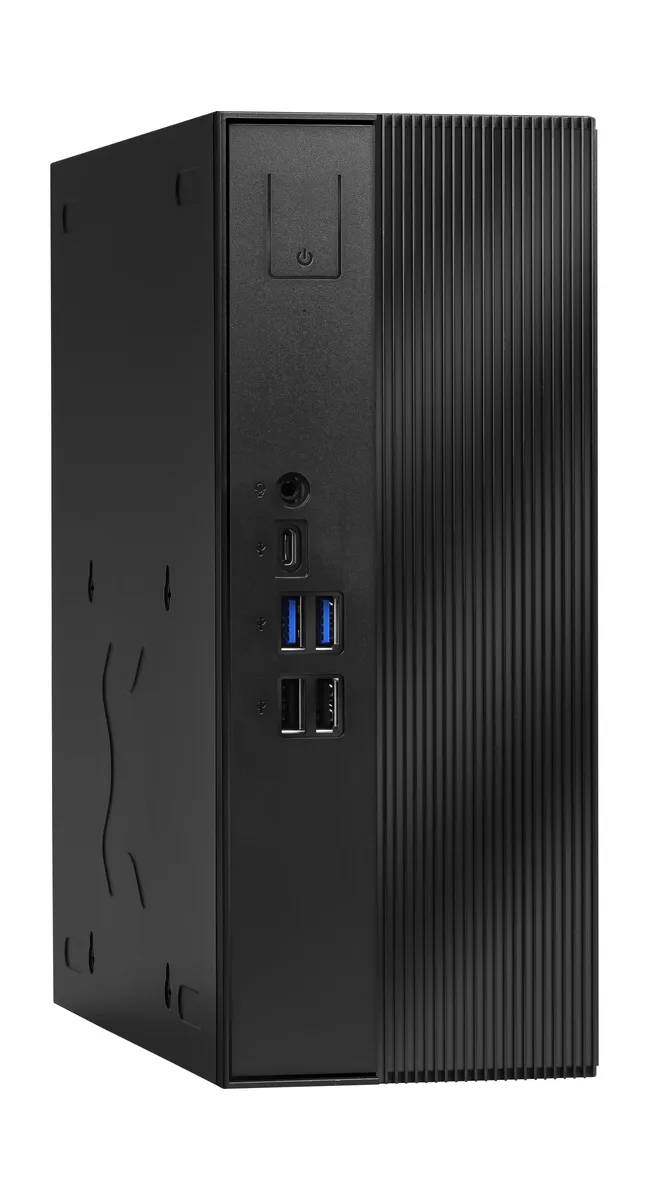

Small aluminium chassis

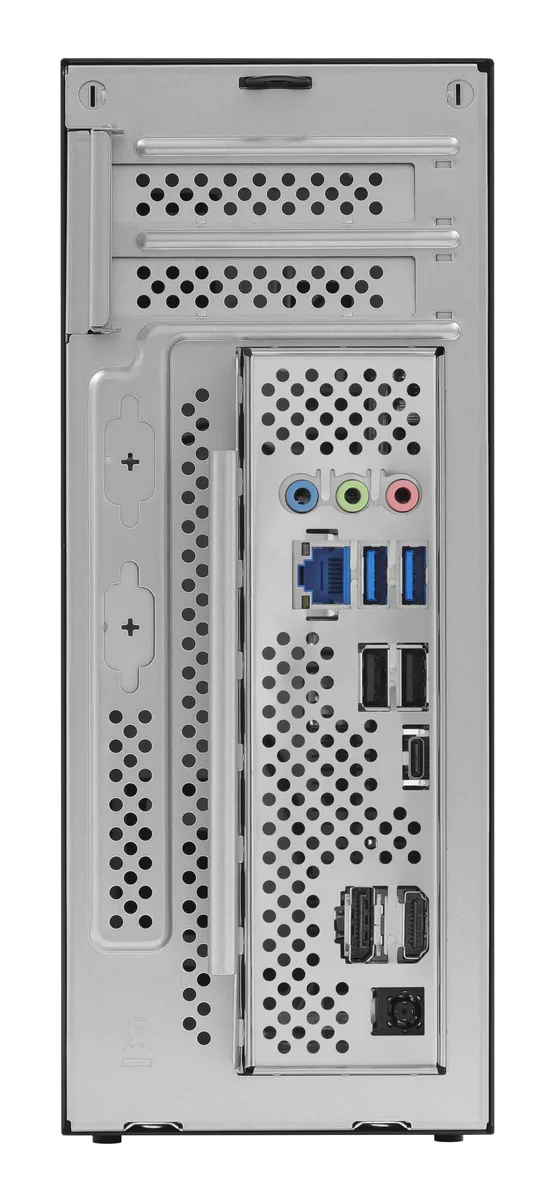

The black enclosure measures 3.74 by 9.25 by 8.66 inches and uses a 19V DC jack fed by the included 240W adapter. Front I/O provides one USB 3.2 Gen1 Type-C, two USB 3.2 Gen1 Type-A, two USB 2.0 ports and a single audio jack. Rear I/O adds one USB4, two USB 3.2 Gen1 Type-A, two USB 2.0, three audio jacks, HDMI 4K@120Hz, DisplayPort and 2.5Gbps LAN.

Highlights

  • Supports AMD Ryzen 9000, 8000 and 7000 series CPUs up to 120W
  • Four DDR5 DIMM slots accept up to 256GB at 7200 MHz
  • PCIe 5.0 x16 slot plus Gen5 and Gen4 M.2 2280 storage bays
  • 5Gbps LAN and USB4 port for fast wired connectivity
  • Compact 3.74 x 9.25 x 8.66 inch chassis with 240W power supply

Specifications

BrandASRock
ModelDeskSlim X600W
ColorBlack
CPU TypeSupports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors, up to 120W
CPU SocketAMD Socket AM5
North BridgeAMD X600
Memory installedNo Memory
Memory slot4 x 288Pin DIMM
Memory Type SupportedDDR5 7200
Max Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
Storage InstalledNo Storage
Serial ATA2 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 Slot for PCIe Gen5x4 SSD
1 x M.2 2280 Slot for PCIe Gen4x4 SSD
Max LAN Speed2.5Gbps
Front USB1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front Audio Ports1 jacks
HDMI1 x HDMI (4K@120Hz)
DisplayPort1 x DisplayPort
Rear USB1 x USB4
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
RJ451
Rear Audio Ports3 jacks
Other Rear Ports1 x DC Jack (Compatible with the 19V power adapter)
Power Supply240W/19V
Dimensions3.74" x 9.25" x 8.66"

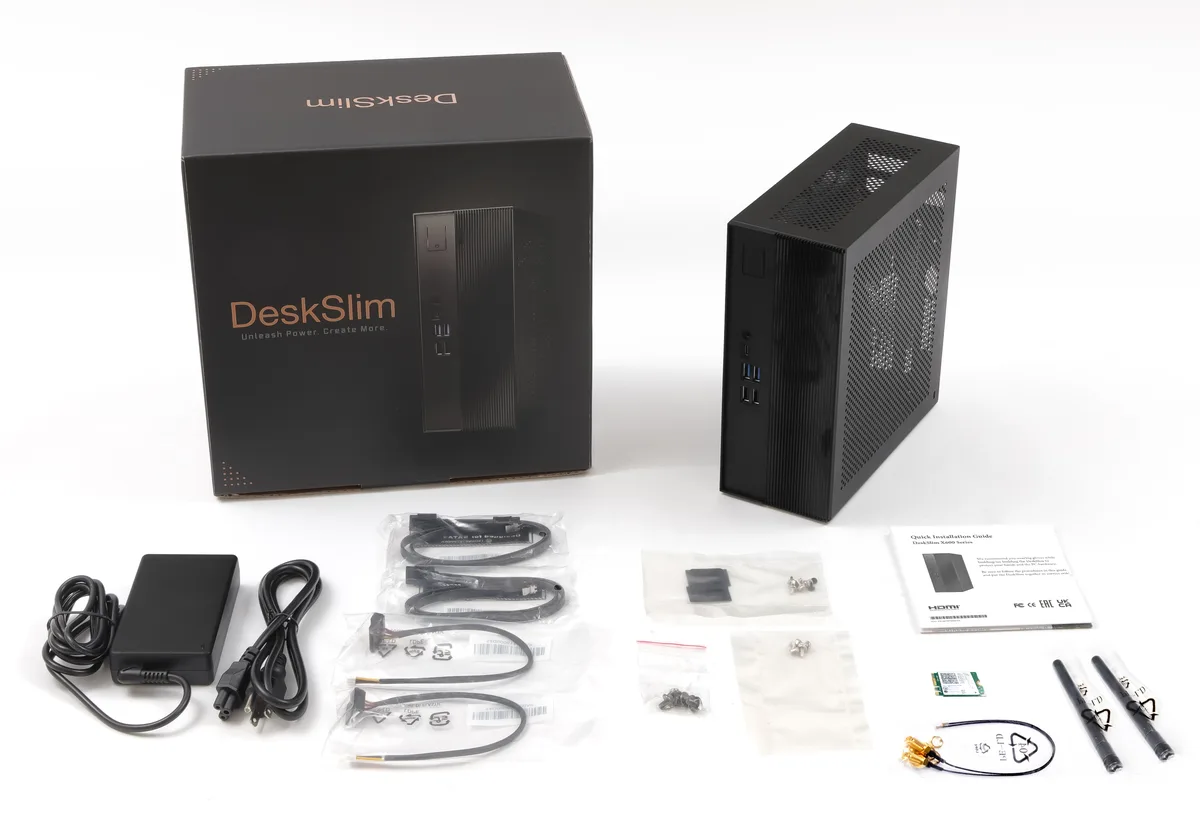

Packaging2 x SATA Cables
2 x SATA Data with Power Cables
2 x Screws for M.2 Sockets
1 x Screw for WiFi Module
4 x VESA Screws
1 x Wi-Fi6 Kit (AW-XB611NF)
Shipping weight3.08 kg
Package size298 × 286 × 183 mm

Questions about this item

Should I pick a 120W Ryzen 9000, 8000 or 7000 CPU for this AM5 barebone?

All three families fit the AM5 socket and the 120W power ceiling, so choose by core count and clock speed — the X600 chipset and 240W adapter handle any of them.

What does the 256GB DDR5 7200 limit mean once four DIMMs are populated?

You can install four DDR5 modules up to 256GB total; the board will run them at up to 7200 MT/s when the memory controller and modules support that OC speed.

How fast is the USB4 port compared with the 5.0 x16 slot and 2.5Gbps LAN?

The USB4 port delivers up to 40Gbps for peripherals, the PCIe 5.0 x16 slot provides full GPU bandwidth, and the RJ45 caps wired networking at 2.5Gbps.
