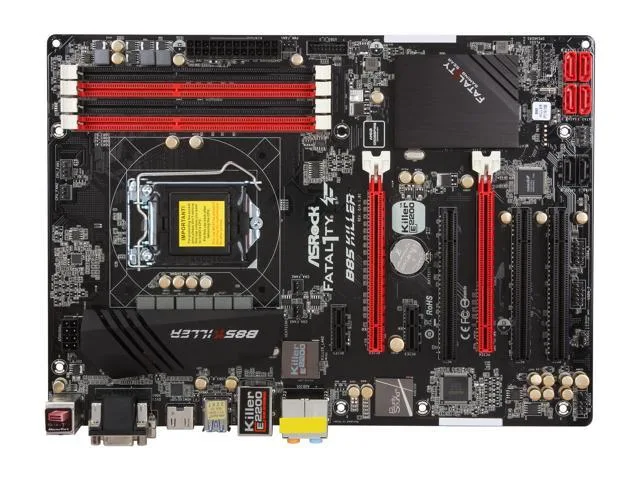

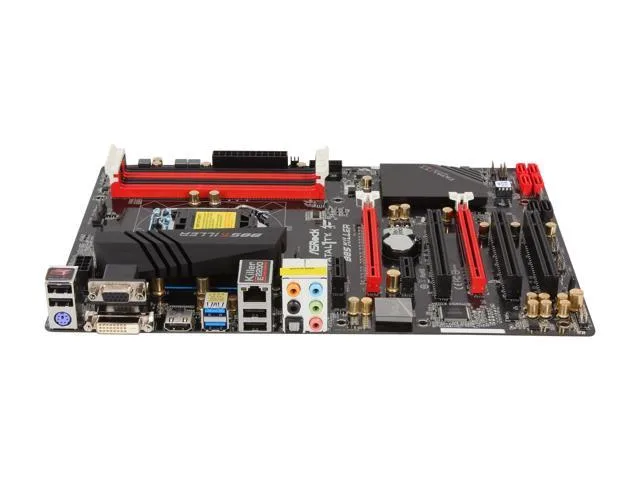

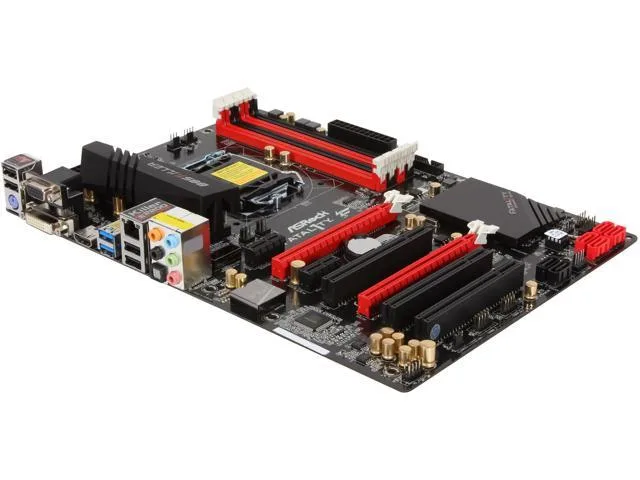

Black ATX motherboard with red accents and LGA 1150 socket

ASRock

ASRock Fatal1ty B85 Killer Intel motherboard

SKU CH-BDTN-R9ER0

ATX board for LGA 1150 CPUs with dual-channel DDR3 up to 32 GB, Killer E2200 LAN and 7.1 audio

  • CPU Socket TypeLGA 1150
  • CPU Type4th Generation Intel Core i7 / i5 / i3 / Xeon / Pentium / Ce
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel B85
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x240pin
  • Supports 4th Gen Intel Core processors on LGA 1150 socket
  • Dual-channel DDR3 memory up to 32 GB at 1600 MHz
  • Four SATA 6Gb/s ports for fast storage connectivity
  • Killer E2200 LAN prioritises gaming traffic for lower latency
  • Realtek ALC1150 delivers 7.1-channel high-definition audio

Target platform

The Fatal1ty B85 Killer is an LGA 1150 ATX board built around the Intel B85 chipset for fourth generation Core i7, i5, i3, Xeon, Pentium and Celeron processors. It targets gaming and enthusiast builds that need legacy DDR3 memory support and classic expansion slots.

Thermal and power profile

The B85 chipset runs cool enough for standard air cooling with no active heatsink required. Turbo Boost 2.0 on supported CPUs raises clock speeds within the stock power envelope, so a typical case airflow setup keeps thermals and noise in check without extra measures.

Bundled networking advantage

The onboard Qualcomm Atheros Killer E2200 controller prioritises gaming traffic and reduces latency during heavy network loads. Realtek ALC1150 audio delivers 7.1 channel output with dedicated headphone amplification, improving positional sound in games and media playback.

Highlights

  • Supports 4th Gen Intel Core processors on LGA 1150 socket
  • Dual-channel DDR3 memory up to 32 GB at 1600 MHz
  • Four SATA 6Gb/s ports for fast storage connectivity
  • Killer E2200 LAN prioritises gaming traffic for lower latency
  • Realtek ALC1150 delivers 7.1-channel high-definition audio

Specifications

BrandASRock
SeriesASRock Fatal1ty Gaming
ModelFatal1ty B85 Killer
CPU Socket TypeLGA 1150
CPU Type4th Generation Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron (LGA1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel B85
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x240pin
Memory StandardDDR3 1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 (running at x4)
PCI Express x12 x PCI Express x1
PCI Slots3 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
Audio ChipsetRealtek ALC1150
Audio Channels7.1 Channels
LAN ChipsetQualcomm Atheros KillerTM E2200 Series
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub 1 x DVI-D
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.03 x USB 2.0 1 x Fatal1ty Mouse Port (USB 2.0)
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x Power LED Header2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)1 x Power Fan Connector (3-pin)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector (Hi-Density Power Connector)1 x Front Panel Audio Connector
Form FactorATX
Power Pin24 Pin
FeaturesA-Style : Purity SoundGaming Armor-CPU Power - Hi-Density Power Connector-VGA Card - 15u Gold Finger-Internet - Qualcomm Atheros Killer LAN-Audio - Purity SoundPremium Gold Capacitor Design, Digi PowerSupports AMD Quad CrossFireX, CrossFireX7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS ConnectQualcomm Atheros Killer E2200 Series Gigabit LANUnique Feature:- ASRock F-Stream- ASRock Instant Flash- ASRock APP Charger- ASRock XFast RAM- ASRock Crashless BIOS- ASRock OMG (Online Management Guard)- ASRock Internet Flash- ASRock System Browser- ASRock UE
Package ContentsASRock Fatal1ty B85 Killer MotherboardQuick Installation GuideSupport CDI/O Shield2 x SATA Data Cables

Questions about this item

Will this board take a 4th-generation Core i5 and 32 GB of DDR3-1600?

Yes, the LGA 1150 socket supports 4th-generation Core i7, i5, i3, Xeon, Pentium and Celeron CPUs, and the four 240-pin slots accept up to 32 GB of DDR3 at 1600, 1333 or 1066 MT/s in dual-channel mode.

How many SATA 6 Gb/s drives can I connect without an extra controller?

Four SATA 6 Gb/s ports are provided on the board, so you can attach up to four drives directly.

Does the Killer E2200 LAN need a separate driver, or does Windows 10 include it?

Windows 10 includes a driver for the Qualcomm Atheros Killer E2200, but the vendor-supplied driver adds the traffic-prioritisation software that the chipset is designed for.
