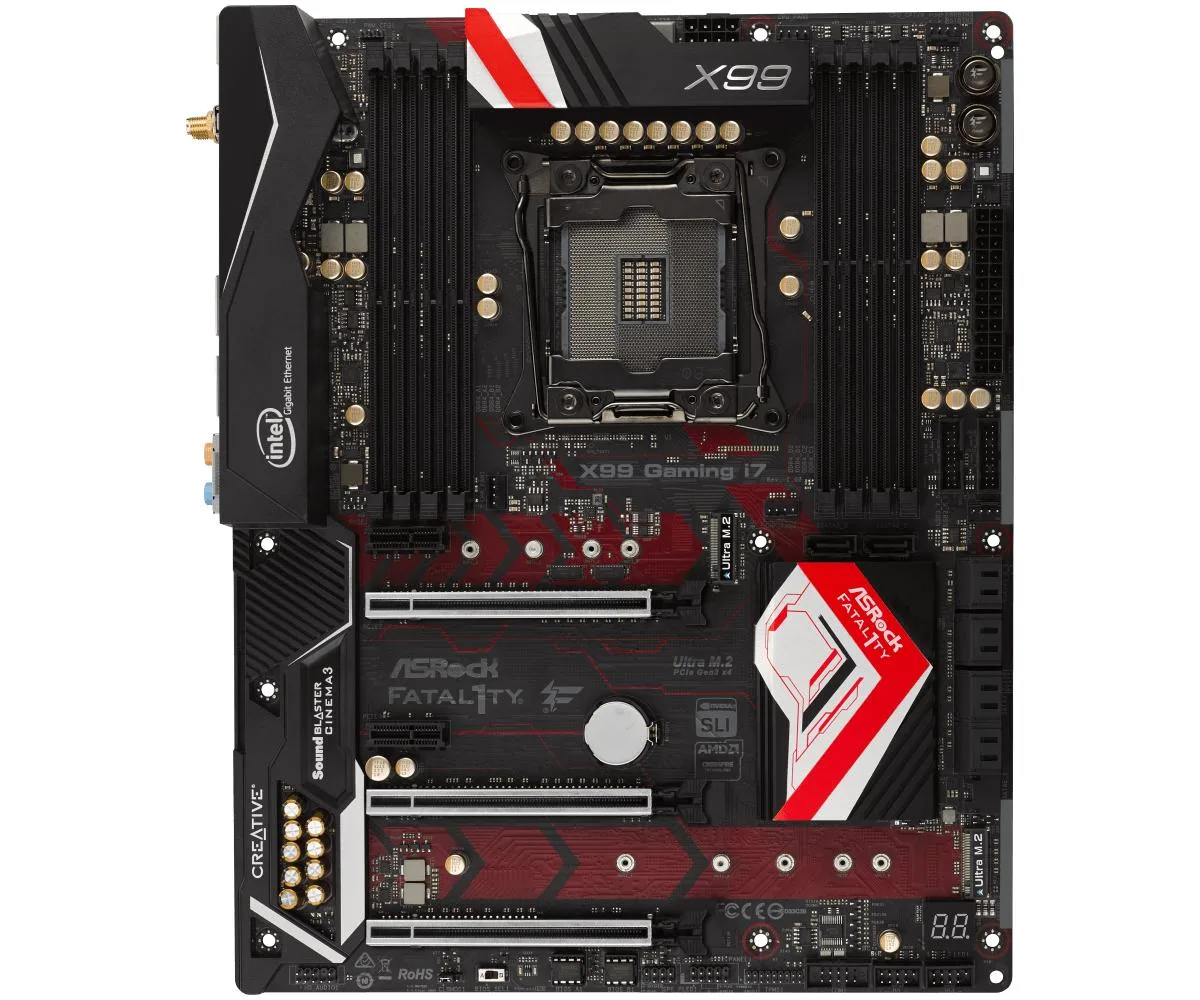

Rectangular ATX motherboard with black PCB, silver heatsinks, eight DDR4 slots, three full-length PCIe slots

ASRock

ASRock Fatal1ty X99 Professional Gaming i7 Intel motherboard

SKU CH-65QX-26YBH

ATX board for LGA 2011-v3 CPUs with eight DDR4 slots supporting 128 GB, three PCIe 3.0 x16 slots, ten SATA 6.0 Gb/s ports, one SATA Express connector, two Ultra M.2 sockets.

  • CPU Socket TypeLGA 2011-v3
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel X99
  • Onboard Video ChipsetNone
  • Number of Memory Slots8x288pin (DDR4)
  • Memory StandardDDR4 3300+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133
  • Supports up to 128GB DDR4 across eight 288-pin slots
  • Quad-channel memory architecture with speeds to 3300+(OC)/2933(OC)/2800(OC)/2400(OC)/2133
  • Three PCIe 3.0 x16 slots plus two PCIe 2.0 x1 slots for expansion
  • Ten SATA3 6.0Gb/s ports with RAID 0/1/5/10 plus one SATA Express 10Gb/s connector
  • Dual Intel LAN (I218V and I211-AT) and Realtek ALC1150 7.1-channel audio

Socket LGA 2011-v3 platform

This ASRock Fatal1ty X99 Professional Gaming i7 motherboard accepts Intel Core i7 and Xeon processors in the LGA 2011-v3 package. The Intel X99 chipset provides quad-channel DDR4 memory across eight slots with a maximum capacity of 128 GB. It is built for workstations and high-end desktops that need many cores and large memory configurations.

Gold-contact PCIe slots and shared M.2

The two primary PCI Express 3.0 x16 slots feature 15µ gold contacts for durable graphics-card connections. Ten SATA3 6.0 Gb/s ports and one SATA Express 10 Gb/s connector handle storage, with RAID 0, 1, 5 and 10 supported by Intel Rapid Storage Technology 13. One Ultra M.2 socket takes SATA or PCIe modules up to Gen3 x4 32 Gb/s, while a second M.2 socket is limited to SATA and a Key E slot serves Wi-Fi/BT modules; several SATA ports are shared with these M.2 sockets.

Dual Intel LAN and 7.1 audio

Networking uses two Intel controllers, the I218V and the I211-AT, giving two gigabit Ethernet ports. Audio is handled by the Realtek ALC1150 codec delivering 7.1 channels. The board also supplies USB 3.1 and USB 3.0 headers alongside two PCI Express 2.0 x1 slots for additional expansion cards.

Highlights

  • Supports up to 128GB DDR4 across eight 288-pin slots
  • Quad-channel memory architecture with speeds to 3300+(OC)/2933(OC)/2800(OC)/2400(OC)/2133
  • Three PCIe 3.0 x16 slots plus two PCIe 2.0 x1 slots for expansion
  • Ten SATA3 6.0Gb/s ports with RAID 0/1/5/10 plus one SATA Express 10Gb/s connector
  • Dual Intel LAN (I218V and I211-AT) and Realtek ALC1150 7.1-channel audio

Specifications

BrandASRock
ModelFatal1ty X99 Professional Gaming i7
CPU Socket TypeLGA 2011-v3
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel X99
Onboard Video ChipsetNone
Number of Memory Slots8x288pin (DDR4)
Memory StandardDDR4 3300+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133
Maximum Memory Supported128GB
Channel SupportedQuad Channel
PCI Express 3.0 x163 x PCI Express 3.0 x16 Slots (PCIE2 @ x16 mode; PCIE4 @ x16 mode; PCIE5 @ x0 mode)
(PCIE2 @ x16 mode; PCIE4 @ x8 mode; PCIE5 @ x8 mode)
* If you install CPU with 28 lanes, PCIE2/PCIE4/PCIE5 will run at x16/x0/x8 or x8/x8/x8.
* Supports NVMe SSD as boot disks
PCI Express x12 x PCI Express 2.0 x1 Slots
Other Slots1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT module
* The M.2 socket does not support SATA M.2 SSDs.
15µ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE4)
Serial ATA (SATA)10 x SATA3 6.0Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, Hot Plug
* SSATA3_3 connector is shared with the M2_1; SSATA3_2 connector is shared with the M2_2
* RAID is supported on SATA3_0 ~ SATA3_5 ports only.
SATA Express1 x SATA Express 10Gb/s Connector (shared with SATA3_4 and SATA3_5)
M.21 x Ultra M.2 Socket (M2_2), support type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32Gb/s)
1 x Ultra M.2 Socket (M2_1), support type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and
M.2 PCI Express module up to Gen3 x4 (32Gb/s)
Audio ChipsetRealtek ALC1150
Audio Channels7.1 Channels
LAN ChipsetIntel I218V
Second LAN ChipsetIntel I211-AT
Max LAN Speed2 x 1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac
BluetoothBluetooth 4.0 / 3.0 + High speed class II
PS/21 x PS/2 keyboard/mouse port
RJ452 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
USB 3.11 x USB 3.1 Type-A Port (10Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.1 Type-C Port (10Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
USB 3.04 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.01 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
S/PDIF Out1 x Optical
Audio PortsHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU Optional/Water Pump Fan Connector (4-pin)
* The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
3 x Chassis Fan Connectors (4-pin)
* CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Dr. Debug with LED
1 x Power Switch w
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
FeaturesUnique Feature
ASRock USB 3.1
- ASRock USB 3.1 Type-A Port (10Gb/s)
- ASRock USB 3.1 Type-C Port (10Gb/s)
ASRock X Series OC Socket
ASRock 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Ultra Dual-N MOSFET (UDM)
- Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC)
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Sapphire Black PCB
-

Questions about this item

Will this board take a standard Xeon processor?

Yes, the LGA 2011-v3 socket supports Xeon CPUs alongside Core i7 models.

How many memory modules can I install and what is the limit?

Eight DDR4 slots are provided with a maximum capacity of 128GB running in quad-channel mode.

Can I use a SATA M.2 SSD in the Key E slot?

No, the Key E M.2 socket is wired only for WiFi and Bluetooth modules; use the Ultra M.2 sockets for storage drives.
