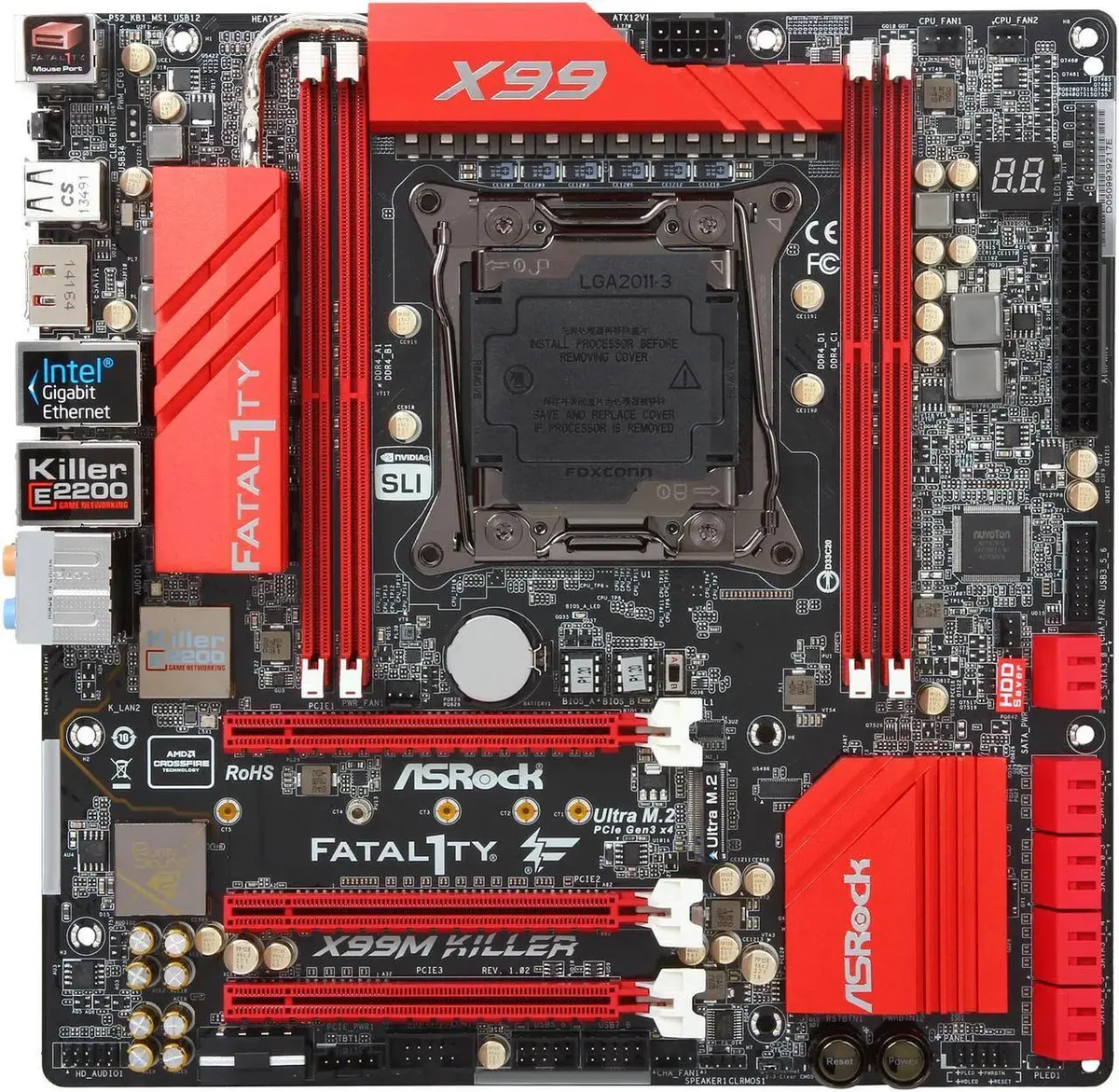

Micro ATX motherboard black PCB red accents LGA 2011-v3 socket four DDR4 slots

ASRock

ASRock Fatal1ty X99M Killer Intel motherboard

SKU CH-TADY-8XH56

Micro-ATX Intel X99 board for LGA 2011-v3 CPUs with quad-channel DDR4 up to 3000 MT/s, ten SATA 6 Gb/s ports, dual LAN and 7.1 audio

  • CPU Socket TypeLGA 2011-v3
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel X99
  • Onboard Video ChipsetNone
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3000+(OC) / 2933+(OC) / 2800(OC) / 2400(OC) / 2133 / 18
  • Supports quad-channel DDR4 up to 3000 MHz for high memory bandwidth
  • Two full-length PCI Express 3.0 x16 slots enable multi-GPU configurations
  • Ten SATA 6 Gb/s ports provide extensive storage connectivity
  • Ultra M.2 socket delivers up to 32 Gb/s transfer speed
  • Dual LAN with Intel and Killer controllers optimises network traffic

LGA 2011-v3 micro-ATX for Core i7

The ASRock Fatal1ty X99M Killer fits Intel Core i7 processors in the LGA 2011-v3 package on a micro-ATX form factor. The Intel X99 chipset provides quad-channel DDR4 support across four 288-pin slots with speeds up to DDR4 3000+(OC). Two PCI Express 3.0 x16 slots and one PCI Express 2.0 x16 slot at x4 mode give multi-GPU flexibility for enthusiasts and workstation users.

Thermals, noise and power draw

The board uses the Intel X99 PCH alongside dual LAN controllers — Intel I218V and Qualcomm Atheros Killer LAN — which operate within typical platform power envelopes. Realtek ALC1150 7.1-channel audio adds minimal load. With no onboard video, system thermals and acoustics depend on the chosen CPU cooler and case airflow rather than integrated graphics heat.

Sustained load behaviour

Ten SATA 6Gb/s ports and one Ultra M.2 socket supporting Gen3 x4 (32 Gb/s) maintain bandwidth during extended storage workloads. RAID 0, 1, 5, 10 and Intel Rapid Storage 13 keep arrays stable over long sessions. Quad-channel memory up to 64GB feeds multi-threaded applications without bottlenecks, while Turbo Boost Technology 2.0 manages CPU frequencies under continuous demand.

Highlights

  • Supports quad-channel DDR4 up to 3000 MHz for high memory bandwidth
  • Two full-length PCI Express 3.0 x16 slots enable multi-GPU configurations
  • Ten SATA 6 Gb/s ports provide extensive storage connectivity
  • Ultra M.2 socket delivers up to 32 Gb/s transfer speed
  • Dual LAN with Intel and Killer controllers optimises network traffic

Specifications

BrandASRock
SeriesASRock Fatal1ty Gaming
ModelFatal1ty X99M Killer
CPU Socket TypeLGA 2011-v3
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel X99
Onboard Video ChipsetNone
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3000+(OC) / 2933+(OC) / 2800(OC) / 2400(OC) / 2133 / 1866 / 1600 / 1333 / 1066
Maximum Memory Supported64GB
Channel SupportedQuad Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode)
PCI Express 2.0 x161 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)
Serial ATA (SATA)10 x SATA 6Gb/s
M.21 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13
Audio ChipsetRealtek ALC1150
Audio Channels7.1 Channels
LAN ChipsetIntel I218V
Second LAN ChipsetQualcomm Altheros Killer LAN
Max LAN Speed2 x 1Gbps
PS/21 x PS/2 keyboard/mouse port
RJ452 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
USB 3.04 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.03 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
eSATA1 x eSATA Connector
S/PDIF Out1 x Optical
Audio PortsHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x COM Port Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x HDD Saver Connector
1 x PCIe Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt? AIC Connector
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x BIOS Selection Switch
Form FactorMicro ATX
Power Pin24 Pin
FeaturesASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- NexFET MOSFET
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
Gaming Armor
» CPU Power - Hi-Density Power Connector + Ultra Dual-N MOSFET
» Memory - NexFET MOSFET + 15µ Gold Contact in DIMM Slots
» VGA Card - 15µ Gold Contact in VGA PCIe Slot + PCIe Power Connector
» Cooling - XXL Aluminum Alloy Heatsink
» Internet - Intel LAN + Qualcomm Atheros Killer LAN
» Audio - Purity Sound 2
Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA
Package Contents1 x ASRock SLI_Bridge Card
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x HDD Saver Cable
1 x Screw for Ultra M.2 Socket

Questions about this item

How do I install the LGA 2011-v3 CPU into the socket without bending pins?

Lift the socket lever, align the CPU notches with the socket keys, place the chip gently without pressure, close the frame and lock the lever; the step people miss is removing the protective cover only after the CPU sits flat.

What maintenance or replacement will the Fatal1ty X99M Killer need over time?

The board uses solid capacitors and soldered Realtek ALC1150 audio plus dual Intel I218V and Qualcomm Killer LAN controllers, so no routine part swaps are required beyond occasional dust removal from the four DDR4 slots and PCIe slots.

What limit appears first when the X99 chipset runs sustained heavy I/O through the M.2 and ten SATA 6Gb/s ports?

The Ultra M.2 socket caps at 32 Gb/s PCIe Gen3 x4 while the ten SATA ports share the chipset’s 6 Gb/s lanes, so combined throughput hits the chipset DMI ceiling before individual drives saturate.
