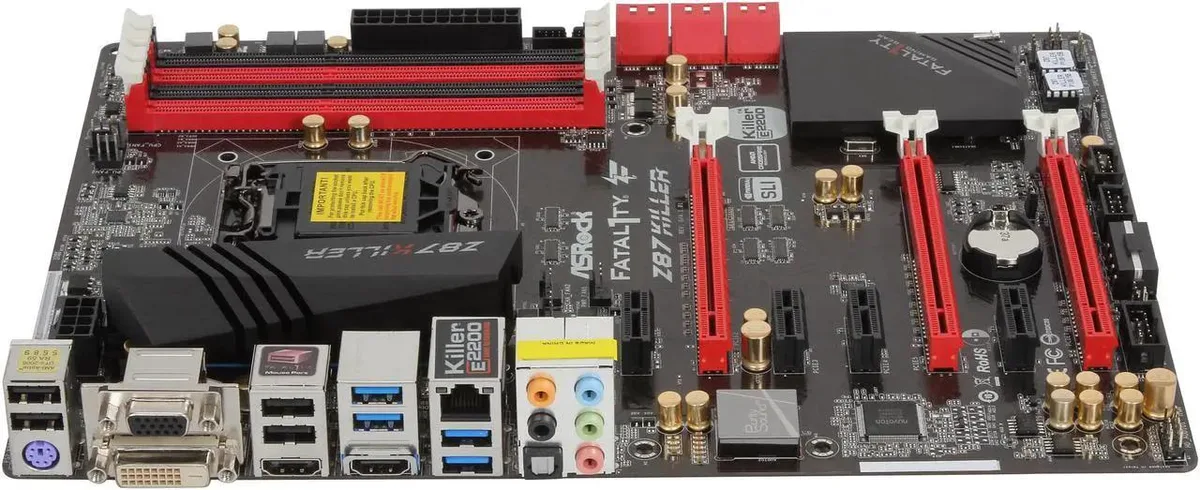

ATX motherboard with black PCB and red accents visible components include CPU socket and memory slots

ASRock

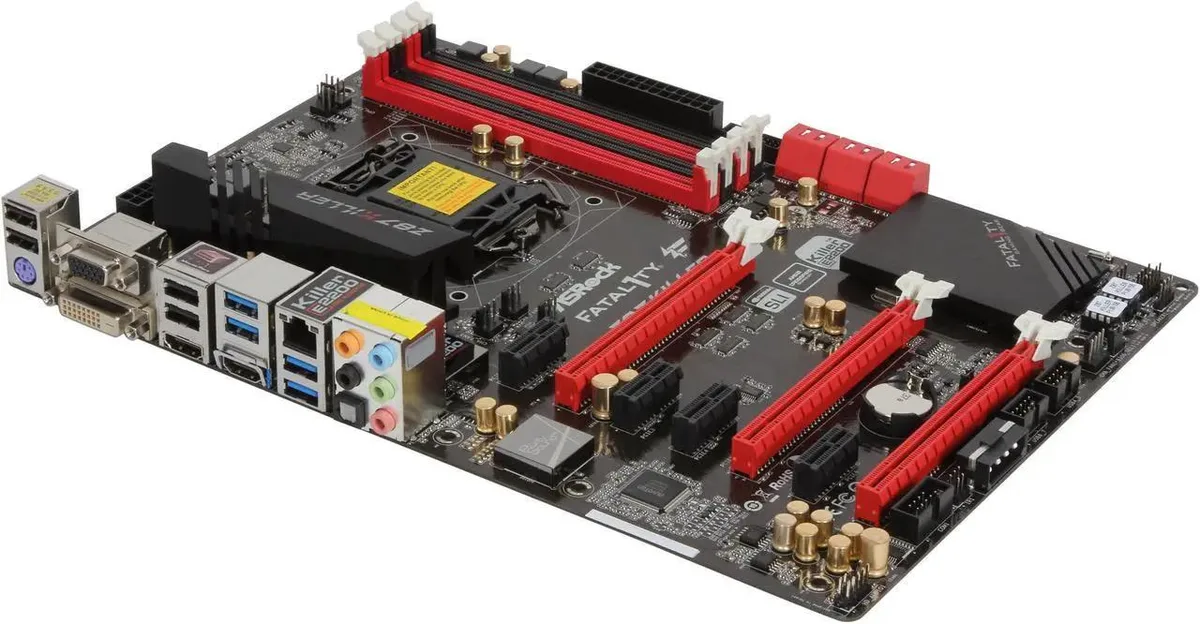

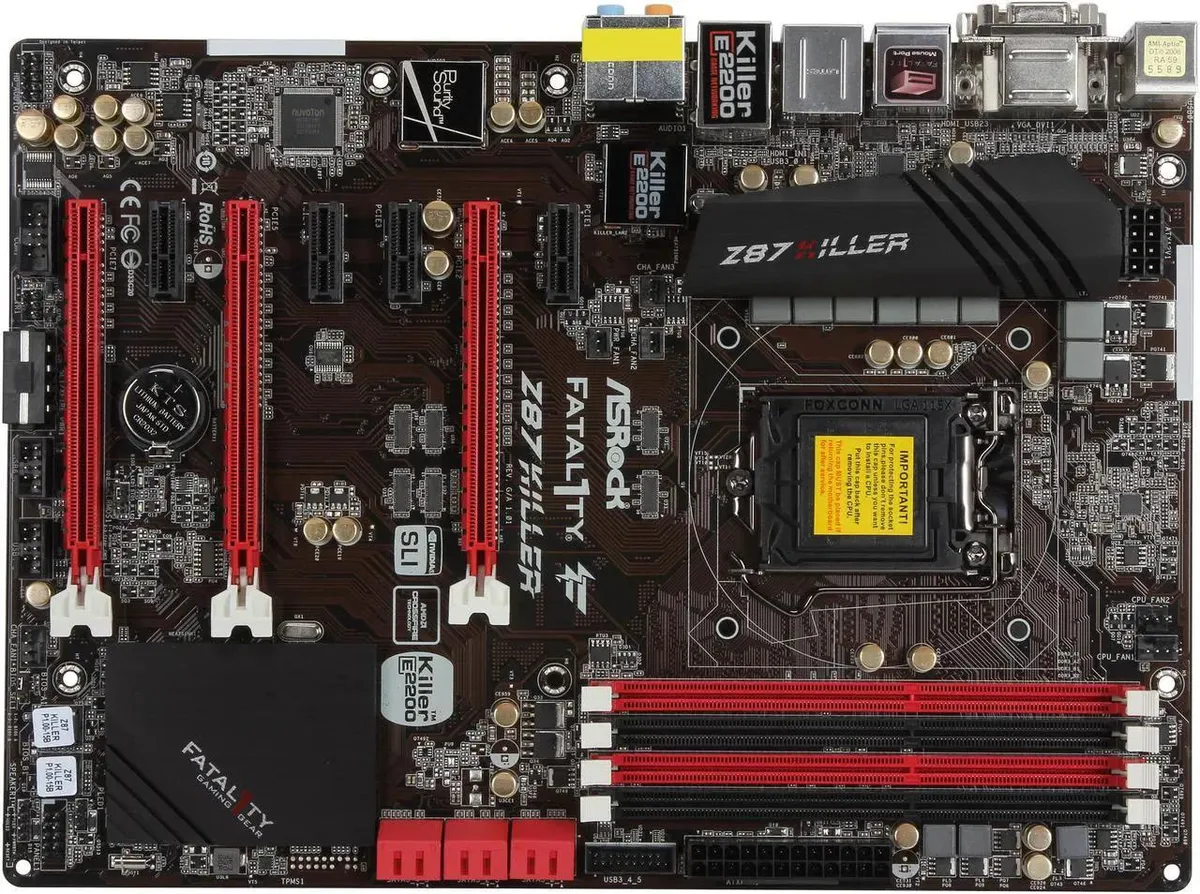

ASRock Fatal1ty Z87 Killer Intel motherboard

SKU CH-9FAJ-1BT64

Supports 4th generation Intel CPUs on LGA 1150 with DDR3 memory up to 3050 MHz OC and Killer E2200 LAN

  • CPU Socket TypeLGA 1150
  • CPU Type4th generation Corei7/i5/i3/Xeon/Pentium/Celeron(LGA 1150)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z87
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x240pin
  • Supports 4th generation Intel Core and Xeon CPUs on LGA 1150 socket
  • DDR3 memory up to 3050 MHz overclocked across four slots
  • Three PCI Express 3.0 x16 slots for multi-GPU configurations
  • Qualcomm Atheros Killer E2200 LAN for low-latency networking
  • Realtek ALC1150 audio delivers 7.1 channel sound

Socket and chipset

The ASRock Fatal1ty Z87 Killer is an ATX motherboard built around the Intel Z87 chipset and LGA 1150 socket. It accepts 4th generation Core i7, i5, i3, Xeon, Pentium and Celeron processors with Turbo Boost 2.0 support. The board targets enthusiasts who want overclocking headroom and gaming-oriented networking.

Memory and expansion checklist

Verify that your CPU cooler clears the four 240-pin DDR3 slots which support speeds up to 3050+(OC) and a maximum of 32 GB in dual-channel mode. Confirm your power supply provides the necessary ATX and CPU connectors for the three PCI Express 3.0 x16 slots and four PCI Express x1 slots. Ensure your chassis can accommodate an ATX form factor before ordering.

Killer LAN and audio bundle

The onboard Qualcomm Atheros Killer E2200 Series controller delivers 1 Gbps wired networking with traffic prioritisation for low-latency gaming. Realtek ALC1150 provides 7.1 channel high-definition audio for immersive sound. Six SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support complete the storage package.

Highlights

  • Supports 4th generation Intel Core and Xeon CPUs on LGA 1150 socket
  • DDR3 memory up to 3050 MHz overclocked across four slots
  • Three PCI Express 3.0 x16 slots for multi-GPU configurations
  • Qualcomm Atheros Killer E2200 LAN for low-latency networking
  • Realtek ALC1150 audio delivers 7.1 channel sound

Specifications

BrandASRock
SeriesASRock Fatal1ty Gaming
ModelFatal1ty Z87 Killer
CPU Socket TypeLGA 1150
CPU Type4th generation Corei7/i5/i3/Xeon/Pentium/Celeron(LGA 1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z87
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x240pin
Memory StandardDDR3 3050+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCI Express 3.0 x16 Slots (PCIE2/PCIE5/PCIE7: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE5); triple at x8 (PCIE2) / x4 (PCIE5) / x4 (PCIE7))
PCI Express x14 x PCI Express x1
Serial ATA (SATA)6 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Audio Channels7.1 Channels
LAN ChipsetQualcomm Atheros Killer E2200 Series
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub
1 x DVI-D
HDMI1 x HDMI-Out
1 x HDMI-In
USB 3.04 x USB 3.0
USB 1.1/2.03 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports6 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x IR Header
1 x COM Port Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x SLI/XFire Power Connector
1 x Front Panel Audio Connector
Form FactorATX
Power Pin24 Pin
FeaturesA-Style : Purity Sound, HDMI-In
Gaming Armor
-CPU Power - Hi-Density Power Connector
-VGA Card - 15u Gold Finger, SLI/CrossFireX Power Connector
-Internet - Qualcomm Atheros Killer LAN
-Audio - Purity Sound
Premium Gold Capacitor Design, Digi Power, 8 Power Phase Design
Supports Dual Channel DDR3 3050+(OC)
3 PCIe 3.0 x16, 4 PCIe 2.0 x1
Supports AMD 3-Way CrossFireX, NVIDIA Quad SLI
VGA Output/Input Options : D-Sub, DVI-D, HDMI-Out, HDMI-In
7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
Qualcomm Atheros Killer E2200 Series Gigabit LAN
Suppo

Questions about this item

What comes in the box with the Fatal1ty Z87 Killer and what must I buy separately?

The motherboard ships alone. You must supply a 4th-generation Core i7, i5, i3, Xeon, Pentium or Celeron processor for the LGA 1150 socket, up to four DDR3 DIMMs, a graphics card if the CPU lacks integrated graphics, storage drives for the six SATA 6Gb/s ports, a chassis, power supply and operating system.

Which memory speed should I choose from the listed DDR3 options?

The board supports DDR3 at 1066, 1333 and 1600 natively; speeds of 1866, 2133, 2400, 2800 and 3050 require overclocking. Pick a kit rated for your desired frequency and enable the matching XMP profile in the BIOS.

What does the three-slot PCI Express 3.0 x16 layout mean for my graphics cards?

The top slot runs at x16 alone. With two cards they operate at x8 and x8. With three cards the bandwidth splits to x8, x4 and x4 across the three slots.
