ASRock

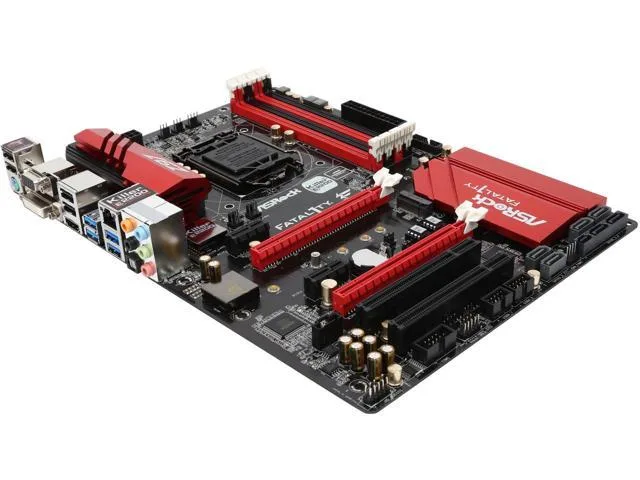

ASRock Fatal1ty Z97 Killer Intel motherboard
LGA 1150 ATX board with Intel Z97 chipset, dual-channel DDR3 and DDR3L up to 32 GB, one PCIe 3.0 x16 slot, six SATA 6.0 Gb/s ports with RAID 0/1/5/10, plus 7.1-channel Realtek ALC1150 audio
- CPU Socket TypeLGA 1150
- CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- Onboard Video Chipset- Supports Intel HD Graphics Built-in Visuals: Intel Quick S
- Memory StandardDDR3/DDR3L 3200+*(*OC)/ 2933*/ 2800*/ 2400*/ 2133*/ 1866*/ 1
- Maximum Memory Supported32GB
- Supports 32GB DDR3/DDR3L for heavy multitasking
- 1-channel Realtek ALC1150 audio for immersive sound
- Intel Z97 chipset enables CPU Turbo Boost 2.0
- PCI Express 3.0 x16 slot for high-bandwidth graphics
- Six SATA 6.0Gb/s ports with RAID 0/1/5/10
Z97 ATX motherboard for LGA 1150 CPUs
This ASRock Fatal1ty Z97 Killer board uses the Intel Z97 chipset and fits LGA 1150 processors from Core i7 down to Celeron. It supports dual-channel DDR3 and DDR3L memory at speeds up to 3200 MHz when overclocked. The ATX form factor provides six SATA 6.0 Gb/s ports, one SATA Express 10 Gb/s connector and a single M.2 socket.
Gamers and builders needing legacy expansion
The board includes one PCI Express 3.0 x16 slot, one PCI Express 2.0 x16 slot running at x4, two PCI Express 2.0 x1 slots and two conventional PCI slots. That layout suits users who still run older sound cards, capture cards or other PCI devices. Builders who only need modern PCIe x1 and M.2 devices will find simpler Z97 boards with fewer legacy slots.
Realtek ALC1150 7.1-channel audio
Onboard sound is handled by the Realtek ALC1150 codec driving 7.1 channels. The implementation is marketed under the Purity Sound name with dedicated PCB layers and Japanese capacitors. If your workflow relies on external DACs or professional interfaces, the onboard codec is less relevant.
Highlights
- Supports 32GB DDR3/DDR3L for heavy multitasking
- 1-channel Realtek ALC1150 audio for immersive sound
- Intel Z97 chipset enables CPU Turbo Boost 2.0
- PCI Express 3.0 x16 slot for high-bandwidth graphics
- Six SATA 6.0Gb/s ports with RAID 0/1/5/10
Specifications
| Brand | ASRock |
|---|---|
| Series | ASRock Fatal1ty Gaming |
| Model | Fatal1ty Z97 Killer |
| CPU Socket Type | LGA 1150 |
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Onboard Video Chipset | - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600- Pixel Shader 5.0, DirectX 11.1- Max. shared memory 1792MB- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC an |
| Memory Standard | DDR3/DDR3L 3200+*(*OC)/ 2933*/ 2800*/ 2400*/ 2133*/ 1866*/ 1600/ 1333/ 1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode) |
| PCI Express x1 | 2 x PCI Express 2.0 x1 Slots |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug |
| SATA Express | 1 x SATA Express 10Gb/s Connector (shared with SATAE_4, SATAE_5 and M.2 Socket)**Support to be announced. |
| M.2 | 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x2 (10Gb/s)** The M.2 Socket, SATAE_4, SATAE_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Qualcomm Atheros Killer E2200 Series |
| Max LAN Speed | 1Gbps |

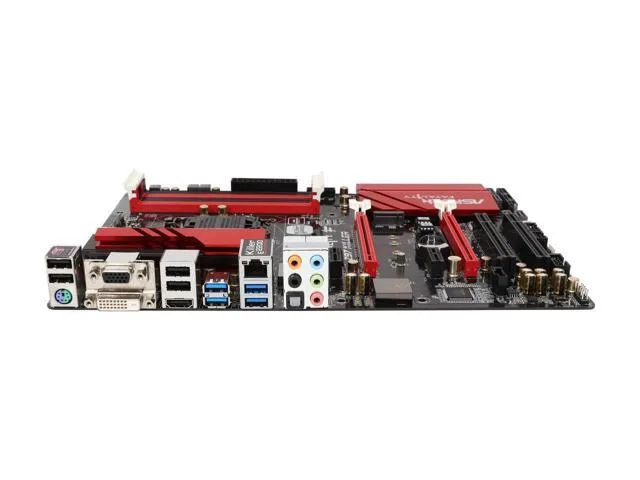

| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 4 x USB 2.0/1.1 / 4 x USB 3.0 |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Other Connectors | 1 x COM Port Header1 x TPM Header1 x Power LED Header2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)1 x Power Fan Connector (3-pin)1 x 24-pin ATX Power Connector1 x 8-pin 12V Power Connector (Hi-Density Power Connector)1 x Front Panel Audio Connector1 x Thunderbolt AIC Connector**Please update to the latest BIOS to support Thunderbolt technology. |
| Form Factor | ATX |
| Power Pin | 24 Pin |
| Features | Gaming ArmorCPU Power - Hi-Density Power ConnectorMemory- NexFET MOSFET- 15µ Gold Contact in DIMM SlotsVGA Card - 15µ Gold Contact in VGA PCIe Slot (PCIE2)Internet - Qualcomm Atheros Killer LANCooling - XXL Aluminum Alloy HeatsinkAudio - Purity Sound 2Unique FeatureASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)- NexFET MOSFET- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)- Sapphire Black PCBASRock Full Spike ProtectionASRock CloudASRock APP ShopBIOS- 2 x 64MB AMI UEFI |
| Package Contents | ASRock Z97 Killer MotherboardQuick Installation Guide, Support CD, I/O Shield 4 x SATA Data Cables 1 x Screw for M.2_SSD (NGFF) Socket 3 |
Questions about this item
Will this board take my LGA 1150 Core i5 and DDR3 memory?
Yes, the socket is LGA 1150 and the memory standard is DDR3 or DDR3L up to 32 GB in dual channel.
Can I run a SATA SSD and an M.2 SATA drive at the same time?
The M.2 socket shares lanes with the SATA Express connector and two SATA3 ports, so using M.2 SATA disables those two SATA ports.
What RAID modes does the onboard controller support?
The Intel Z97 controller supports RAID 0, 1, 5 and 10 across the six SATA3 6.0 Gb/s connectors.
