ASRock
ASRock H310CM-HDV/M.2 Intel motherboard
Micro-ATX LGA 1151 board for 8th and 9th Gen Intel Core CPUs with DDR4 memory, an M.2 slot and four SATA ports
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports 9th and 8th Gen Intel Core Processors (Socket 1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel H310
- Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sy
- Number of Memory Slots2x288pin (DDR4)
- Supports 8th and 9th Gen Intel Core processors on LGA 1151 socket
- DDR4 memory up to 2666 MT/s across two slots for 32 GB maximum
- M.2 slot accepts SATA or PCIe Gen2 x4 drives including NVMe SSDs
- Four SATA3 6.0 Gb/s ports with NCQ, AHCI and hot-plug support
- Intel I219-V Gigabit LAN and Realtek ALC887 7.1-channel audio with surge protection
ASRock H310CM-HDV/M.2 LGA 1151 motherboard
This Intel H310 board fits LGA 1151 processors from the 8th and 9th generations. It uses the Micro ATX form factor and runs DDR4 memory up to 2666 MHz. The layout suits compact builds that need integrated graphics output and a single full-length expansion slot.
Who this suits and who should look elsewhere
Builders upgrading an existing 8th or 9th Gen Core CPU gain a current BIOS and an M.2 socket that accepts both SATA and PCIe Gen2 x4 modules. The two memory slots cap system RAM at 32 GB, so users planning 64 GB should choose a four-slot board. Four SATA3 ports handle multiple drives, though populating the M.2 slot with a SATA device disables one connector.
Deciding specification: M.2 PCIe Gen2 x4 support
The M.2 slot runs PCIe Gen2 x4 at 20 Gb/s and works with NVMe SSDs as boot drives. This speed ceiling is the key figure when selecting storage; faster Gen3 or Gen4 drives will operate at this limit. The slot also accepts 2230, 2242, 2260 and 2280 modules and supports the ASRock U.2 kit for alternative drive mounting.
Highlights
- Supports 8th and 9th Gen Intel Core processors on LGA 1151 socket
- DDR4 memory up to 2666 MT/s across two slots for 32 GB maximum
- M.2 slot accepts SATA or PCIe Gen2 x4 drives including NVMe SSDs
- Four SATA3 6.0 Gb/s ports with NCQ, AHCI and hot-plug support
- Intel I219-V Gigabit LAN and Realtek ALC887 7.1-channel audio with surge protection

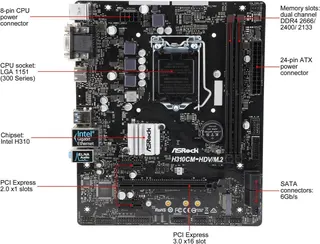

Specifications
| Brand | ASRock |
|---|---|
| Model | H310CM-HDV/M.2 |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports 9th and 8th Gen Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H310 |
| Onboard Video Chipset | Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) Three graphics output options: D-Sub, DVI-D and HDMI** Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096 x 2160) @ 30 Hz Supports DVI-D with max. resolution up to 1920 x 1200 @ 60 Hz Supports D-Sub with max. resolution up to 192 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 32GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 2 x PCI Express 2.0 x1 Slots |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
| M.2 | 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x4 (20Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Supports Surge Protection |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |

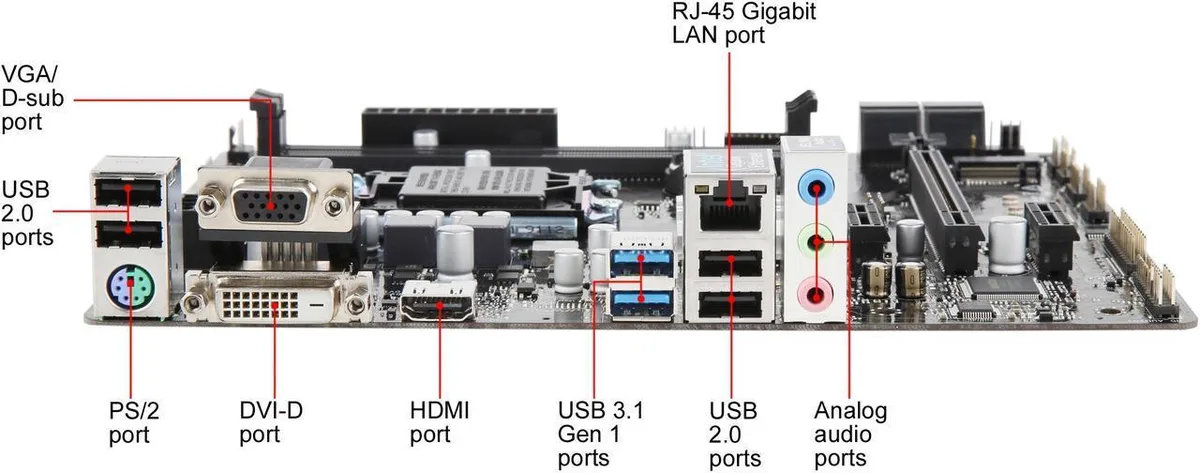

| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*** *** USB_11_12 is shared with USB_9_10. |
| Other Connectors | 1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ** CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.9" x 7.4" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment Software and UEFI: Software - ASRock A-Tuning - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash * These utilities can be downloaded from ASRock L |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
Questions about this item
Will my existing DDR4 memory modules work at their rated speed?
The board runs DDR4 at 2666, 2400 or 2133 MT/s with two 288-pin slots in dual-channel mode up to 32 GB total.
Can I install a 9th-generation Core i5 or i7 without a BIOS update?
The board ships with the latest BIOS so 8th and 9th generation LGA 1151 processors are supported out of the box.
What happens to the SATA ports if I add an M.2 SATA drive?
Occupying the M.2 socket with a SATA-type module disables the third SATA3 connector; the other three remain active.
