Green Mini-ITX board with silver CPU socket, two black memory slots, blue M.2 slot, silver I/O shield, black heatsink, gold PCIe slot

ASRock

ASRock H310CM-ITX/ac Intel motherboard

SKU CH-596Y-TNYFK

Mini ITX LGA 1151 board with dual-channel DDR4, M.2 and SATA storage, Intel 1 Gbps LAN, 802.11 ac Wi-Fi and Bluetooth 4.2

  • CPU TypeCore i7 / i5 / i3 (LGA1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel H310
  • Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sy
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2666/ 2400/ 2133
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz with two 288-pin slots
  • M.2 socket accepts PCIe Gen2 x4 or SATA 6.0 Gb/s drives for fast storage
  • Intel I219-V Gigabit LAN plus 802.11 ac Wi-Fi and Bluetooth 4.2 for connectivity
  • Realtek ALC887 7.1-channel audio with DVI-I, HDMI 1.4 and DisplayPort 1.2 video outputs

Compact LGA 1151 H310 board

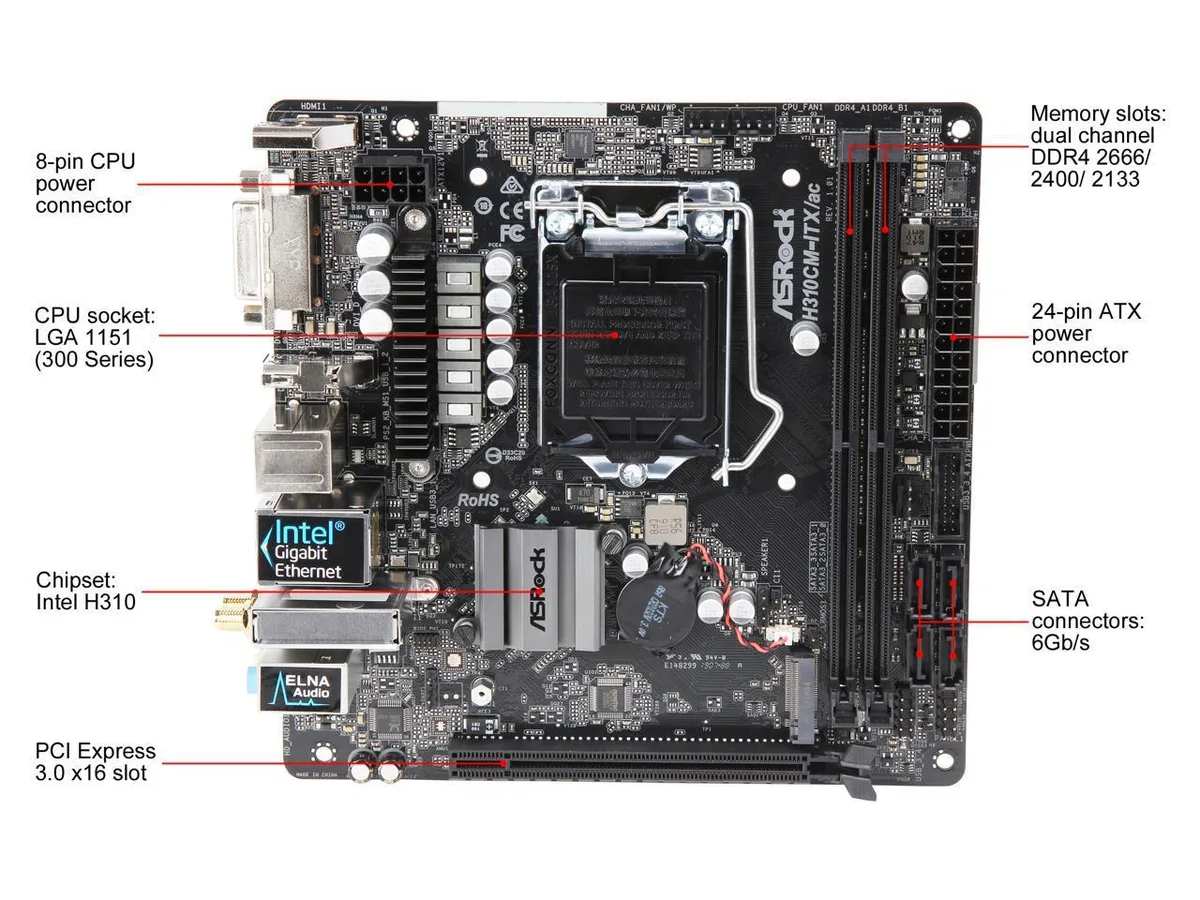

The ASRock H310CM-ITX/ac is a Mini-ITX motherboard for Intel 8th and 9th generation Core i7, i5 and i3 processors on the LGA 1151 socket. It uses the Intel H310 chipset and supports DDR4 memory up to 2666 MHz in two slots. Integrated Intel UHD Graphics drive DVI-I, HDMI 1.4 and DisplayPort 1.2 outputs for 4K display.

Home and office builds only

This board suits compact PCs for general productivity, media playback and light multitasking. Builders needing CPU overclocking, multi-GPU arrays, more than four SATA ports or 10 Gbps networking should choose a Z-series ATX alternative instead.

Single PCIe 3.0 x16 and one M.2 slot

Expansion is limited to one full-length PCI Express 3.0 x16 slot and a single M.2 2280 socket that accepts SATA or PCIe Gen2 x4 NVMe SSDs. Four SATA 6.0 Gb/s ports provide additional storage, though SATA3_0 is disabled when a SATA M.2 drive is installed.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz with two 288-pin slots
  • M.2 socket accepts PCIe Gen2 x4 or SATA 6.0 Gb/s drives for fast storage
  • Intel I219-V Gigabit LAN plus 802.11 ac Wi-Fi and Bluetooth 4.2 for connectivity
  • Realtek ALC887 7.1-channel audio with DVI-I, HDMI 1.4 and DisplayPort 1.2 video outputs

Specifications

BrandASRock
ModelH310CM-ITX/ac
CPU TypeCore i7 / i5 / i3 (LGA1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H310
Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
Three graphics output options: DVI-I, HDMI and DisplayPort 1.2**
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports DVI-I with max. resolution
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133
Maximum Memory Supported32GB* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x4 (20Gb/s)**
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x DVI-I Port
1 x HDMI Port
1 x DisplayPort 1.2
2 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis Fan Connector (4-pin)**
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
*** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- Dual-Stack MOSFET (DSM)
- Sapphire Black PCB
- High Density Glass Fabric PCB
Intel 802.11 ac Wi-Fi
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
Software:
- ASRock A-Tuning
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock Wi-Fi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket

Questions about this item

How do I verify the board is running correctly after I install a CPU and DDR4 memory?

Power on the system and confirm the BIOS POST screen appears; then check that the installed DDR4 memory is detected at 2666, 2400 or 2133 MT/s and that the Intel I219-V LAN and Intel 802.11ac Wi-Fi show as active in the operating system.

What comes in the box and what must I purchase separately?

The motherboard, I/O shield, SATA cables, driver disc and a pre-installed Intel 802.11ac Wi-Fi module in the vertical M.2 Key E socket are included; you must buy a compatible LGA 1151 processor, DDR4 DIMMs, storage drives and a chassis separately.

Which M.2 slot should I choose for a boot drive — the Key E or the M Key 2280?

Use the M Key 2280 slot for a boot drive; it supports both SATA3 6.0 Gb/s and PCIe Gen2 x4 NVMe SSDs, while the Key E socket is occupied by the bundled Wi-Fi module.
