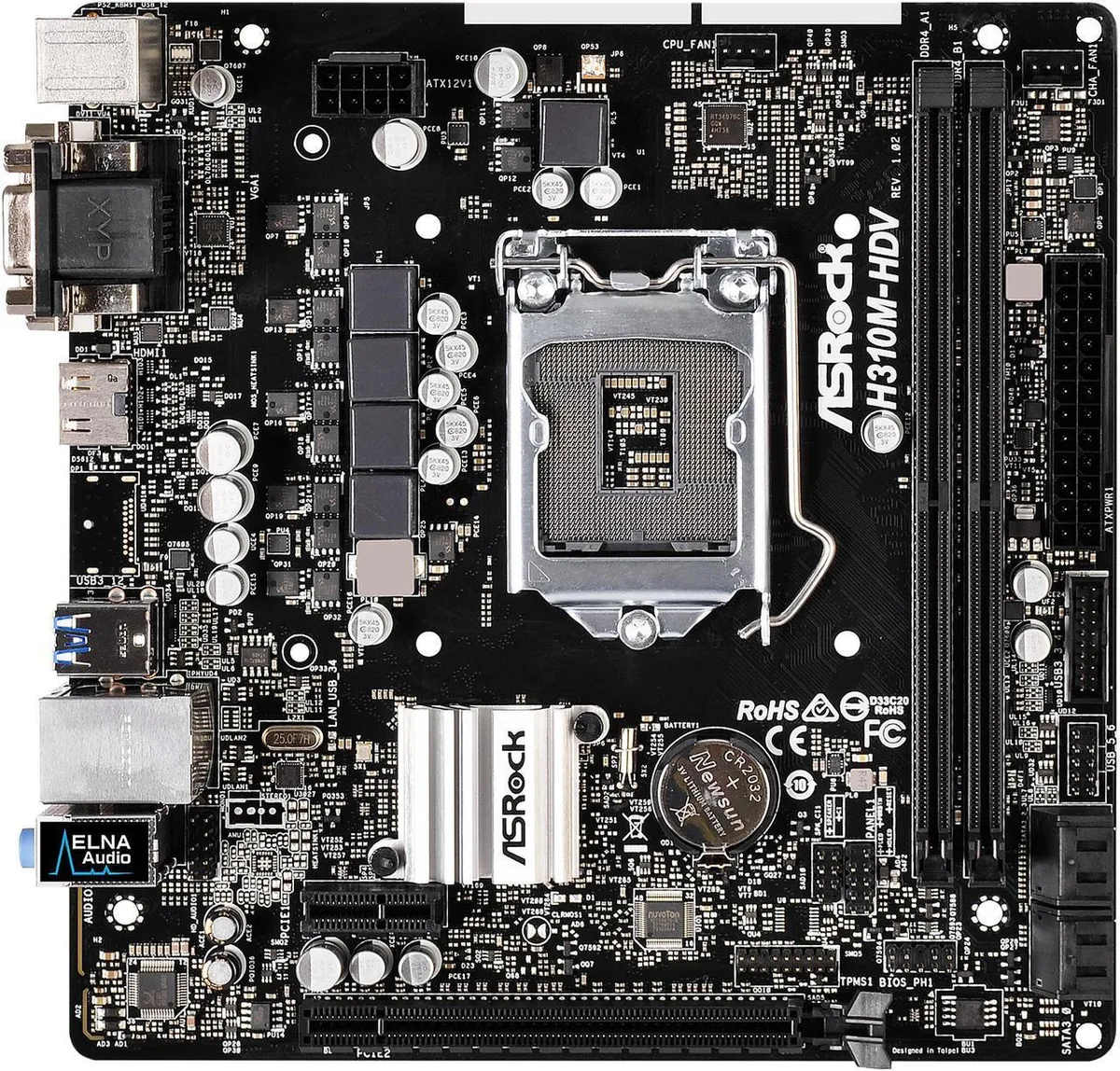

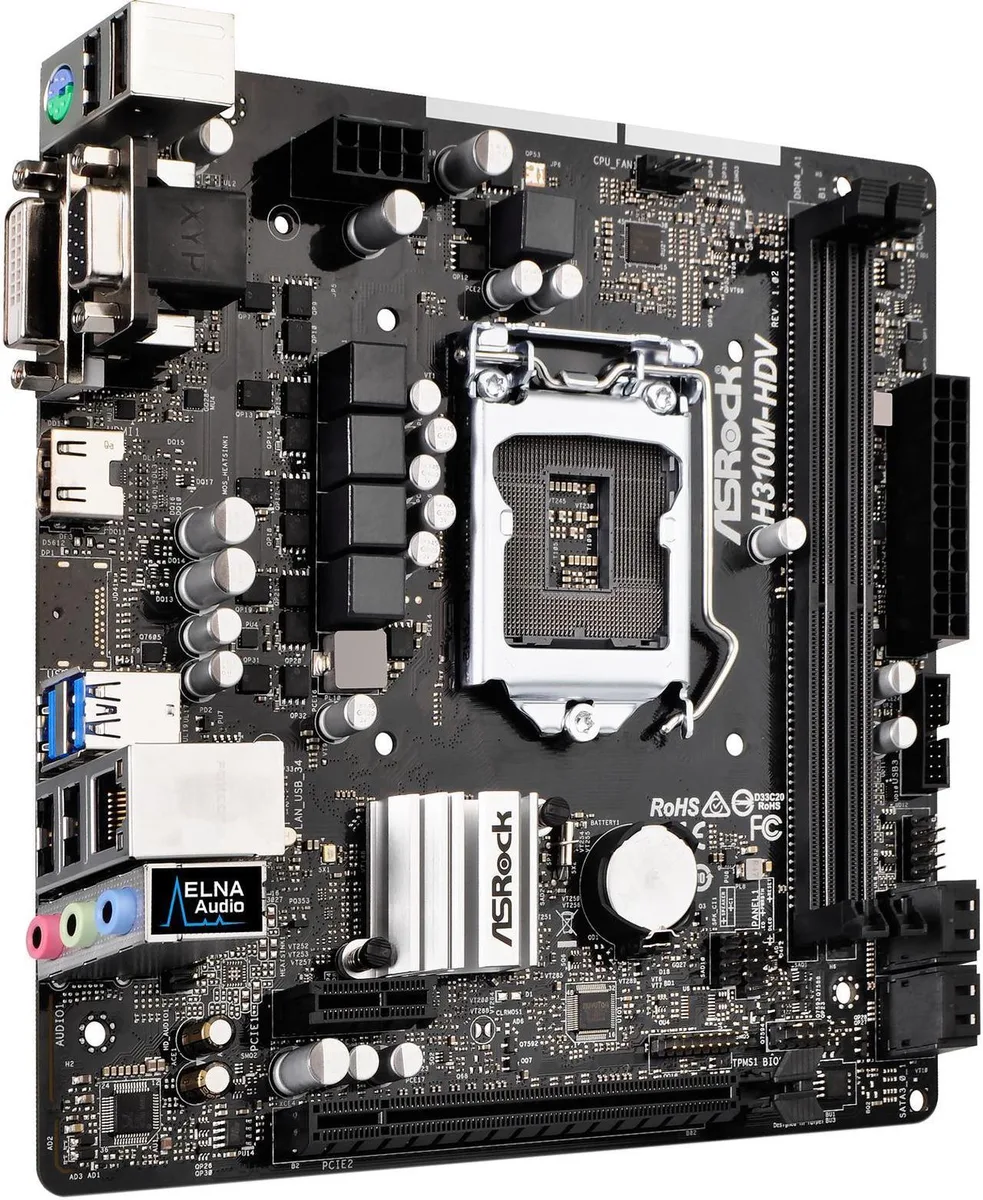

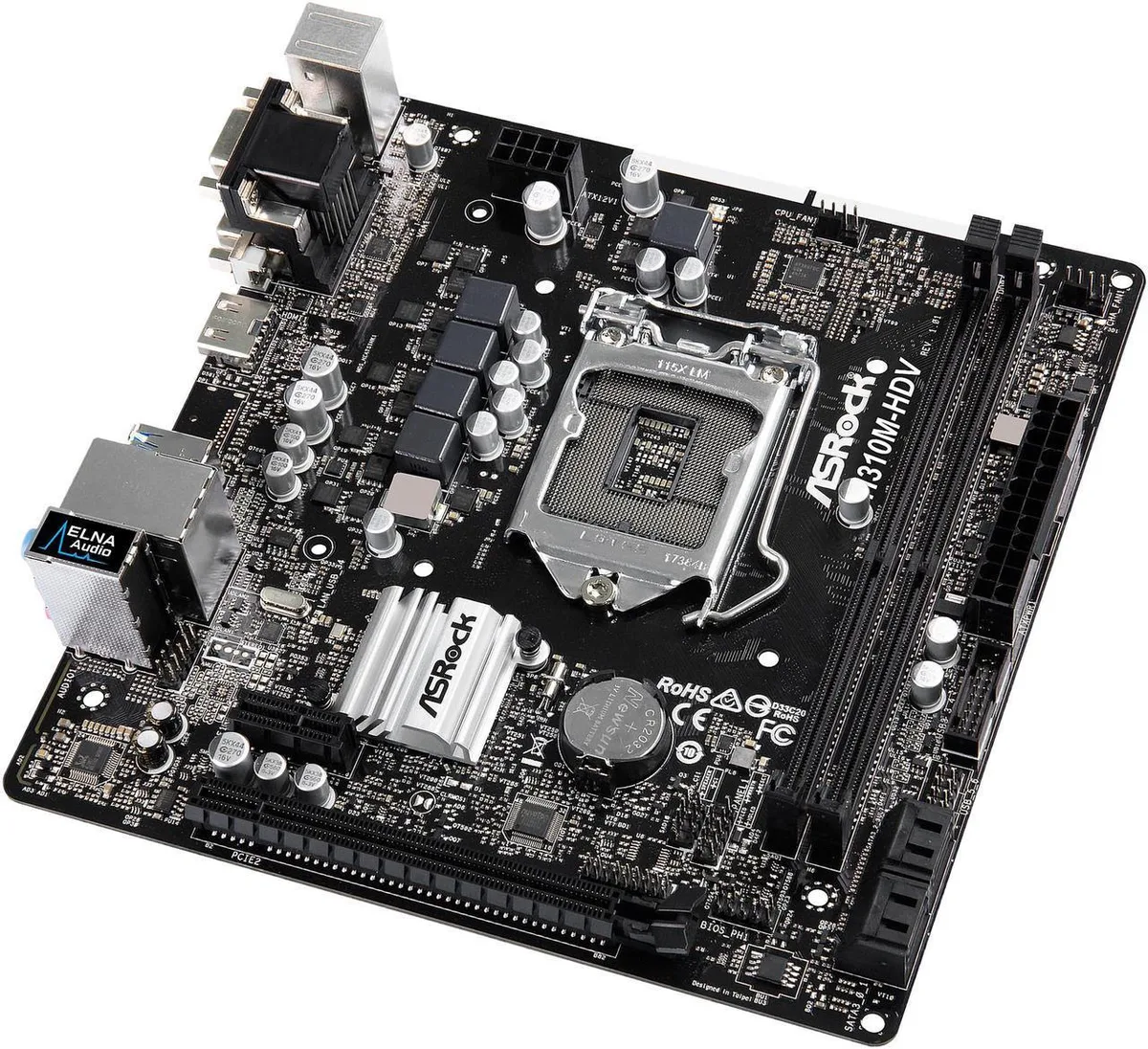

ASRock H310M-HDV LGA 1151 Micro ATX Intel motherboard
Supports 8th and 9th generation Intel Core processors on LGA 1151 socket with dual-channel DDR4 memory up to 32GB, one PCIe 3.0 x16 slot for graphics or NVMe storage, four SATA3 ports.
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports 8th Generation Intel Core Processors (Socket 1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel H310
- Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
- Number of Memory Slots2x288pin (DDR4)
- Supports 8th and 9th Gen Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 2666 MT/s with 32 GB maximum capacity
- PCI Express 3.0 x16 slot enables NVMe SSD boot support
- Four SATA3 6.0 Gb/s ports with NCQ, AHCI and hot-plug capability
- Realtek ALC887 7.1-channel audio and Gigabit LAN for media and networking
Socket LGA 1151 300 Series motherboard
The ASRock H310M-HDV is an Intel H310 micro ATX board built for 8th and 9th generation Core processors using the LGA 1151 300 Series socket. It is not compatible with earlier LGA 1151 CPUs. The platform suits basic desktop builds that need integrated graphics output and standard I/O without overclocking features.
Dual channel DDR4 with PCIe 3.0 x16
Two 288-pin slots accept DDR4 memory at 2666, 2400 or 2133 MT/s up to 32 GB in dual channel mode. A single PCI Express 3.0 x16 slot handles a graphics card or an NVMe SSD used as a boot device, while a PCI Express 2.0 x1 slot remains for add-in cards. Four SATA3 6.0 Gb/s ports support NCQ, AHCI and hot plug for storage expansion.
Realtek audio and gigabit LAN under load
The Realtek ALC887 codec delivers 7.1 channel high definition audio when paired with an HD front panel module and the appropriate driver. Networking uses the Realtek RTL8111H controller for 1 Gbps wired connectivity. Video output includes D-Sub, DVI-D and HDMI ports that function only with processors containing integrated graphics. Power is supplied through a 24-pin ATX connector and an 8-pin 12 V connector.
Highlights
- Supports 8th and 9th Gen Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 2666 MT/s with 32 GB maximum capacity
- PCI Express 3.0 x16 slot enables NVMe SSD boot support
- Four SATA3 6.0 Gb/s ports with NCQ, AHCI and hot-plug capability
- Realtek ALC887 7.1-channel audio and Gigabit LAN for media and networking
Specifications
| Brand | ASRock |
|---|---|
| Model | H310M-HDV |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports 8th Generation Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H310 |
| Onboard Video Chipset | * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics - DirectX 12 - HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI * Supports up to 2 displays simultaneously - Supports H |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Supports Surge Protection |
| LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 7.5" x 7.4" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Software and UEFI: Software - ASRock A-Tuning - ASRock XFast LAN * These utilities can be downloaded from ASRock Live Update & APP Shop |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
Questions about this item
What is the maximum memory capacity the H310M-HDV can address with its two DDR4 slots?
The board supports up to 32 GB across two 288-pin DDR4 DIMM slots running in dual-channel mode.
How much fan noise and heat should I expect from the chipset and VRM area during all-day operation?
The H310 chipset and 2-phase VRM are passively cooled; under sustained load they run warm but silent because no active fan is fitted.
Which processor must I already own to use the onboard VGA and DVI-D video outputs?
An 8th-generation Intel Core CPU with integrated graphics is required; the video ports remain inactive with F-series or older LGA 1151 processors.
