ASRock

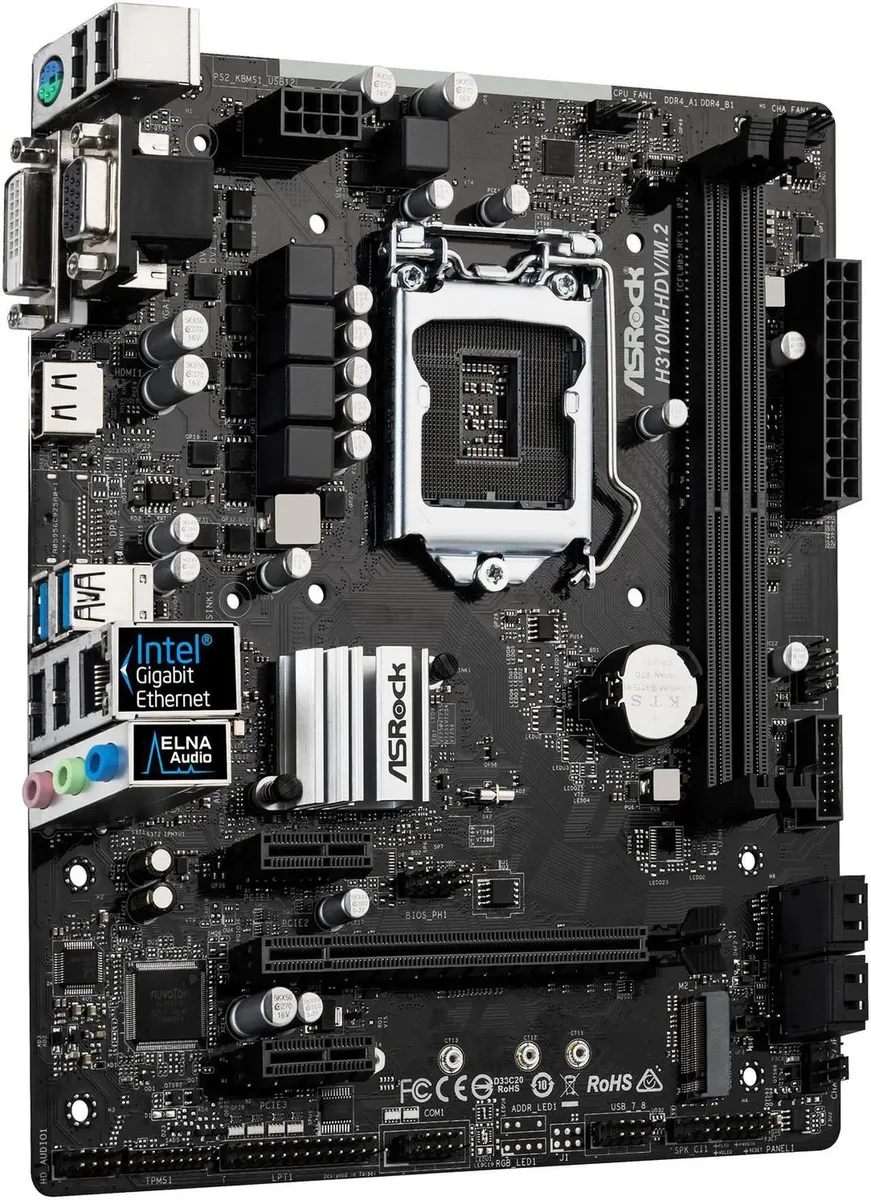

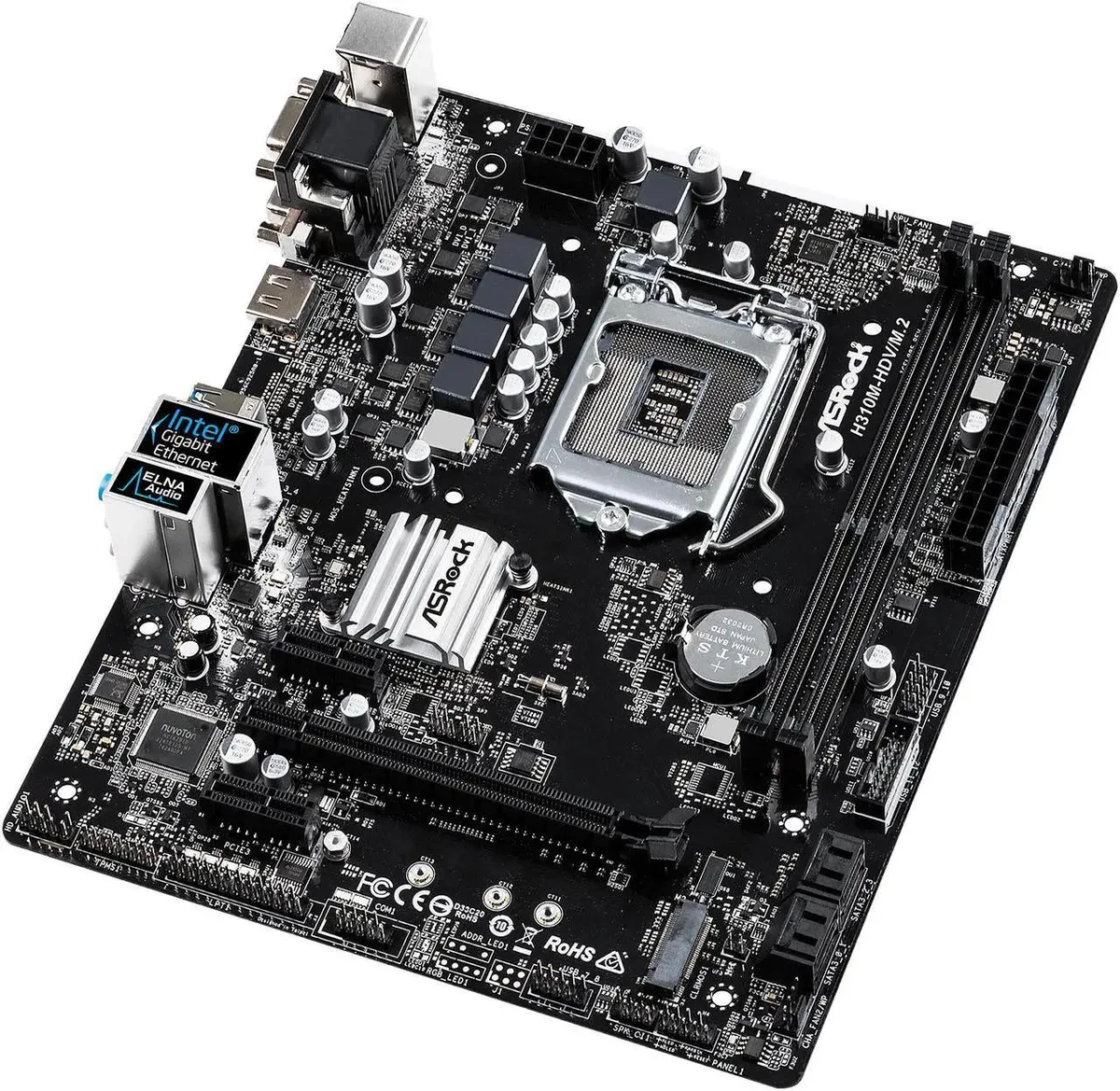

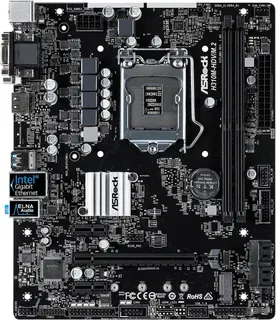

ASRock H310M-HDV/M.2 LGA 1151 Intel motherboard
Micro-ATX board for 8th- and 9th-gen LGA 1151 CPUs with dual-channel DDR4, one PCIe 3.0 x16 slot, an M.2 socket supporting SATA and PCIe Gen2 x4 drives, four SATA3 ports.
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports 8th Generation Intel Core Processors (Socket 1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel H310
- Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
- Number of Memory Slots2x288pin (DDR4)
- Supports 8th and 9th Gen Intel Core processors on LGA 1151 socket
- DDR4 memory up to 2666 MHz across two slots for 32 GB capacity
- M.2 slot accepts SATA or PCIe Gen2 x4 SSDs for fast storage
- Intel I219-V Gigabit LAN provides reliable wired networking
- Realtek ALC887 codec delivers 7.1 channel high-definition audio
Socket and processor support
This board uses the LGA 1151 socket with the Intel 300 series chipset. It accepts 8th and 9th generation Intel Core processors only and is not backward compatible with earlier LGA 1151 CPUs. The H310 chipset provides Turbo Boost 2.0 support for those chips.
Memory and expansion layout
Two 288-pin DDR4 slots run at 2133, 2400 or 2666 MHz in dual channel up to 32 GB. A single PCI Express 3.0 x16 slot and two PCI Express 2.0 x1 slots handle add-in cards. Four SATA3 6.0 Gb/s ports and one M.2 socket taking 2230, 2242, 2260 or 2280 modules provide storage connections.
Sustained operation characteristics
The Realtek ALC887 codec drives 7.1 channel audio when a compatible front panel module is used. Networking runs through an Intel I219-V controller at 1 Gbps. Surge protection is built into the board. If a SATA-type M.2 device occupies the M.2 slot, the third SATA3 connector is disabled.
Highlights
- Supports 8th and 9th Gen Intel Core processors on LGA 1151 socket
- DDR4 memory up to 2666 MHz across two slots for 32 GB capacity
- M.2 slot accepts SATA or PCIe Gen2 x4 SSDs for fast storage
- Intel I219-V Gigabit LAN provides reliable wired networking
- Realtek ALC887 codec delivers 7.1 channel high-definition audio
Specifications
| Brand | ASRock |
|---|---|
| Model | H310M-HDV/M.2 |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports 8th Generation Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H310 |
| Onboard Video Chipset | * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics - DirectX 12 - HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI * Supports up to 2 displays simultaneously - Supports H |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 2 x PCI Express 2.0 x1 Slots |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
| M.2 | 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x4 (20Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Supports Surge Protection |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) * USB_11_12 is shared with USB_9_10. |
| Other Connectors | 1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.9" x 7.4" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Software and UEFI: Software - ASRock A-Tuning - ASRock XFast LAN * These utilities can be downloaded from ASRock Live Upda |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
Questions about this item
Does the board ship with an I/O shield and SATA cables, or do I need to buy them separately?
The motherboard comes with an I/O shield and two SATA cables; no extra cables are required for the four SATA3 ports or the single M.2 slot.
Should I choose DDR4 2666, 2400 or 2133 modules for the two 288-pin slots?
Any DDR4 2666, 2400 or 2133 kit up to 32 GB total will run at its rated speed in dual-channel mode on this H310 board.
What does the M.2 slot's 20 Gb/s Gen2 x4 limit mean for an NVMe drive in daily use?
An NVMe SSD in the M2_1 socket will operate at PCIe 3.0 x4 Gen2 speeds, giving sequential reads around 2 GB/s — ample for OS boot and application loading.
