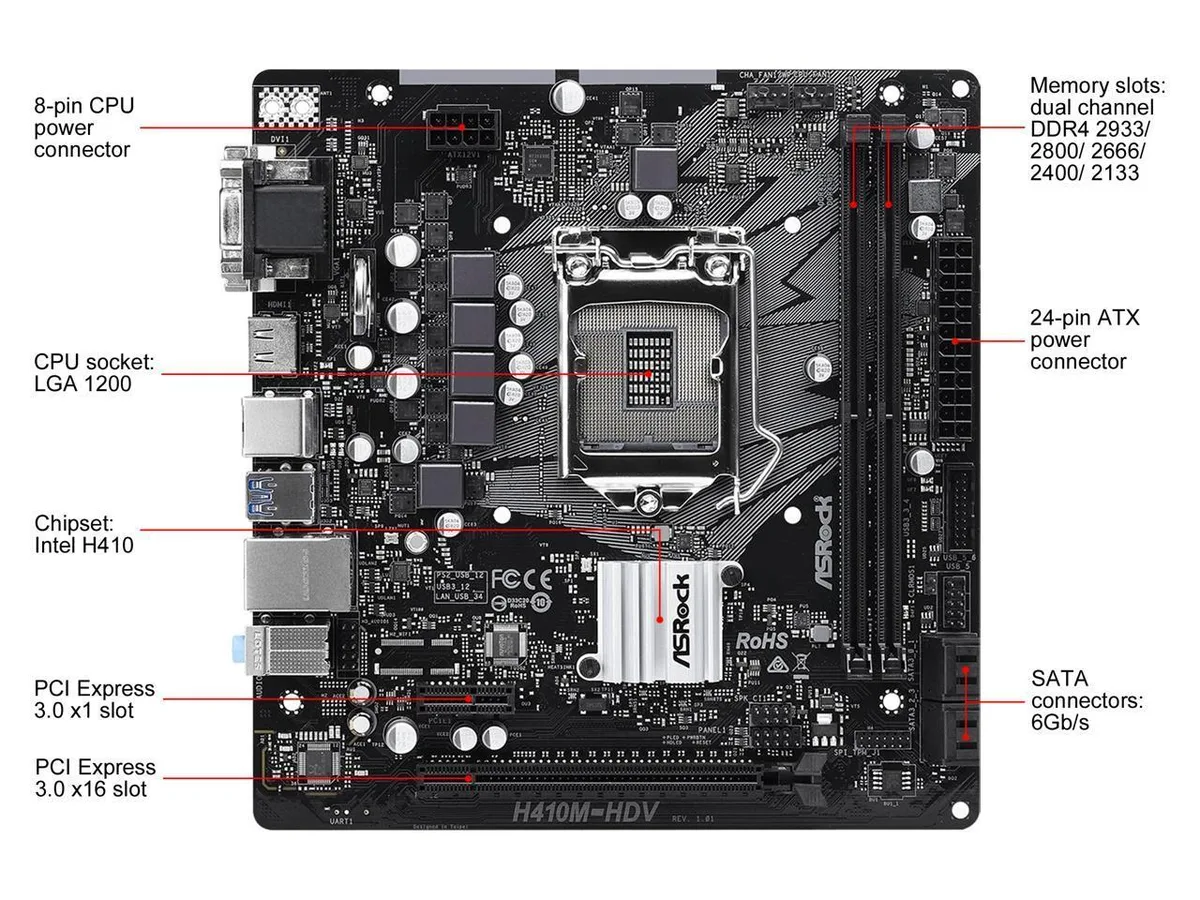

Green micro-ATX board with silver LGA 1200 socket, two black DDR4 slots, single PCIe x16 slot, blue SATA ports, black rear I/O panel

ASRock

ASRock H410M-HDV Intel H410 LGA 1200 DDR4 Micro ATX motherboard

SKU CH-EHP8-C678M

Supports 10th Gen Intel Core processors with up to 64GB DDR4 memory, one PCIe 3.0 x16 slot, four SATA3 ports, Realtek 7.1 audio and Gigabit LAN on a Micro ATX board

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H410
  • Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Up to 64GB DDR4 memory across two slots at 2933 speed
  • PCI Express 3.0 x16 slot enables NVMe SSD boot drives
  • Four SATA3 6.0Gb/s ports with NCQ and AHCI support
  • Realtek ALC887 7.1 channel audio plus RTL8111H Gigabit LAN

Socket 1200 micro-ATX board for 10th Gen Intel Core

The ASRock H410M-HDV fits the Intel H410 chipset into a micro-ATX layout for LGA 1200 processors. It targets budget builders who need a compact foundation for office or home systems. The board delivers essential connectivity without enthusiast features.

Dual-channel DDR4 up to 64 GB with 2933 headroom

Two 288-pin slots accept non-ECC DDR4 at 2133, 2400, 2666, 2800 and 2933 MT/s depending on the installed CPU. Core i9 and i7 chips reach the top speed while Core i5, i3, Pentium and Celeron stop lower. Maximum capacity is 64 GB across both slots.

Video outputs and USB headers cover basic I/O

Rear panel supplies D-Sub, DVI-D and HDMI ports driven by the processor graphics with HEVC 10-bit and VP9 10-bit decode. Four USB 2.0 and two USB 3.2 Gen1 ports handle peripherals. Internal headers add two more USB 2.0 and two USB 3.2 Gen1 ports for front-panel expansion.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Up to 64GB DDR4 memory across two slots at 2933 speed
  • PCI Express 3.0 x16 slot enables NVMe SSD boot drives
  • Four SATA3 6.0Gb/s ports with NCQ and AHCI support
  • Realtek ALC887 7.1 channel audio plus RTL8111H Gigabit LAN

Specifications

BrandASRock
ModelH410M-HDV
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H410
Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DVI-D w
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot*
* Supports NVMe SSD as boot disks
PCI Express x11 x PCI Express 3.0 x1 Slot
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Form FactorMicro ATX
Dimensions (W x L)7.8" x 7.4"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock I
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Questions about this item

Will the H410M-HDV run my existing DDR4-2666 memory at its rated speed?

The board supports DDR4 at 2666 MHz among other speeds, so your current modules will operate at their rated frequency.

How can I confirm the motherboard is posting correctly after assembly?

Connect a monitor to the HDMI, DVI-D or D-Sub port; a successful POST shows the ASRock splash screen and BIOS version on the display.

Which cables and accessories ship with the H410M-HDV?

The package includes the motherboard, I/O shield, SATA data cables and a quick-installation guide; CPU cooler, memory and storage must be purchased separately.
