Green Mini ITX board with silver LGA 1200 socket, two black DDR4 slots, blue PCIe x16, M.2 slot and rear I/O shield

ASRock

ASRock H410M-ITX/AC Intel motherboard

SKU CH-N73A-VMV91

Mini-ITX board for 10th Gen Intel Core CPUs with dual-channel DDR4 up to 64 GB, PCIe 3.0 x16, Ultra M.2, four SATA3, Intel gigabit LAN and 802.11ac Wi-Fi

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H410
  • Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz with 64 GB capacity
  • Ultra M.2 slot delivers PCIe 3.0 x4 speeds for NVMe SSDs
  • Intel I219-V Gigabit LAN plus 802.11ac dual-band Wi-Fi for flexible connectivity
  • HDMI 1.4 and DisplayPort 1.4 outputs enable 4K 60 Hz dual displays

Compact Intel H410 board for small-form-factor

The ASRock H410M-ITX/AC fits the Mini-ITX form factor and uses the LGA 1200 socket for 10th Gen Intel Core processors. It provides the essential connectivity for a compact desktop or media system. Dual-channel DDR4 memory and a single PCIe 3.0 x16 slot cover the core expansion needs of a small chassis.

Intel H410 chipset limits expandability

The platform delivers one full-size PCIe 3.0 x16 slot and a single Ultra M.2 socket that accepts either a SATA or a PCIe Gen3 x4 NVMe drive. Four SATA3 6.0Gb/s ports are available, though SATA3_0 is disabled when a SATA M.2 device occupies M2_1. Wireless networking is handled by the bundled Intel 802.11ac module in a vertical Key-E M.2 slot, providing dual-band 2.4/5 GHz connectivity up to 433Mbps.

Memory capacity scales to 64 GB

Two 288-pin slots support up to 64 GB of non-ECC DDR4; Core i9 and i7 processors enable DDR4-2933 while Core i5, i3, Pentium and Celeron CPUs top out at DDR4-2666. Integrated graphics drive HDMI 1.4 at 4096x2160 @ 30Hz and DisplayPort 1.4 at 4096x2304 @ 60Hz, with hardware decode for H.264, HEVC 8/10-bit, VP8 and VP9. Realtek ALC887 supplies 7.1-channel audio and Intel I219-V provides 1Gbps wired LAN.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz with 64 GB capacity
  • Ultra M.2 slot delivers PCIe 3.0 x4 speeds for NVMe SSDs
  • Intel I219-V Gigabit LAN plus 802.11ac dual-band Wi-Fi for flexible connectivity
  • HDMI 1.4 and DisplayPort 1.4 outputs enable 4K 60 Hz dual displays

Specifications

BrandASRock
ModelH410M-ITX/AC
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H410
Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports Displa
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II

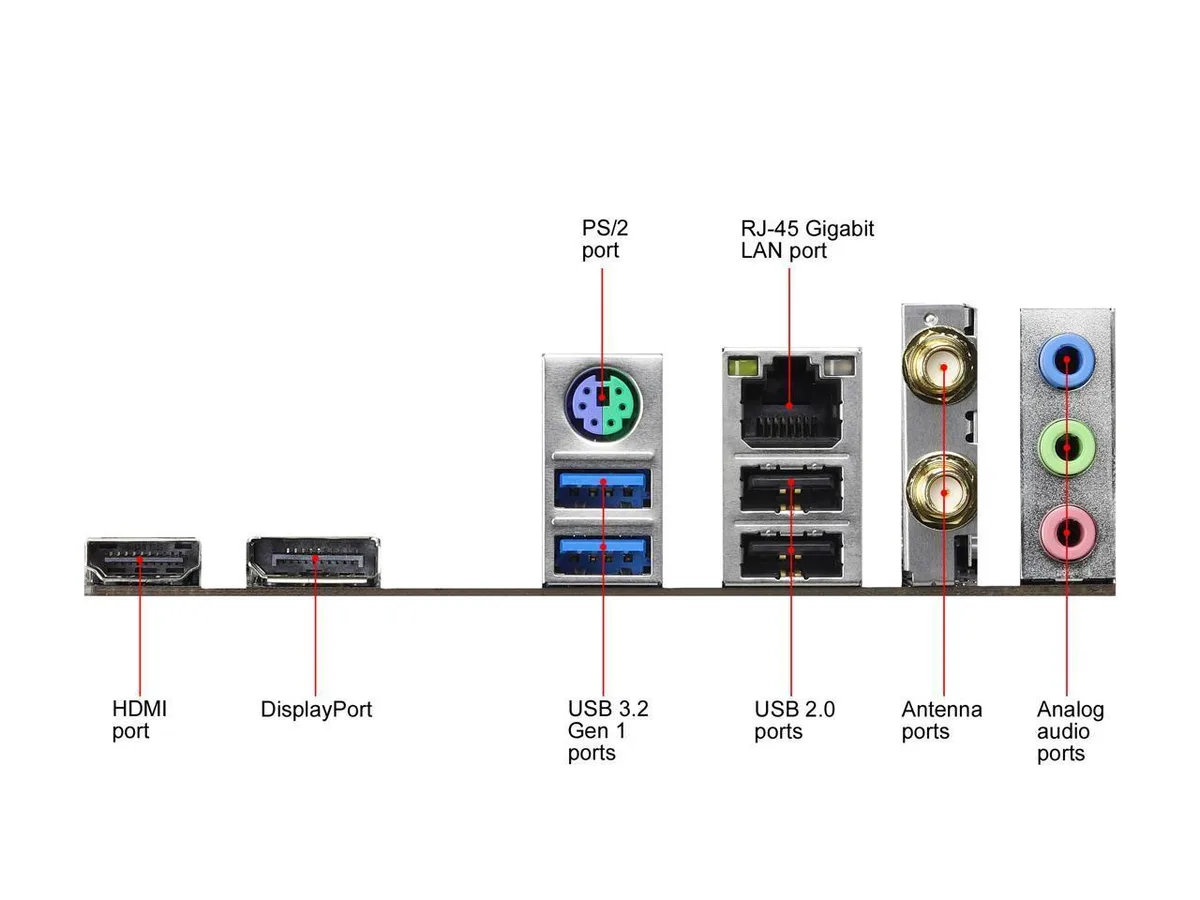

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x Chassis Fan Connector (4-pin)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximu
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB Intel 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment
Software:
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket

Questions about this item

Which memory speed should I pick for a Core i5 or i3 on this board?

The board supports DDR4 up to 2933 MHz, but Core i5 and i3 processors are limited to 2666 MHz, so 2666 MHz modules are the practical ceiling.

What does the PCIe 3.0 x16 slot actually deliver for an NVMe drive?

The Ultra M.2 socket (M2_1) runs at PCIe 3.0 x4, giving up to 32 Gb/s bandwidth for an NVMe SSD used as a boot drive.

What display outputs are on the rear I/O and what resolutions do they support?

HDMI 1.4 handles 4096 x 2160 at 30 Hz, while DisplayPort 1.4 reaches 4096 x 2304 at 60 Hz.
