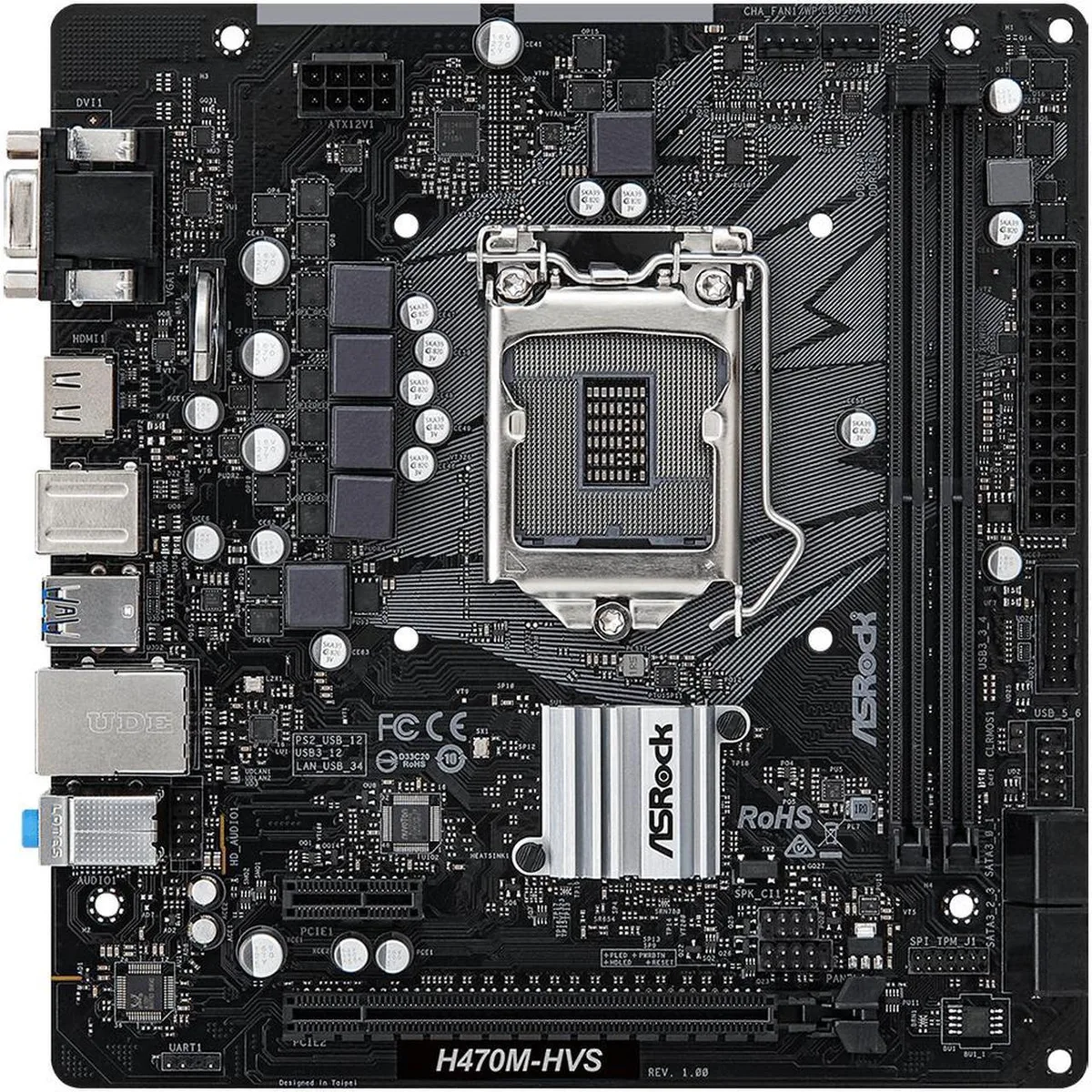

Micro-ATX motherboard with black PCB, silver heatsinks, LGA 1200 socket, two DDR4 slots, PCIe x16 and x1 slots, four SATA ports

ASRock

ASRock H470M-HVS Intel motherboard LGA 1200

SKU CH-Q7HM-MDB93

Micro ATX board for 10th Gen Intel Core CPUs with dual-channel DDR4 up to 2933, one PCIe 3.0 x16 slot, four SATA ports and 7.1-channel audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H470
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz with 64 GB maximum capacity
  • PCIe 3.0 x16 slot supports NVMe SSD boot drives
  • Realtek ALC897 codec delivers 7.1-channel high-definition audio
  • Four SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support

Socket LGA 1200 micro-ATX board

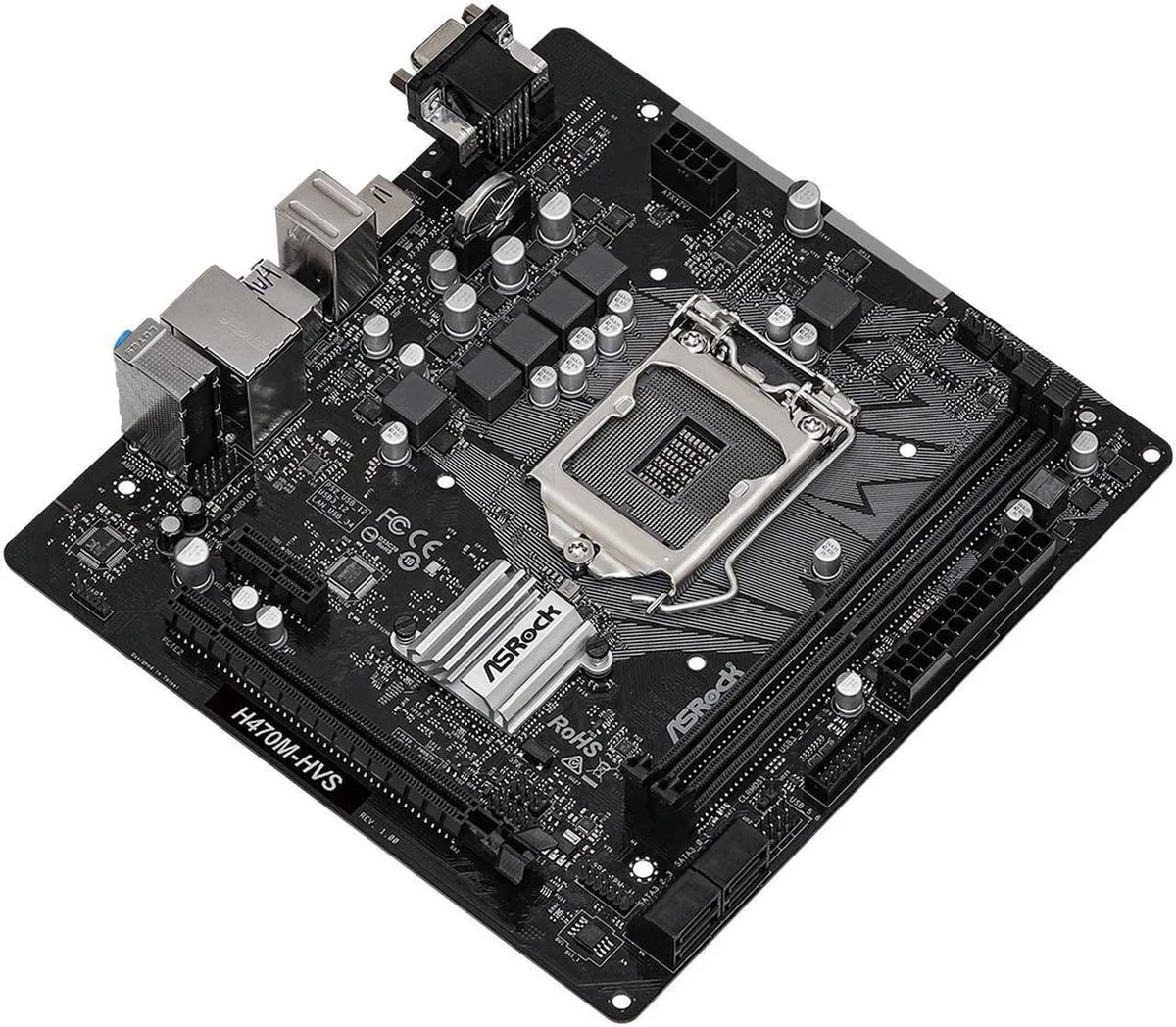

The ASRock H470M-HVS is a micro-ATX motherboard built for the LGA 1200 socket. It supports 10th Gen Intel Core processors and uses the Intel H470 chipset. The board fits compact cases while keeping essential connectivity for office or home builds.

Sustained load behaviour

A 5 Power Phase design with Premium 50A Power Chokes delivers stable voltage to the CPU during long sessions. The Digi Power design and High Density Glass Fabric PCB help manage heat across the voltage regulators. This keeps clocks steady when the system runs at full load for extended periods.

Maximum memory capacity

The board provides two DDR4 DIMM slots with a maximum capacity of 64GB. Core i9 and i7 processors reach DDR4 2933, while Core i5, i3, Pentium and Celeron top out at 2666. Dual-channel operation and XMP 2.0 support are available within this limit.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz with 64 GB maximum capacity
  • PCIe 3.0 x16 slot supports NVMe SSD boot drives
  • Realtek ALC897 codec delivers 7.1-channel high-definition audio
  • Four SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support

Specifications

BrandASRock
ModelH470M-HVS
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H470
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2933 / 2800 / 2666 / 2400 / 2133 * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 * Supports NVMe SSD as boot disks.
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps

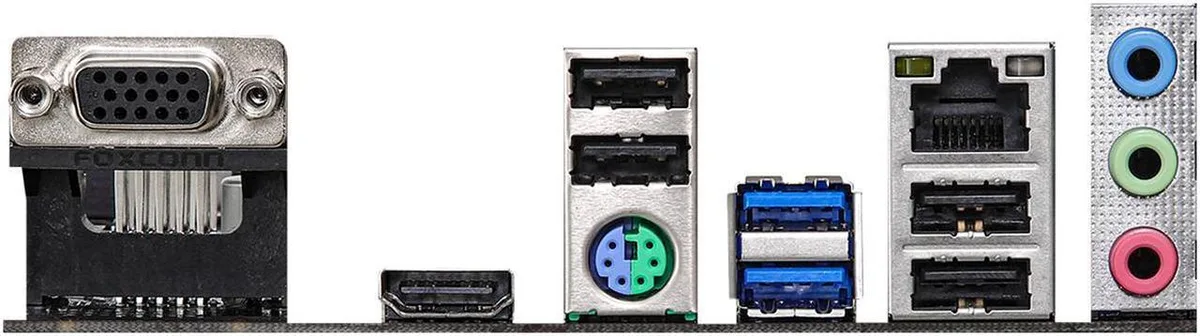

Back I/O Ports1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)7.8" x 7.4"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
Package ContentsAccessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables

Questions about this item

How much power do the 50A chokes and 5-phase VRM draw when a 10th Gen Core i7 runs all day?

The board uses a 5-phase Digi Power design with premium 50A chokes to deliver stable voltage to 10th Gen Intel Core processors; actual power draw depends on the specific CPU and workload.

Which DDR4 modules must I already own to reach the 2933 MT/s rating on this H470M-HVS?

You need DDR4 DIMMs rated for 2933 MT/s or higher; the board has two 288-pin slots supporting up to 64 GB in dual-channel mode, but only Core i9 or i7 CPUs enable the top 2933 speed.

Will my existing SATA SSDs and PCIe 3.0 add-in cards work without extra adapters on this micro-ATX board?

Yes, the board provides four SATA 6Gb/s ports with RAID 0/1/5/10, one PCIe 3.0 x16 slot that also supports NVMe boot SSDs, and one PCIe 3.0 x1 slot for legacy expansion cards.
