Green Mini-ITX board with silver heatsinks and rear I/O shield

ASRock

ASRock H470M-ITX/AC Intel motherboard

SKU CH-R1B1-87SKW

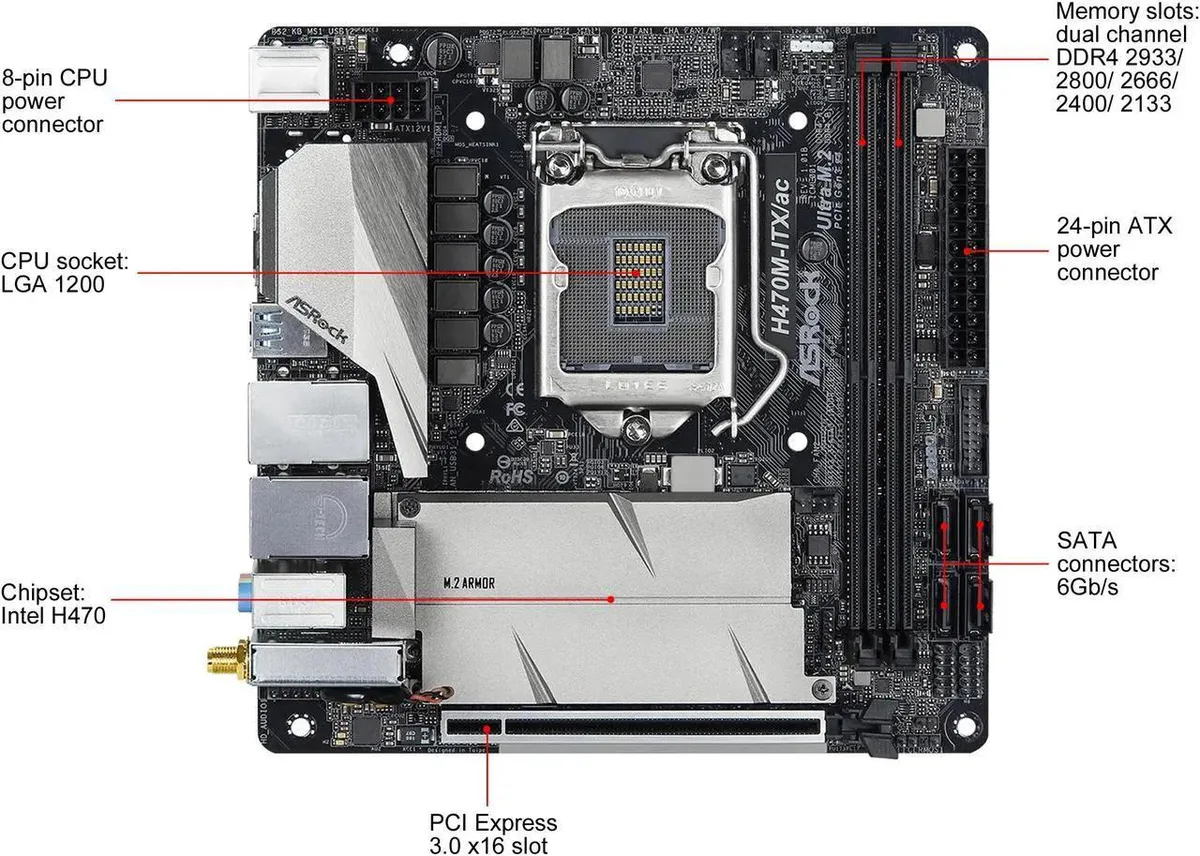

Mini-ITX LGA 1200 board with dual-channel DDR4 up to 2933, PCIe 3.0 x16, dual M.2 sockets, four SATA 6.0 ports, RTL8125BG LAN, Wi-Fi 802.11ac, 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H470
  • Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MT/s with 64 GB maximum capacity
  • Ultra M.2 slot delivers PCIe 3.0 x4 speeds for fast storage
  • Dragon RTL8125BG LAN plus bundled 802.11ac Wi-Fi module
  • Realtek ALC1200 codec provides 7.1-channel high-definition audio

Compact LGA 1200 platform

The ASRock H470M-ITX/AC fits 10th generation Intel Core processors into a Mini-ITX footprint. The H470 chipset enables mainstream features without overclocking complexity. It targets builders who need a small, capable system for work or entertainment.

Dual-channel DDR4 up to 64 GB

Two 288-pin slots accept DDR4 at 2933, 2800, 2666, 2400 or 2133 MT/s depending on the CPU installed. Core i9 and i7 reach the top speed; other chips run lower. The 64 GB ceiling covers heavy multitasking and content workloads.

Ultra M.2 Gen3 x4 plus 802.11ac Wi-Fi

One M.2 2280 socket delivers PCIe 3.0 x4 bandwidth for fast NVMe storage. A second M.2 Key E slot holds the bundled Wi-Fi module, freeing the rear I/O for other peripherals. Four SATA3 ports add RAID 0, 1, 5 and 10 flexibility.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MT/s with 64 GB maximum capacity
  • Ultra M.2 slot delivers PCIe 3.0 x4 speeds for fast storage
  • Dragon RTL8125BG LAN plus bundled 802.11ac Wi-Fi module
  • Realtek ALC1200 codec provides 7.1-channel high-definition audio

Specifications

BrandASRock
ModelH470M-ITX/AC
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H470
Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports Displa
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports Intel Optane Technology
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17
Audio ChipsetRealtek ALC1200
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Second LAN ChipsetIntel I219V
Max LAN Speed2.5Gbps + 1Gbps
Wireless LANIntel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II

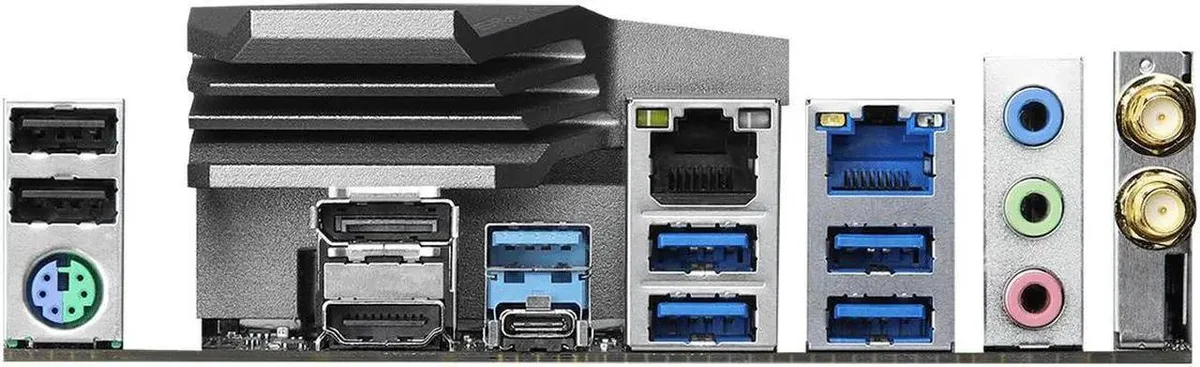

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x Chassis Fan Connector (4-pin)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** C
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Ports (10Gb/s)
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB 2.5G LAN Intel 802.11ac WiFi
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events

Questions about this item

Will my existing DDR4-2666 memory work with the H470M-ITX/AC?

Yes, the board supports DDR4 2933, 2800, 2666, 2400 and 2133 non-ECC un-buffered modules up to 64GB across two slots.

How do I confirm the integrated graphics and network controllers are active after assembly?

In Device Manager check that Intel UHD Graphics and the RTL8125BG LAN adapter appear without error icons.

What ships with the board and which storage or cooling parts must I source separately?

The package includes the motherboard, I/O shield, Wi-Fi 802.11ac module, SATA cables and driver disc; M.2 SSDs, SATA drives and CPU cooler are not included.
