Green micro-ATX board with silver LGA 1200 socket, two DDR4 slots, PCIe x16 and x1 slots, four SATA ports, rear D-Sub, DVI-D, HDMI

ASRock

ASRock H510M-HDV LGA 1200 Intel motherboard

SKU CH-P62R-GXKR4

Micro-ATX board for 10th and 11th Gen Intel CPUs with dual-channel DDR4 up to 3200 MHz, one PCIe 4.0 x16 slot, four SATA ports and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Gen Intel Core Processors Supports 10th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H510
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 3200 MT/s with dual-channel support up to 64 GB
  • PCI Express 4.0 x16 slot enables NVMe SSD boot drives
  • Realtek ALC897 7.1-channel audio and RTL8111H 1 Gbps LAN for everyday connectivity
  • Micro-ATX form factor with HDMI, DVI-D and D-Sub video outputs plus four SATA 6 Gb/s ports

Socket LGA 1200 Micro-ATX Board

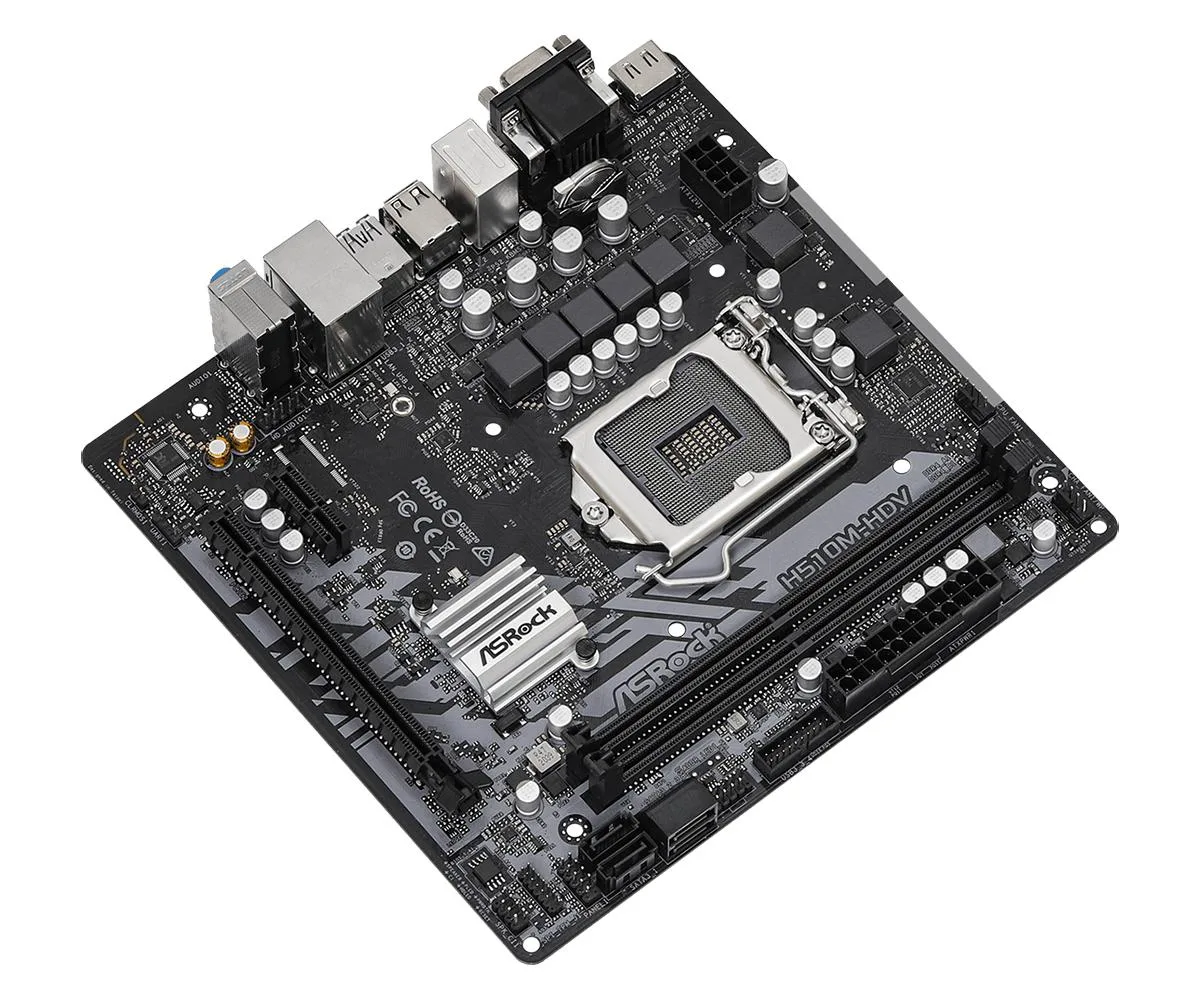

The ASRock H510M-HDV is a Micro-ATX motherboard built around the Intel H510 chipset for LGA 1200 processors. It accepts both 10th and 11th Gen Intel Core CPUs and provides two DDR4 memory slots with a maximum capacity of 64GB in dual-channel mode. A single PCI Express 4.0 x16 slot and one PCI Express 3.0 x1 slot handle expansion cards, while four SATA 6Gb/s ports and an M.2 socket for NVMe drives cover storage needs. Realtek ALC897 audio delivers 7.1 channel output and the RTL8111H controller supplies 1Gbps LAN.

CPU Generation And Memory Speed Match

Before ordering, confirm which processor generation you will install because supported DDR4 frequencies differ. 11th Gen Core i9, i7 and i5 CPUs enable memory up to 3200 MT/s, whereas 11th Gen i3, Pentium and Celeron models top out at 2666 MT/s. 10th Gen Core i9 and i7 processors also have their own ceiling, so the BIOS will need to be at the latest version to recognise the CPU and apply the correct memory multiplier. The board offers one USB 3.2 Gen1 header and one USB 2.0 header for front-panel connectivity.

Sustained Operation With Basic Cooling

Under continuous load the H510 chipset and voltage regulators rely on the case airflow provided by the Micro-ATX chassis, as the board ships without dedicated heatsinks on the power phase area. The single PCI Express 4.0 x16 slot runs at full bandwidth only when paired with an 11th Gen processor; with a 10th Gen CPU it operates at PCI Express 3.0 speeds, which can affect NVMe throughput during long transfers. Rear I/O includes PS/2 ports, D-Sub, DVI-D, HDMI, two USB 3.2 Gen1 ports, four USB 2.0 ports and the RJ-45 LAN jack.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 3200 MT/s with dual-channel support up to 64 GB
  • PCI Express 4.0 x16 slot enables NVMe SSD boot drives
  • Realtek ALC897 7.1-channel audio and RTL8111H 1 Gbps LAN for everyday connectivity
  • Micro-ATX form factor with HDMI, DVI-D and D-Sub video outputs plus four SATA 6 Gb/s ports

Specifications

BrandASRock
ModelH510M-HDV
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Gen Intel Core Processors
Supports 10th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H510
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 *
* 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* Supports NVMe SSD as boot disks.
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps

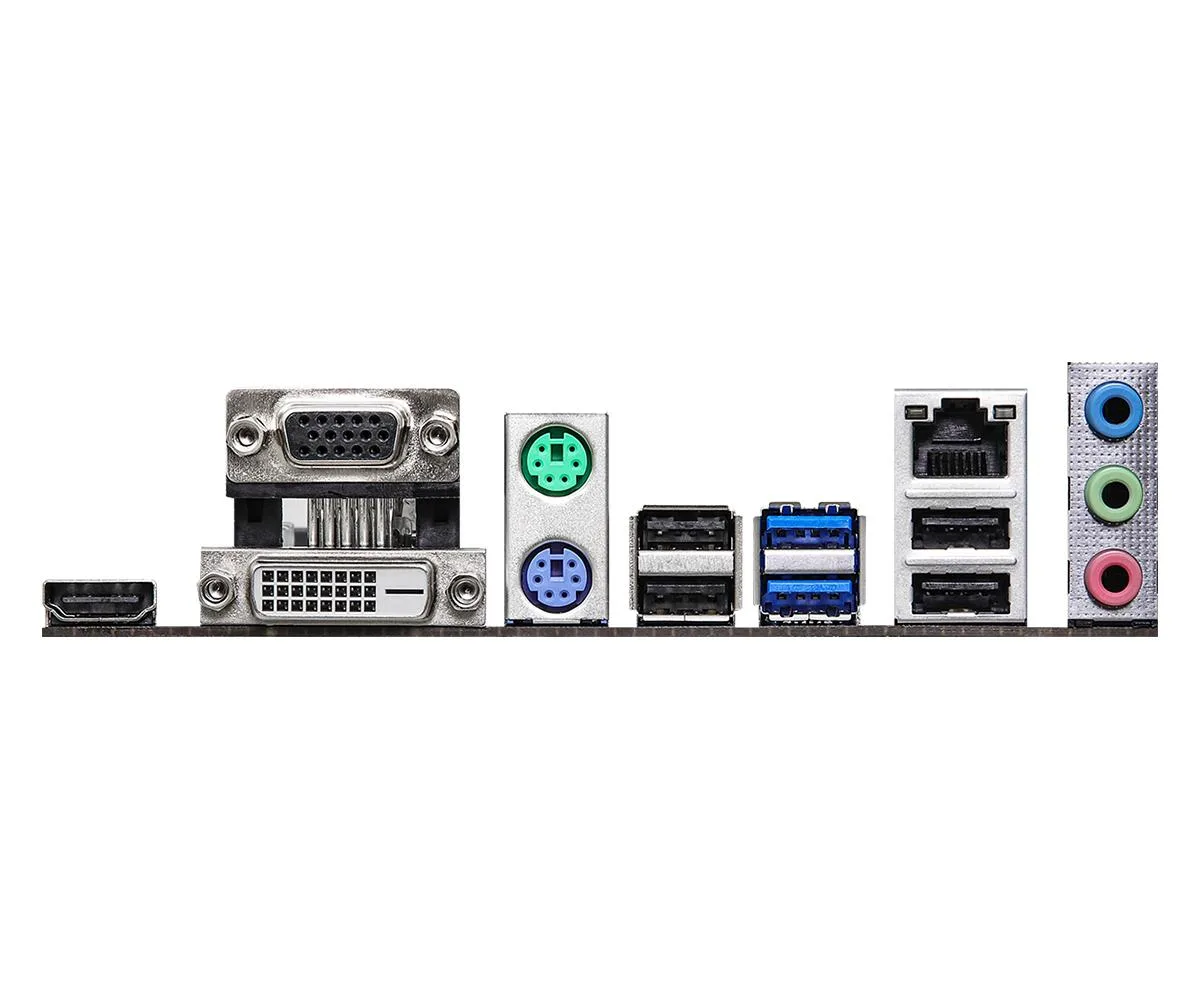

Back I/O Ports1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)7.8" x 7.4"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128 MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Questions about this item

What comes in the box with the H510M-HDV and what must I buy separately?

The board ships with the motherboard itself; you must supply an LGA 1200 processor, DDR4 memory modules, storage drives and a power supply.

Which DDR4 speed should I choose for an 11th Gen Core i5 versus a 10th Gen Core i3?

11th Gen Core i5 supports DDR4 up to 3200; 10th Gen Core i3 is limited to 2666, so match the kit to the CPU you install.

What does the single PCI Express 4.0 x16 slot mean for my graphics card and NVMe SSD?

The slot runs at 4.0 with an 11th Gen CPU and at 3.0 with a 10th Gen CPU; it also carries the NVMe boot drive connection.
