Green Micro ATX motherboard with black slots and silver heatsinks

ASRock

ASRock H510M-HDV/M.2 LGA 1200 Intel Motherboard

SKU CH-M789-ZC4HH

Micro-ATX board for 10th and 11th Gen Intel Core CPUs with DDR4 up to 3200, one PCIe 4.0 x16 slot, Ultra M.2 for NVMe, four SATA 6.0Gb/s ports and Intel I219-V 1Gbps LAN

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Gen Intel Core Processors Supports 10th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H510
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th and 11th generation Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 3200 MHz with 64 GB maximum capacity
  • PCI Express 4.0 x16 slot and Ultra M.2 socket up to Gen3 x4 for fast storage
  • Realtek ALC897 7.1-channel audio and Intel I219-V 1 Gbps LAN for clear sound and wired networking
  • HDMI, DVI-D and D-Sub video outputs plus USB 3.2 Gen1 and USB 2.0 ports with ESD protection

Socket and generation

This micro ATX motherboard uses the LGA 1200 socket and the Intel H510 chipset. It accepts 10th and 11th generation Intel Core processors with integrated graphics for video output.

Memory ceiling

Two 288 pin DDR4 slots support dual channel operation up to 64 GB. With an 11th generation Core i9 i7 or i5 the board runs DDR4 at 3200; with Core i3 Pentium or Celeron it stops at 2666.

Storage lane limit

The single Ultra M.2 socket connects through PCIe 3.0 x4 for NVMe drives. That lane width is fixed regardless of the CPU installed so sustained SSD throughput stays at the Gen3 ceiling.

Highlights

  • Supports 10th and 11th generation Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 3200 MHz with 64 GB maximum capacity
  • PCI Express 4.0 x16 slot and Ultra M.2 socket up to Gen3 x4 for fast storage
  • Realtek ALC897 7.1-channel audio and Intel I219-V 1 Gbps LAN for clear sound and wired networking
  • HDMI, DVI-D and D-Sub video outputs plus USB 3.2 Gen1 and USB 2.0 ports with ESD protection

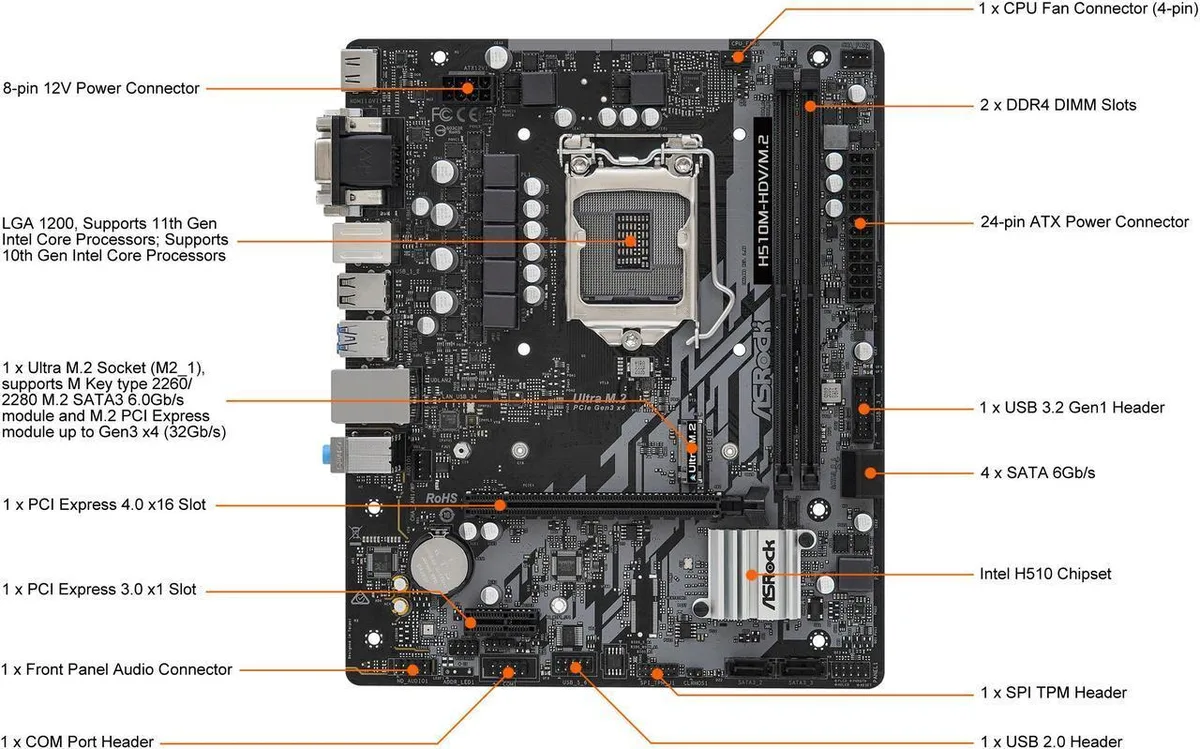

Specifications

BrandASRock
ModelH510M-HDV/M.2
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Gen Intel Core Processors
Supports 10th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H510
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 *
* 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* Supports NVMe SSD as boot disks.
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

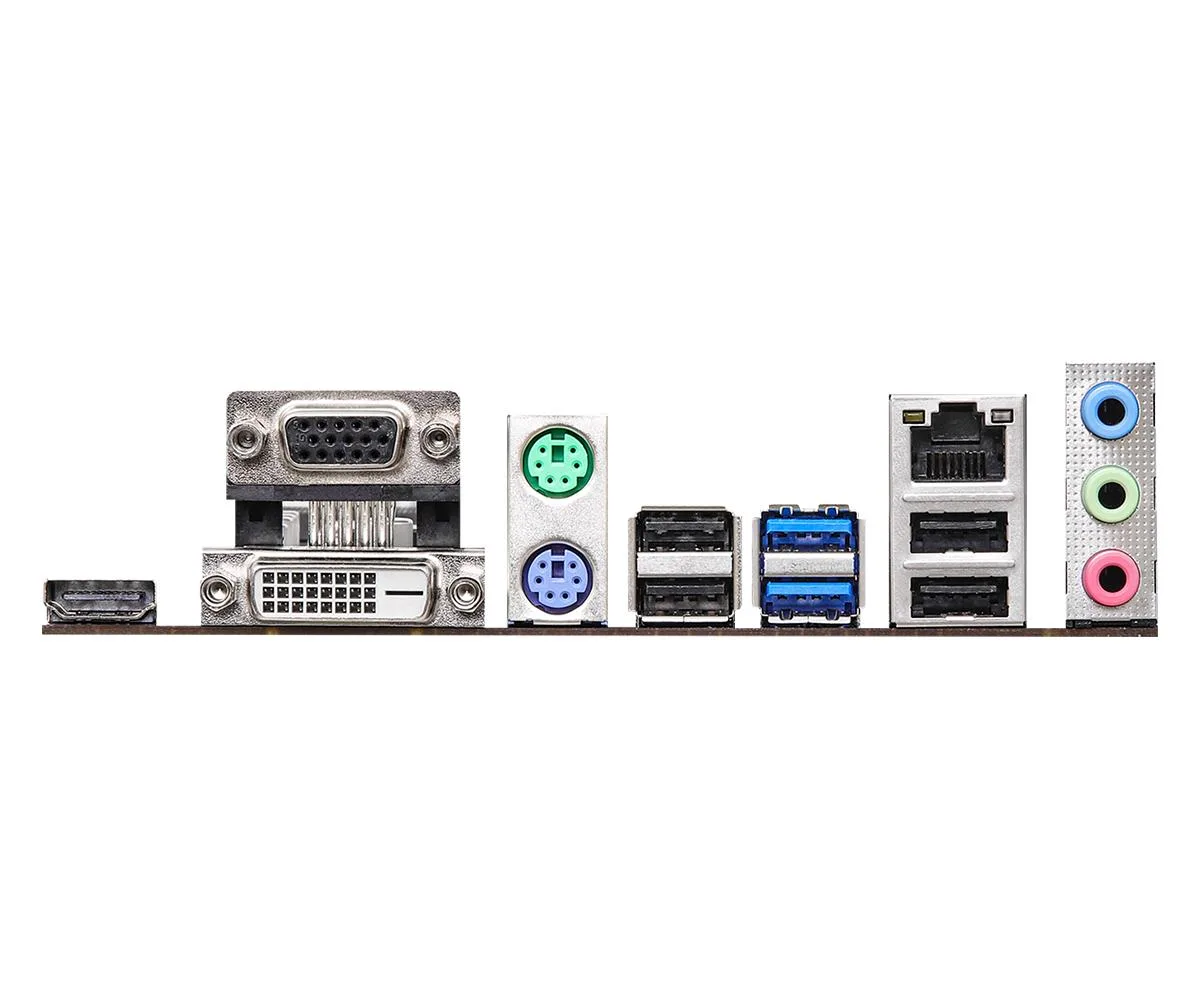

Back I/O Ports1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x Chassis Fan Connector (4-pin)
* The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.
1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)8.9" x 7.4"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128 MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- AS
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Questions about this item

Will an 11th Gen Intel Core i5 run DDR4 at 3200 on this board?

Yes, 11th Gen Core i9, i7 and i5 processors support DDR4 up to 3200 on the two 288-pin slots, with a maximum of 64 GB in dual-channel mode.

Can I use an M.2 NVMe drive as the boot device?

The Ultra M.2 socket accepts M-key 2260 or 2280 modules and runs PCIe Gen3 x4 up to 32 Gb/s; NVMe SSDs are supported as boot disks.

Which video outputs are available if my CPU has integrated graphics?

The rear panel provides D-Sub, DVI-D and HDMI ports, all driven by the processor's integrated graphics.
