Green Mini-ITX board with silver CPU socket, two black RAM slots, blue PCIe slot, rear I/O shield and vertical Wi-Fi module

ASRock

ASRock H510M-ITX/AC LGA 1200 Intel Motherboard

SKU CH-03HX-E47PH

Mini-ITX board for 10th and 11th Gen Intel Core CPUs with DDR4 up to 3200, dual M.2, Intel 1Gb LAN and bundled 802.11ac Wi-Fi

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Gen Intel Core Processors Supports 10th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H510
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 11th and 10th Gen Intel Core CPUs on LGA 1200 socket
  • Dual-channel DDR4 up to 3200 MHz with 64 GB maximum capacity
  • PCIe 4.0 x16 slot plus M.2 Key M up to Gen3 x4 for fast NVMe storage
  • Built-in Intel 802.11ac WiFi and Intel I219-V 1 Gbps LAN
  • Realtek ALC897 7.1-channel audio for immersive sound

Compact LGA 1200 Platform

The ASRock H510M-ITX/AC is a Mini-ITX motherboard built for Intel 10th and 11th Gen Core processors on the LGA 1200 socket. It targets small-form-factor builders who need a capable foundation for office workstations or home PCs. Dual-channel DDR4 memory support reaches 3200 with 11th Gen i9, i7 and i5 CPUs, while 10th Gen i9 and i7 top out at 2933. Maximum capacity is 64 GB across two 288-pin slots.

Sustained Load Behaviour

The Intel H510 chipset links the CPU through a single PCI Express 4.0 x16 slot and an Ultra M.2 socket running at Gen3 x4 speeds for NVMe storage. Four SATA 6.0 Gb/s ports handle additional drives, though SATA3_0 disables when a SATA-type M.2 device occupies M2_1. Turbo Boost Technology 3.0 operates within the board's power delivery limits during extended workloads. Integrated graphics output depends entirely on the installed processor.

Thermals Noise and Power

Passive heatsinks cover the voltage regulators and chipset, so the board adds no active noise of its own. System acoustics depend on the chosen CPU cooler and case airflow in the compact chassis. The Intel I219-V controller provides 1 Gbps wired networking, while the bundled Intel 802.11ac Wi-Fi module mounts vertically in a Key E M.2 socket. Realtek ALC897 handles 7.1-channel audio for everyday multimedia use.

Highlights

  • Supports 11th and 10th Gen Intel Core CPUs on LGA 1200 socket
  • Dual-channel DDR4 up to 3200 MHz with 64 GB maximum capacity
  • PCIe 4.0 x16 slot plus M.2 Key M up to Gen3 x4 for fast NVMe storage
  • Built-in Intel 802.11ac WiFi and Intel I219-V 1 Gbps LAN
  • Realtek ALC897 7.1-channel audio for immersive sound

Specifications

BrandASRock
ModelH510M-ITX/AC
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Gen Intel Core Processors
Supports 10th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H510
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core Processors)*
DDR4 2933 / 2800 / 2666 / 2400 / 2133 (10th Gen Intel Core Processors)*
* 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* Supports NVMe SSD as boot disks.
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Serial ATA (SATA)4 x SATA 6Gb/s*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel 802.11ac WiFi Module
IEEE802.11a/b/g/n/ac
BluetoothBluetooth 4.2

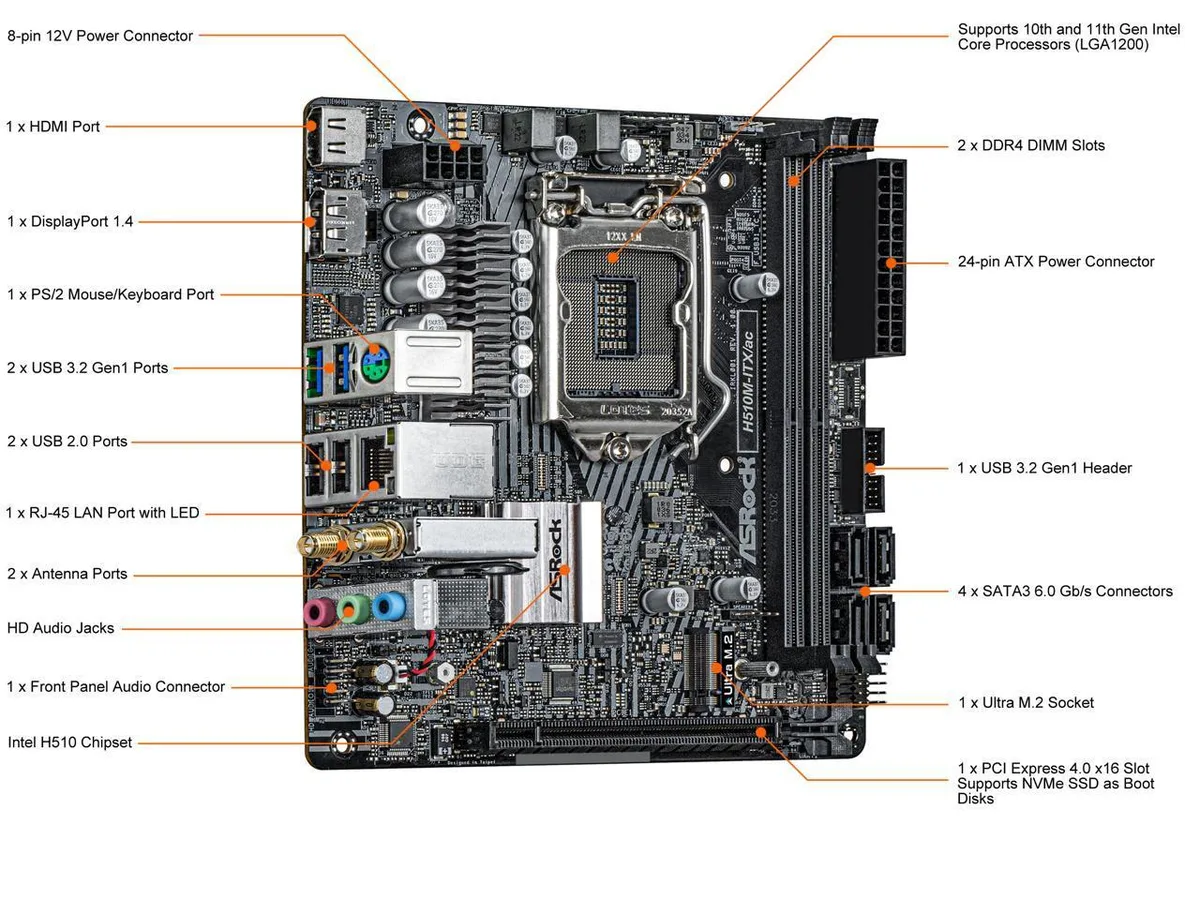

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion Header
1 x Addressable LED Header*
1 x CPU Fan Connector (4-pin)**
1 x Chassis Fan Connector (4-pin)***
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
* Support in total up to 5V/3A, 15W LED Strip.
** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
**** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan
Windows 11Supported
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB Intel 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128 MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment
Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket

Questions about this item

How much power does the ASRock H510M-ITX/AC draw when running all day with an 11th Gen Intel Core processor?

The board uses the Intel H510 chipset and LGA 1200 socket; sustained power draw depends on the specific CPU installed and its Turbo Boost 3.0 behaviour.

What memory must I already own to populate the two DDR4 slots on this motherboard?

You need DDR4 DIMMs rated up to 3200 MHz for 11th Gen Core i9/i7/i5 or up to 2933 MHz for 10th Gen Core i9/i7; maximum capacity is 64 GB in dual-channel mode.

Will my existing SATA SSDs and hard drives work alongside the M.2 slot on this H510M-ITX/AC?

Four SATA 6 Gb/s ports are provided; if a SATA-type M.2 drive occupies the M2_1 socket, SATA3_0 is disabled, otherwise all four ports remain active.
