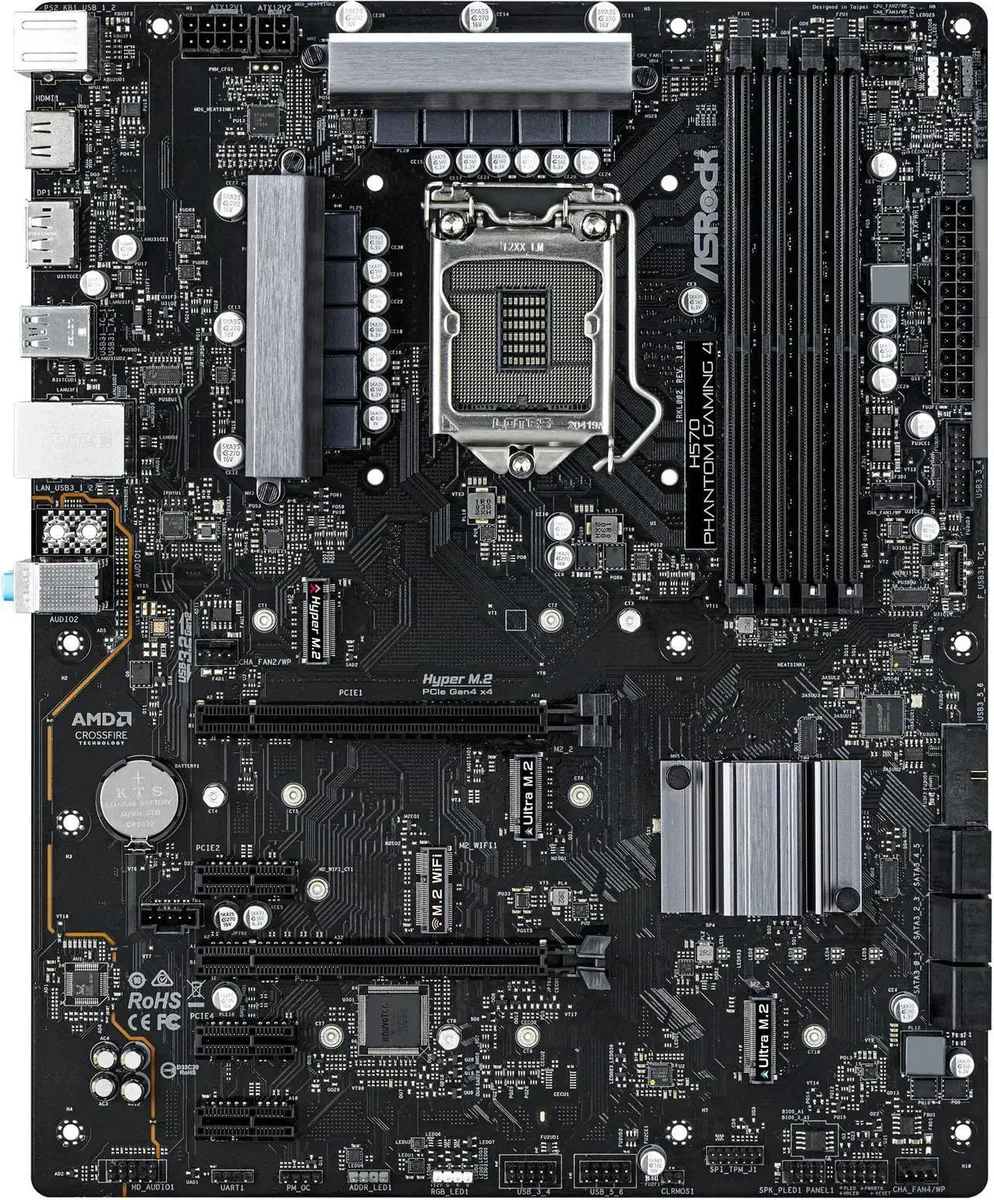

ATX motherboard with black PCB and silver heatsinks

ASRock

ASRock H570 Phantom Gaming 4 LGA 1200 Intel motherboard

SKU CH-H8B4-4SZYF

ATX board for LGA 1200 CPUs with H570 chipset, four DDR4 slots up to 128 GB, two full-length PCIe slots, three x1 slots, six SATA ports and two M.2 sockets

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H570
  • Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Arc
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 4800 MHz with 11th Gen CPUs
  • PCIe 4.0 x16 graphics slot available with 11th Gen processors
  • Two Hyper M.2 sockets for M Key 2260 and 2280 storage devices
  • Six SATA 6.0 Gb/s ports with RAID 0/1/5/10 support

Socket LGA 1200 ATX board

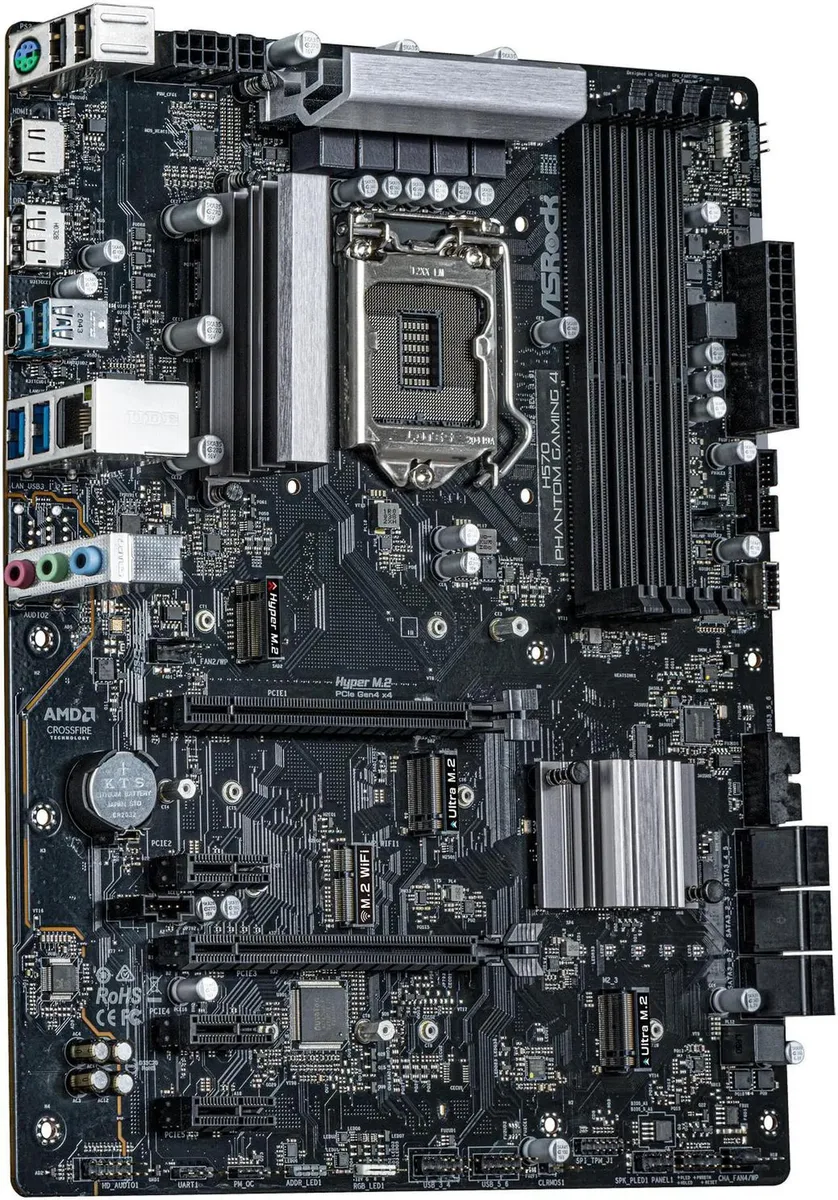

The ASRock H570 Phantom Gaming 4 is an ATX motherboard built around the Intel H570 chipset and the LGA 1200 socket. It accepts 10th and 11th generation Intel Core processors and enables Turbo Boost Technology 3.0. The board targets builders who want a full-size layout with current-generation connectivity.

Dual PCIe x16 plus three x1 slots

The primary PCI Express x16 slot runs at Gen4x16 with an 11th generation CPU and at Gen3x16 with a 10th generation CPU. A second x16 slot operates at Gen3x4 when both are populated. Three additional PCI Express 3.0 x1 slots give room for add-in cards such as sound or capture devices. Six SATA3 6.0Gb/s ports support RAID 0, 1, 5 and 10, though M.2 occupancy can disable one or two of them.

Two M.2 sockets and Realtek ALC897 audio

A Hyper M.2 socket (M2_1) takes 2260 or 2280 PCIe drives up to Gen4x4 with an 11th generation processor. An Ultra M.2 socket (M2_2) accepts 2260 or 2280 drives at Gen3x4 or SATA, and a Key E socket fits a 2230 Wi-Fi/BT module with Intel CNVi. Four DDR4 slots support up to 128GB in dual channel at 4800+(OC) for 11th generation and 4666+(OC) for 10th generation CPUs. The Realtek ALC897 codec handles onboard audio.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 4800 MHz with 11th Gen CPUs
  • PCIe 4.0 x16 graphics slot available with 11th Gen processors
  • Two Hyper M.2 sockets for M Key 2260 and 2280 storage devices
  • Six SATA 6.0 Gb/s ports with RAID 0/1/5/10 support

Specifications

BrandASRock
ModelH570 Phantom Gaming 4
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H570
Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max.
Number of Memory Slots4x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported128GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 4.0 x1611th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*
* Supports NVMe SSD as boot disks
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x13 x PCI Express 3.0 x1 Slots
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_2 will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

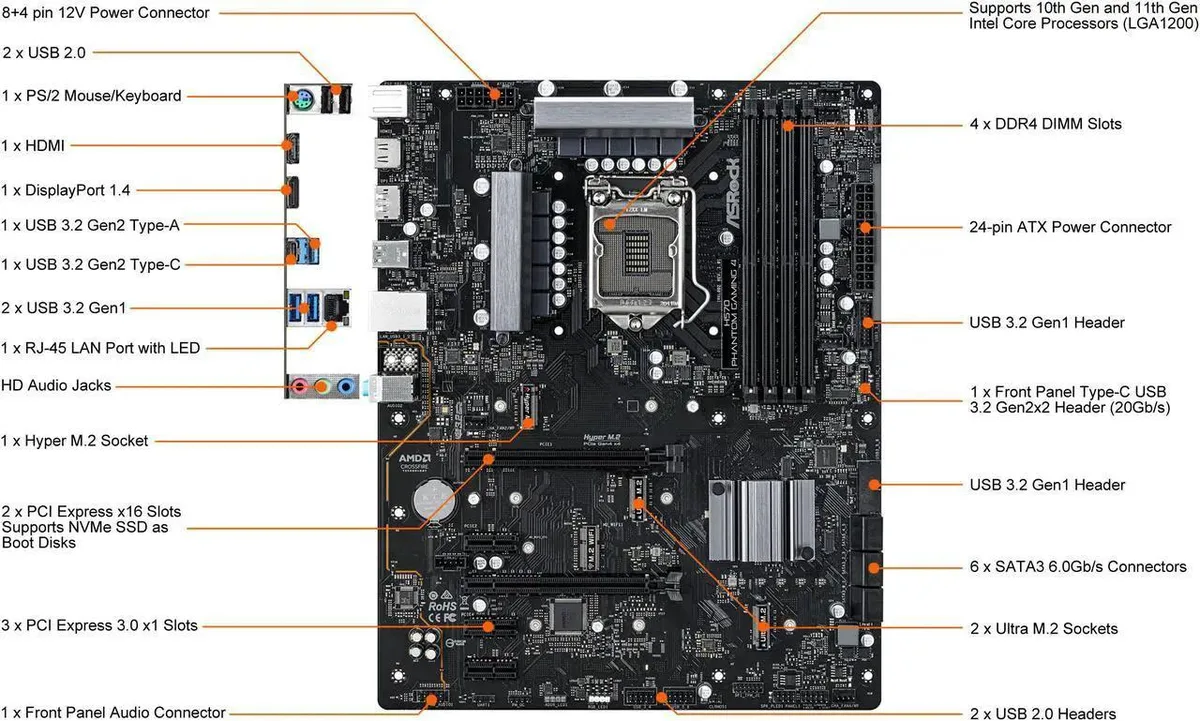

Back I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pu
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Questions about this item

What PCIe generation does the primary x16 slot run at with an 11th Gen processor?

With an 11th Gen Intel Core processor the primary PCIe x16 slot operates at Gen 4 x16, while the second x16 slot runs at Gen 3 x4.

What physical space and connectors are required for the M.2 slots?

The board provides two M.2 sockets: M2_1 accepts 2260 or 2280 M-key modules at Gen 4 x4 with 11th Gen CPUs, and M2_2 accepts 2260 or 2280 M-key modules at Gen 3 x4 or SATA; a Key E 2230 slot is also present for Wi-Fi/BT.

Which BIOS steps are needed before the board will boot an 11th Gen CPU?

The supplier states the BIOS will be upgraded to the latest version before shipping, so the board should recognise 11th Gen Intel Core processors without a manual update.
