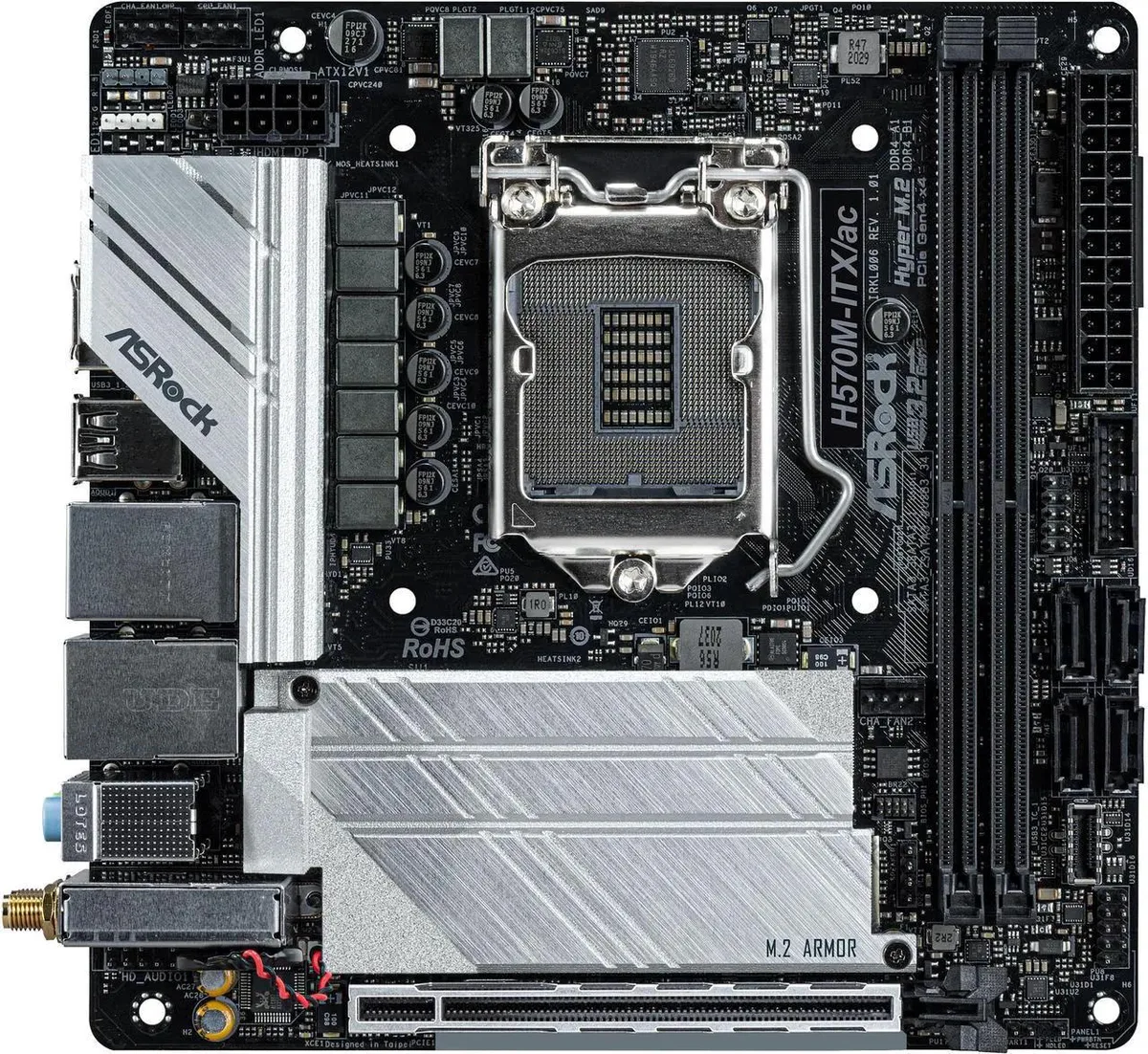

ASRock H570M-ITX/AC Mini-ITX motherboard with black PCB and silver heatsinks

ASRock

ASRock H570M-ITX/AC Intel motherboard

SKU CH-V4W6-1Q3MM

Mini-ITX Intel H570 board with LGA 1200 socket, dual DDR4 slots up to 64 GB, PCIe 4.0 x16, four SATA 6.0 Gb/s ports, two M.2 sockets, RTL8125BG LAN and 802.11ac Wi-Fi

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel H570
  • Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Arc
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 5066+(OC) with 11th Gen or 4600+(OC) with 10th Gen
  • PCIe 4.0 x16 slot with 11th Gen CPUs for high-speed graphics and NVMe storage
  • Hyper M.2 Gen4x4 and Ultra M.2 SATA sockets for flexible solid-state expansion
  • Realtek ALC897 7.1-channel audio and Dragon RTL8125BG LAN with bundled WiFi 802.11ac module

Socket and Chipset

This motherboard uses the Intel H570 chipset with an LGA 1200 socket. It accepts 10th and 11th generation Intel Core processors. Turbo Boost Technology 3.0 is supported on compatible CPUs. The board is built in a Mini ITX form factor for compact systems.

Who It Suits

Builders planning an 11th generation CPU gain PCI Express 4.0 on the x16 slot and the Hyper M.2 socket. Those staying with a 10th generation CPU will operate at PCI Express 3.0 speeds on the same slots. Four SATA3 ports and dual-channel memory support cover typical storage and RAM needs.

Memory Ceiling

Maximum supported capacity is 64 GB across two 288-pin DDR4 slots. With an 11th generation processor the board can run memory up to 5066+(OC), while a 10th generation processor tops out at 4600+(OC). Choose your CPU generation to match the speed headroom you require.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 5066+(OC) with 11th Gen or 4600+(OC) with 10th Gen
  • PCIe 4.0 x16 slot with 11th Gen CPUs for high-speed graphics and NVMe storage
  • Hyper M.2 Gen4x4 and Ultra M.2 SATA sockets for flexible solid-state expansion
  • Realtek ALC897 7.1-channel audio and Dragon RTL8125BG LAN with bundled WiFi 802.11ac module

Specifications

BrandASRock
ModelH570M-ITX/AC
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel H570
Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max.
Number of Memory Slots2x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5066+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 4.0 x1611th Gen Intel Core Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot*
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)*
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports Intel Optane Technology
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Second LAN ChipsetIntel I219V
Max LAN Speed2.5Gbps + 1Gbps
Wireless LANIntel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II

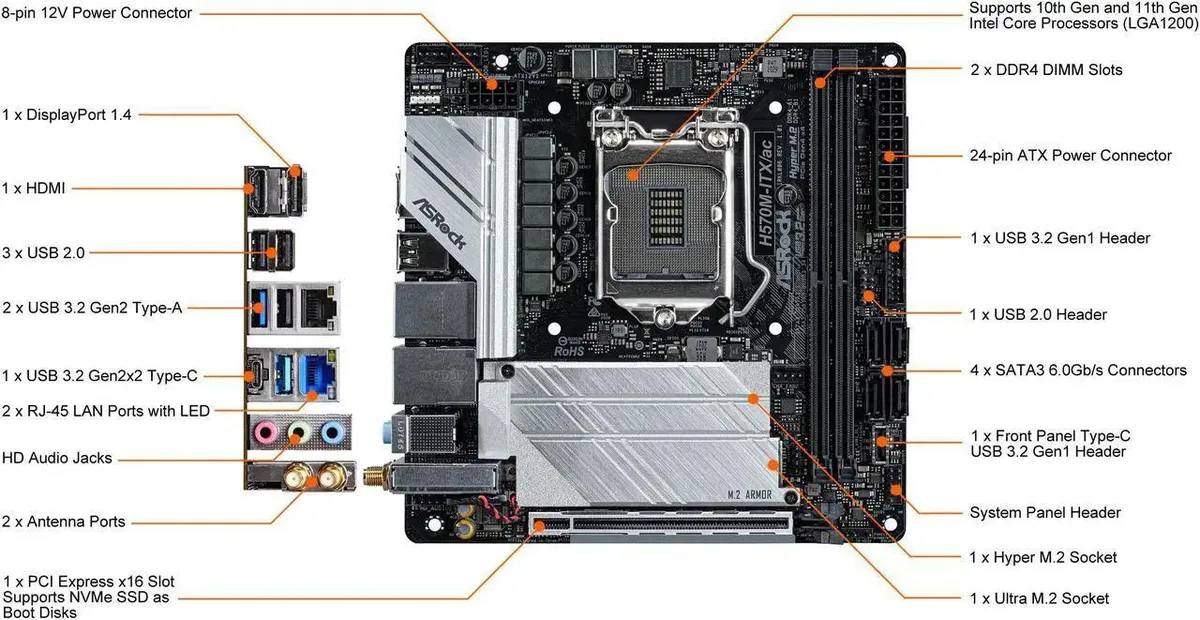

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20Gb/s) (Supports ESD Protection)
2 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
3 x USB 2.0 Port (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
Other Connectors1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x Chassis Fan Connector (4-pin)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** C
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

Questions about this item

How is the WiFi module installed on the ASRock H570M-ITX/AC, and which step is often missed?

The WiFi-802.11ac module is pre-installed in the vertical M.2 Key E socket on the rear I/O; the step often missed is attaching the two external antenna cables to the gold connectors on the module before securing the rear panel.

What maintenance will the ASRock H570M-ITX/AC need over time?

Clean dust from the VRM heatsinks, chipset heatsink, and the M.2 SSD heatsink if fitted; check that the four SATA cables and the M.2 mounting screws remain tight after thermal cycling; no other user-serviceable parts are present.

What limit appears first on the ASRock H570M-ITX/AC during sustained heavy loads?

The VRM thermal capacity on this Mini-ITX board is the first bottleneck; extended all-core workloads on high-power 11th Gen CPUs will throttle before the 64 GB memory ceiling or the single PCIe 4.0 x16 slot saturate.
