Rectangular mATX motherboard in dark green with silver heatsinks, black PCIe slots and rear I/O panel

ASRock

ASRock H610M/AC Intel motherboard LGA 1700 DDR4 mATX

SKU CH-5PSW-PZ7BF MPN H610M/AC

Micro-ATX board for 12th, 13th and 14th Gen Intel CPUs with dual-channel DDR4 to 3200, PCIe 4.0 x16, one Ultra M.2 socket, WiFi 5 plus Bluetooth 4.2, and triple video outputs

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
  • ChipsetIntel H610
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardUp to DDR4 3200
  • Maximum Memory Supported64GB
  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Dual-channel DDR4 up to 3200 with XMP 2.0 and 64 GB maximum capacity
  • PCIe 4.0 x16 graphics slot plus Ultra M.2 for PCIe Gen3 x4 or SATA SSDs
  • Intel Gigabit LAN and WiFi 5 with Bluetooth 4.2 built in
  • Triple display outputs via HDMI, DisplayPort 1.4 and D-Sub with 7.1-channel audio

H610 chipset mATX motherboard

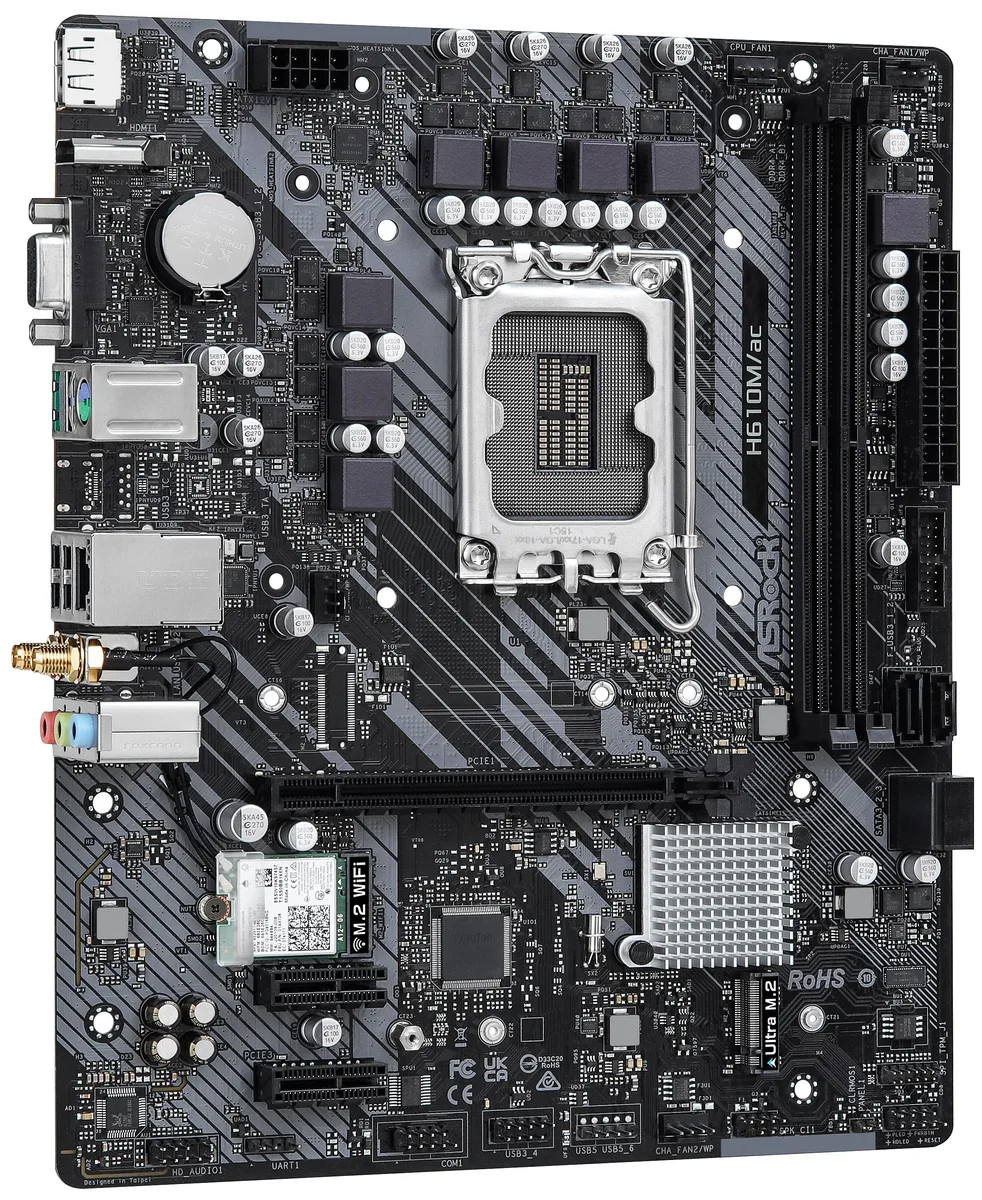

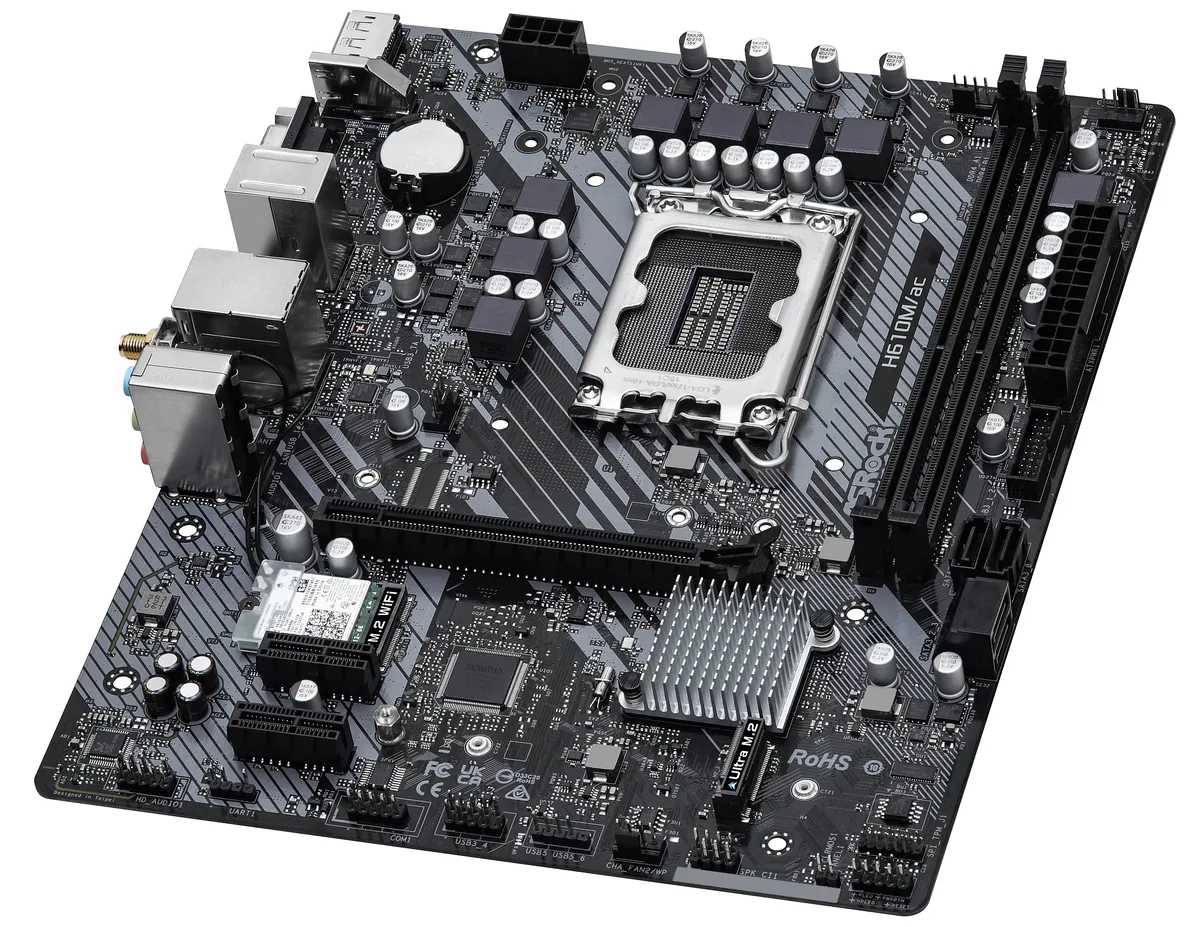

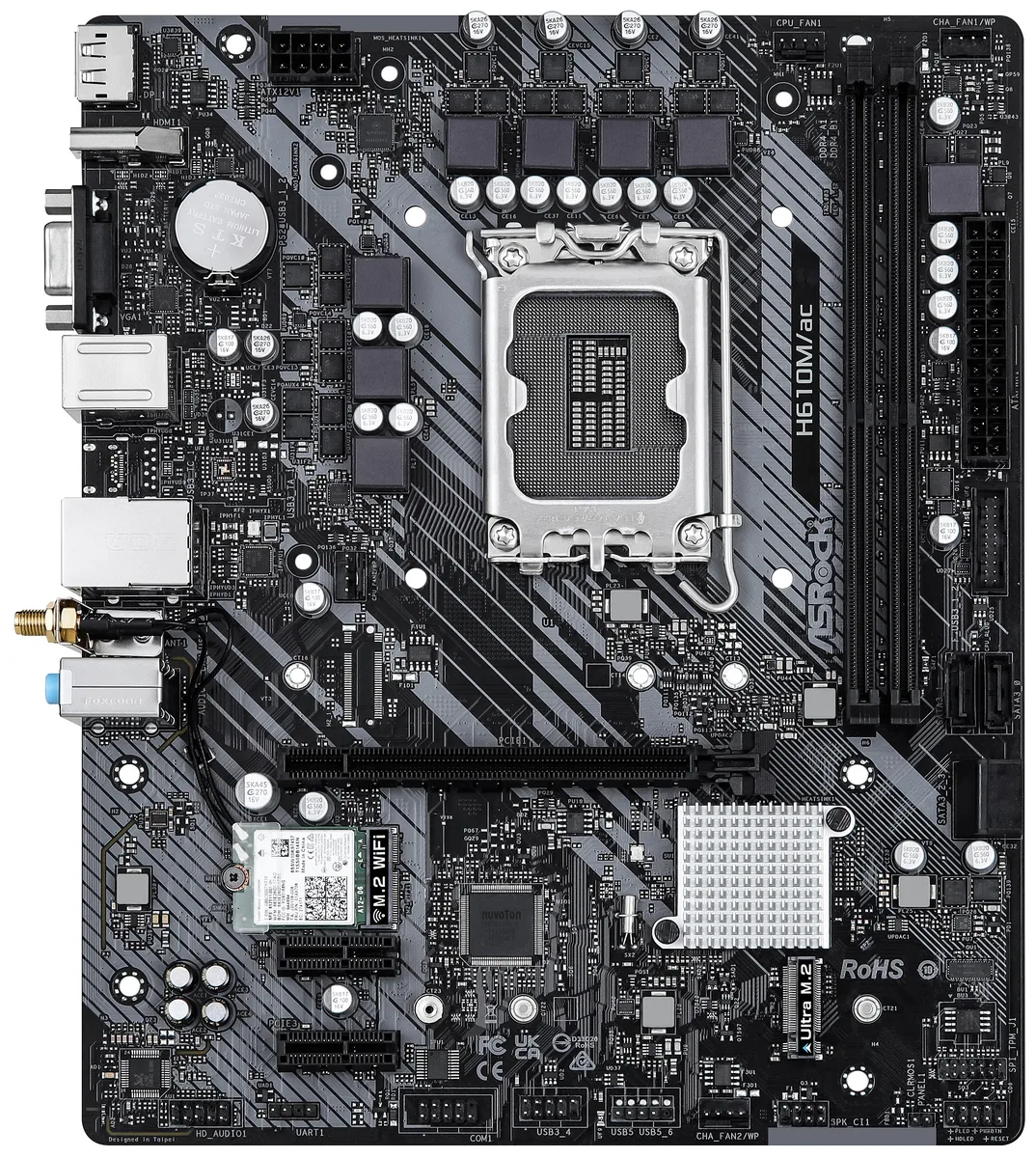

The ASRock H610M/AC is a micro-ATX board built on the Intel H610 chipset with an LGA 1700 socket. It accepts 12th, 13th and 14th Gen Intel Core processors and provides two DDR4 DIMM slots running up to 3200 MT/s with XMP 2.0 support for a maximum of 64 GB in dual-channel mode. A 6-phase digital power design delivers stable voltage to the CPU.

Budget builders and office upgrades

This board suits builders who need a compact foundation for a current-generation Intel CPU without paying for overclocking features or multi-GPU support. The single PCIe 4.0 x16 slot and one Ultra M.2 socket cover a graphics card and a boot NVMe drive, while four SATA 6 Gb/s ports handle additional storage. Users who require multiple M.2 drives, WiFi 5, Gigabit LAN or more than two memory slots should look at B-series or Z-series alternatives.

WiFi 5 Bluetooth 4.2 and triple display

The integrated Intel 802.11ac module adds WiFi 5 and Bluetooth 4.2 connectivity without a separate card. Realtek ALC897 provides 7.1-channel HD audio, and the rear panel includes HDMI, DisplayPort 1.4 and D-Sub outputs so integrated graphics can drive three monitors simultaneously. ASRock Full Spike Protection shields USB, audio and LAN ports from electrical surges.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Dual-channel DDR4 up to 3200 with XMP 2.0 and 64 GB maximum capacity
  • PCIe 4.0 x16 graphics slot plus Ultra M.2 for PCIe Gen3 x4 or SATA SSDs
  • Intel Gigabit LAN and WiFi 5 with Bluetooth 4.2 built in
  • Triple display outputs via HDMI, DisplayPort 1.4 and D-Sub with 7.1-channel audio

Specifications

BrandASRock
ModelH610M/AC
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
ChipsetIntel H610
Number of Memory Slots2x288pin (DDR4)
Memory StandardUp to DDR4 3200
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x16CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express x1Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
*Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s **
** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
M.2Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ac
BluetoothBluetooth 4.2

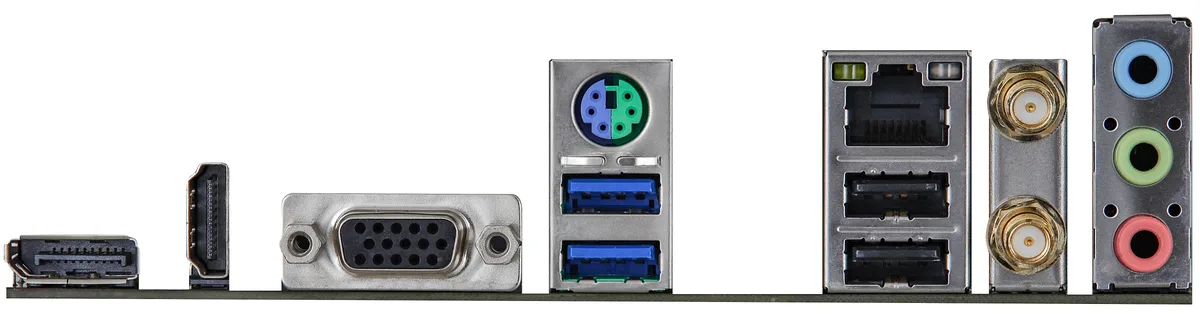

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-
BIOS Feature128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Windows 11Supported
Form FactorMicro ATX
LED LightingNone RGB
Dimensions (W x L)9.6" x 7.9"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
FeaturesASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Package ContentsI/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
1 x Screw for M.2 Socket
Shipping weight0.77 kg
Package size279 × 241 × 58 mm

Questions about this item

Will this board fit in a standard mATX case and accept a 12th, 13th or 14th Gen Intel Core processor?

Yes, the mATX form factor fits standard mATX chassis and the LGA 1700 socket supports 12th, 13th and 14th Gen Intel Core CPUs.

Can I run 64 GB of DDR4 memory at 3200 MT/s on the two DIMM slots?

The board has two 288-pin DDR4 slots, dual-channel support and a 64 GB maximum, with XMP 2.0 profiles up to 3200.

Does the M.2 slot take both NVMe and SATA drives, and will a SATA M.2 disable a SATA port?

The Ultra M.2 socket accepts 2260/2280 NVMe PCIe Gen3 x4 or SATA drives; using a SATA M.2 disables the SATA3_3 connector.
