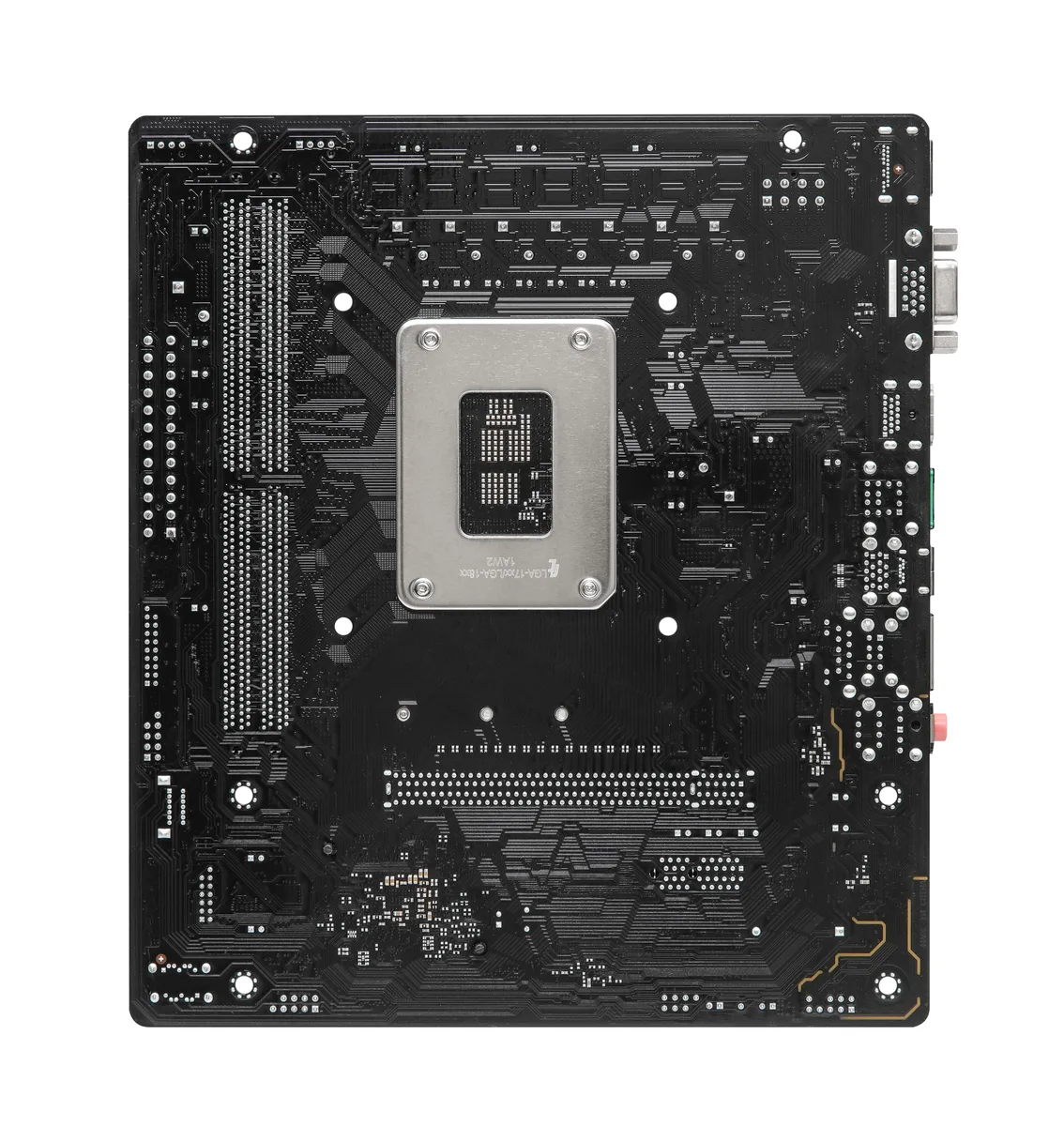

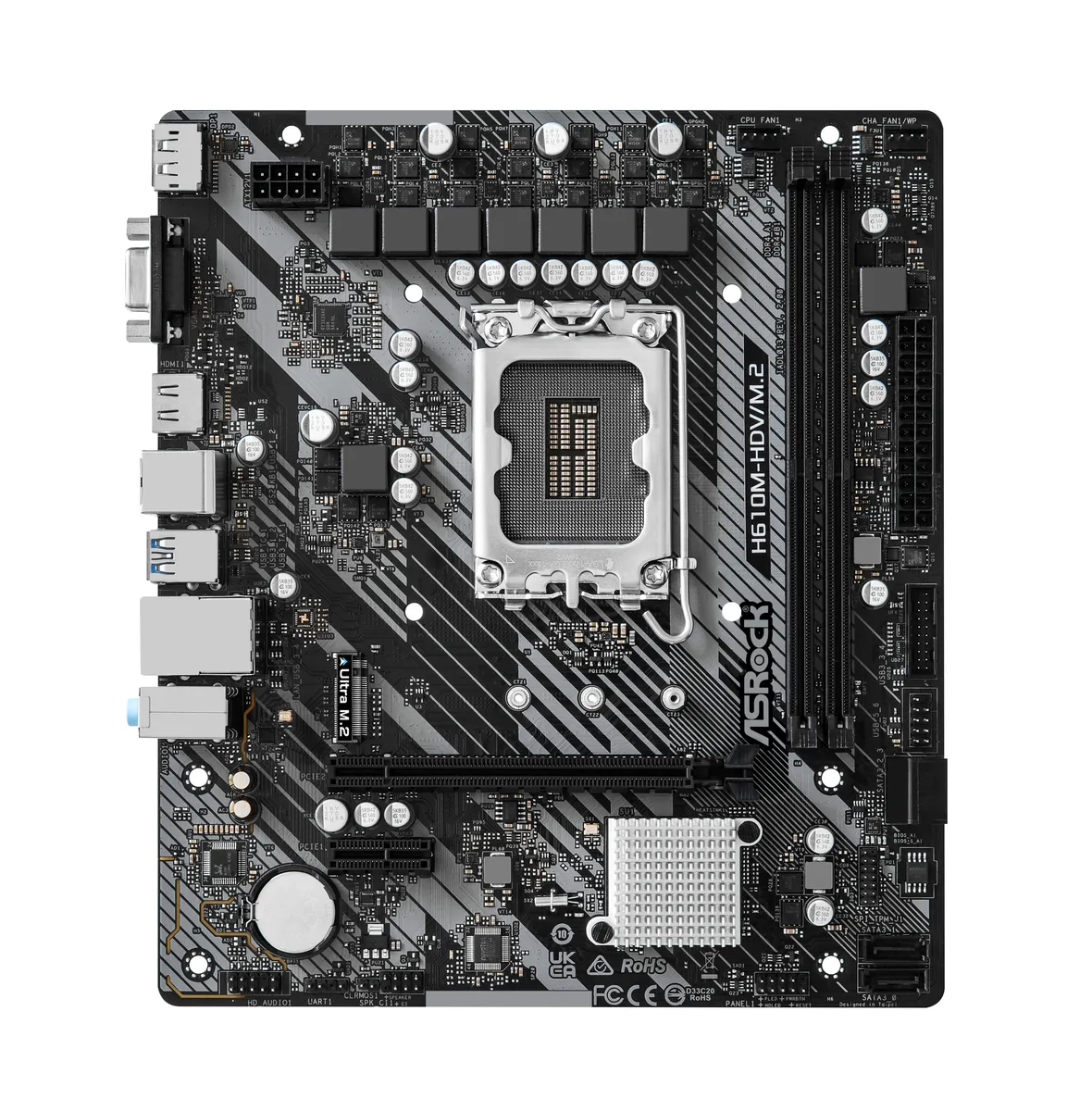

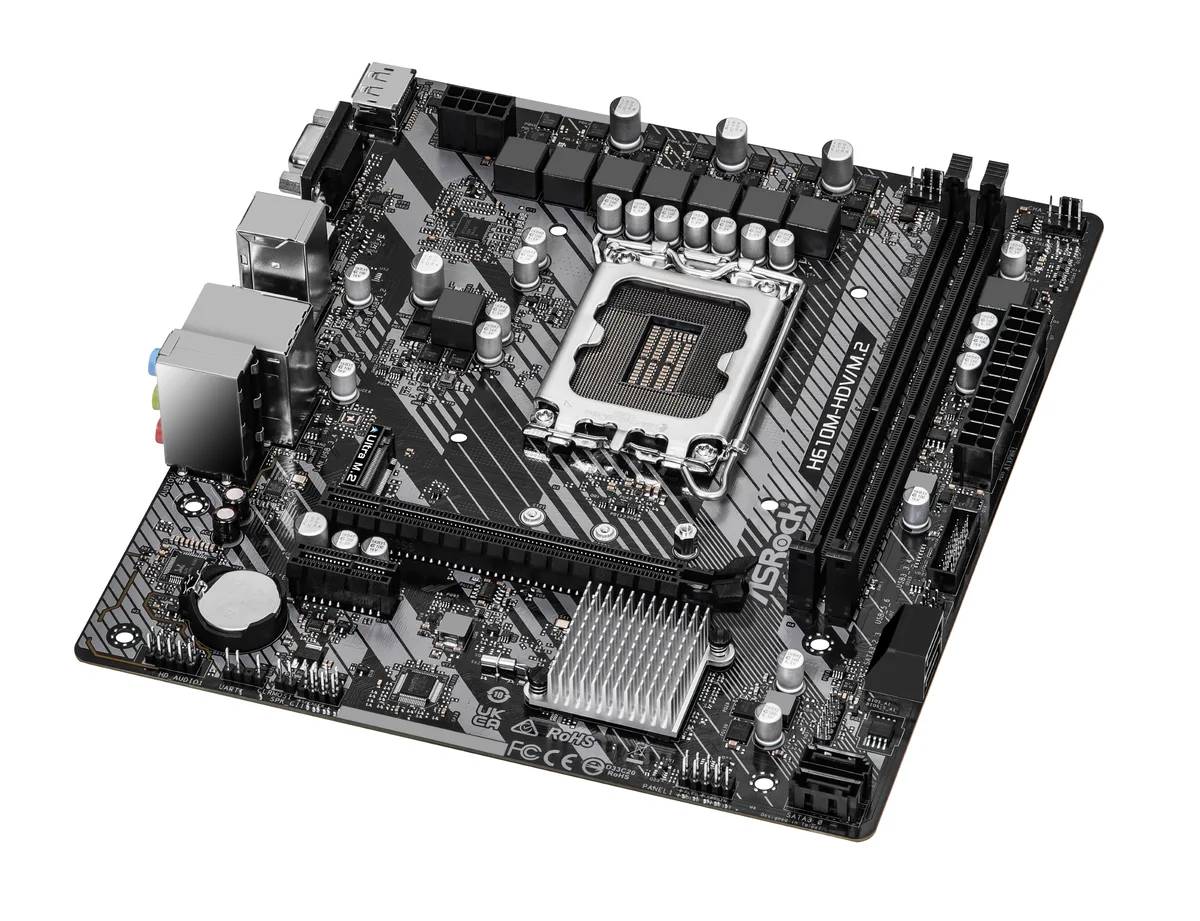

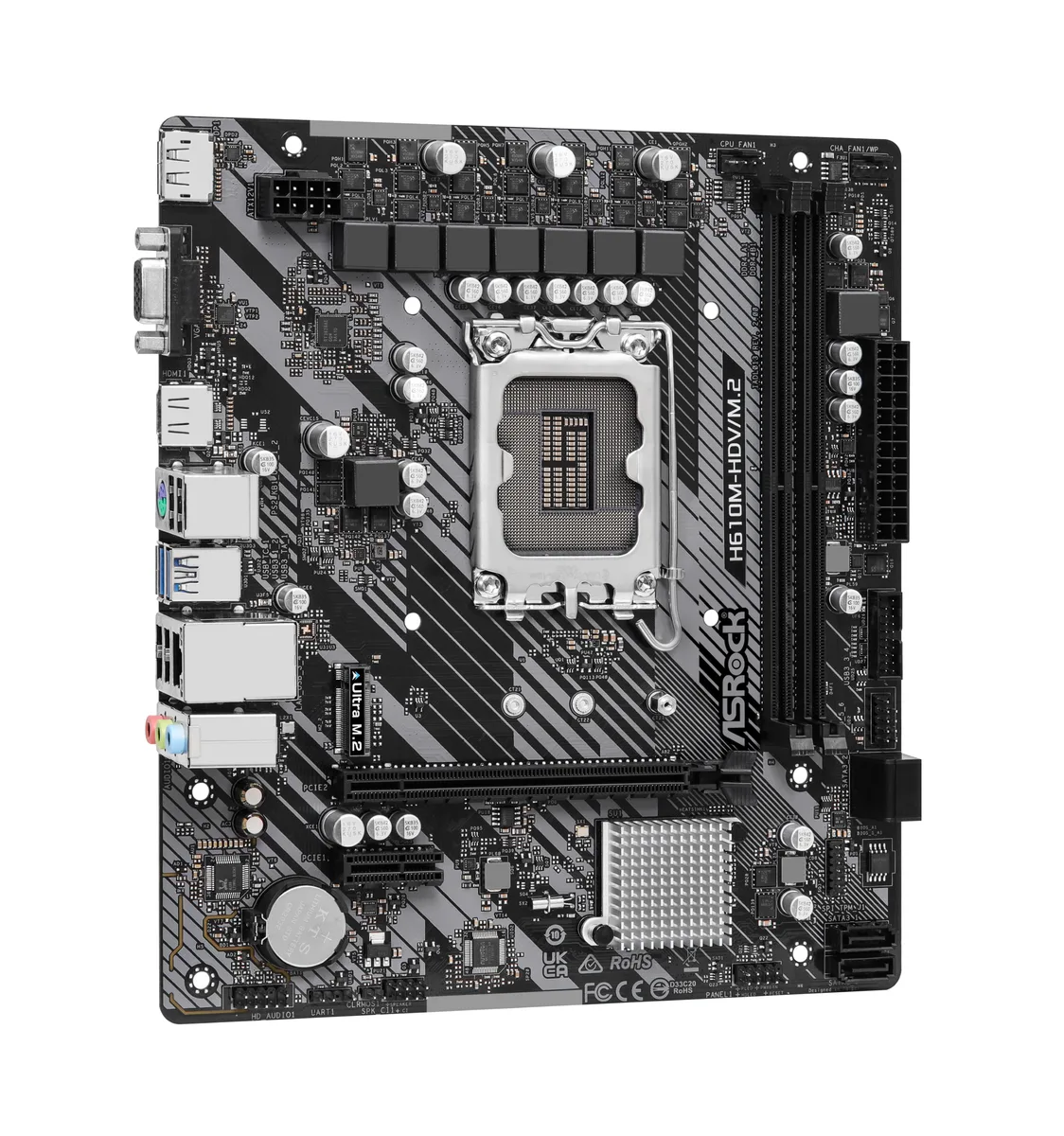

ASRock H610M-HDV/M.2 R2.0 Intel motherboard
Micro-ATX LGA 1700 board with H610 chipset, two DDR4 slots up to 3200, one PCIe 4.0 x16 and one PCIe 3.0 x1 slot, Ultra M.2 32 Gb/s, four SATA 6 Gb/s, HDMI, DisplayPort, D-Sub.
- CPU Socket TypeLGA 1700
- CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
- ChipsetIntel H610
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardUp to DDR4 3200
- Maximum Memory Supported64GB
- Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
- Digital 6+1+1 phase power design delivers stable CPU voltage for longer component life
- Two DDR4 DIMM slots run dual-channel up to 3200 MT/s with 64 GB maximum capacity
- Ultra M.2 slot provides PCIe Gen3 x4 bandwidth up to 32 Gb/s for fast NVMe storage
- HDMI, DisplayPort and D-Sub outputs enable triple-display setups with integrated graphics
Socket and generation
This motherboard uses the Intel H610 chipset on an LGA 1700 socket and accepts 12th, 13th and 14th generation Intel Core processors. The Micro ATX form factor fits compact builds while keeping two DDR4 DIMM slots for up to 64 GB of dual channel memory at 3200 MT/s with XMP 2.0 support.
Power and connectors
A 6+1+1 phase digital PWM design supplies the CPU voltage rails and premium power chokes improve efficiency. Video output is provided through HDMI, DisplayPort and D-Sub ports when a processor with integrated graphics is installed. The board also includes four SATA 6 Gb/s ports, one PCIe 4.0 x16 slot, one PCIe 3.0 x1 slot and a single Ultra M.2 socket for 2242, 2260 or 2280 drives at PCIe Gen3 x4 speeds.
Interface limits
The Ultra M.2 socket delivers up to 32 Gb/s over PCIe Gen3 x4 and also accepts SATA M.2 modules, but it does not support PCIe 4.0 storage. The second PCIe slot is limited to Gen3 x1 bandwidth from the chipset. Networking relies on a Realtek 8111H controller capped at 1 Gbps, while an M.2 Key E slot allows an optional 802.11 Wi-Fi module that is not included.
Highlights
- Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
- Digital 6+1+1 phase power design delivers stable CPU voltage for longer component life
- Two DDR4 DIMM slots run dual-channel up to 3200 MT/s with 64 GB maximum capacity
- Ultra M.2 slot provides PCIe Gen3 x4 bandwidth up to 32 Gb/s for fast NVMe storage
- HDMI, DisplayPort and D-Sub outputs enable triple-display setups with integrated graphics
Specifications
| Brand | ASRock |
|---|---|
| Model | H610M-HDV/M.2 R2.0 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) |
| Chipset | Intel H610 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | Up to DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* |
| PCI Express x1 | Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1) *Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111H |
| Max LAN Speed | 1Gbps |

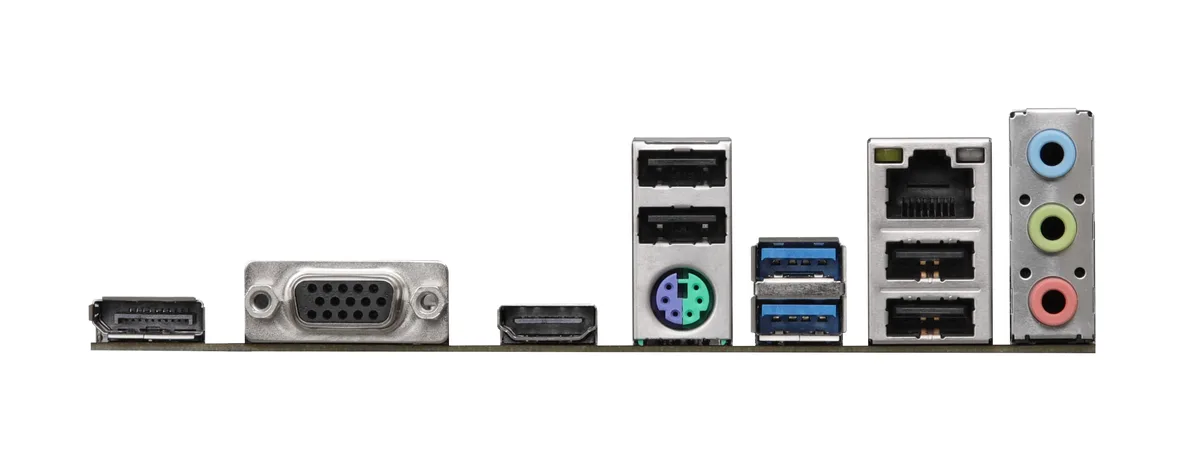

| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| Form Factor | Micro ATX |
| LED Lighting | None RGB |
| Dimensions (W x L) | 8.66" x 7.6" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
| Features | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Shipping weight | 0.82 kg |
| Package size | 279 × 241 × 56 mm |
Questions about this item
What PCIe generation does the single x16 slot on the H610M-HDV/M.2 R2.0 provide, and what bandwidth does it cap at?
The board provides one PCIe 4.0 x16 slot wired to the CPU, delivering up to 16 lanes of Gen 4 bandwidth for a graphics card or NVMe adapter.
Which case form factors and mounting holes match the Micro ATX layout of this H610M-HDV/M.2 R2.0?
The Micro ATX PCB fits standard ATX and Micro ATX cases using the six mounting holes defined by the Micro ATX specification.
How is the DDR4 memory installed on the two 288-pin slots, and which slot must be populated first for dual-channel operation?
Insert modules into the slot furthest from the CPU socket first; the second module goes into the remaining slot to enable dual-channel mode.
