ASRock
ASRock H810M-X Intel motherboard LGA 1851 DDR5 Micro ATX
LGA 1851 Micro ATX board with two DDR5 slots up to 6400, PCIe 4.0 x16, one M.2 2280 Gen4, four SATA, 2.5 GbE LAN and 7.1 audio
- CPU Socket TypeLGA 1851
- CPU TypeIntel Core Ultra Processors (Series 2)
- ChipsetIntel H810
- Number of Memory Slots2x288pin (DDR5)
- Memory StandardUp to DDR5 6400
- Maximum Memory Supported128GB
- Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
- Dual-channel DDR5 memory up to 6400 MT/s with 128 GB capacity
- PCIe 4.0 x16 slot and Hyper M.2 Gen4 x4 for fast NVMe storage
- 5 Gbps LAN plus Realtek ALC897 7.1-channel audio
- Aluminium heatsink and PWM/DC fan headers for efficient cooling
LGA 1851 Micro ATX platform

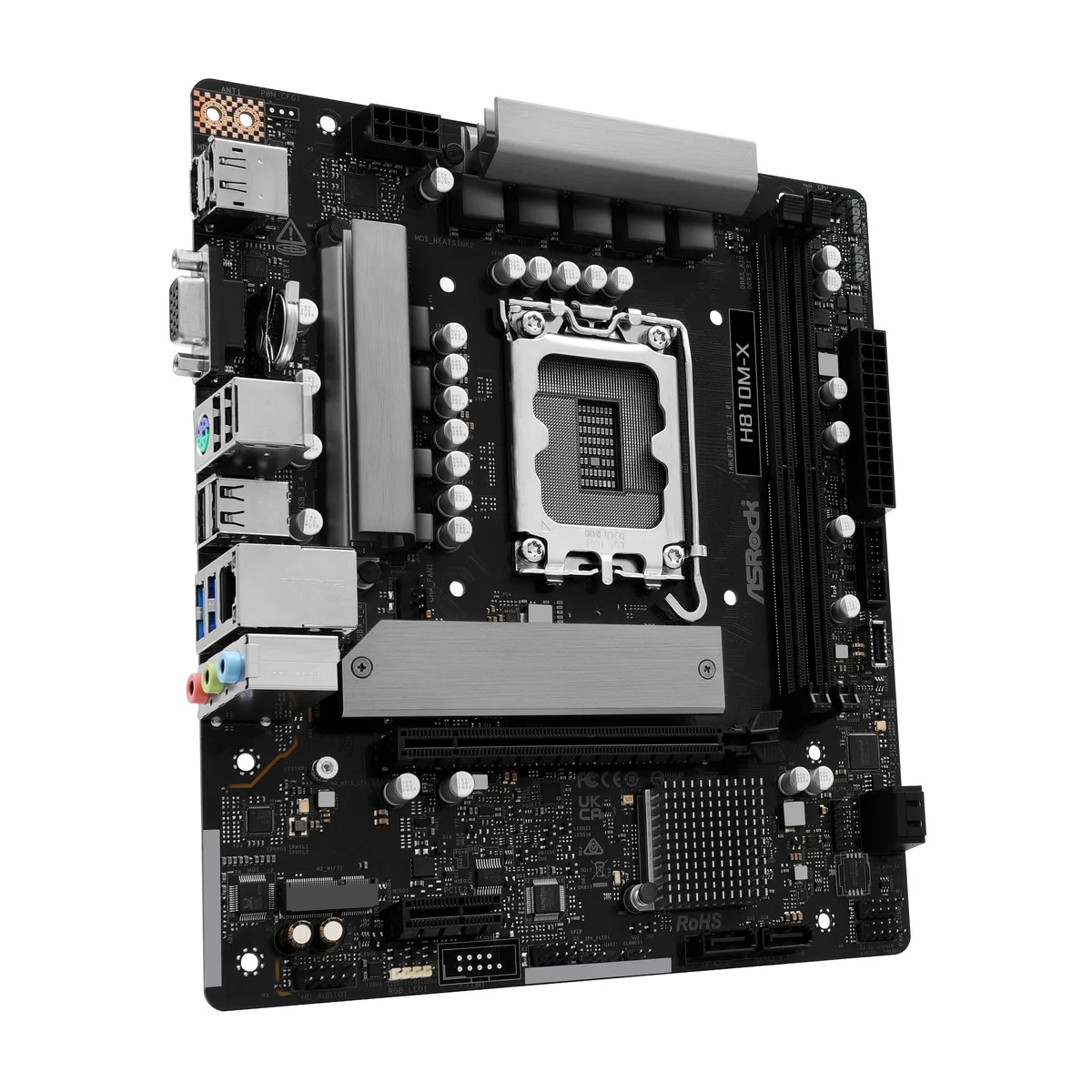

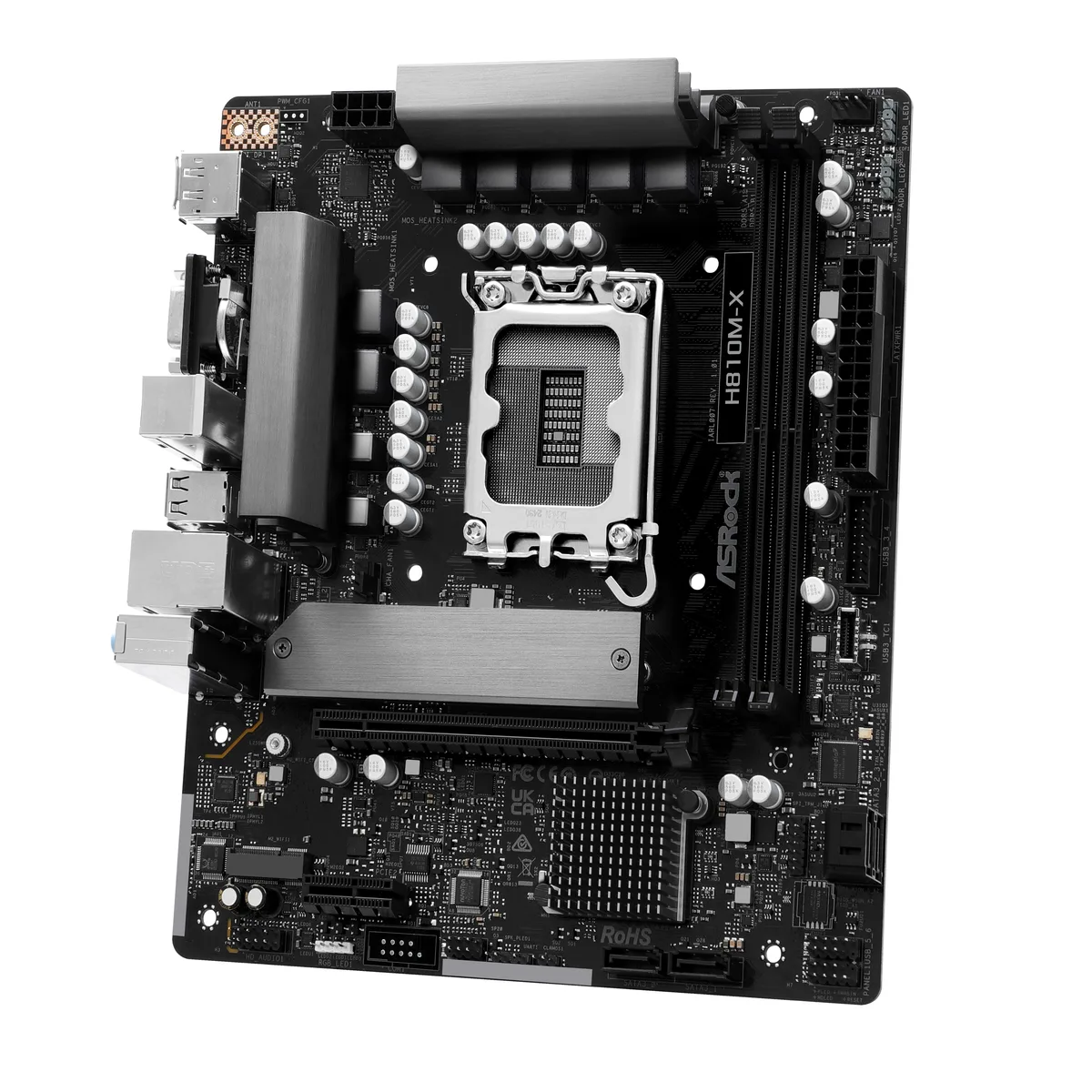

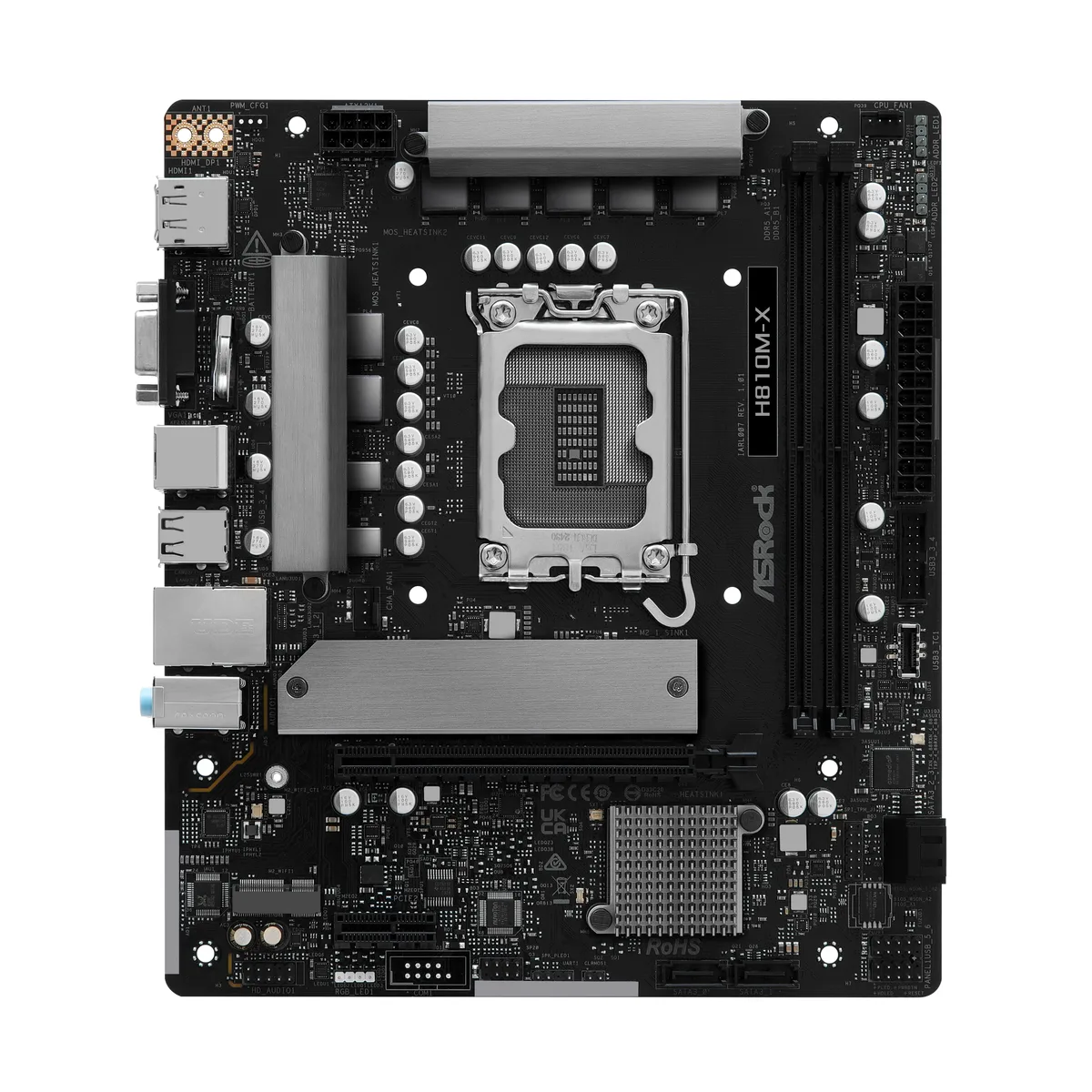

The ASRock H810M-X is a Micro ATX motherboard built around the Intel H810 chipset for LGA 1851 processors. It supports Intel Core Ultra Series 2 CPUs and provides a compact foundation for office systems or entry-level workstations. Dual-channel DDR5 memory runs up to 6400 MT/s across two slots with a maximum capacity of 128 GB. A 6+1+1+1+1 phase power design feeds the socket.
Budget builders needing one GPU and one NVMe drive
This board suits users who need a single PCIe 4.0 x16 graphics slot, one M.2 2280 Gen4 NVMe slot and four SATA ports. It also includes 2.5 GbE LAN, 7.1-channel audio and video outputs for HDMI, DisplayPort and D-Sub. Builders who require multiple graphics cards, additional M.2 slots or overclocking headroom should consider a higher-tier chipset.
One M.2 2280 Gen4 slot decides storage ceiling
The single Hyper M.2 socket accepts a 2280 PCIe 4.0 x4 NVMe drive as the primary boot device. No further M.2 connectors are present on the PCB. If the build demands two or more NVMe drives, this motherboard cannot accommodate them.
Highlights
- Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
- Dual-channel DDR5 memory up to 6400 MT/s with 128 GB capacity
- PCIe 4.0 x16 slot and Hyper M.2 Gen4 x4 for fast NVMe storage
- 5 Gbps LAN plus Realtek ALC897 7.1-channel audio
- Aluminium heatsink and PWM/DC fan headers for efficient cooling
Specifications
| Brand | ASRock |
|---|---|
| Model | H810M-X |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | Up to DDR5 6400 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x1 | 1 x PCIe 4.0 x1 Slot (PCIE2)* * Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
| Max LAN Speed | 2.5Gbps |

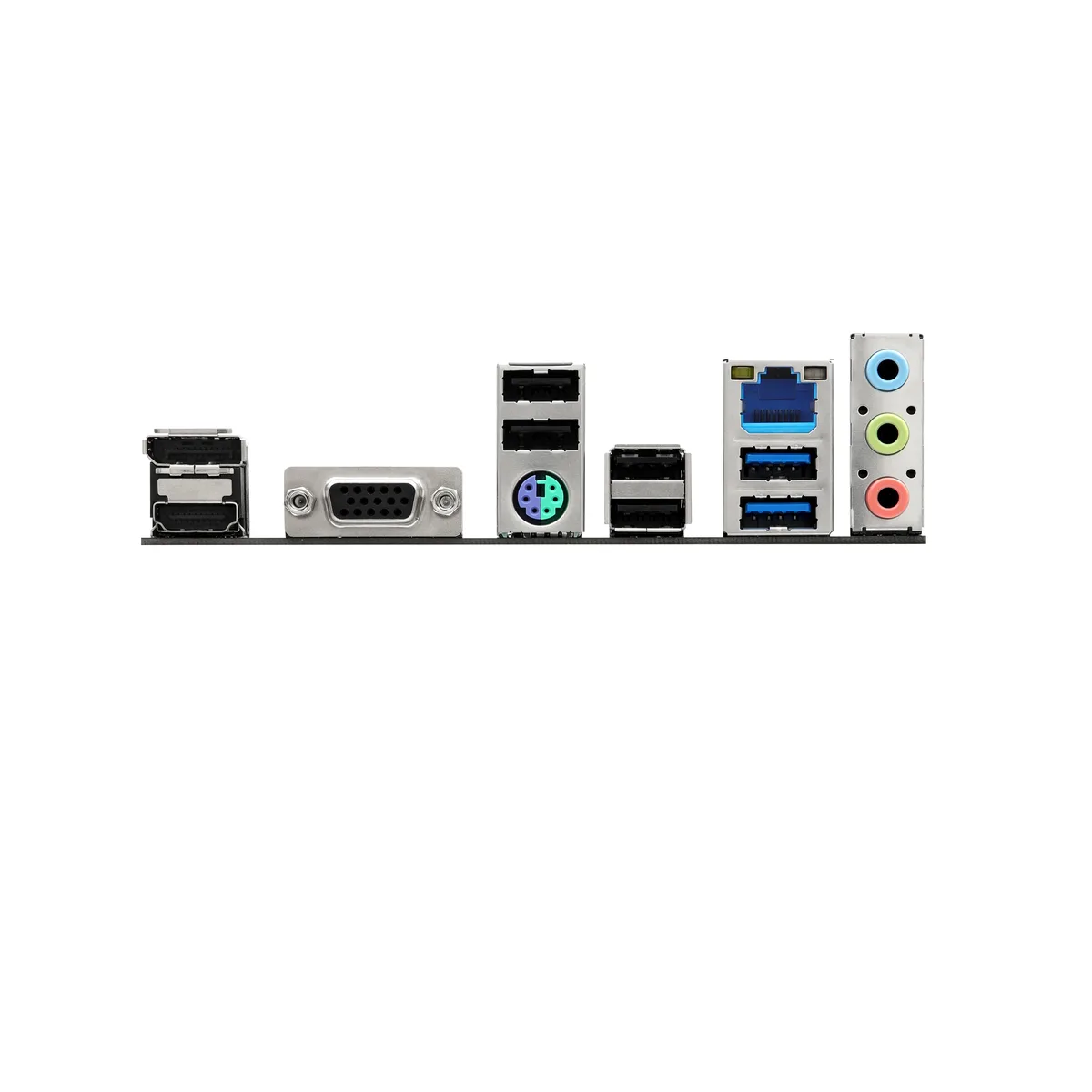

| Back I/O Ports | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**** 1 x Front Panel Audio Connector * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CHA_FAN1 supports the fan power up to 3A (36W). **** CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
| Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.6" x 7.6" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
| Features | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1+1+1 Power Phase - ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
| Shipping weight | 0.89 kg |
| Package size | 274 × 246 × 61 mm |
Questions about this item
How do I install a DDR5 module into the 288-pin slots on this H810M-X, and what step do people get wrong?
Align the notch on the DDR5 module with the key in each 288-pin slot, press down firmly until both retention clips click shut, and verify the motherboard detects the full capacity up to 128 GB in the BIOS.
What maintenance will the aluminium heatsink and fan headers on this H810M-X need over time?
Clean dust from the aluminium heatsink fins with compressed air every few months and check that the PWM/DC fan headers still spin connected fans at the expected speeds.
Which limit appears first when the Hyper M.2 socket runs sustained PCIe 4.0 x4 transfers on this H810M-X?
The single M.2 2280 slot caps throughput at 64 Gb/s, so prolonged heavy writes will hit that bandwidth ceiling before other interfaces become a bottleneck.
