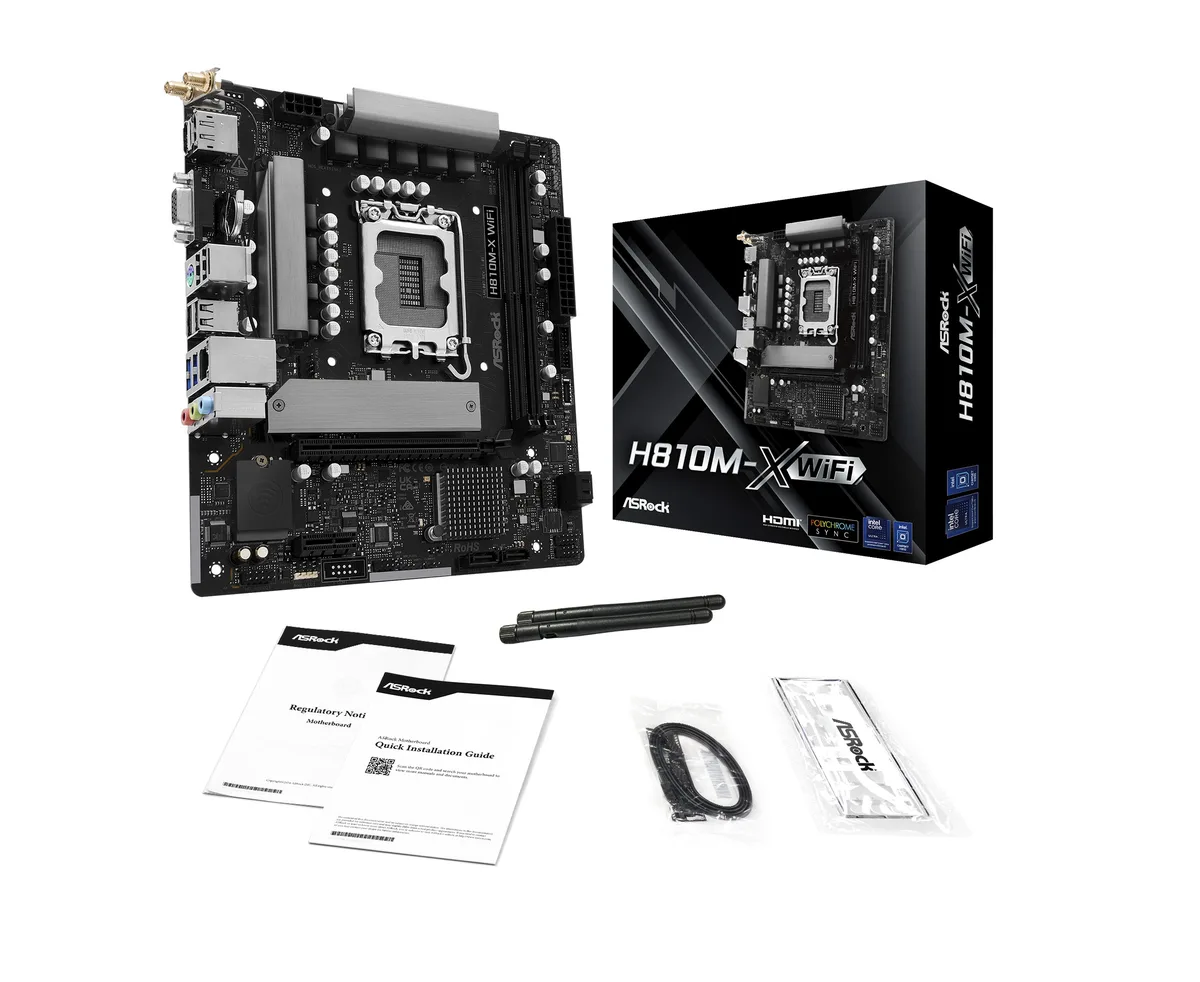

Rectangular micro-ATX board, dark PCB with silver heatsinks and rear I/O shield

ASRock

ASRock H810M-X WIFI Intel motherboard, LGA 1851, DDR5 6400, Wi-Fi 802.11 ac, Bluetooth 5.0

SKU CH-QQR9-PJ7HX MPN H810M-X WIFI

Micro-ATX board for Intel Core Ultra Series 2 CPUs with dual-channel DDR5 up to 6400, one PCIe 4.0 x16 slot, one M.2 2280 Gen4x4, 2.5 GbE LAN, Wi-Fi 802.11 ac and Bluetooth 5.0

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel H810
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to DDR5 6400
  • Maximum Memory Supported128GB
  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • Dual-channel DDR5 memory up to 6400 with Intel XMP 3.0 profile
  • PCIe 4.0 x16 slot and PCIe 4.0 x1 slot for graphics and storage expansion
  • 5 Gbps Dragon RTL8125BG LAN plus Wi-Fi 802.11 ac and Bluetooth 5.0 connectivity
  • Realtek ALC897 7.1 channel HD audio with HDMI, DisplayPort 1.4 and D-Sub outputs

Socket and chipset

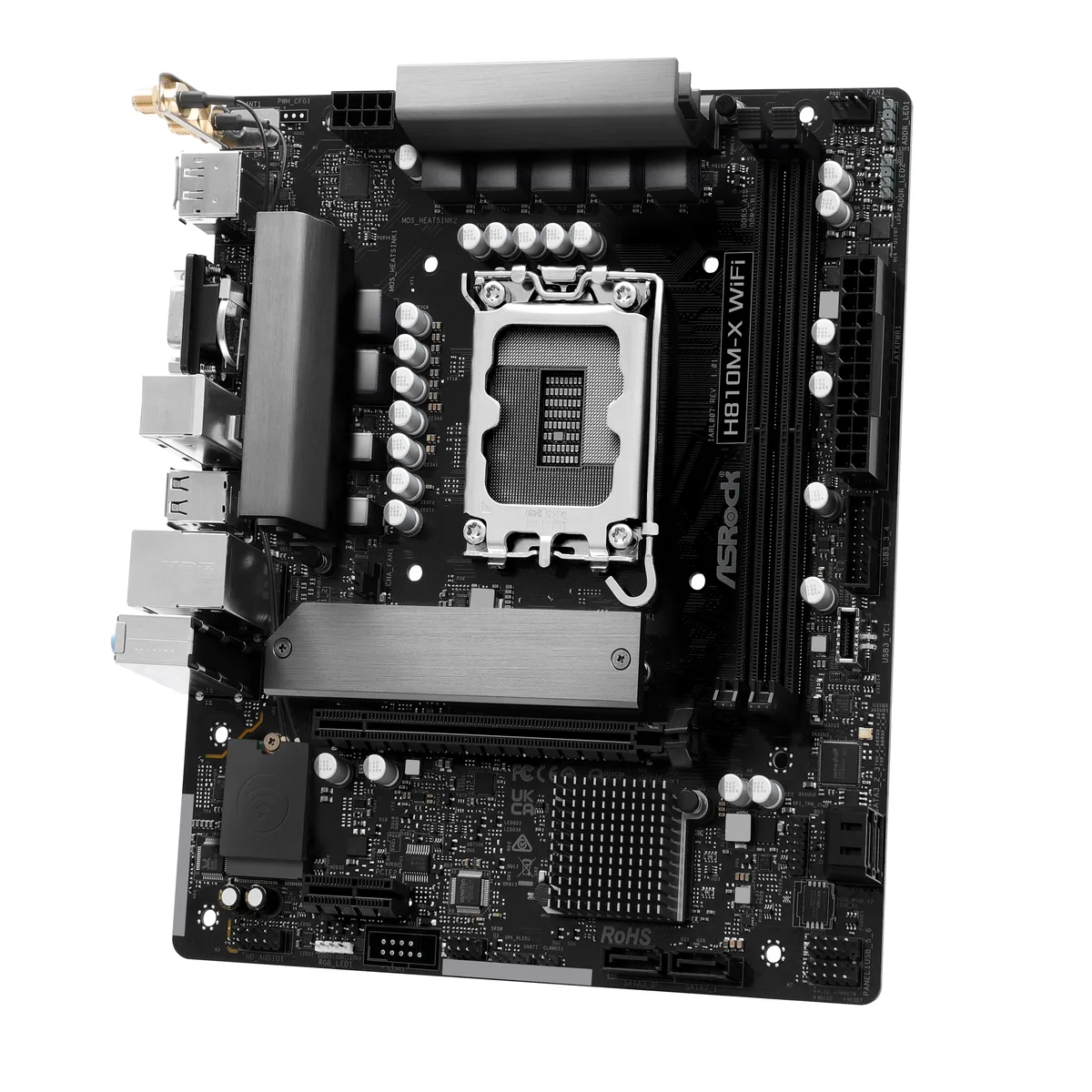

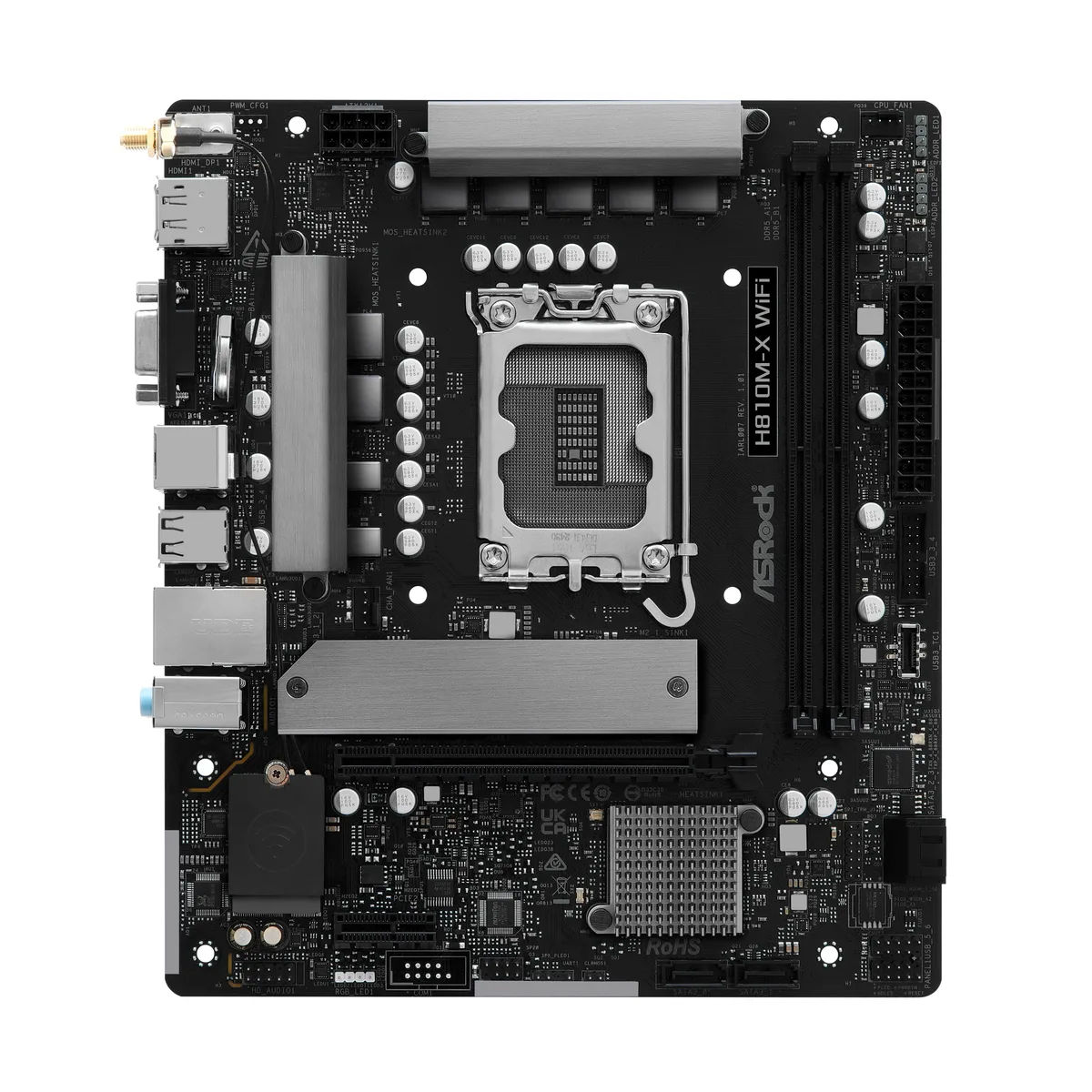

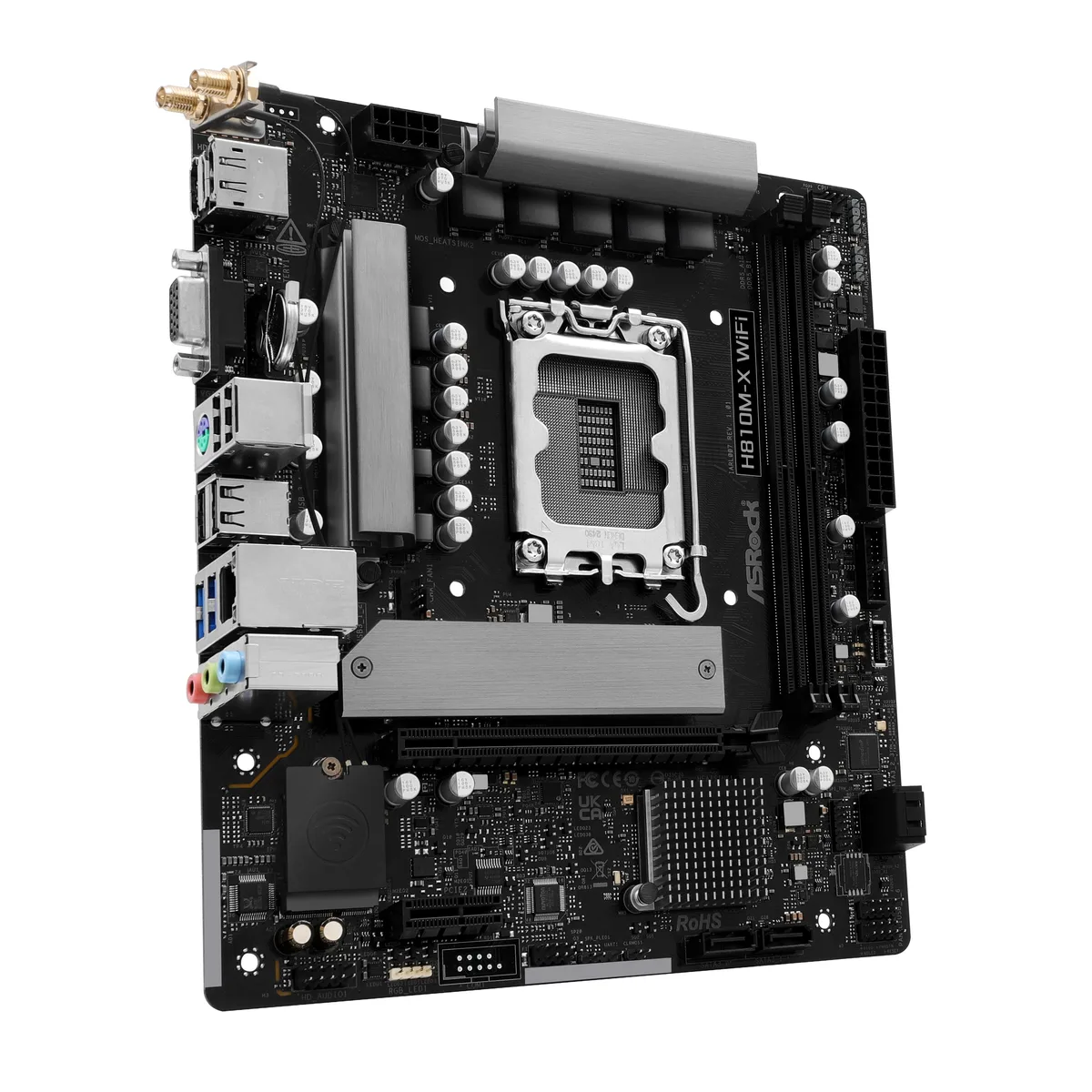

The ASRock H810M-X WIFI is a Micro ATX board built on the Intel H810 chipset for LGA 1851 processors. It supports Intel Core Ultra Series 2 CPUs and provides a 6+1+1+1+1 power phase design for stable delivery.

Memory and expansion

Two 288-pin DDR5 slots run dual-channel up to 6400 with XMP 3.0 profiles and a 128 GB maximum. Expansion includes one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot that also accepts an NVMe boot drive. Storage adds four SATA 6 Gb/s ports and one M.2 2280 Key M socket running PCIe Gen4 x4.

Wireless connectivity

The board includes Wi-Fi 802.11 ac and Bluetooth 5.0 via two rear antenna ports. Wired networking uses a Dragon RTL8125BG controller at 2.5 Gbps. Rear I/O also supplies HDMI 1.4, DisplayPort 1.4, D-Sub, two USB 3.2 Gen1 ports, four USB 2.0 ports, a PS/2 combo port and 7.1-channel audio from the Realtek ALC897 codec.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • Dual-channel DDR5 memory up to 6400 with Intel XMP 3.0 profile
  • PCIe 4.0 x16 slot and PCIe 4.0 x1 slot for graphics and storage expansion
  • 5 Gbps Dragon RTL8125BG LAN plus Wi-Fi 802.11 ac and Bluetooth 5.0 connectivity
  • Realtek ALC897 7.1 channel HD audio with HDMI, DisplayPort 1.4 and D-Sub outputs

Specifications

BrandASRock
ModelH810M-X WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel H810
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to DDR5 6400
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE2)*
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports NVMe SSD as boot disks
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ac
BluetoothBluetooth 5.0

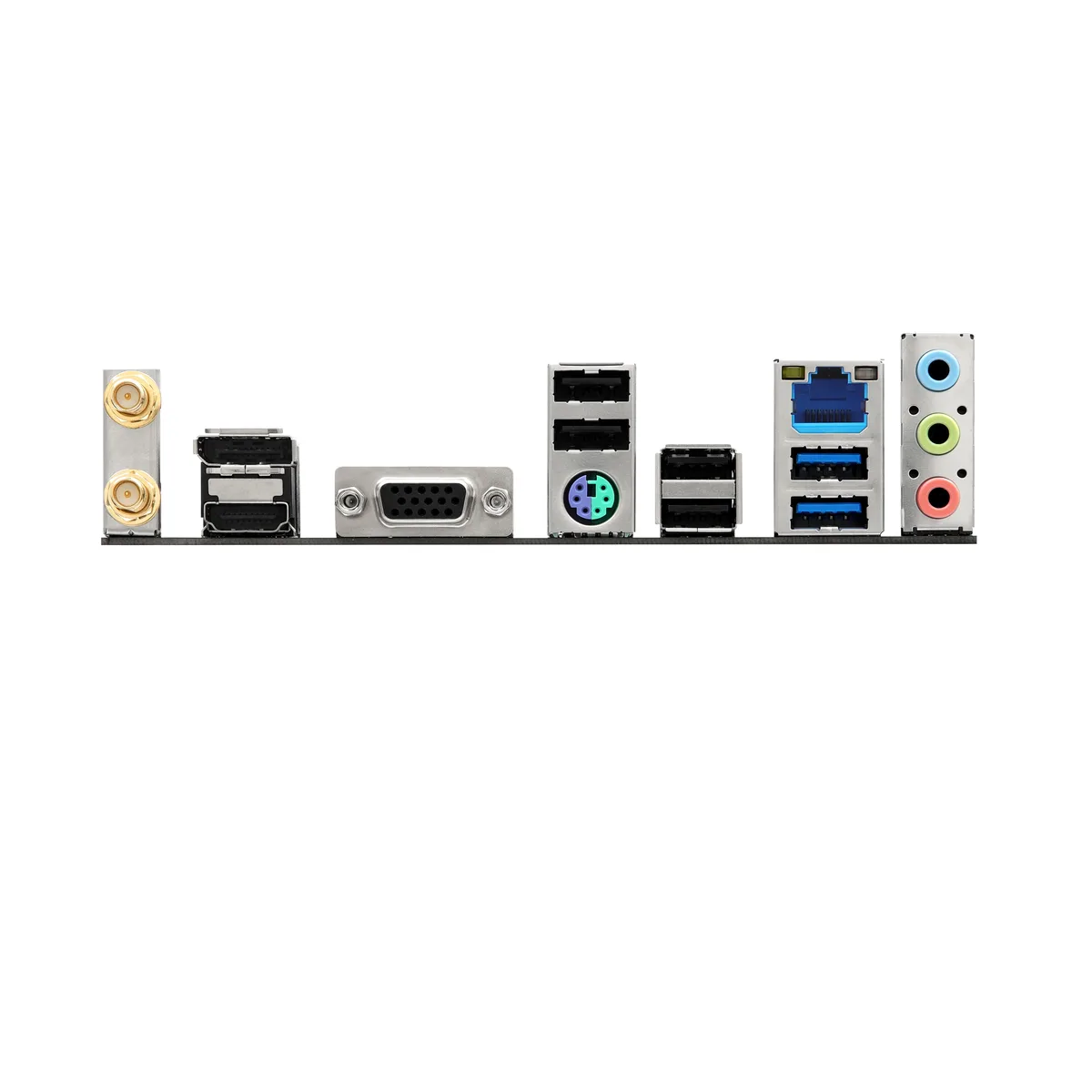

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CHA_FAN1 supports the fan power up to 3A (36W).
**** CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Form FactorMicro ATX
Dimensions (W x L)8.6" x 7.6"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
FeaturesSuperb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1+1+1 Power Phase
- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- ASRock Auto Driver Installer
Shipping weight0.91 kg
Package size274 × 244 × 61 mm

Questions about this item

Will my existing DDR5 memory modules rated at 6400 run at that speed on this board?

The board supports DDR5 up to 6400 with Intel XMP 3.0 profiles, so modules rated at that speed can operate at their rated frequency when the profile is enabled.

How can I confirm the 2.5 Gbps LAN and Wi‑Fi 802.11 ac are active after installation?

In Windows Device Manager check that the Dragon RTL8125BG adapter shows a 2.5 Gbps link speed and the wireless adapter reports an 802.11 ac connection; the Bluetooth 5.0 radio will also appear as a separate device.

What cables or antennas are included and what must I supply myself?

The box contains the motherboard, I/O shield, SATA cables and two external antennas for the Wi‑Fi/Bluetooth module; you will need to provide DDR5 memory, an LGA 1851 CPU, storage drives and a power supply.
