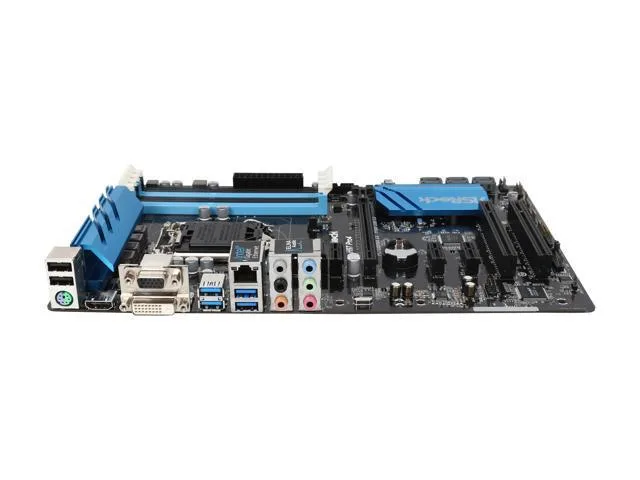

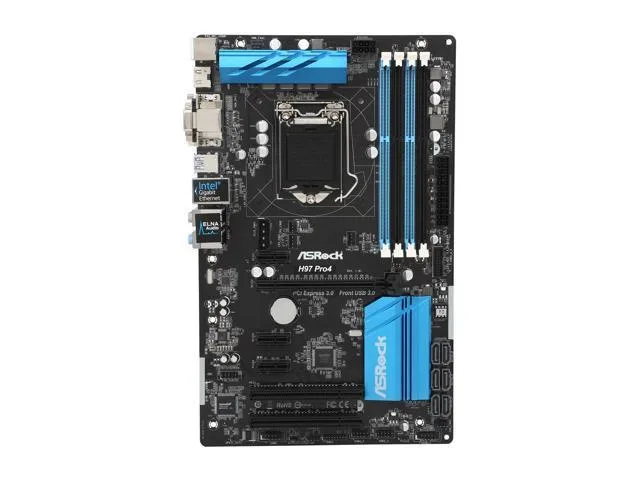

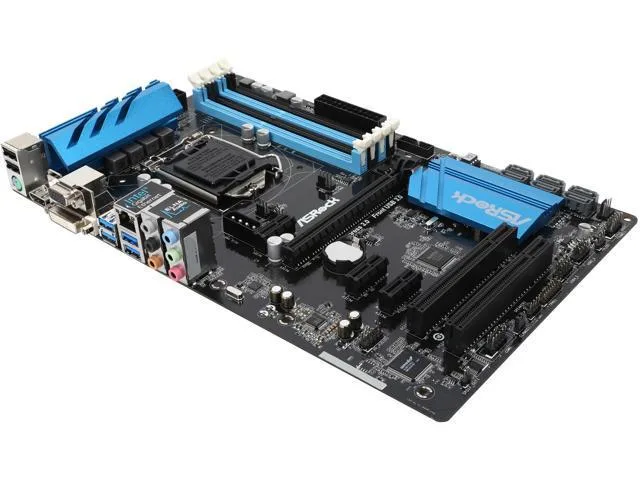

ATX motherboard with black PCB, silver heatsinks, blue slots, rear I/O panel

ASRock

ASRock H97 Pro4 LGA 1150 Intel motherboard

SKU CH-PBKY-VCAP7

ATX board with Intel H97 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16 slot, six SATA 6 Gb/s ports and Intel gigabit LAN

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel H97
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x240pin
  • Supports 4th- and 5th-generation Intel Core i7, i5, i3, Pentium and Celeron processors via LGA 1150 socket
  • Four DDR3/DDR3L slots accept up to 32 GB of 1600 MHz memory in dual-channel mode
  • Single PCI Express 3.0 x16 slot plus three x1 slots and two legacy PCI slots for expansion cards
  • Six SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support for fast, redundant storage arrays
  • Realtek ALC892 7.1-channel audio and Intel I218V Gigabit LAN for clear sound and wired networking

Socket LGA 1150 H97 board

The ASRock H97 Pro4 is an ATX motherboard built around the Intel H97 chipset for LGA 1150 processors. It accepts Core i7, i5, i3, Pentium and Celeron CPUs and supports Turbo Boost Technology 2.0. Four 240-pin slots take DDR3 or DDR3L memory up to 1600 MT/s in dual-channel mode, with a 32 GB ceiling.

Straightforward ATX installation

Standard ATX mounting holes line up with any compatible case, and the 24-pin plus 8-pin power connectors sit in familiar positions. The single PCI Express 3.0 x16 slot, three PCI Express x1 slots and two legacy PCI slots are clearly labelled, so expansion cards drop in without guesswork. Six SATA 6 Gb/s ports support RAID 0, 1, 5 and 10; route cables before seating the board to avoid blocking the lower slots.

Steady throughput under load

The Intel I218V LAN controller holds a consistent 1 Gbps link during prolonged transfers, while the Realtek ALC892 codec delivers 7.1-channel audio without dropouts. SATA 6 Gb/s ports sustain rated speeds across RAID arrays during extended read-write cycles. VRM heatsinks keep power delivery stable for the supported CPU range, so performance does not throttle during long compile or rendering sessions.

Highlights

  • Supports 4th- and 5th-generation Intel Core i7, i5, i3, Pentium and Celeron processors via LGA 1150 socket
  • Four DDR3/DDR3L slots accept up to 32 GB of 1600 MHz memory in dual-channel mode
  • Single PCI Express 3.0 x16 slot plus three x1 slots and two legacy PCI slots for expansion cards
  • Six SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support for fast, redundant storage arrays
  • Realtek ALC892 7.1-channel audio and Intel I218V Gigabit LAN for clear sound and wired networking

Specifications

BrandASRock
ModelH97 Pro4
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H97
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x240pin
Memory StandardDDR3 1600
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x13 x PCI Express x1
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel I218V
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/21 x PS/2 keyboard/mouse port
Video PortsD-Sub + DVI
HDMI1 x HDMI
RJ451 x RJ45
USB 3.04 x USB 3.0
USB 1.1/2.02 x USB 2.0
Audio Ports6 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x COM Port Header1 x TPM Header1 x Power LED Header2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)2 x Chassis Fan Connectors (2 x 4-pin)1 x Power Fan Connector (3-pin)1 x 24-pin ATX Power Connector1 x 8-pin 12V Power Connector1 x PCIe Power Connector1 x Front Panel Audio Connector
Form FactorATX
Power Pin24 Pin
FeaturesUnique FeatureASRock Super Alloy- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)- NexFET MOSFET- Sapphire Black PCBASRock Full Spike ProtectionASRock CloudASRock APP ShopBIOS- 128MB AMI UEFI Legal BIOS with multilingual GUI support- ACPI 1.1 Compliant wake up events- SMBIOS 2.3.1 support- CPU, DRAM, PCH 1.05V Voltage multi-adjustmentSoftware and BIOS Software- ASRock A-Tuning- ASRock Disk Health Report- ASRock USB Key- ASRock System Browser- ASRock APP Charger- ASRock XFast LAN- ASRock XFast RAM- ASRock Restart to UEFIUEFI- ASRock Full HD UEFI- ASRock My Fa

Questions about this item

How do I confirm the Realtek ALC892 audio is active after building the system?

Boot into the OS, open Device Manager and verify the Realtek High Definition Audio driver is present, then play a test tone through the 7.1 channel outputs to confirm sound from each jack.

What ships with the motherboard and which essential parts must be purchased separately?

The board itself and its I/O shield are included; you must buy an LGA 1150 processor, DDR3 or DDR3L memory modules up to 1600 MHz, a graphics card if the CPU lacks integrated graphics, storage drives for the six SATA 6Gb/s ports, and an ATX power supply.

Which memory kit should I choose for the four 240-pin slots to reach the 32 GB dual-channel limit?

Select a matched DDR3 or DDR3L kit rated at 1600 MHz — two 8 GB modules for 16 GB or four 8 GB modules for the full 32 GB — both will run in dual-channel mode across the four slots.
