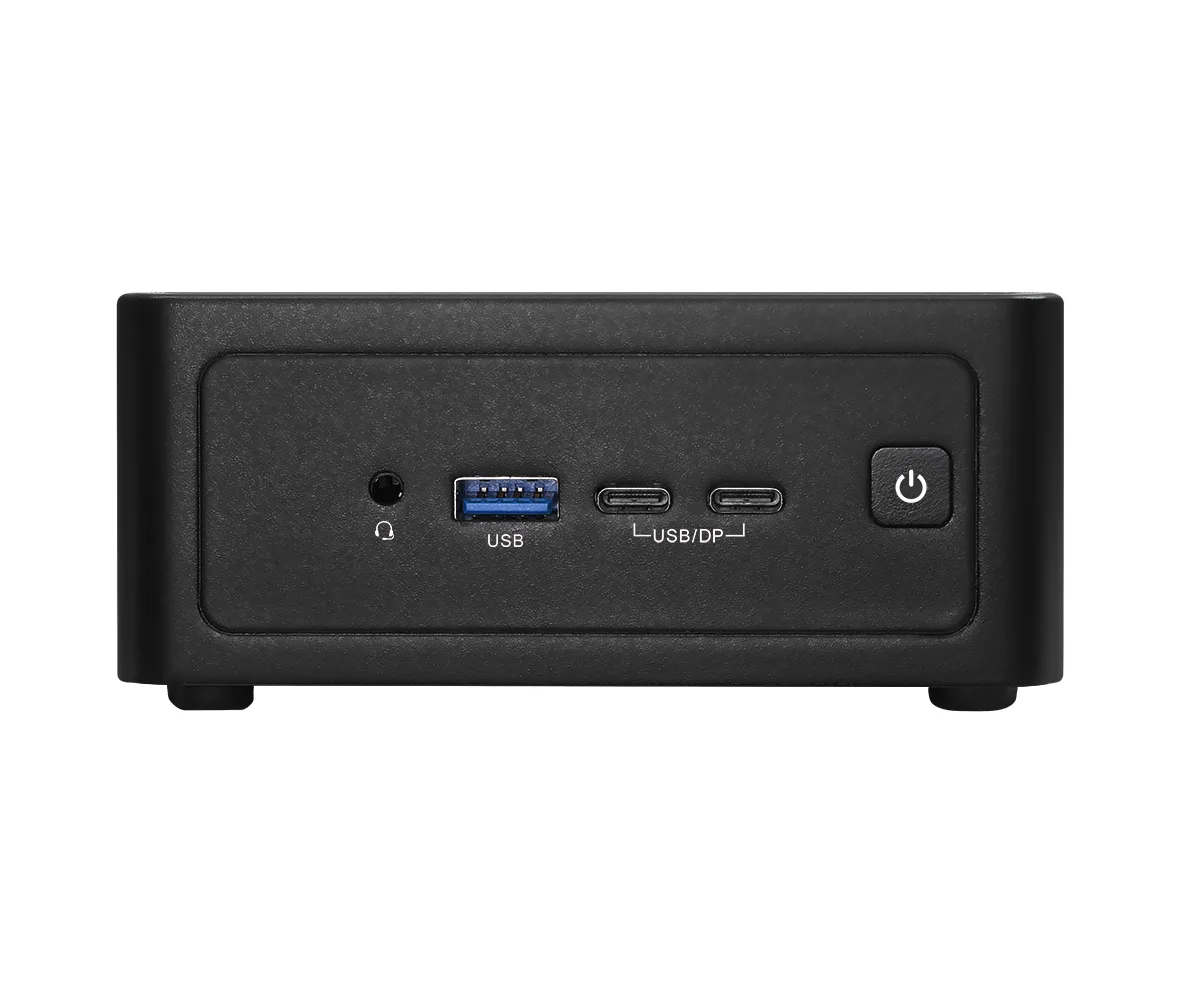

Compact black square mini PC barebone with matte finish

ASRock Industrial

ASRock Industrial NUC BOX-225H barebone mini PC

SKU CH-YXH3-2F2DZ MPN NUC BOX-225H

Barebone mini PC with Intel Core Ultra 5 225H, Intel Arc graphics, dual 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.3, ready for up to 96GB DDR5

  • ColorBlack
  • AI FeaturesAI Accelerated
  • CPU TypeIntel Core Ultra 5 225H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 6400

CPU Type Intel Core Ultra 5 225H

Options 2 Ethernet Ports

  • AI-accelerated compute with Intel Core Ultra 5 225H processor
  • Expandable DDR5 6400 memory up to 96 GB across two slots
  • Dual 2.5 Gbps Intel LAN for high-speed wired connectivity
  • Wi-Fi 6E and Bluetooth 5.3 for modern wireless performance
  • Quad-display support via HDMI 2.1, USB4 Thunderbolt 4 and Type-C DP 1.4a

Barebone mini PC without memory or storage

The ASRock Industrial NUC BOX-225H is a barebone mini PC built around an Intel Core Ultra 5 225H processor with integrated Intel Arc graphics. It ships without memory or storage, allowing the builder to choose DDR5 6400 SO-DIMMs up to 96 GB across two slots and up to two PCIe Gen4 M.2 SSDs plus one SATA drive.

For integrators who need a compact AI-ready platform

This unit suits system integrators and developers who want a small footprint with dual 2.5 GbE LAN, Wi-Fi 6E, Bluetooth 5.3 and quad-display support via two HDMI 2.1 ports, USB4 and USB-C DisplayPort. It is not for buyers who expect RAM or an SSD included, nor for builds that require legacy COM ports or more than two M.2 Key M slots.

Dual-channel DDR5 6400 support up to 96 GB

The two 262-pin SO-DIMM slots run in dual-channel mode at 6400 MT/s and accept modules up to 48 GB each, making memory capacity the key specification that determines whether this barebone fits the workload.

Highlights

  • AI-accelerated compute with Intel Core Ultra 5 225H processor
  • Expandable DDR5 6400 memory up to 96 GB across two slots
  • Dual 2.5 Gbps Intel LAN for high-speed wired connectivity
  • Wi-Fi 6E and Bluetooth 5.3 for modern wireless performance
  • Quad-display support via HDMI 2.1, USB4 Thunderbolt 4 and Type-C DP 1.4a

Specifications

BrandASRock Industrial
ModelNUC BOX-225H
ColorBlack
AI FeaturesAI Accelerated
CPU TypeIntel Core Ultra 5 225H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 6400
Max Memory Supported96GB (48 GB per DIMM)
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
Integrated GraphicsIntel Arc Graphics
Onboard AudioRealtek ALC256
LANLAN1: Intel I226LM
LAN2: Intel I226V
Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
Front Audio Ports1 (headphone & microphone jack)
HDMI2 x HDMI 2.1 TMDS
Rear USB2 x USB 3.2 Gen 2 (Type-A)
RJ452 x 2.5 Gigabit LAN
Input12V~24V DC-In Jack
Power Supply19V/90W
Dimensions4.63" x 4.33" x 1.93"
Weight2.2 lbs.
Packaging1 x 19V/90W Power Adapter (Core Ultra 5)
1 x VESA mount bracket
Shipping weight1.52 kg
Package size213 × 145 × 119 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much DDR5-6400 memory can the two 262-pin SO-DIMM slots accept?

Each slot supports up to 48 GB DDR5-6400 modules, giving a total of 96 GB in dual-channel configuration.

Which storage interface will saturate first when the PCIe Gen4 x4 M.2 slots are driven continuously?

The PCIe Gen4 x4 link on each M.2 Key M slot is the throughput ceiling for sustained SSD workloads.

Does the 19 V power adapter limit the Intel Core Ultra 5 225H under all-day loads?

The included 19 V adapter is sized for the platform; sustained heavy compute will draw up to its rated output.
