Compact silver barebone mini PC with front USB-C and USB-A ports

ASRock Industrial

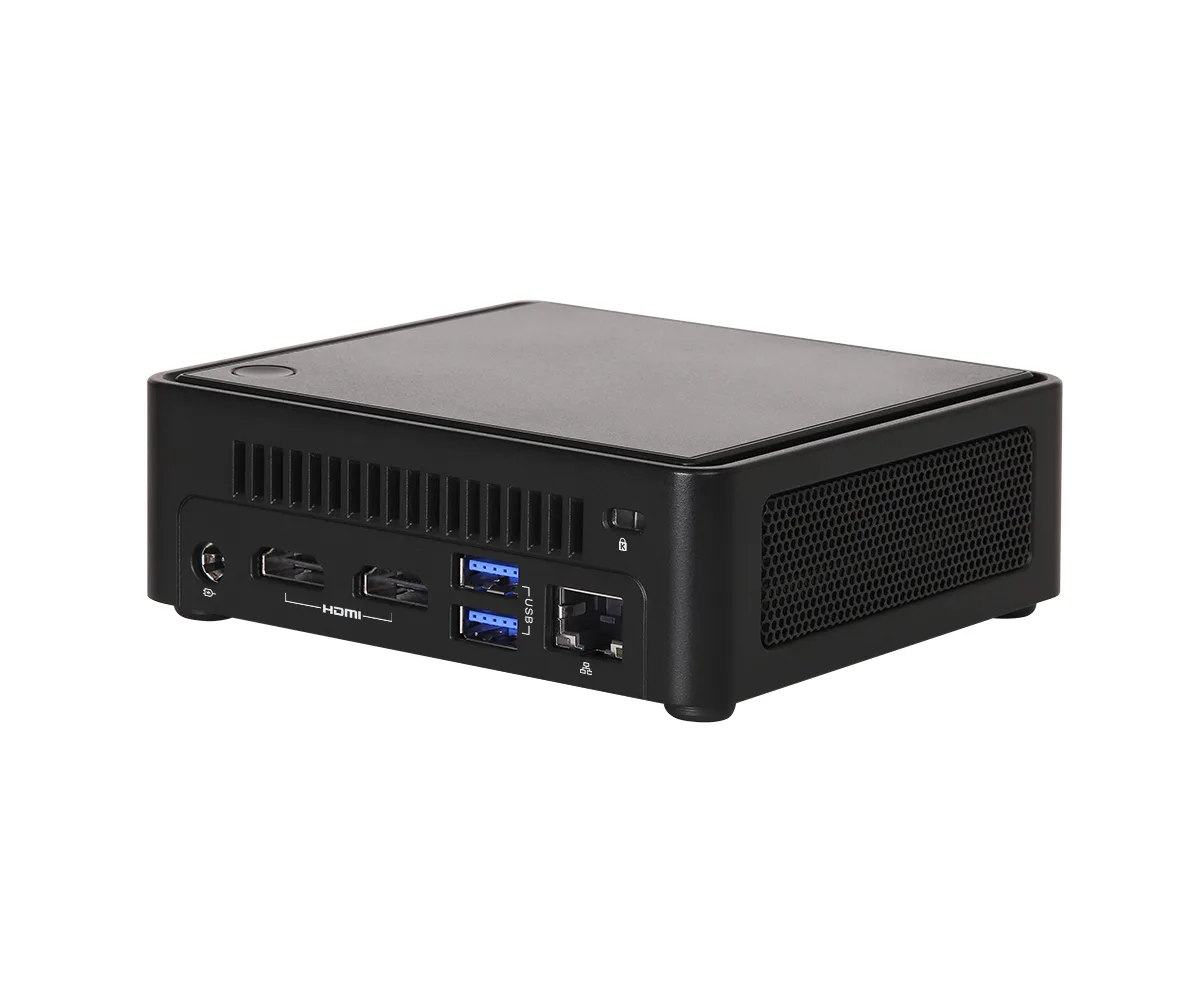

ASRock Industrial NUCS BOX-155H barebone mini PC

SKU CH-YMT3-XRYXT MPN NUCS BOX-155H

Barebone mini PC with Intel Core Ultra 7 155H, supports 96 GB DDR5 5600, dual M.2 PCIe Gen4 slots, 2.5 GbE LAN, Wi-Fi 6E, Bluetooth 5.3, Thunderbolt 4 and USB4 video outputs

  • CPU TypeIntel Core Ultra 7 155H (6P+8E)
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB
  • Dual Channel Memory SupportedYes
  • 14-core Intel Core Ultra 7 155H with integrated NPU for AI workloads
  • Dual-channel DDR5 5600 SO-DIMM slots supporting up to 96 GB total memory
  • Two M.2 Key M slots with PCIe Gen4 for fast SSD expansion
  • 5 GbE Intel I226LM LAN plus Wi-Fi 6E and Bluetooth 5.3 connectivity
  • USB4 Thunderbolt 4 and USB 3.2 Gen2x2 Type-C with DisplayPort video output

Compact barebone with Core Ultra 7 155H

The ASRock Industrial NUCS BOX-155H is a slim fanned barebone mini PC built around the Intel Core Ultra 7 155H processor with six performance and eight efficient cores. It arrives without memory or storage so integrators can configure the system for specific workloads.

Suits builders adding their own DDR5 and SSDs

This unit fits teams that want to choose SO-DIMM capacity up to 96 GB across two 262-pin slots and select M.2 drives for the two Key M slots. Buyers needing a complete out-of-the-box system with pre-installed RAM or a 2.5-inch drive bay should look at a different form factor.

Two M.2 Key M slots with PCIe Gen4

The platform provides one 2242/2280 slot at PCIe Gen4 x4 and a second 2242 slot at PCIe Gen4 x1. This layout decides whether the storage plan fits, because no other internal drive interfaces are present.

Highlights

  • 14-core Intel Core Ultra 7 155H with integrated NPU for AI workloads
  • Dual-channel DDR5 5600 SO-DIMM slots supporting up to 96 GB total memory
  • Two M.2 Key M slots with PCIe Gen4 for fast SSD expansion
  • 5 GbE Intel I226LM LAN plus Wi-Fi 6E and Bluetooth 5.3 connectivity
  • USB4 Thunderbolt 4 and USB 3.2 Gen2x2 Type-C with DisplayPort video output

Specifications

BrandASRock Industrial
ModelNUCS BOX-155H
CPU TypeIntel Core Ultra 7 155H (6P+8E)
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD
SATA RAIDIntel VMD RAID 0/1
Integrated GraphicsIntel Iris Xe Graphics
Onboard AudioRealtek ALC256
Channel2 Channel
LANIntel I226LM with 10/100/1000/2500 Mbps
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
Front Audio Ports1 (headphone & microphone jack)
HDMI2 x HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz

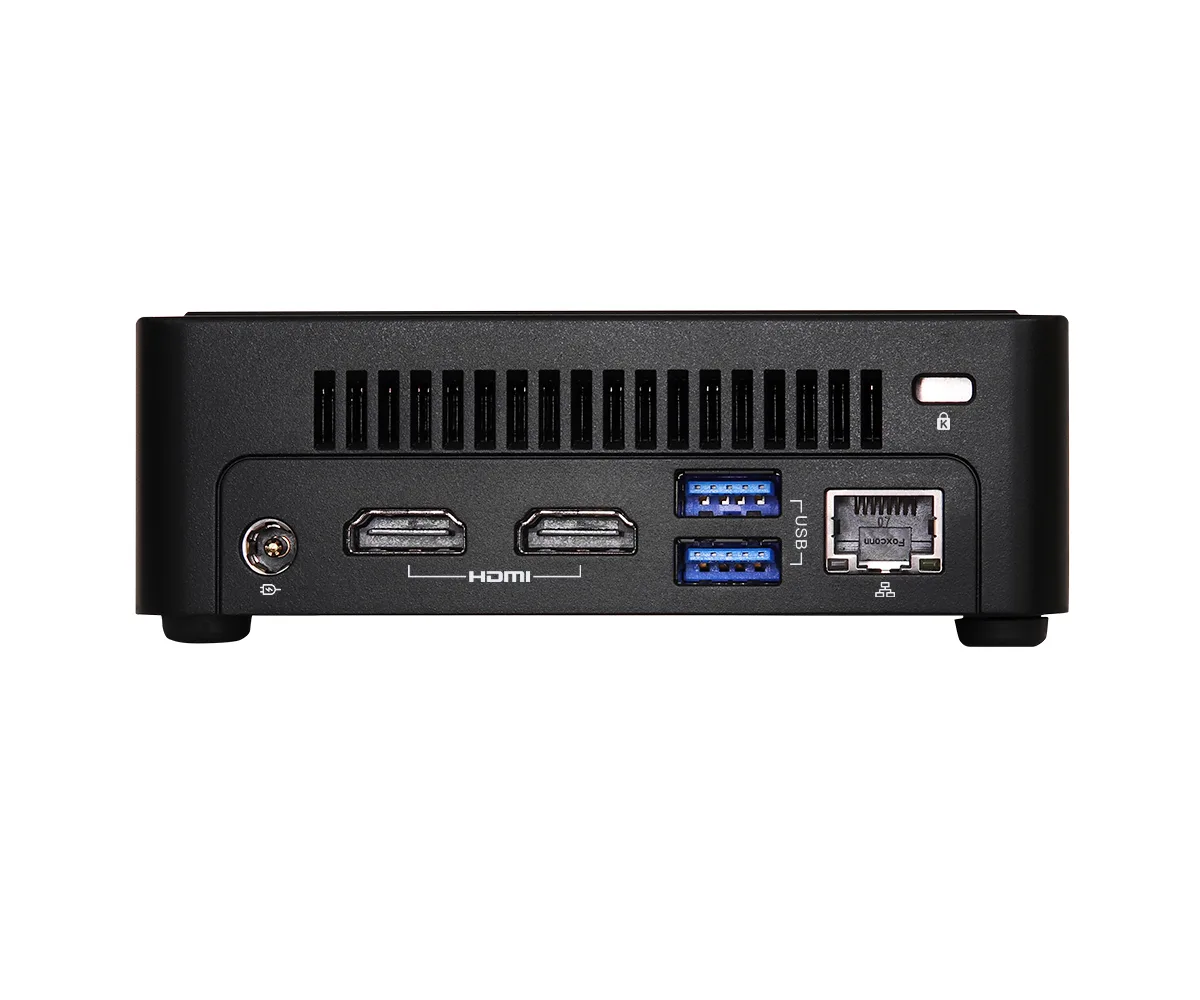

Rear USB2 x USB 3.2 Gen2 (Type-A)
RJ451 x 2.5 Gigabit LAN
Power Supply12V~24V DC-In Jack
Dimensions4.63" x 4.33" x 1.50"
Weight2.2 lbs.
Packaging1 x 19V/120W Power Adapter (Core Ultra 7)
1 x VESA mount bracket
Shipping weight1.72 kg
Package size229 × 140 × 127 mm

Questions about this item

What size SO-DIMM slots does the NUCS BOX-155H have and how many modules can I install?

The unit has two 262-pin SO-DIMM slots supporting DDR5 5600 memory up to 96 GB in dual-channel mode.

Which screw lengths and M.2 key types fit the two SSD slots on this barebone?

One slot accepts Key M 2242 or 2280 drives on PCIe Gen4 x4; the second takes Key M 2242 drives on PCIe Gen4 x1.

Will the pre-installed Wi-Fi 6E and Bluetooth 5.3 modules need antenna cables replaced later?

The wireless module is soldered on board; only the external antenna cables would ever need replacement if damaged.
