ASRock
ASRock Intel H610M COMBO II Intel motherboard
Micro-ATX board with LGA 1700 socket supports Intel Core 12, 13 and 14 processors, dual DDR5 slots up to 96 GB and one DDR4 slot, PCIe 5.0 x16, PCIe 3.0 x1, 4 SATA 6Gb/s, one M.2 2280 Gen3x4.
- CPU Socket TypeLGA 1700
- CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
- ChipsetIntel H610
- Number of Memory Slots2x288pin (DDR5)
- Memory StandardUp to DDR5 5600
- Maximum Memory Supported96GB
- Supports Intel Core 12, 13 and 14th Gen CPUs on LGA 1700 socket
- DDR5 memory up to 5600 MT/s with XMP 3.0 for 96 GB capacity
- PCIe 5.0 x16 slot plus Ultra M.2 Gen3 x4 for fast NVMe storage
- 1-channel Realtek ALC897 audio and 1 Gbps Realtek 8111H LAN
- Micro-ATX board with HDMI 1.4, DisplayPort 1.4 and four SATA 6 Gb/s ports
LGA 1700 H610 Micro ATX Board

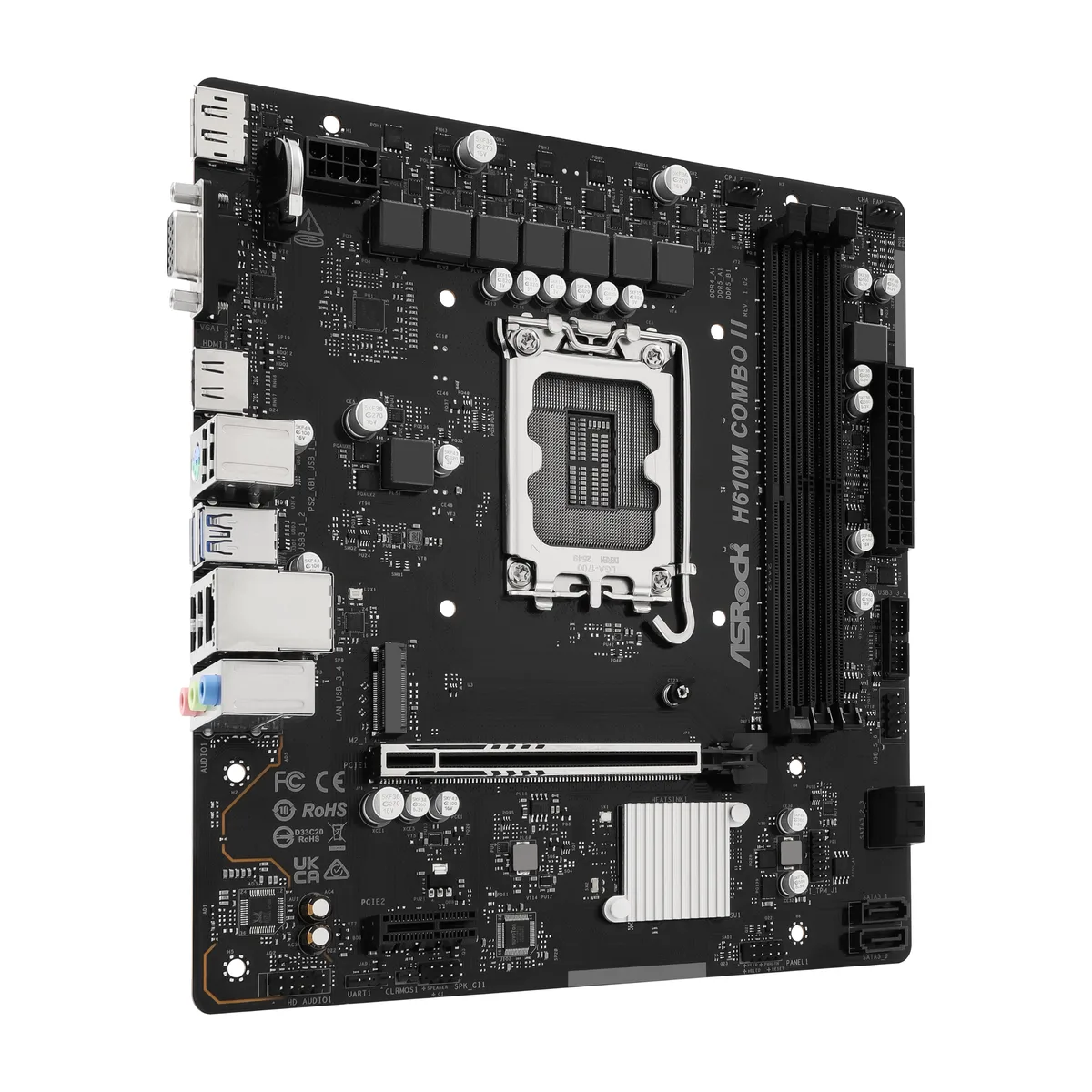

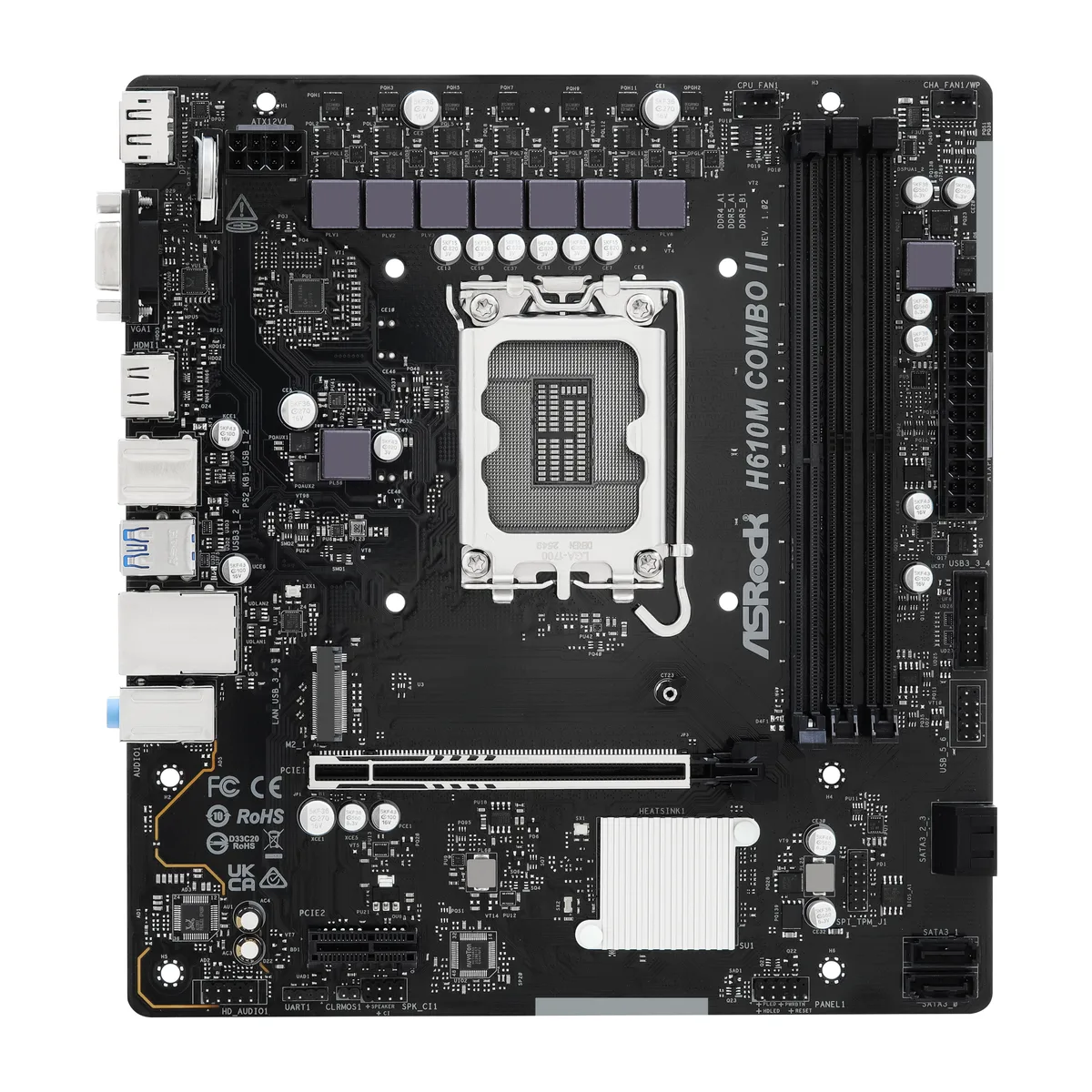

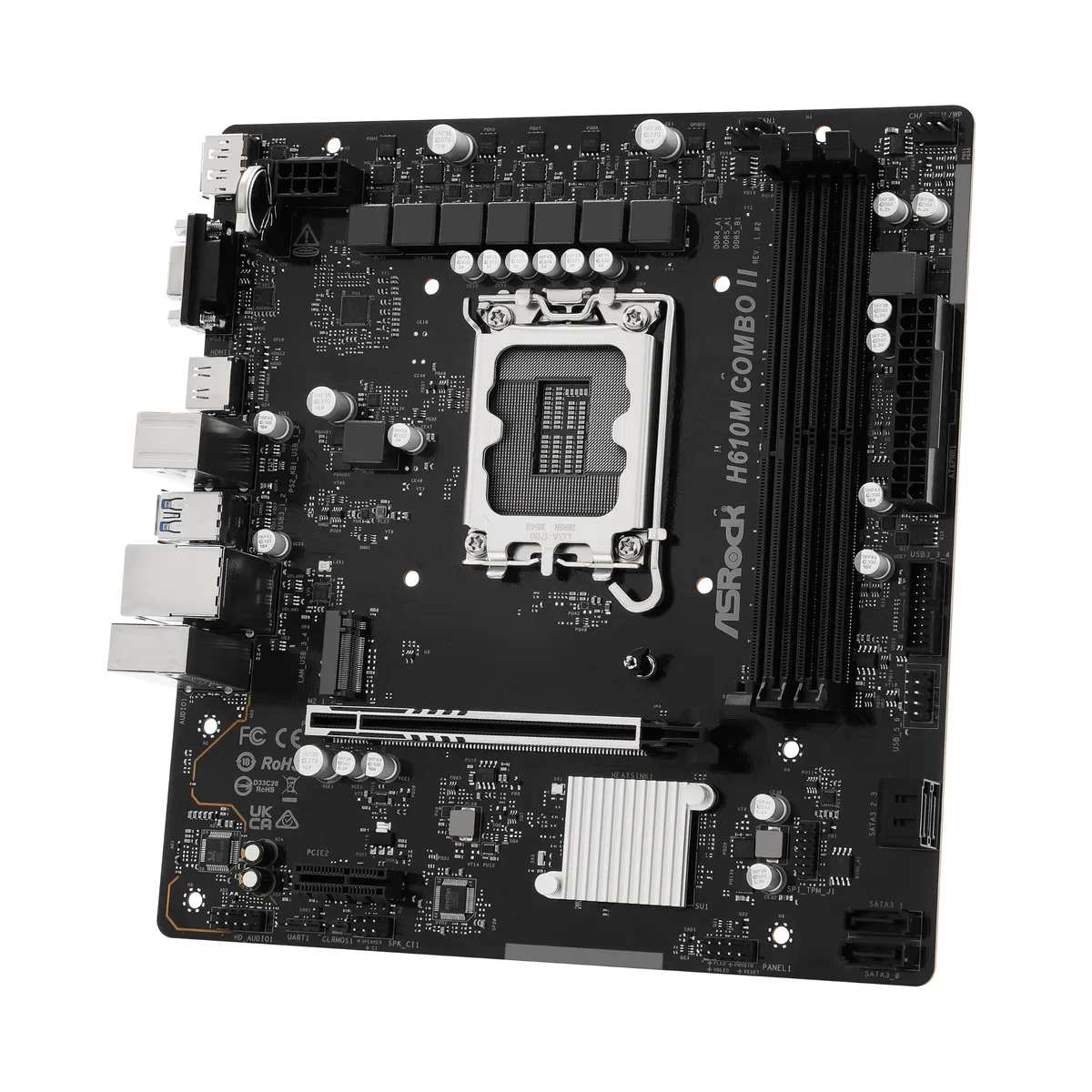

The ASRock H610M COMBO II is a micro ATX motherboard built around the Intel H610 chipset for LGA 1700 processors. It accepts Intel Core 12th Gen, 13th Gen and 14th Gen CPUs and provides a 6+1+1 power phase design for stable delivery. The board includes one PCIe 5.0 x16 slot and one PCIe 3.0 x1 slot.
DDR5 DDR4 Combo Memory Layout
This board suits builders who want a compact foundation for a current-generation Intel system and value the option to choose between DDR5 and DDR4 memory. It offers two DDR5 slots and one DDR4 slot, though the types cannot be mixed. Users who need multiple M.2 drives, additional PCIe lanes or overclocking headroom should consider a different chipset.
Single M.2 PCIe Gen3 x4 Slot
The storage subsystem centres on one Ultra M.2 socket that supports type 2280 drives at PCIe Gen3 x4 speeds. Four SATA 6Gb/s ports are also available for extra drives. If your build requires more than one NVMe slot, this board will not meet that requirement.
Highlights
- Supports Intel Core 12, 13 and 14th Gen CPUs on LGA 1700 socket
- DDR5 memory up to 5600 MT/s with XMP 3.0 for 96 GB capacity
- PCIe 5.0 x16 slot plus Ultra M.2 Gen3 x4 for fast NVMe storage
- 1-channel Realtek ALC897 audio and 1 Gbps Realtek 8111H LAN
- Micro-ATX board with HDMI 1.4, DisplayPort 1.4 and four SATA 6 Gb/s ports
Specifications
| Brand | ASRock |
|---|---|
| Model | H610M COMBO II |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) |
| Chipset | Intel H610 |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | Up to DDR5 5600 |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 / AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| PCI Express x1 | Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* *Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111H |
| Max LAN Speed | 1Gbps |

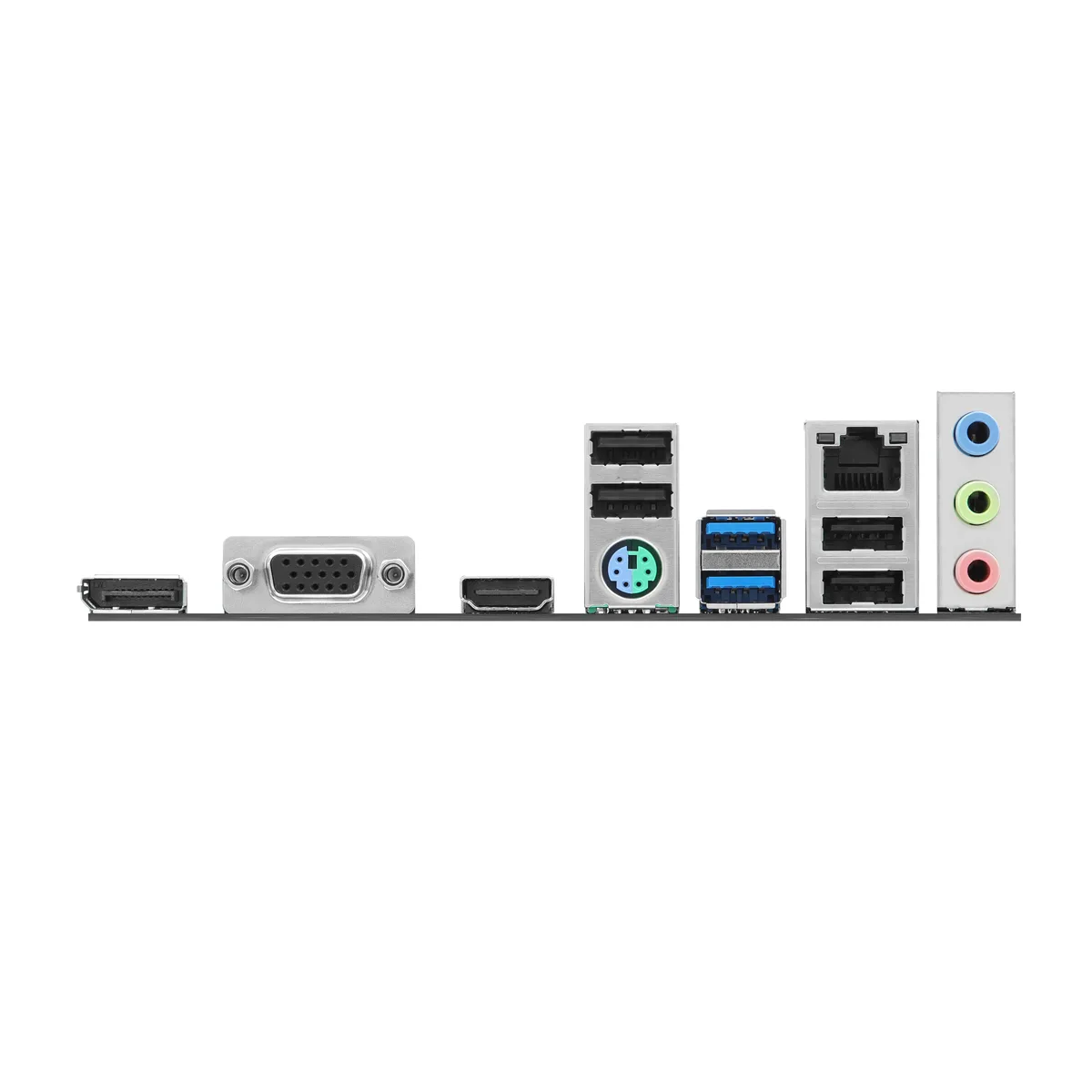

| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 128Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | Micro ATX |
| LED Lighting | None RGB |
| Dimensions (W x L) | 8.66" x 8" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
| Shipping weight | 0.68 kg |
| Package size | 259 × 254 × 56 mm |
Questions about this item
Can I use DDR5 and DDR4 memory together on this board?
The board provides two DDR5 slots and one DDR4 slot, but the two memory types cannot be installed at the same time. Choose either DDR5 up to 96 GB or DDR4 up to 32 GB.
What M.2 drive length and interface does the Ultra M.2 socket accept?
The single M.2 socket is Key M and supports 2280 PCIe Gen3x4 drives, delivering up to 32 Gb/s throughput.
Which display outputs are available for a CPU with integrated graphics?
The rear panel includes one D-Sub, one HDMI and one DisplayPort 1.4 connector for video output.
