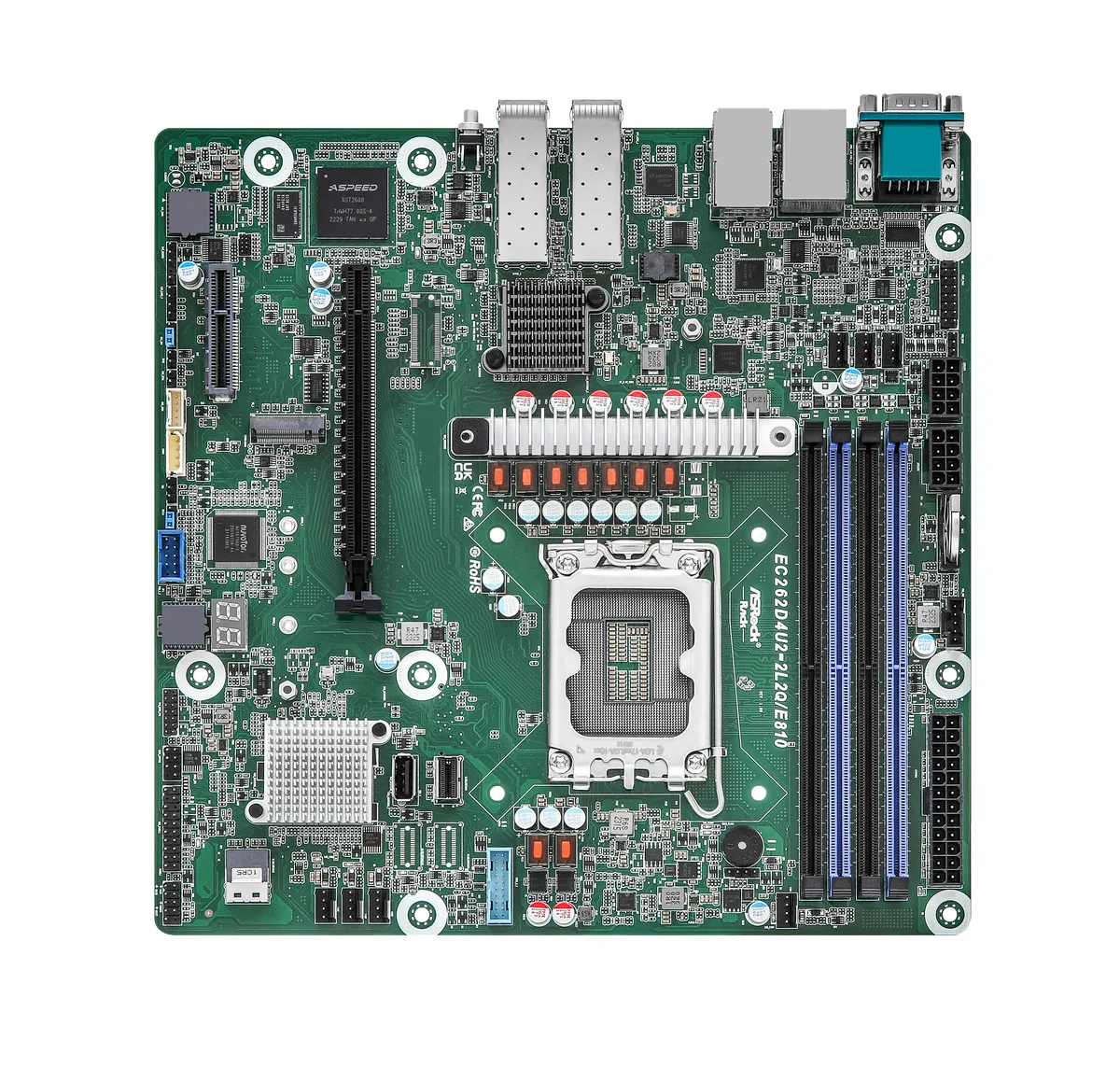

Green server motherboard, micro-ATX form factor, two SFP28 ports, IPMI header visible

ASRock Rack

ASRock Rack EC262D4U2-2L2Q/E810 server motherboard, 2 x 25GbE SFP28, IPMI

SKU CH-Z428-RF614 MPN EC262D4U2-2L2Q/E810

Micro-ATX server board for Intel Xeon E-2400 CPUs with dual 25GbE SFP28 and IPMI

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports Intel Xeon E-2400 series and Intel Pentium Gold G74
  • Number of Processor Support1
  • CPU FeaturesThermal Design Power 95W
  • North BridgeIntel C262
  • Memory Slots4 x DDR5 288-pin
  • Supports Xeon E-2400 series on LGA 1700 socket
  • DDR5 4400 memory up to 128GB with ECC
  • Dual 25GbE SFP28 via Intel E810 controller
  • PCIe 5.0 x16 plus PCIe 4.0 x4 expansion slots
  • Micro-ATX 9.6" x 9.6" with IPMI management

Server motherboard for Xeon E-2400

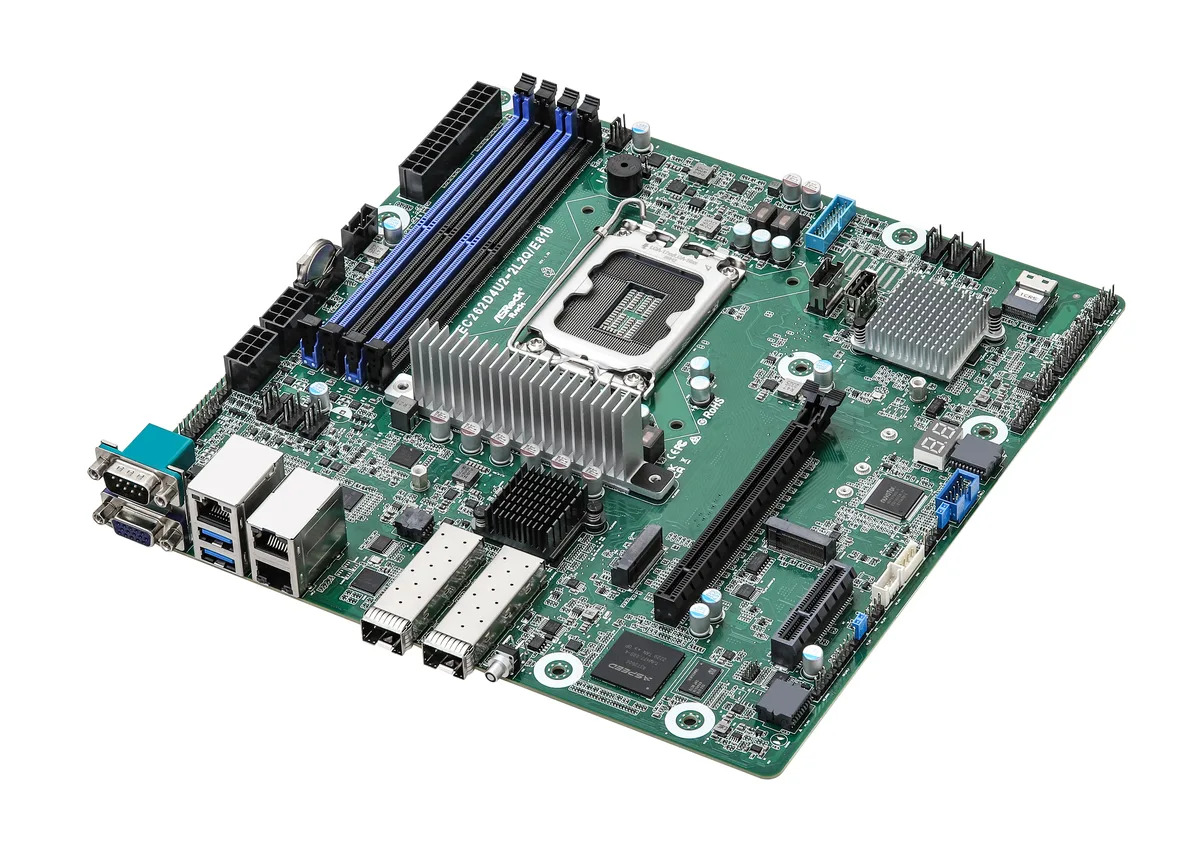

The ASRock Rack EC262D4U2-2L2Q/E810 is a micro-ATX server motherboard built for Intel Xeon E-2400 series and Pentium Gold G7400 processors in LGA 1700. It delivers dual 25GbE SFP28 ports via Intel E810-XXVAM2 plus a secondary Intel I210 LAN. IPMI with Aspeed AST2600 provides remote management.

Suits single-socket DDR5 builds needing 25GbE

This board fits builders assembling a single-processor server with up to 128GB DDR5 4400 ECC across four slots. It is not for dual-socket configurations, for systems requiring more than one PCIe 5.0 x16 slot, or for CPUs outside the supported Xeon E-2400 and Pentium Gold list.

LGA 1700 socket defines CPU choice

The LGA 1700 socket accepts only the listed Intel Xeon E-2400 series and Pentium Gold G7400/G7400T processors with a 95W TDP limit. Verify the exact processor model against the support list before purchase.

Highlights

  • Supports Xeon E-2400 series on LGA 1700 socket
  • DDR5 4400 memory up to 128GB with ECC
  • Dual 25GbE SFP28 via Intel E810 controller
  • PCIe 5.0 x16 plus PCIe 4.0 x4 expansion slots
  • Micro-ATX 9.6" x 9.6" with IPMI management

Specifications

BrandAsRock Rack
ModelEC262D4U2-2L2Q/E810
CPU Socket TypeLGA 1700
CPU TypeSupports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors
Number of Processor Support1
CPU FeaturesThermal Design Power 95W
North BridgeIntel C262
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported128GB
ECC SupportedYes
PCI Express 5.0 x16SLOT6: PCIe5.0 x16 [CPU]
PCI Express x4SLOT4: PCIe4.0 x4 [PCH]
Other Slots1 SlimSAS (PCIe4.0 x4) [CPU]
1 SlimSAS (4 SATA 6Gb/s) [PCH]
SATA5 x SATA 6.0Gb/s
M.21 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280/2260/2242/2230 form factor [PCH]
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel E810-XXVAM2
LAN Speed25Gbps
Second LAN ChipsetIntel I210
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 25Gbps + 2 x 1Gbps

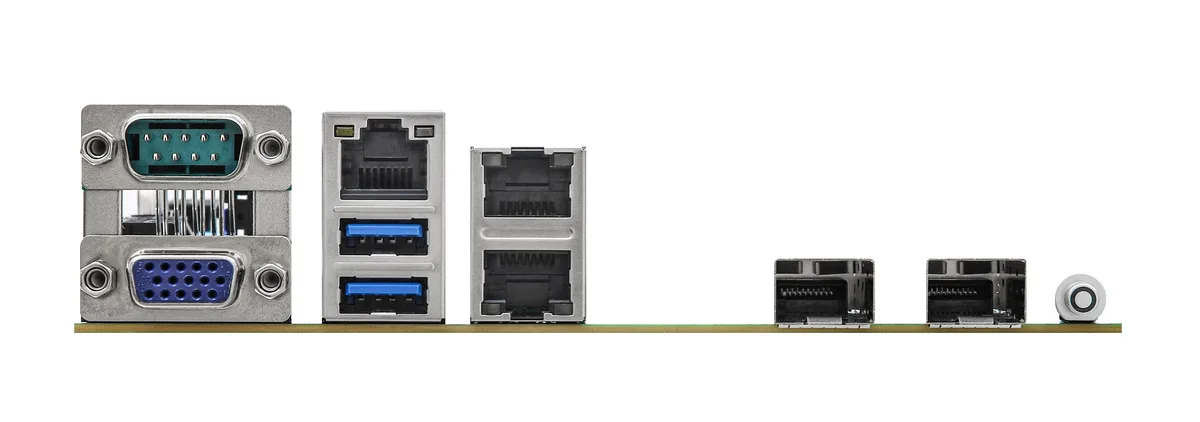

Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x SFP28 / 2 x USB 3.2 Gen 1 Type-A
Onboard USBUSB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header: 1 header (9-pin, 2 USB2.0)
Type A USB 2.0 Port: 1 vertical Type-A (USB2.0)
Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header: 1 (4-pin)
Buzzer: 1
Fan Header: 7 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
Front Lan LED Connector: 1
NMI Header: 1
BIOS FeatureAMI 256Mb SPI Flash ROM
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight1.02 kg
Package size305 × 286 × 70 mm

Questions about this item

What does the 25Gbps LAN speed deliver in a real server?

The dual SFP28 ports driven by the Intel E810-XXVAM2 controller provide two 25GbE links for high-throughput storage or compute traffic.

How does the PCIe5.0 x16 slot limit expansion choices?

Slot6 runs at PCIe5.0 x16 from the CPU, so it can host one full-length accelerator or NIC at the full 5.0 bandwidth.

What clearance does the Micro-ATX 9.6 x 9.6 inch board need to mount?

It fits any chassis with standard Micro-ATX standoffs and the I/O shield cut-out for dual SFP28, RJ45 and IPMI ports.
