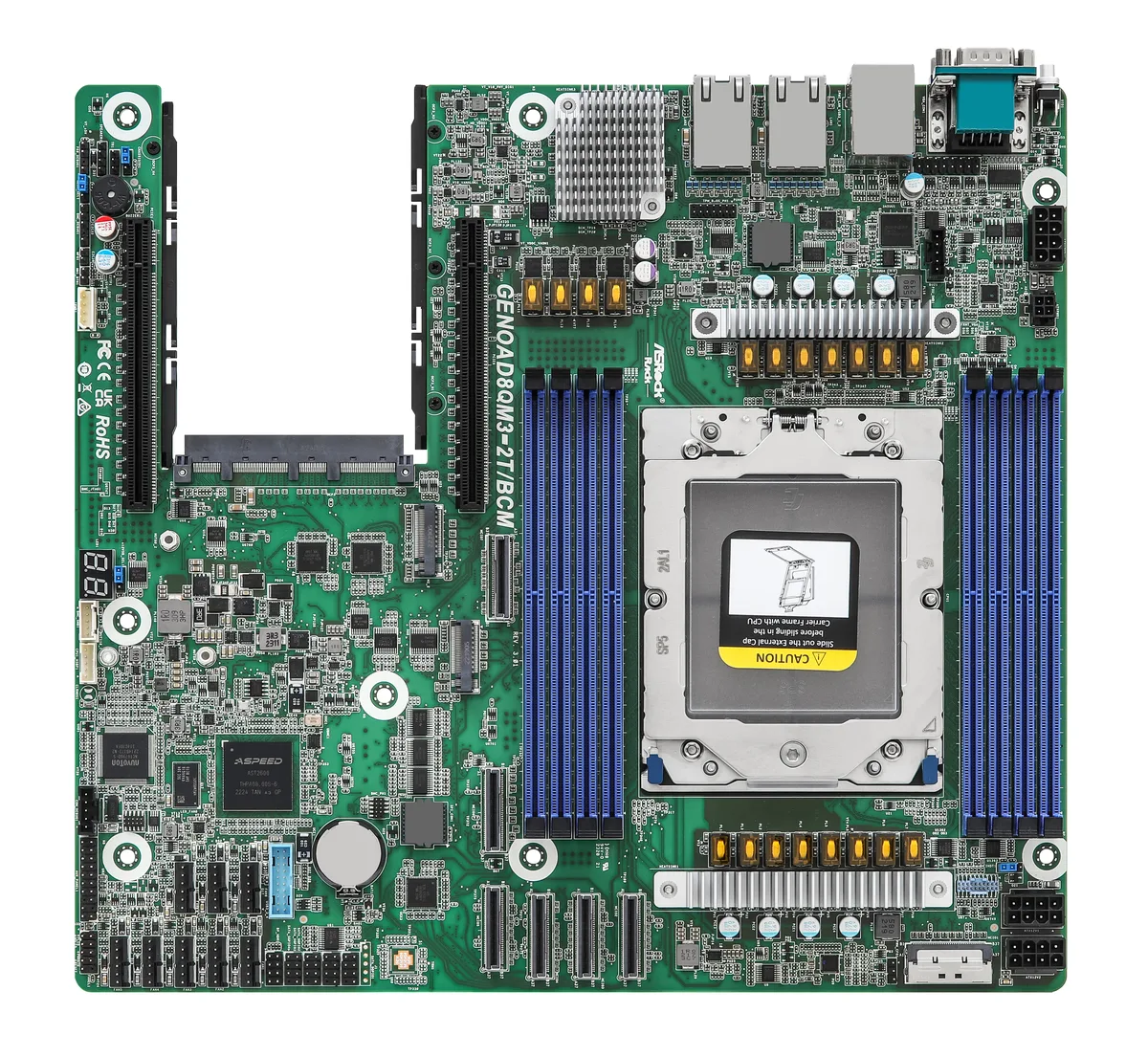

Green CEB server motherboard with large SP5 socket, eight DDR5 DIMM slots, multiple MCIO and PCIe connectors, dual RJ45 ports, VGA

ASRock Rack

ASRock Rack GENOAD8QM3-2T/BCM server motherboard

SKU CH-M5RF-5MHQ6 MPN GENOAD8QM3-2T/BCM

CEB server motherboard with single SP5 socket for AMD EPYC 9004 and 9005 series CPUs up to 400 W TDP, eight DDR5 RDIMM slots supporting 4 TB, dual 10 GbE LAN, PCIe 5.0 and CXL 2.0 expansion.

  • CPU Socket TypeSocket SP5
  • CPU TypeAMD EPYC 9004 Series / AMD EPYC 9005 Series
  • Number of Processor Support1
  • CPU FeaturesThermal Design Power Up to 400W *A BIOS update is required t
  • Memory Slots8 x DDR5 288-pin
  • Memory StandardDDR5 4800
  • Single-socket SP5 design fits AMD EPYC 9004 and 9005 series CPUs up to 400W TDP
  • Eight DDR5 288-pin slots support up to 4TB of registered memory at 4800 MT/s
  • Dual 10GbE Broadcom BCM57416 LAN ports provide high-throughput server networking
  • PCIe 5.0 x16 and CXL 2.0 slot plus multiple MCIO connectors enable flexible storage and accelerator expansion
  • CEB 12 x 11 inch form factor suits dense rackmount chassis deployments

Single-Socket EPYC Server Board

The ASRock Rack GENOAD8QM3-2T/BCM is a CEB form-factor motherboard built for one Socket SP5 processor. It accepts AMD EPYC 9004 and 9005 series CPUs with a thermal design power up to 400 W. Eight DDR5 288-pin slots support registered DIMMs up to 4 TB total capacity. Dual 10 Gbps LAN and an OCP NIC 3.0 slot handle high-throughput networking.

Suited for Dense Compute, Not Multi-Socket

This board fits builders who need a single high-core-count EPYC host with extensive PCIe 5.0 and CXL 2.0 connectivity. It serves storage-heavy nodes, GPU-accelerated workloads, or memory-intensive applications. Buyers who require two or more processor sockets on one PCB must choose a different platform. Systems needing integrated graphics beyond the Aspeed AST2600 management controller should look elsewhere.

Eight-Channel DDR5 Decides Capacity

The eight memory slots are the primary factor that determines whether this motherboard matches your workload. They deliver 4 TB maximum registered DDR5 capacity at 4800 MT/s, with QVL-validated modules up to 96 GB per DIMM. If your application demands more memory channels or a higher per-slot limit, this board will not meet the requirement.

Highlights

  • Single-socket SP5 design fits AMD EPYC 9004 and 9005 series CPUs up to 400W TDP
  • Eight DDR5 288-pin slots support up to 4TB of registered memory at 4800 MT/s
  • Dual 10GbE Broadcom BCM57416 LAN ports provide high-throughput server networking
  • PCIe 5.0 x16 and CXL 2.0 slot plus multiple MCIO connectors enable flexible storage and accelerator expansion
  • CEB 12 x 11 inch form factor suits dense rackmount chassis deployments

Specifications

BrandAsRock Rack
ModelGENOAD8QM3-2T/BCM
CPU Socket TypeSocket SP5
CPU TypeAMD EPYC 9004 Series / AMD EPYC 9005 Series
Number of Processor Support1
CPU FeaturesThermal Design Power Up to 400W
*A BIOS update is required to support AMD EPYC 9005 series processors
Memory Slots8 x DDR5 288-pin
Memory StandardDDR5 4800
Maximum Memory Supported4TB
RegisteredYes
PCI Express 5.0 x16SLOT6: PCIe5.0 / CXL2.0* x16
*Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
PCI Express 4.0 x16SLOT1: PCIe4.0 x16
Other Slots1 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s)
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
4 MCIO (PCIe5.0 x8)
1 OCP NIC 3.0 (PCIe5.0 x16)
M.21 M-key (PCIe5.0 / CXL2.0* x4 or SATA 6Gb/s), supports 2280 form factor
1 M-key (PCIe5.0 / CXL2.0* x4 or SATA 6Gb/s), supports 22110/2280 form factor
Onboard Video ChipsetAspeed AST2600
LAN ChipsetBroadcom BCM57416
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps

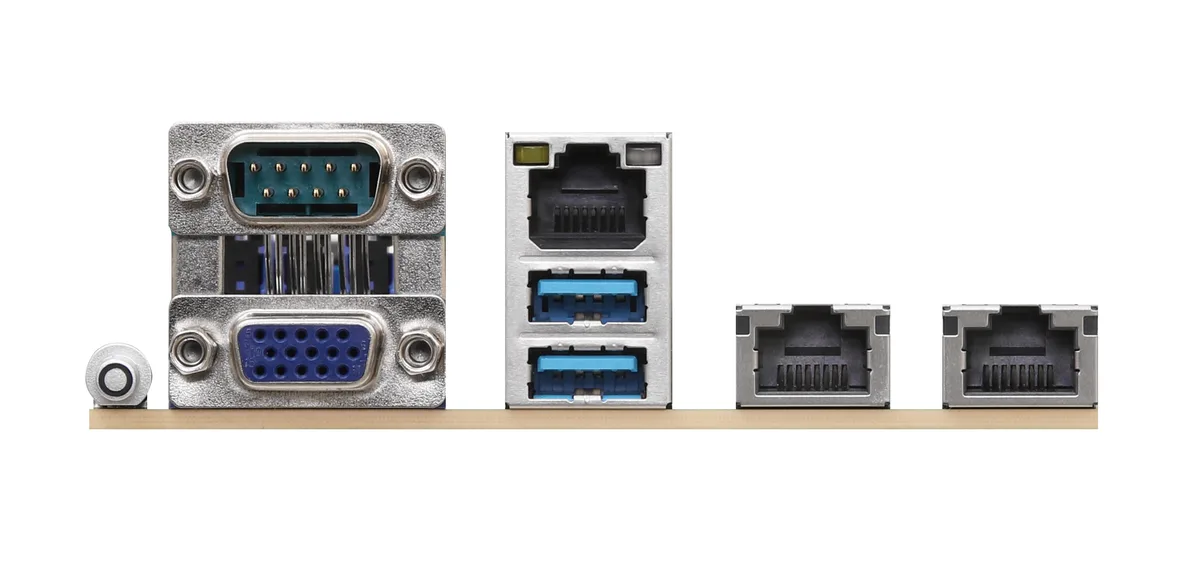

Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
Onboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
Other ConnectorsPower Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header: 1
Speaker Header: 1 (4-pin)
Buzzer: 1
Fan Header: 8 (6-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 2
HSBP: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
Others: 1 NCSI_SEL for IPMI shared NIC
NMI Header: 1
BIOS FeatureAMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
Form FactorCEB
Dimensions (W x L)12.0" x 11.0"
Shipping weight1.70 kg
Package size368 × 343 × 64 mm
