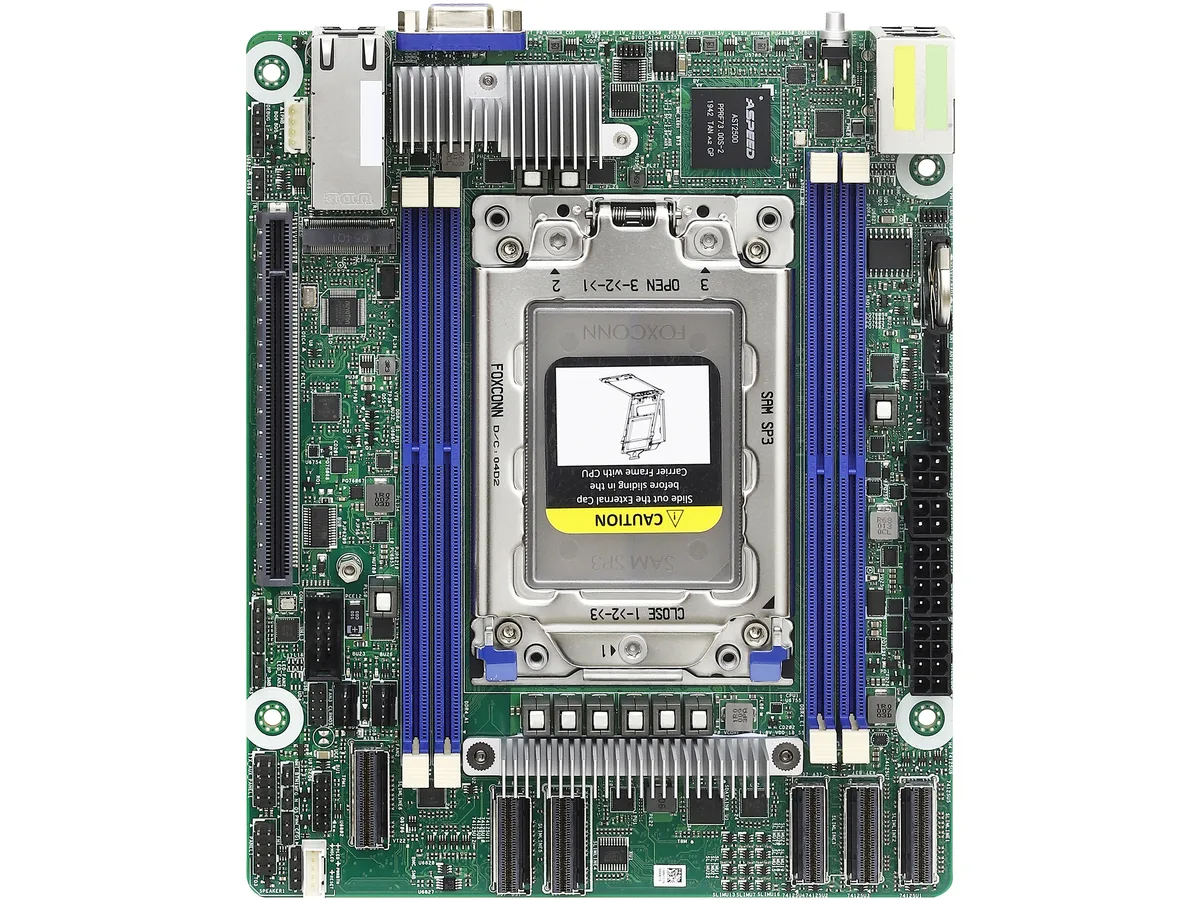

Green server motherboard, deep mini-ITX, SP3 socket, four DDR4 slots, PCIe 4.0 x16 slot, dual 10GbE RJ45, M.2 2280

ASRock Rack

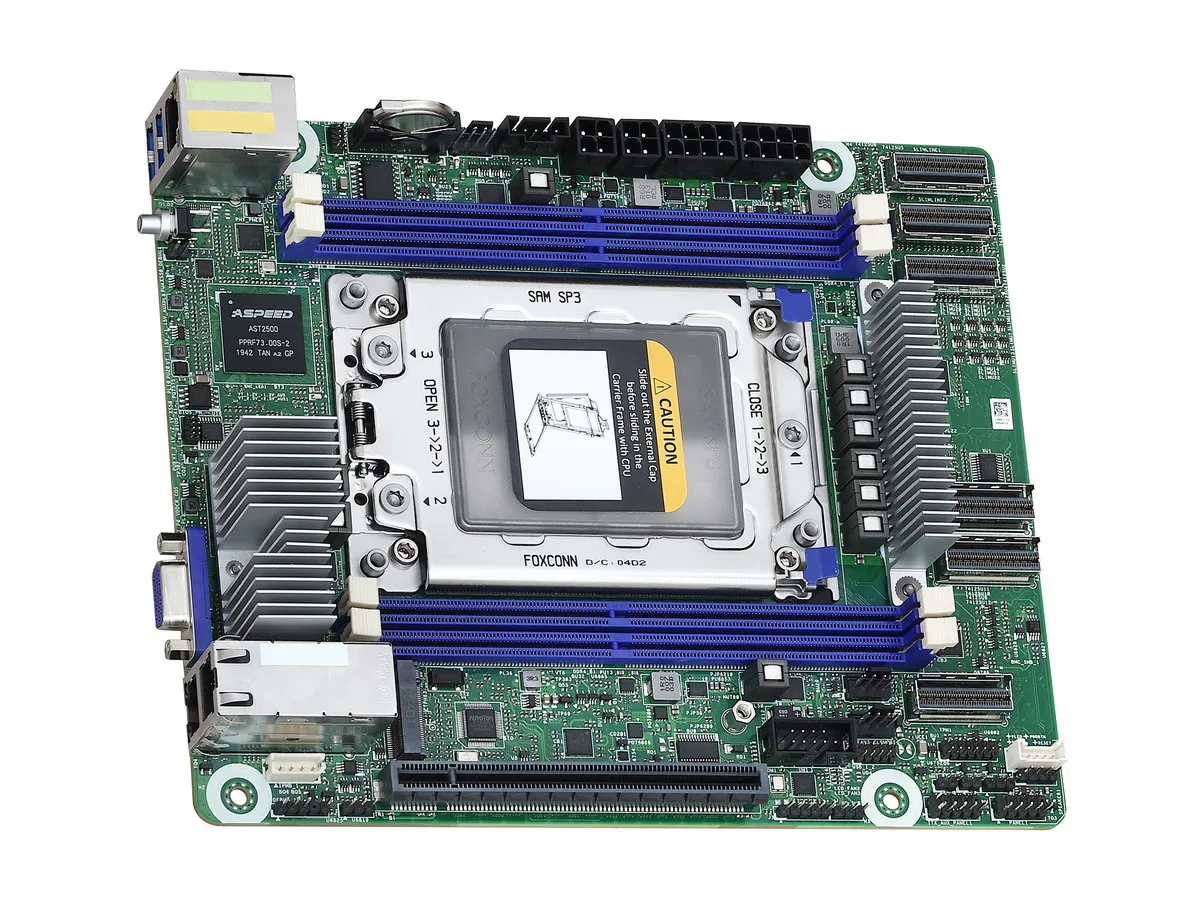

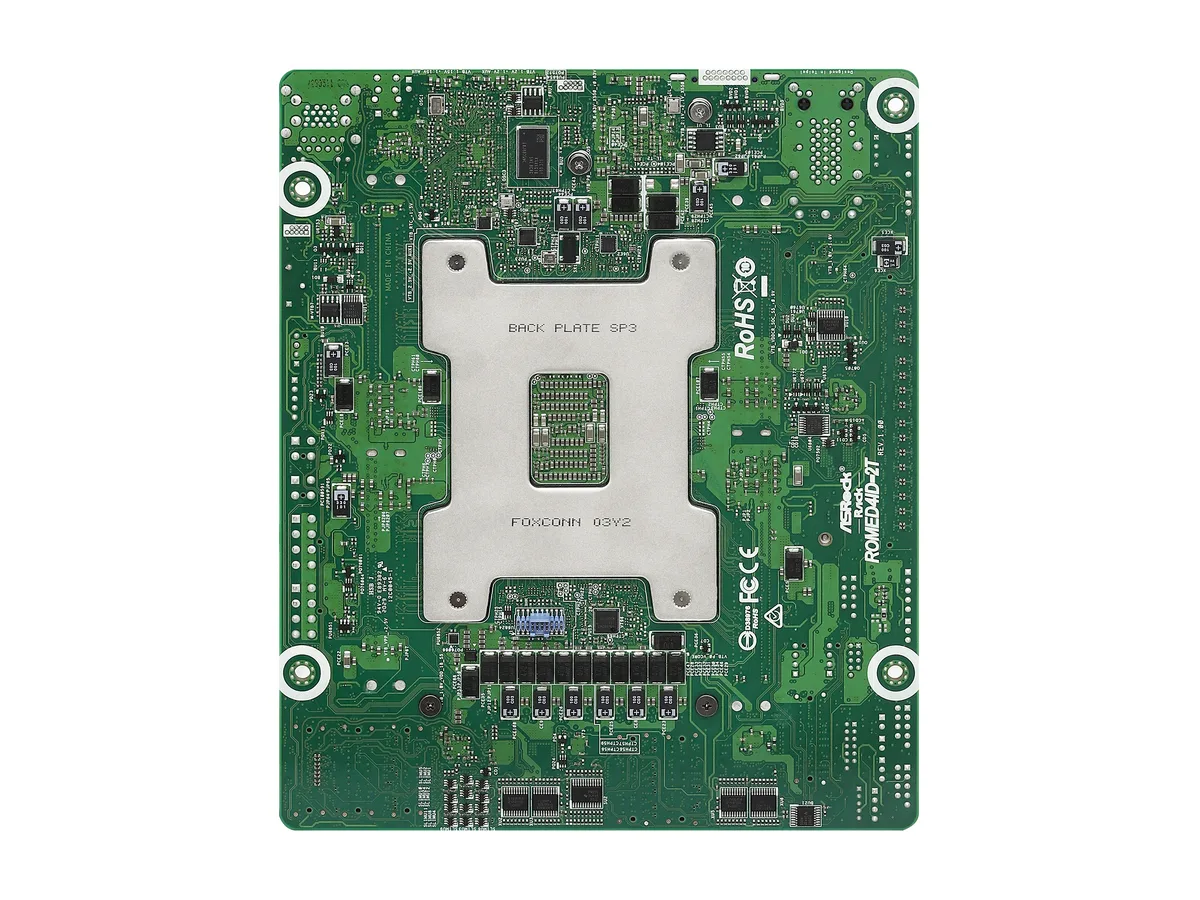

ASRock Rack ROMED4ID-2T Deep mini-ITX server motherboard

SKU CH-YV46-TN2AN MPN ROMED4ID-2T

Deep mini-ITX server board with SP3 socket for EPYC 7002/7003 CPUs, four DDR4 slots, 17 SATA ports and dual 10GbE LAN

  • CPU Socket TypeSocket SP3
  • CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 3200
  • RegisteredYes
  • PCI Express 4.0 x16SLOT 7: PCIe 4.0 x16
  • Supports AMD EPYC 7003 and 7002 series processors via Socket SP3
  • Four DDR4 3200 registered DIMM slots for high-capacity memory
  • PCIe 4.0 x16 slot plus six Slimline connectors for flexible expansion
  • Dual 10GbE Intel X550-AT2 ports plus dedicated IPMI LAN

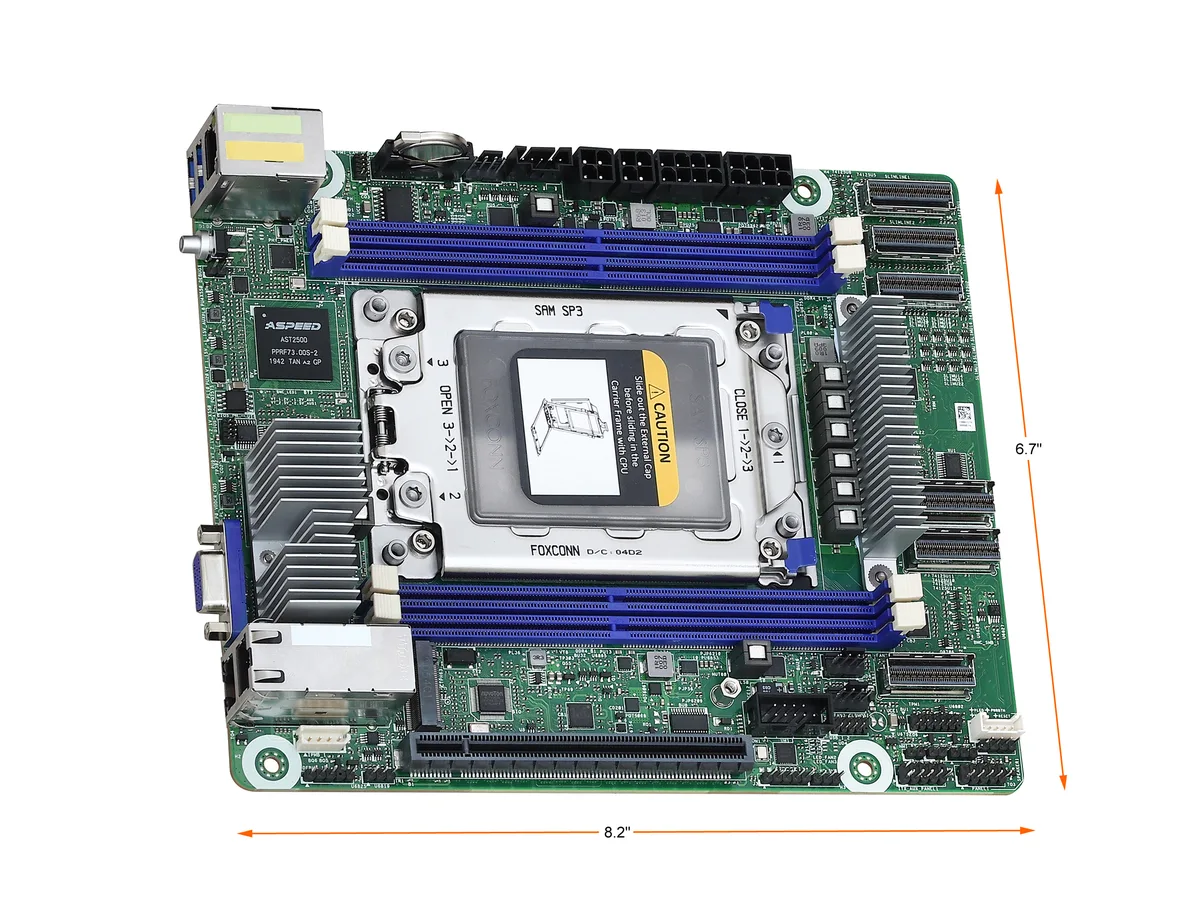

  • Deep mini-ITX form factor at 6.7" x 8.2" for dense deployments

Single-socket SP3 EPYC server board

The ASRock Rack ROMED4ID-2T is a proprietary Deep mini-ITX motherboard measuring 6.7" by 8.2". It accepts one AMD EPYC 7002 or 7003 series processor in an LGA 4094 socket. Four 288-pin slots support registered DDR4 3200 RDIMM, LRDIMM or 3DS modules. A single PCIe 4.0 x16 slot and multiple Slimline connectors provide internal expansion.

Suits dense 10GbE storage nodes.

This board targets builders who need dual 10GbE ports and up to seventeen SATA 6Gb/s connections in a compact footprint. IPMI via a dedicated RJ45 port simplifies remote management. Buyers requiring more than one CPU socket or more than four memory channels should evaluate alternative platforms.

Four DDR4 slots limit total memory capacity

With only four DIMM sockets in a single-channel-per-DIMM layout, maximum installable memory is bound by the highest-capacity registered modules available. If your workload demands eight or more memory channels per socket, this form factor cannot meet that requirement.

Highlights

  • Supports AMD EPYC 7003 and 7002 series processors via Socket SP3
  • Four DDR4 3200 registered DIMM slots for high-capacity memory
  • PCIe 4.0 x16 slot plus six Slimline connectors for flexible expansion
  • Dual 10GbE Intel X550-AT2 ports plus dedicated IPMI LAN
  • Deep mini-ITX form factor at 6.7" x 8.2" for dense deployments

Specifications

BrandAsRock Rack
ModelROMED4ID-2T
CPU Socket TypeSocket SP3
CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7002 Series Processors
*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 3200
RegisteredYes
PCI Express 4.0 x16SLOT 7: PCIe 4.0 x16
M.21 x M-key (PCIe4.0 x4/SATA); Form factor: 2280
Onboard Video ChipsetAspeed AST2500
LAN ChipsetIntel X550-AT2
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps
Video PortsD-Sub
RJ452 x RJ45 (10 GbE)
1 x RJ45 Dedicated IPMI LAN port
USB 3.22 x USB 3.2 Gen 1
Other ConnectorsCOM Header: 1
Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
TPM Header: 1 (13-pin, LPC)
Thermal Sensor Header: 1
IPMB Header: 1
PMBus CONN: 1
Fan Header: 3 (4-pin)
HDD PWR: 1 (4-pin, 12V and 5V) for using 12V DC-in PSU
USB 2.0 Header: 1 (support 2 USB2.0)
NMI Header: 1
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header: 1
BMC_SMB Header: 1
Power Connector: 1 (4-pin, ATX PSU signal and 5Vsb), 2 (8-pin, ATX 12V) support 12V DC-in
Clear CMOS: 1 (contact pads)
FeaturesProprietary, 6.7" x 8.2"
Single Socket SP3 AMD EPYC 7002 series Processors
4 DIMMs
1 PCIe4.0 x 16
2 Slimline (PCIe 4.0 x8 or 8 SATA 6Gb/s), 4 Slimline (PCIe 4.0 x8)
1 M-key (PCIe4.0 x4/SATA)
Form FactorProprietary (Deep mini-ITX)
Dimensions (W x L)6.7" x 8.2"
Shipping weight1.13 kg
Package size269 × 224 × 81 mm

Questions about this item

How do I install an AMD EPYC 7003 processor on the Socket SP3 (LGA 4094) and what step is often missed?

Mount the CPU in the LGA 4094 socket, apply thermal paste, attach the cooler, then update the BIOS before first boot because 7003 series support requires a firmware update.

What maintenance will the onboard Aspeed AST2500 video and IPMI subsystem need over time?

The AST2500 firmware should be updated periodically via the dedicated IPMI LAN port to keep remote management and D-Sub video output reliable.

What thermal limit appears first when the dual 10 GbE Intel X550-AT2 ports run sustained throughput?

The X550-AT2 controllers can hit their thermal ceiling under continuous 10 Gbps loads, so adequate airflow over the board is essential to avoid throttling.
