Green rectangular server motherboard with silver CPU socket, eight black DDR5 slots, four long PCIe slots, two RJ45 ports

ASRock Rack

ASRock Rack TURIND8UD-2T/X550 server motherboard SP5 DDR5 10GbE

SKU CH-TFZJ-0R2MH MPN TURIND8UD-2T/X550

Deep-Micro ATX server board for single AMD EPYC 9004 or 9005 processors with eight DDR5 6400 RDIMM slots, four PCIe 5.0 x16 slots, dual 10GbE Intel X550-AT2 ports and up to 16 SATA 6Gb/s connections

  • CPU Socket TypeSocket SP5
  • CPU TypeAMD EPYC 9004 Series / AMD EPYC 9005 Series
  • Number of Processor Support1
  • CPU FeaturesThermal Design Power Up to 400W
  • Memory Slots8 x DDR5 288-pin
  • Memory StandardDDR5 6400
  • Supports AMD EPYC 9004 and 9005 series processors via SP5 socket
  • Eight DDR5 6400 RDIMM slots deliver up to 4 TB registered memory
  • Four PCIe 5.0 x16 slots with CXL 2.0 for high-speed expansion
  • Dual 10 GbE LAN ports powered by Intel X550-AT2 controller
  • Deep Micro ATX form factor measures 10.4 by 10.5 inches

Single-socket SP5 server board

The ASRock Rack TURIND8UD-2T/X550 is a Deep-Micro ATX motherboard built around the SP5 socket for AMD EPYC 9004 and 9005 series processors including 3D V-Cache and 97x4 models. It targets single-processor deployments that need high core density and PCIe 5.0 bandwidth in a compact 10.4 by 10.5 inch footprint.

4 TB DDR5 ceiling and 16 SATA lanes

Eight DDR5 288-pin slots accept registered DIMMs up to 6400 MT/s, scaling to 4 TB total capacity for memory-heavy workloads. Storage connectivity reaches 16 SATA 6 Gb/s ports plus two M.2 slots wired for PCIe 5.0 x4, while four full-length PCIe 5.0 x16 slots also support CXL 2.0 for accelerator or memory-expansion cards.

10 GbE dual-port and flexible power input

Dual RJ45 ports driven by the Intel X550-AT2 controller deliver 2 x 10 Gbps networking without an add-in card. Rear I/O includes D-Sub video and two USB 3.2 Gen 1 Type-A ports; onboard headers add two more USB 3.2 Gen 1 connections. Power delivery uses a 24-pin ATX adapter cable, three 8-pin 12 V connectors and a 6-pin HDD power header for drive arrays.

Highlights

  • Supports AMD EPYC 9004 and 9005 series processors via SP5 socket
  • Eight DDR5 6400 RDIMM slots deliver up to 4 TB registered memory
  • Four PCIe 5.0 x16 slots with CXL 2.0 for high-speed expansion
  • Dual 10 GbE LAN ports powered by Intel X550-AT2 controller
  • Deep Micro ATX form factor measures 10.4 by 10.5 inches

Specifications

BrandAsRock Rack
ModelTURIND8UD-2T/X550
CPU Socket TypeSocket SP5
CPU TypeAMD EPYC 9004 Series / AMD EPYC 9005 Series
Number of Processor Support1
CPU FeaturesThermal Design Power Up to 400W
Memory Slots8 x DDR5 288-pin
Memory StandardDDR5 6400
Maximum Memory Supported4TB
RegisteredYes
PCI Express 5.0 x16SLOT6: PCIe5.0 / CXL2.0* x16
SLOT5: PCIe5.0 / CXL2.0* x16
SLOT4: PCIe5.0 / CXL2.0* x16
SLOT3: PCIe5.0 / CXL2.0* x16
*Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
M.22 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
LAN ChipsetIntel X550-AT2
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps

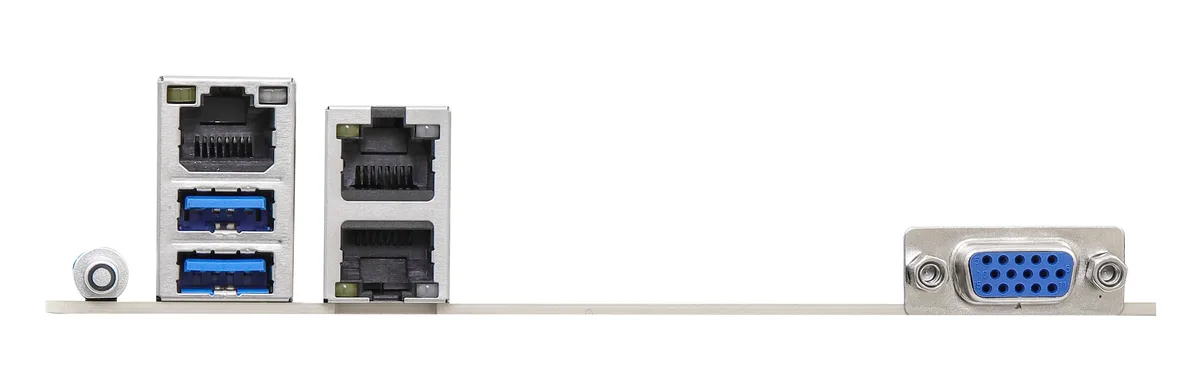

Back I/O Ports1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
Onboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
Other ConnectorsPower Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors: 1 (6-pin) for HDD power
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1
Speaker Header: 1 (4-pin)
Fan Header: 6 (6-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 2
HSBP: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
NMI Header: 1
BIOS FeatureAMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
Dimensions (W x L)10.4" x 10.5"
Shipping weight1.63 kg
Package size345 × 320 × 70 mm

Questions about this item

Will my existing PCIe 4.0 add-in cards work in the four PCIe 5.0 x16 slots without changing the slot configuration?

Each slot runs at PCIe 5.0 x16 and is backward compatible with PCIe 4.0 cards; install the card and the link will negotiate to the card's maximum speed.

How can I confirm the Intel X550-AT2 10GbE ports are operating at full 10 Gbps after installation?

Check the link speed in the OS network adapter settings or switch port LEDs; both RJ45 ports should show 10 Gbps when connected to a 10 Gbps partner with Cat6a or better cabling.

Does the box include the ATX 24-pin adapter cable for the 4-pin ATX PSU signal connector and the 6-pin HDD power cable?

The 4-pin ATX PSU signal connector ships with an ATX 24-pin adapter cable; the 6-pin HDD power connector is onboard and uses a standard cable from your power supply.
