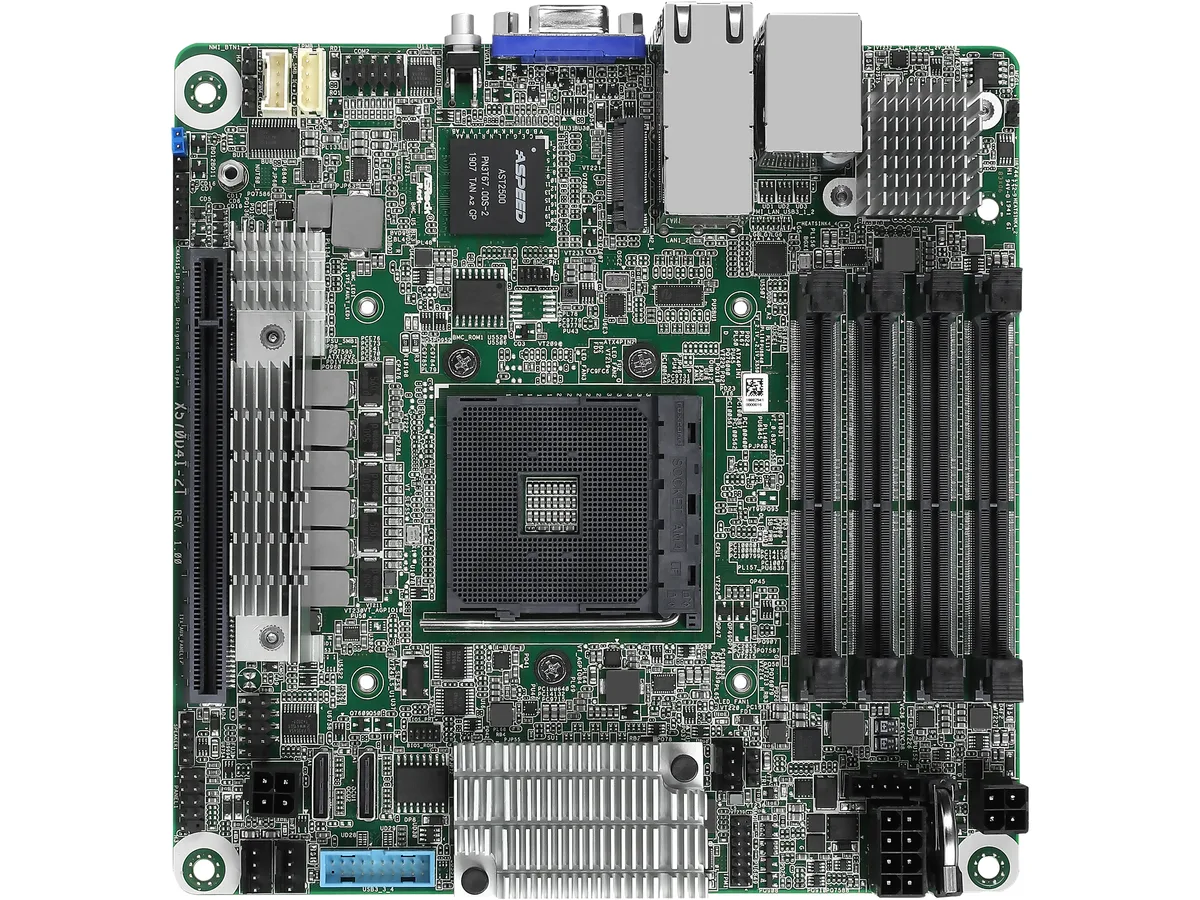

Green mini-ITX server motherboard with AM4 socket, four SO-DIMM slots, dual 10GbE ports and IPMI LAN

ASRock Rack

ASRock Rack X570D4I-2T Mini-ITX server motherboard AM4 PGA 1331

SKU CH-FKZZ-YVVCR MPN X570D4I-2T

Mini-ITX server board with AM4 socket, four DDR4 SO-DIMM slots, 10 GbE dual LAN, PCIe 4.0 x16, OCuLink and M.2

  • CPU Socket TypeSingle Socket AM4 (PGA1331)
  • CPU TypeSupports: AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Pro
  • North BridgeAMD X570
  • Number of DDR4 Slots4 DIMM slots (2DPC) Supports DDR4 260-pin ECC*/non-ECC SO-DI
  • DDR4 StandardOne DIMM: 1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s Two DIMMs:
  • Maximum Memory Supported64GB
  • Mini-ITX form factor fits dense server builds
  • Supports AMD Ryzen 5000, 4000 and 3000 series desktop processors
  • Four DDR4 SO-DIMM slots with ECC support up to 64GB
  • Dual 10GbE Intel X550-AT2 ports plus dedicated IPMI LAN
  • PCIe 4.0 x16 slot, two OCuLink and one M.2 for fast storage

Compact server board for AMD Ryzen AM4

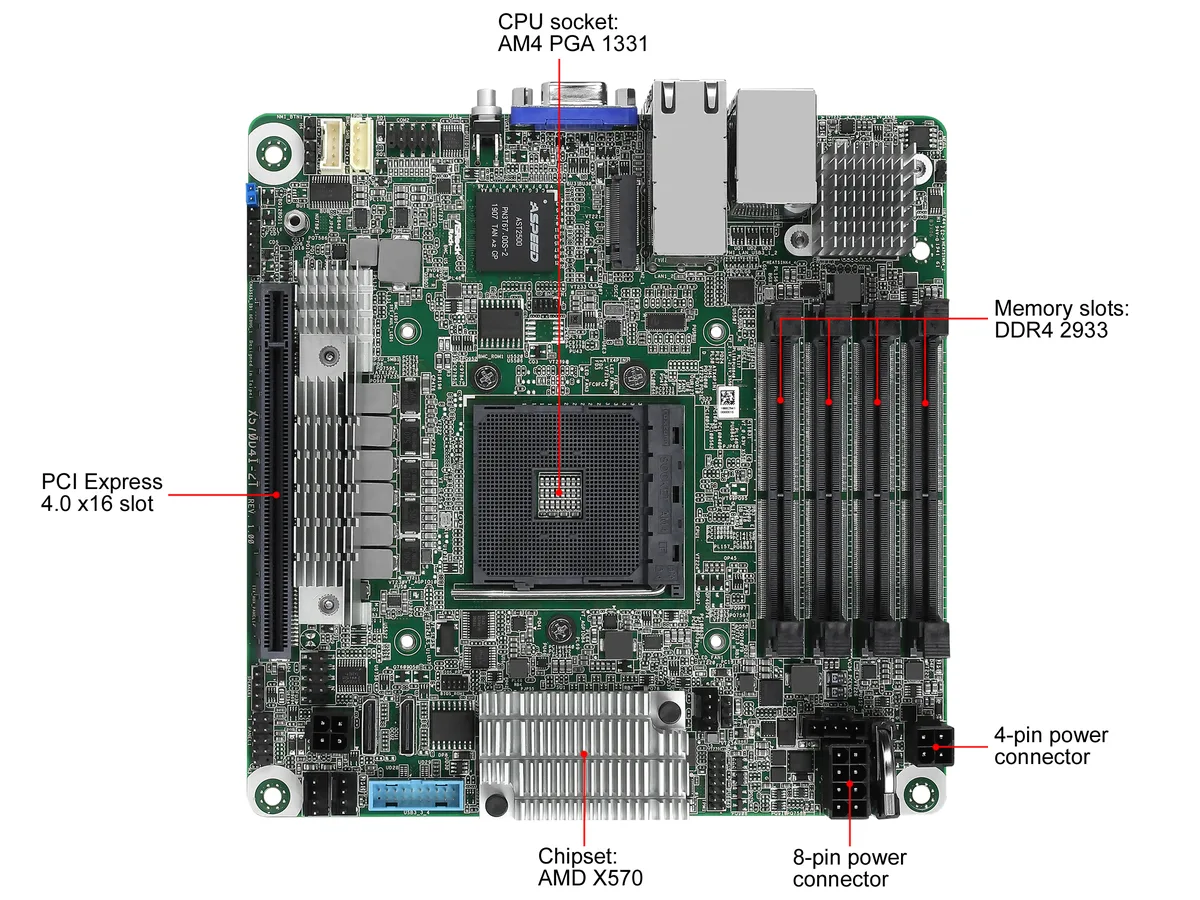

The ASRock Rack X570D4I-2T is a Mini-ITX server motherboard built around the AMD X570 chipset and a single PGA 1331 socket. It targets builders who need a dense, ECC-capable platform for storage or virtualisation workloads in a 6.7-inch square footprint. The board accepts AMD Ryzen 5000, 4000 and 3000 series desktop processors, including PRO and G-Series models with integrated Radeon graphics. An Aspeed AST2500 provides dedicated IPMI and VGA output for headless management.

PCIe 4.0 lanes depend on the installed CPU

The primary PCIe 4.0 x16 slot runs at 3.0 x8 with Ryzen 3000 G-Series APUs and at 3.0 x16 with 4000 and 5000 G-Series APUs. Two OCuLink ports each offer PCIe 4.0 x4 or four SATA 6.0 Gb/s connections, but drop to 3.0 with any G-Series processor. The single M.2 2280 slot likewise falls back to PCIe 3.0 x4 or SATA when a G-Series chip is fitted. Dual 10 GbE ports driven by an Intel X550-AT2 controller and a dedicated IPMI LAN port handle network traffic.

Replaces older AM4 ITX boards lacking 10 GbE

Builders moving from a basic consumer ITX board gain dual 10 GbE, IPMI, four SO-DIMM slots with ECC support and flexible OCuLink storage routing. The jump is worth it when a compact chassis must serve as a high-throughput file server or hypervisor host. Buyers who need more than 64 GB of memory, additional PCIe expansion slots or native 25 GbE networking should look at larger form-factor server boards.

Highlights

  • Mini-ITX form factor fits dense server builds
  • Supports AMD Ryzen 5000, 4000 and 3000 series desktop processors
  • Four DDR4 SO-DIMM slots with ECC support up to 64GB
  • Dual 10GbE Intel X550-AT2 ports plus dedicated IPMI LAN
  • PCIe 4.0 x16 slot, two OCuLink and one M.2 for fast storage

Specifications

BrandAsRock Rack
ModelX570D4I-2T
CPU Socket TypeSingle Socket AM4 (PGA1331)
CPU TypeSupports:
AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Processors with Radeon Graphics
AMD Ryzen 5000 and 3000 Series Desktop Processors
AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors
North BridgeAMD X570
Number of DDR4 Slots4 DIMM slots (2DPC)
Supports DDR4 260-pin ECC*/non-ECC SO-DIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
DDR4 StandardOne DIMM:
1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s
Two DIMMs:
2400MT/s
Maximum Memory Supported64GB
ECC SupportedYes
RegisteredYes
PCI Express 4.0 x16SLOT7: PCIe4.0 x16* [CPU]
*Supports PCIe3.0 x8 when using AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics
*Supports PCIe3.0 x16 when using AMD Ryzen 5000, 4000 G-Series Desktop Processors with Radeon Graphics
Other Slots2 OCuLink (PCIe4.0* x4 or 4 SATA 6Gb/s)
*Supports PCIe3.0 when using AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Processors with Radeon Graphics
SATA8 x SATA 6.0Gb/s
M.21 M-key (PCIe4.0* x4 or SATA 6Gb/s), supports 2280 form factor
*Supports PCIe3.0 when using AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Processors with Radeon Graphics
Onboard Video ChipsetAspeed AST2500
LAN ChipsetAdditional GbE Controller:
2 x RJ45 10GLAN by Intel X550-AT2
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
IPMI Dedicated GLAN:
1 x Realtek RTL8211E for dedicated management GLAN
LAN Speed10Gbps
Max LAN Speed10Gbps

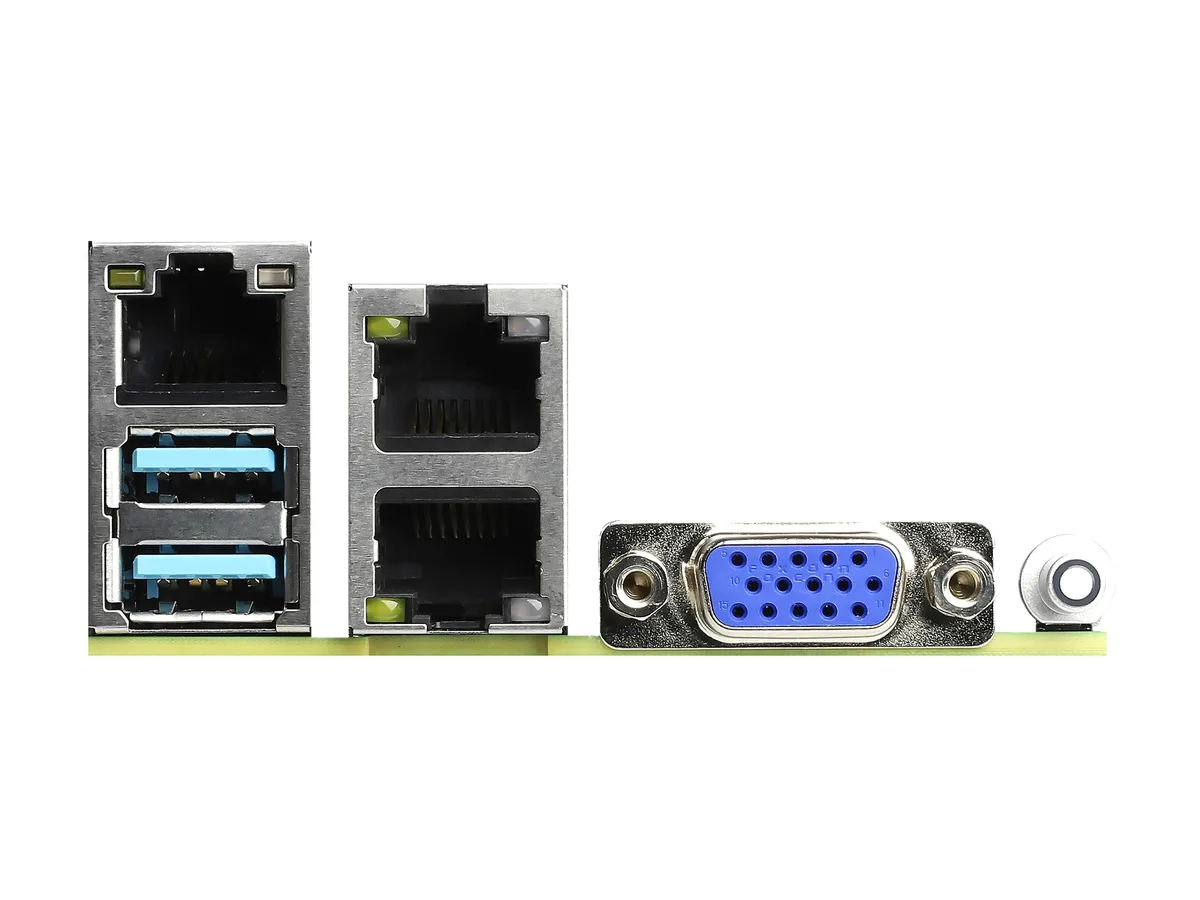

Back I/O PortsUID Button/LED: 1 UID w/ LED
VGA Port: 1 DB15 (VGA)
USB 3.2 Gen2 Port: 2 Type-A (USB3.2 Gen2)
RJ45: 2 RJ45 (10GbE), 1 dedicated IPMI
Video Ports1 x D-Sub
RJ452 x RJ45
USB 3.12 x USB 3.1 Gen 2
Other ConnectorsCOM Header: 1
SATA DOM: 0
M.2: 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s)
*When use Picasso CPU, only PCIe3.0 x4
OCuLink -2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each)
*When use Picasso CPU, only PCIe3.0 x4
Auxiliary Panel Header: 1 (include Caseopen,sys_fault_LED, 2FLANLED) )
TPM Header: 1(13pin)
IPMB Header: 1
Buzzer: N/A
Fan Header: 3(4-pin Fan header)
USB 3.1 (Gen1) Header: 1 (support 2 USB 3.0)
USB 2.0 Header: N/A
Front Panel: 1 (RST, PWRBTN, HDDLED, PWRLED)
Speaker Header: 1(4pin)
SMBUS from BMC: 1
Power Connector: 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)
ME/SPS Recovery: N/A
Form FactorMini ITX

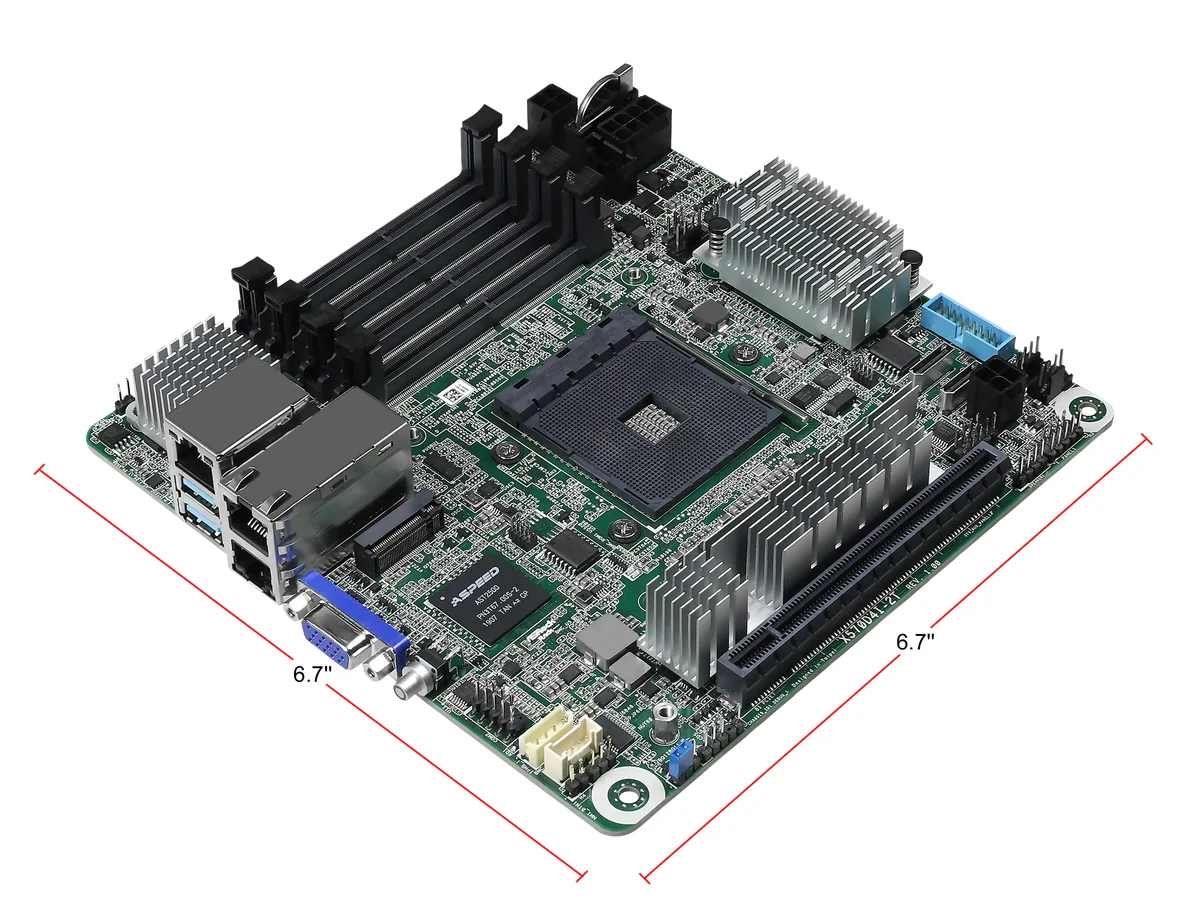

Dimensions (W x L)6.7" x 6.7"
Contains Embedded BatteryNo
Shipping weight0.89 kg
Package size272 × 244 × 61 mm

Questions about this item

Should I choose a Ryzen PRO or non-PRO CPU for this board?

Both work, but ECC memory support requires a Ryzen PRO processor; non-PRO chips run without ECC.

What does the 64 GB maximum memory mean for a server build?

You can install four DDR4 SO-DIMMs up to 16 GB each, running at 2400 MT/s with two modules or 2933 MT/s with a single-rank stick.

What speed will the PCIe 4.0 x16 slot actually deliver?

It runs at PCIe 4.0 x16 with Ryzen 5000 and 3000 series desktop CPUs, but drops to PCIe 3.0 x8 with Ryzen 3000 G-series APUs and PCIe 3.0 x16 with Ryzen 5000/4000 G-series APUs.
