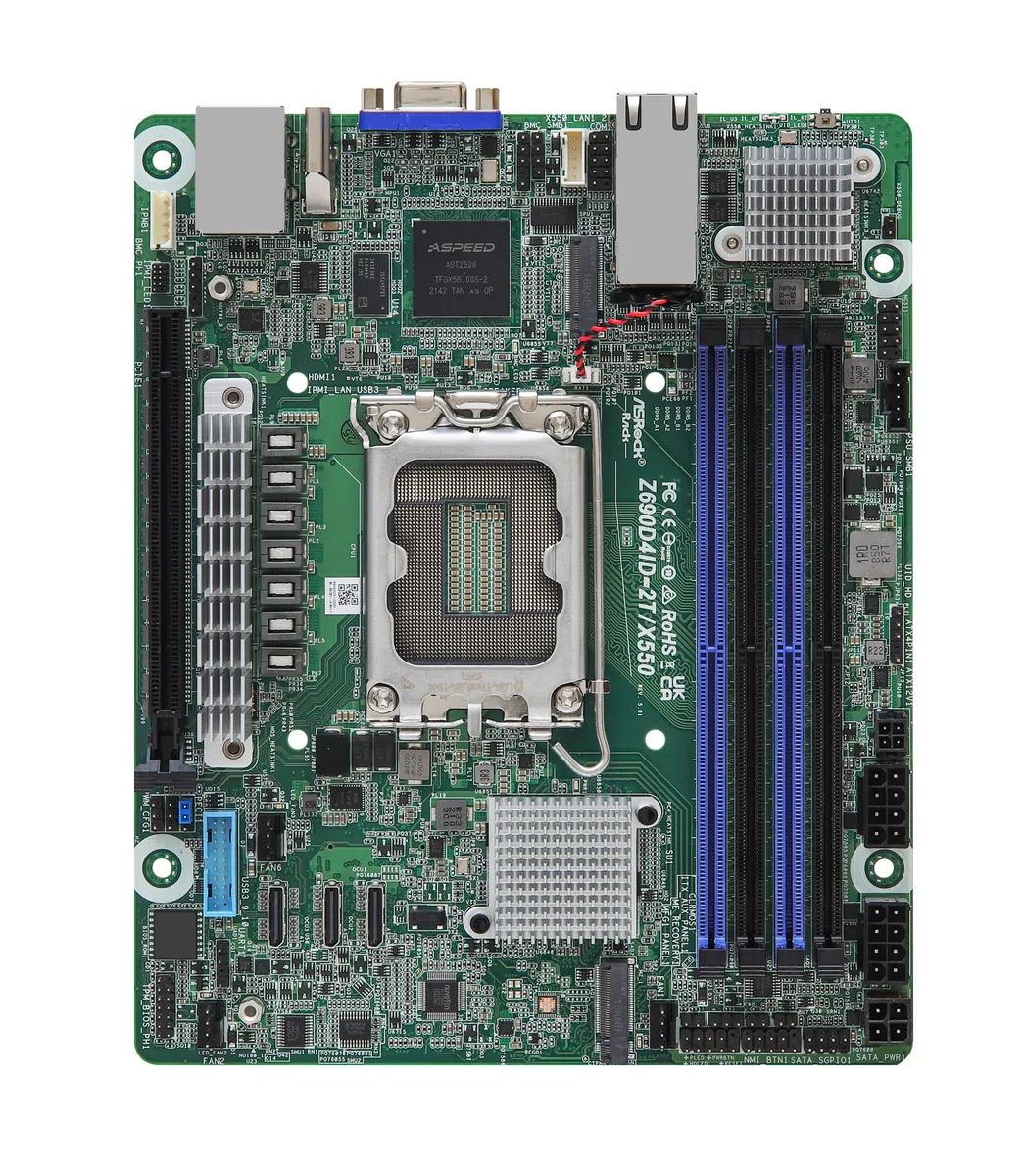

Deep mini-ITX server motherboard with dual 10GbE RJ45 ports

ASRock Rack

ASRock Rack Z690D4ID-2T/G5/X550 server motherboard

SKU CH-PXJV-GHZC7 MPN Z690D4ID-2T/G5/X550

Deep mini-ITX server board with LGA 1700 socket, four DDR5 slots up to 192 GB, dual 10 GbE LAN, PCIe 5.0 x16, three OCuLink ports, two M.2 slots and eight SATA 6 Gb/s connectors

  • CPU Socket TypeLGA 1700
  • CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen I
  • North BridgeIntel Z690
  • Memory Slots4 x DDR5 288-pin
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Dual 10 GbE ports deliver fast network throughput
  • PCIe 5.0 x16 slot enables high-bandwidth expansion cards
  • Four DDR5 slots support up to 192 GB memory
  • Three OCuLink connectors add flexible storage or PCIe links
  • Deep mini-ITX form factor fits space-constrained server chassis

Deep Mini-ITX Server Board

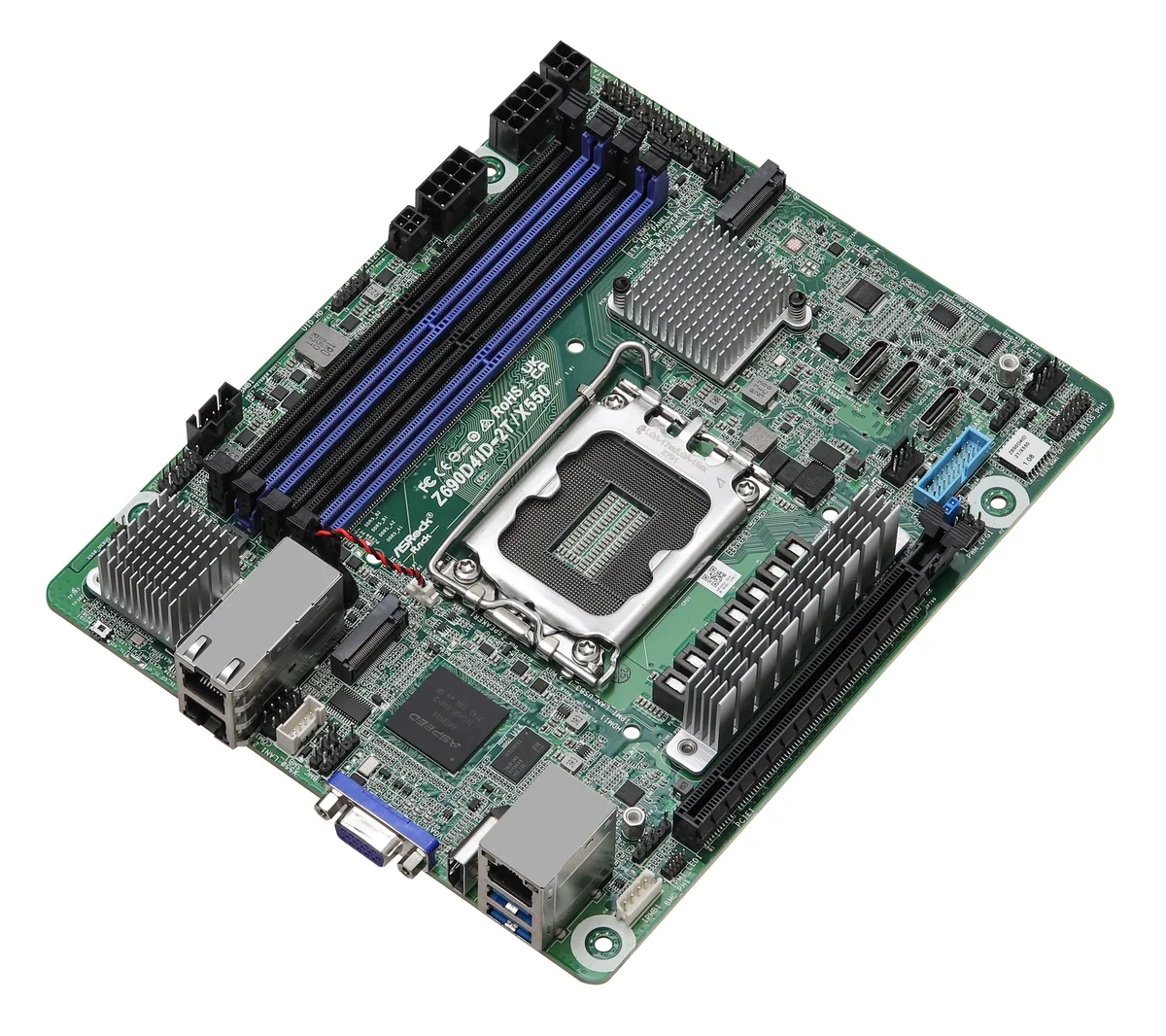

The ASRock Rack Z690D4ID-2T/G5/X550 is a deep mini-ITX server motherboard built on the Intel Z690 chipset. It accepts 12th, 13th and 14th generation Intel Core, Pentium and Celeron processors in the LGA 1700 socket. The board targets compact server builds that need high core counts and fast networking in a small footprint.

Installation Notes

The deep mini-ITX layout measures 6.7 by 8.2 inches, so verify that your chassis supports the longer dimension before mounting. Power delivery uses two 8-pin ATX 12V connectors plus a 4-pin ATX signal connector with an included 24-pin adapter cable; ensure your power supply provides the required cables. OCuLink ports carry either PCIe or SATA signals, so cable selection must match the intended device type.

Fit And Alternatives

This board suits builders who need dual 10 GbE LAN, PCIe 5.0 x16 and up to 192 GB of DDR5 4400 non-ECC memory in a compact form factor. It is not a fit for buyers who require ECC memory support or more than four DIMM slots. Customers needing additional PCIe expansion slots beyond the single x16 and three OCuLink connections should consider a larger form factor.

Highlights

  • Dual 10 GbE ports deliver fast network throughput
  • PCIe 5.0 x16 slot enables high-bandwidth expansion cards
  • Four DDR5 slots support up to 192 GB memory
  • Three OCuLink connectors add flexible storage or PCIe links
  • Deep mini-ITX form factor fits space-constrained server chassis

Specifications

BrandAsRock Rack
ModelZ690D4ID-2T/G5/X550
CPU Socket TypeLGA 1700
CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen Intel Core i7 / 12th Gen Intel Core i9 / 13th Gen Intel Core i3 / 13th Gen Intel Core i5 / 13th Gen Intel Core i7 / 13th Gen Intel Core i9 / 14th Gen Intel Core i3 / 14th Gen Intel Core i5 / 14th Gen Intel Core i7 / 14th Gen Intel Core i9
North BridgeIntel Z690
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported192GB
ECC SupportedNon-ECC
PCI Express 5.0 x16SLOT7: PCIe5.0 x16 [CPU]
Other Slots1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
1 OCuLink (PCIe4.0 x4) [PCH]
SATA8 x SATA 6.0Gb/s
M.21 M-key (PCIe4.0 x4); support 2280 form factor [CPU]
1 M-key (PCIe4.0 x4); support 2280 form factor [PCH]
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X550
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps

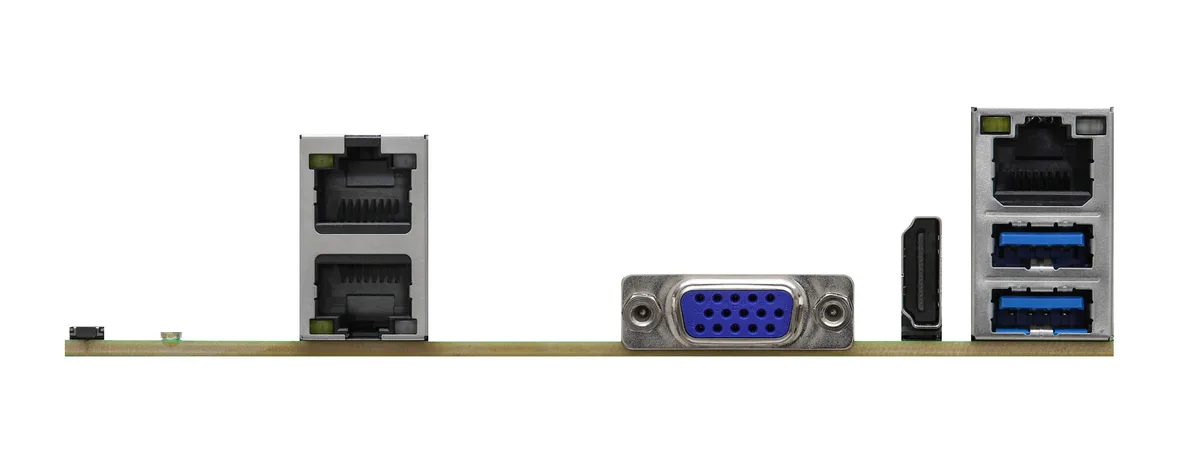

Back I/O Ports1 x D-Sub / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
Onboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
Other ConnectorsPower Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1
Speaker Header: 1
Fan Header: 3 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (2-pin)
NMI Header: 1
BIOS FeatureAMI 256Mb SPI Flash ROM
Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flash
Form FactorDeep mini-ITX
Dimensions (W x L)6.7" x 8.2"
Shipping weight2.20 kg
Package size208 × 170 × 74 mm

Questions about this item

How can I confirm the board is posting correctly after installing a 12th Gen Intel Core i5-12400?

Watch the Aspeed AST2600 video output on the D-Sub or HDMI port for the POST screen and BIOS splash; the dual Intel X550 10GbE ports will show link lights once the OS loads.

What comes in the box and which cables or modules must be purchased separately?

The motherboard ships with an ATX 24-pin adapter cable; you must supply DDR5 288-pin UDIMMs, a CPU cooler for LGA 1700, storage drives, and an ATX power supply with dual 8-pin 12V connectors.

Which memory capacity should I choose for the four DDR5 slots?

The board supports up to 192 GB total across four slots; populate all four with matching DDR5 4400 non-ECC UDIMMs to reach the maximum, or use fewer modules for lower capacity.
