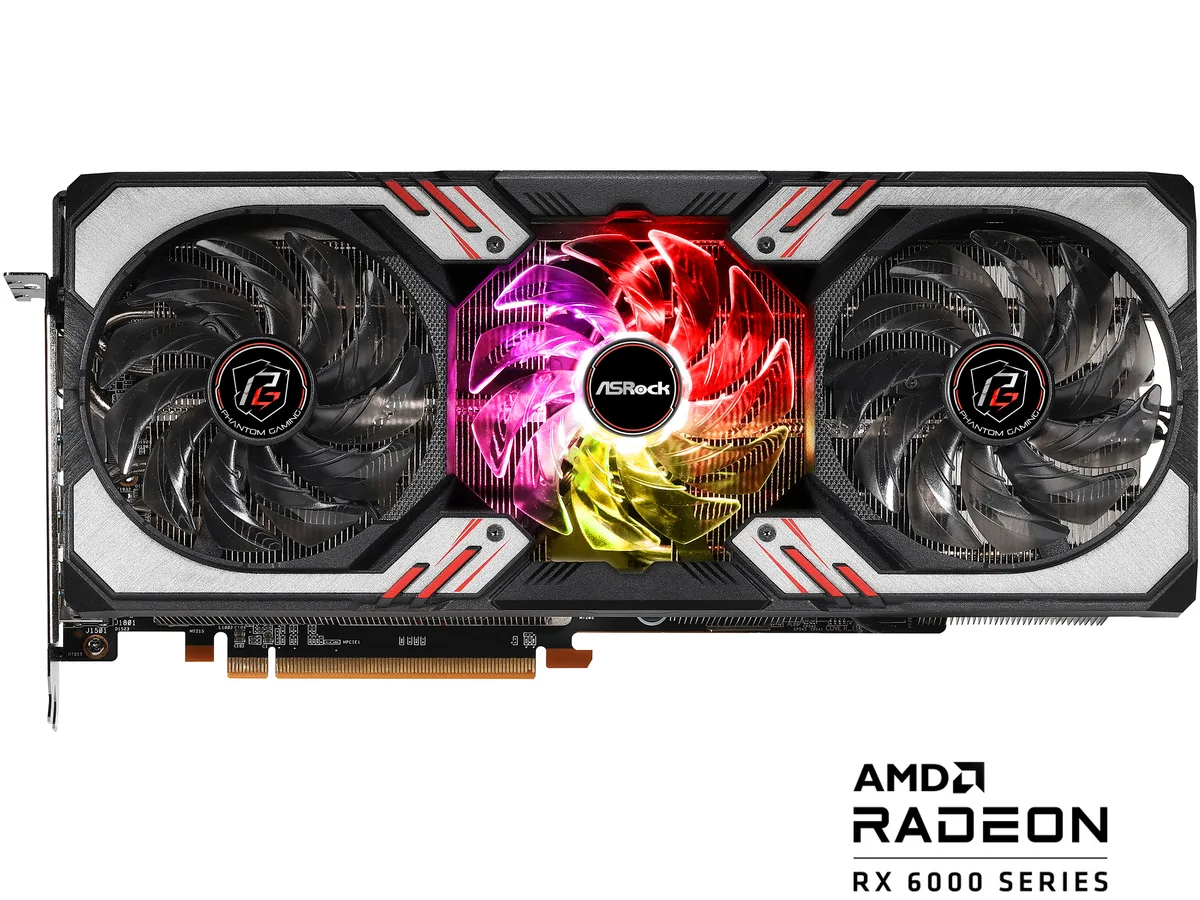

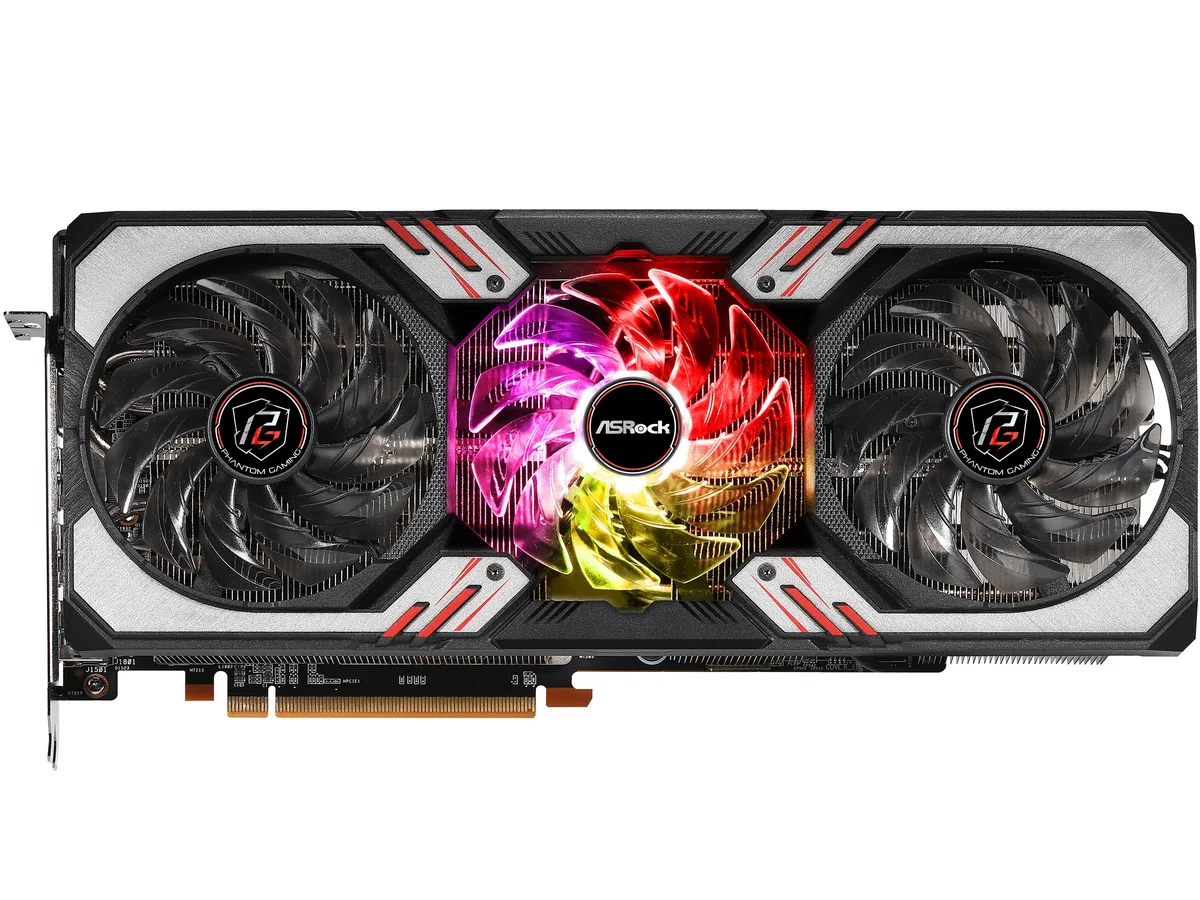

ASRock Radeon RX 6800 Phantom Gaming D graphics card with triple fans and metal backplate

ASRock

ASRock Radeon RX 6800 Phantom Gaming D 16GB GDDR6 graphics card (RX6800 PGD 16GO)

SKU CH-DHZ5-RXKQP MPN RX6800 PGD 16GO

Refurbished Radeon graphics card with 16 GB GDDR6, 3840 stream processors and boost clock to 2190 MHz for 4K gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800
  • Core Clock1850 MHz
  • Boost Clock2190 MHz
  • 16GB GDDR6 memory enables high-resolution gaming
  • 3840 stream processors deliver strong compute performance
  • Boost clock up to 2190 MHz for responsive frame rates
  • HDMI 2.1 and three DisplayPort 1.4 outputs drive four displays
  • Triple-fan cooler with 0dB silent mode keeps thermals low

ASRock Radeon RX 6800 16GB Overview

This ASRock Radeon RX 6800 Phantom Gaming D graphics card delivers 16GB GDDR6 memory on a 256-Bit interface. It targets gamers and creators who want high frame rates at 1440p or entry-level 4K. The AMD RDNA 2 GPU provides 3840 Stream Processors with a 1850 MHz core clock and 2190 MHz boost clock. It occupies a 2.75-slot ATX form factor measuring 305 mm in length.

Compatibility Check Before Ordering

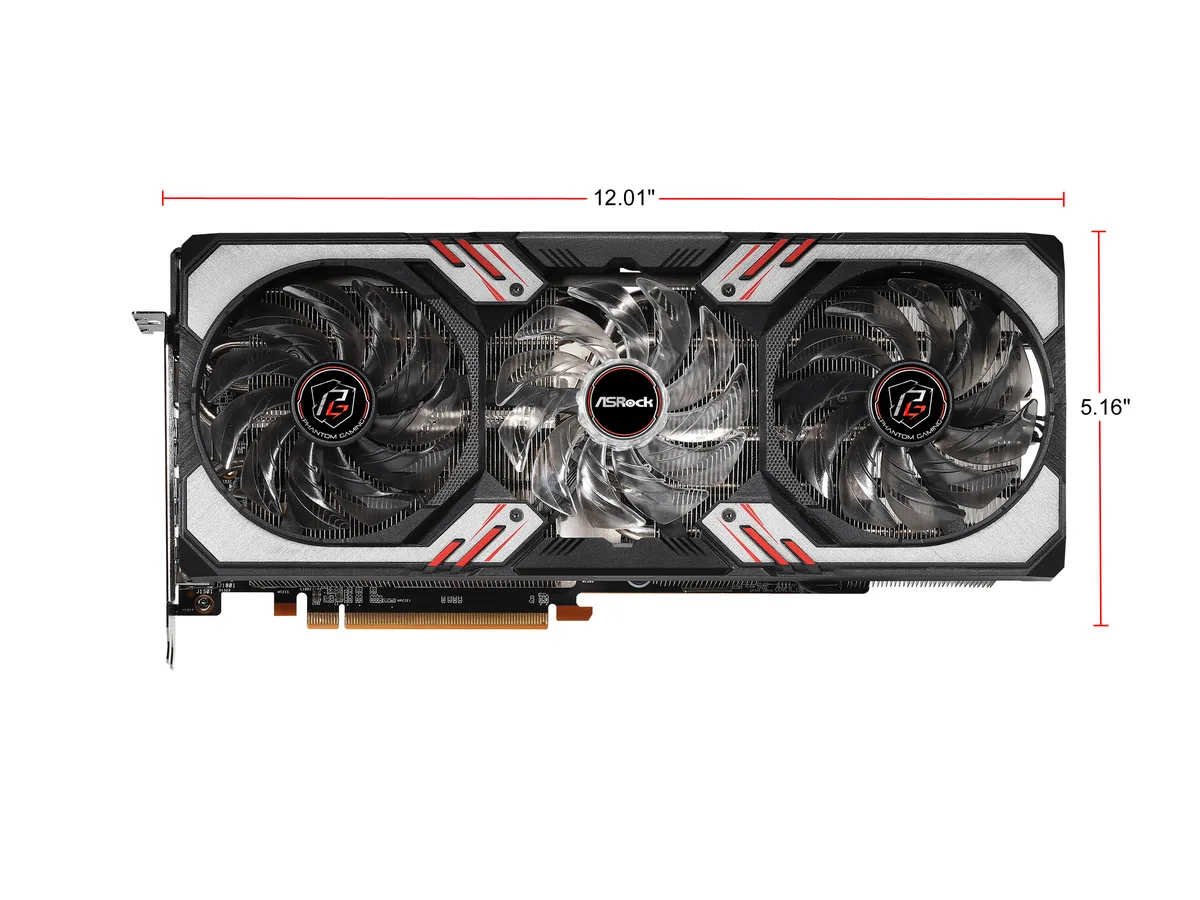

Verify your motherboard has a PCI Express 4.0 x16 slot and enough physical clearance for a 305 mm long card. The board requires two 8-Pin power connectors and a minimum 700W power supply unit. Ensure your chassis can accommodate the 2.75-slot width and 12.01" x 5.16" dimensions. Confirm your monitor uses HDMI 2.1 VRR or DisplayPort 1.4 with DSC for full resolution support.

Build Integration Notes

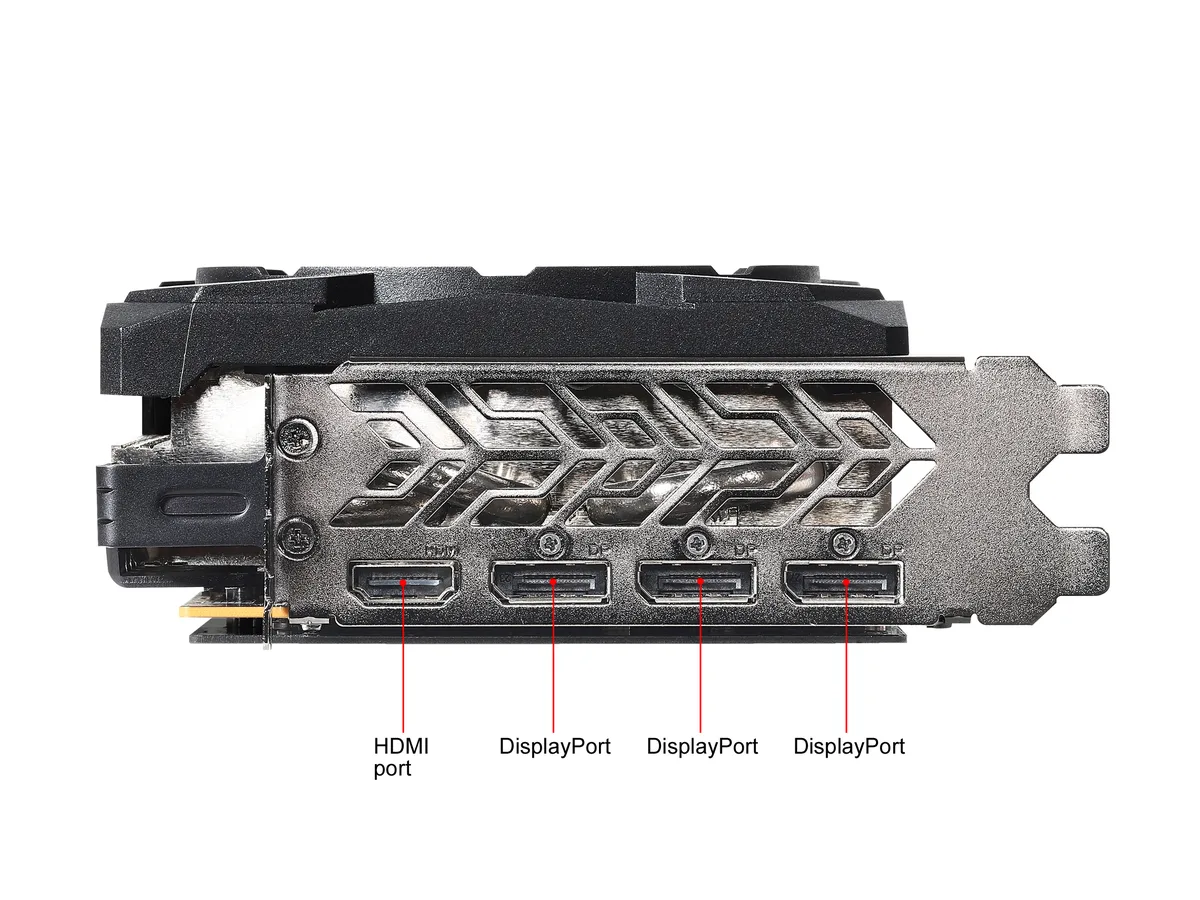

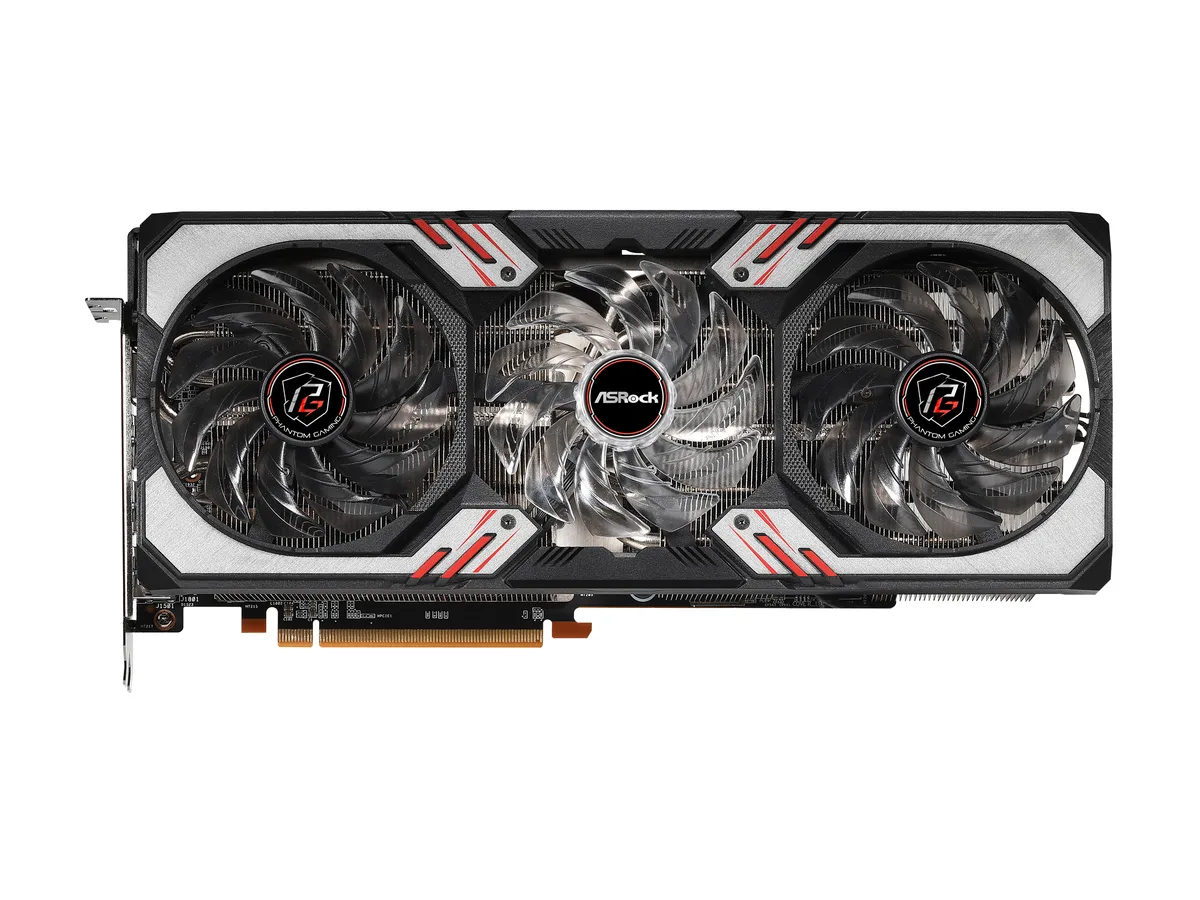

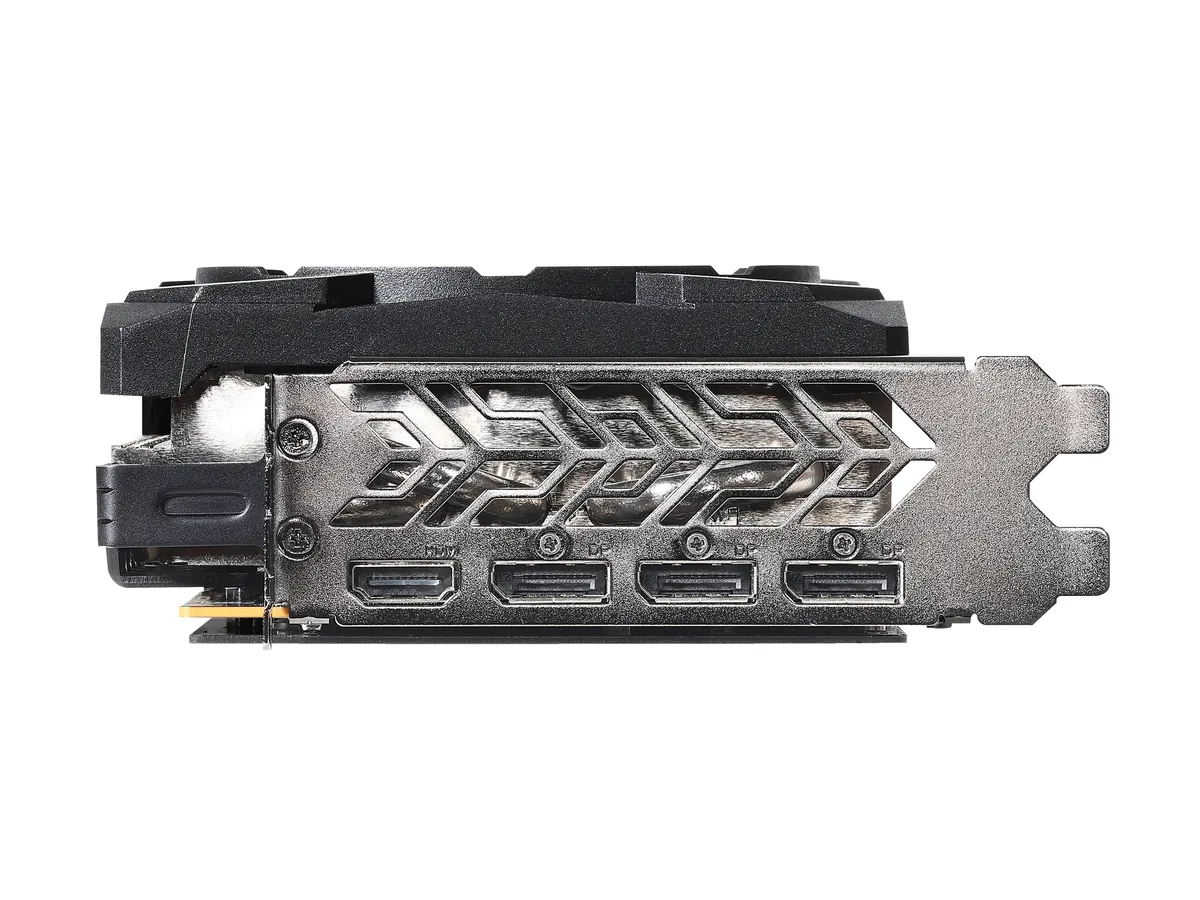

The triple-fan Phantom Gaming 3X Cooling System with Striped Axial Fans and 0dB Silent Cooling manages thermals under load. A reinforced metal frame and stylish metal backplate add structural rigidity. Polychrome SYNC allows RGB coordination with other components. Four display outputs (1 x HDMI 2.1 VRR, 3 x DisplayPort 1.4) drive up to four monitors at 7680 x 4320 max resolution.

Highlights

  • 16GB GDDR6 memory enables high-resolution gaming
  • 3840 stream processors deliver strong compute performance
  • Boost clock up to 2190 MHz for responsive frame rates
  • HDMI 2.1 and three DisplayPort 1.4 outputs drive four displays
  • Triple-fan cooler with 0dB silent mode keeps thermals low

Specifications

BrandASRock
SeriesPhantom Gaming D
ModelRX6800 PGD 16GO
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800
Core Clock1850 MHz
Boost Clock2190 MHz
Stream Processors3840
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1 VRR
DisplayPort3 x DisplayPort 1.4 with DSC
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design PowerRecommended PSU - 700W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesPolychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
Form FactorATX
Max GPU Length305 mm
Card Dimensions (L x H)12.01" x 5.16"
Slot Width2.75-slot
Shipping weight1.91 kg
Package size401 × 231 × 114 mm

Questions about this item

Does the card include the two 8-pin power cables or must they come from the power supply?

The card requires two 8-pin connectors; cables are supplied with the power supply, not with the graphics card.

Is the 16GB GDDR6 frame buffer fixed or are smaller capacities available for this model?

This Phantom Gaming D model is only offered with 16GB of GDDR6 on a 256-bit bus.

What does the 2190 MHz boost clock deliver in actual games?

The 2190 MHz boost clock drives the 3840 stream processors at up to 16 Gbps memory speed for 4K gaming at 7680 x 4320 resolution.
