ASRock
ASRock Radeon RX 9070 XT RX9070XT CL 16G graphics card
Refurbished AMD Radeon graphics card with 16GB GDDR6 memory, 4096 stream processors and boost clock up to 2970 MHz
- InterfacePCI Express 5.0 x16
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 9000 Series
- GPURadeon RX 9070 XT
- ArchitectureRDNA 4
- Game Clock2400 MHz
- 16GB GDDR6 memory handles large textures
- Boost clock up to 2970 MHz drives high frame rates
- PCI Express 5.0 x16 interface maximises bandwidth
- Triple-fan cooler keeps temperatures low
- 1 x HDMI 2.1b and 3 x DisplayPort 2.1a support four displays
Challenger 16GB card for 1440p and 4K gaming
The ASRock Challenger Radeon RX 9070 XT equips 16GB of GDDR6 memory across a 256-bit bus. It targets enthusiasts who need high frame rates at 1440p or entry-level 4K. The RDNA 4 architecture delivers 4096 stream processors and a game clock of 2400 MHz. A PCI Express 5.0 x16 interface keeps data flowing to modern platforms.
Sustained load on triple-fan cooler
Under continuous load the triple-fan cooler manages heat from the 2970 MHz boost clock and 20 Gbps memory. The 2.8-slot design increases heatsink surface area so temperatures stabilise during long sessions. An 800W power supply feeds two 8-pin connectors without voltage droop. Clock speeds hold closer to peak than on smaller coolers.

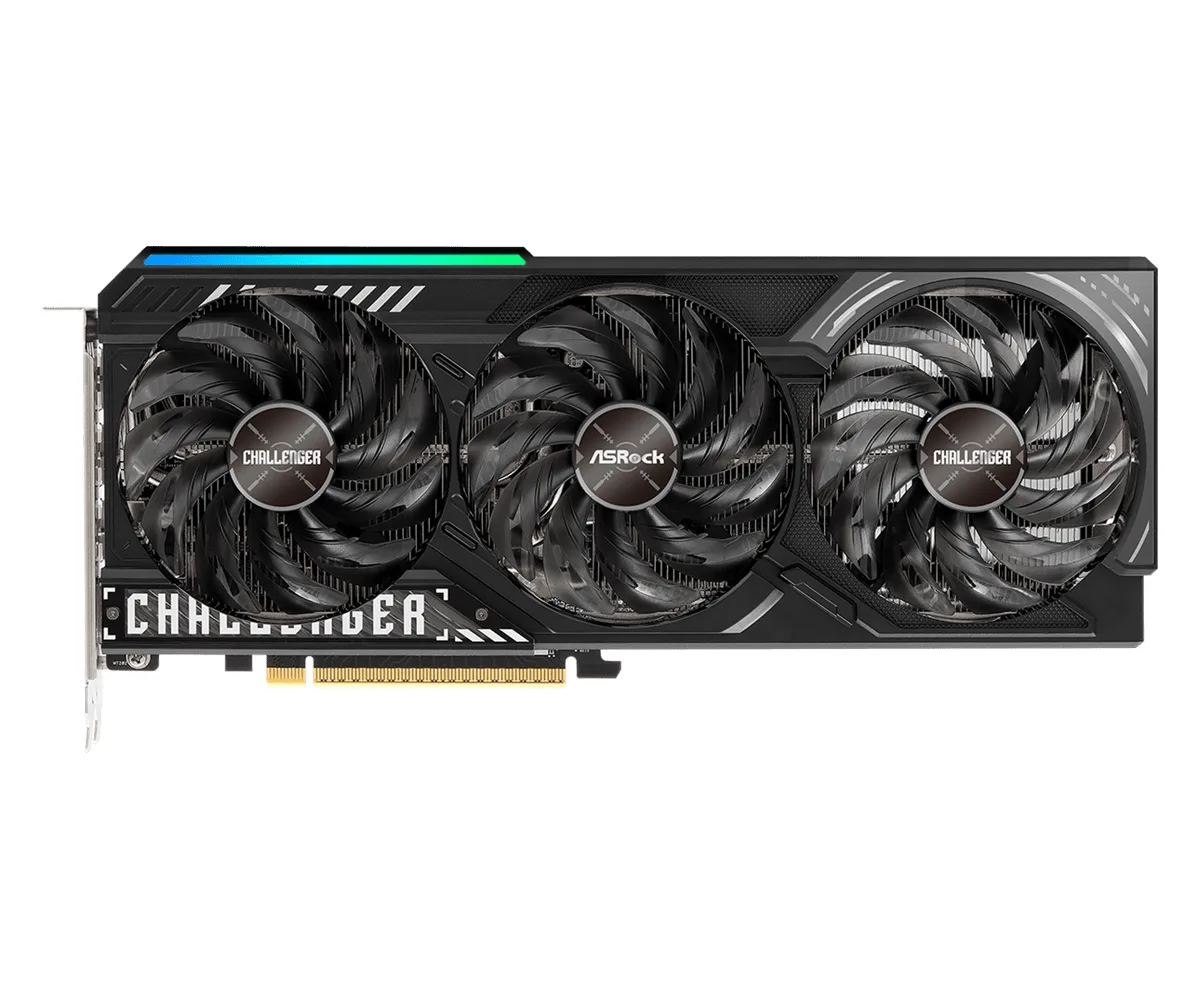

Straightforward 290 mm installation
The card measures 290 mm long and fits most mid-tower cases that accept 2.8-slot cards. Two 8-pin power cables route cleanly along the top edge. DisplayPort 2.1a and HDMI 2.1b ports sit flush with the bracket for easy monitor hookup. Verify case clearance and PSU cables before mounting.
Highlights
- 16GB GDDR6 memory handles large textures
- Boost clock up to 2970 MHz drives high frame rates
- PCI Express 5.0 x16 interface maximises bandwidth
- Triple-fan cooler keeps temperatures low
- 1 x HDMI 2.1b and 3 x DisplayPort 2.1a support four displays
Specifications
| Brand | ASRock |
|---|---|
| Series | Challenger |
| Model | RX9070XT CL 16G |
| Part Number | RX9070XT CL 16G |
| Interface | PCI Express 5.0 x16 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 9000 Series |
| GPU | Radeon RX 9070 XT |
| Architecture | RDNA 4 |
| Game Clock | 2400 MHz |
| Boost Clock | Up to 2970 MHz |
| Stream Processors | 4096 |
| Effective Memory Clock | 20000 MHz (20 Gbps) |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Recommended PSU Wattage | 800W |
| Power Connector | 2 x 8-Pin |
| HDCP Ready | Yes |
| Max GPU Length | 290 mm |
| Card Dimensions (L x H) | 290 x 123 x 56mm |
| Slot Width | 2.8 Slots |
| Shipping weight | 1.50 kg |
| Package size | 401 × 216 × 99 mm |
Questions about this item
How much power and cooling headroom does the triple-fan cooler need when the card runs at its 2970 MHz boost clock all day?
The board draws up to 800 W from two 8-pin connectors and occupies 2.8 slots, so a case with strong airflow and a PSU rated for that wattage keeps temperatures stable during extended loads.
Which motherboard slot and power cables must the system already provide for this PCIe 5.0 x16 card?
A full-length PCIe 5.0 x16 slot plus two spare 8-pin PCIe power cables from the power supply are required before installation.
Will the single HDMI 2.1b and three DisplayPort 2.1a outputs drive my existing 4K monitors at 7680 x 4320 resolution?
Yes, the four video outputs support up to 7680 x 4320 across four displays, so current 4K panels connect natively without adapters.
