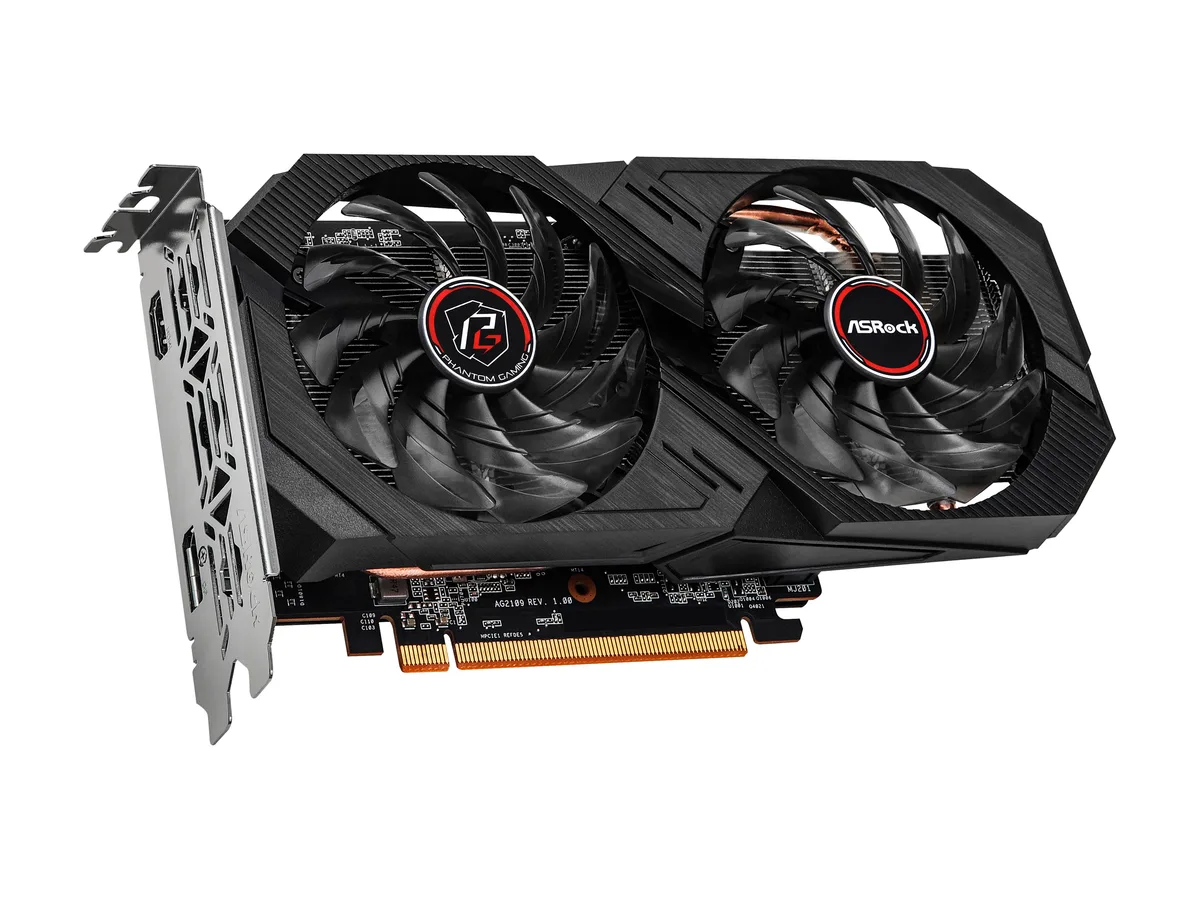

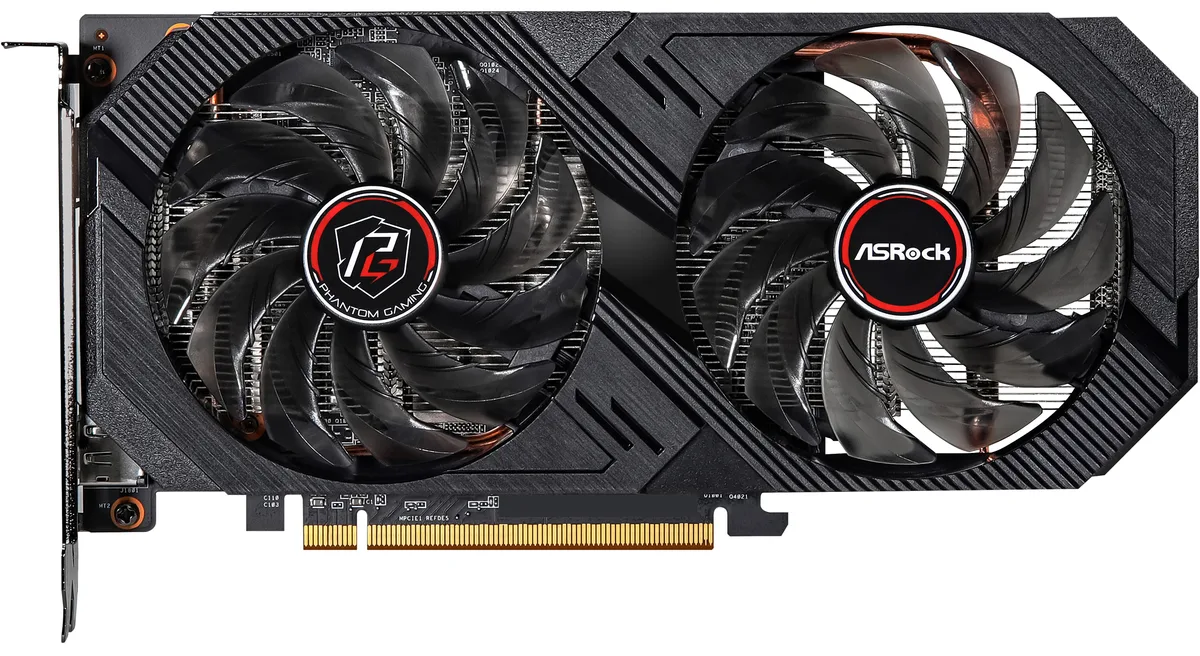

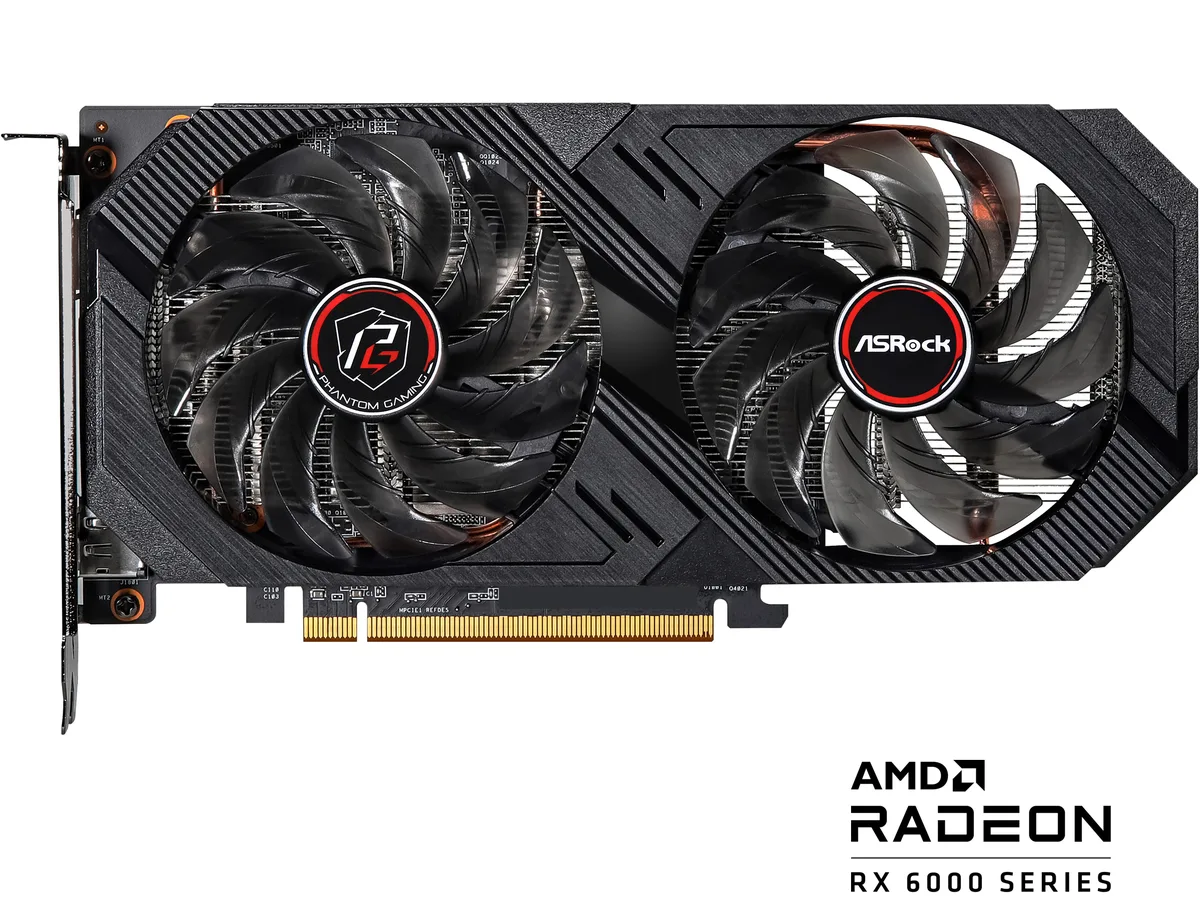

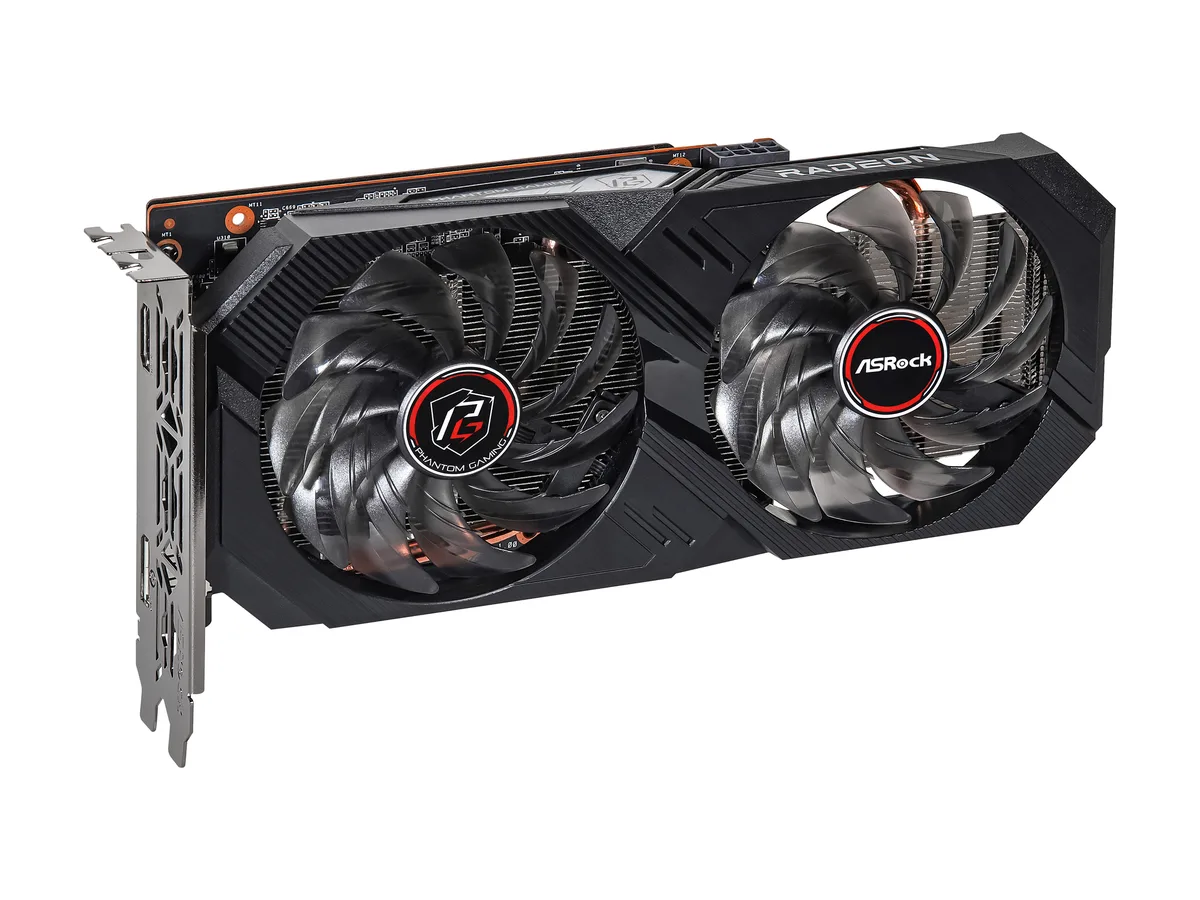

ASRock Phantom Gaming D Radeon RX 6500 XT dual-fan graphics card with metal backplate

ASRock

ASRock RX6500XT PGD 4GO graphics card

SKU CH-1PN0-FGB0H MPN RX6500XT PGD 4GO

Entry-level graphics card with 4 GB GDDR6 on a 64-bit bus, dual-fan cooling and HDMI 2.1 for 1080p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6500 XT
  • ArchitectureRDNA 2
  • Core Clock2365 MHz
  • 4GB GDDR6 memory handles 1080p textures smoothly
  • Boost clock reaches 2820 MHz for higher frame rates
  • Dual fans with 0dB mode keep noise low at idle
  • PCIe 4.0 interface doubles bandwidth over previous standard
  • Compact 240 mm length fits small-form-factor builds

Phantom Gaming D 4GB entry card

The ASRock Radeon RX 6500 XT PGD 4GO is a PCI Express 4.0 graphics card built on the RDNA 2 architecture with 1024 stream processors and 4GB of GDDR6 memory on a 64-bit bus. It targets 1080p gaming on a budget and fits systems with a 400W power supply and a single 8-pin connector.

Sustained 107W load profile

At a 107W thermal design power the dual-fan cooler runs a striped axial design that spins up under load and stops at low temperatures for 0dB silent cooling. The 240mm length card maintains its game clock of 2650 MHz and boost clock of 2820 MHz during extended sessions without throttling.

Metal backplate and dual-slot bracket

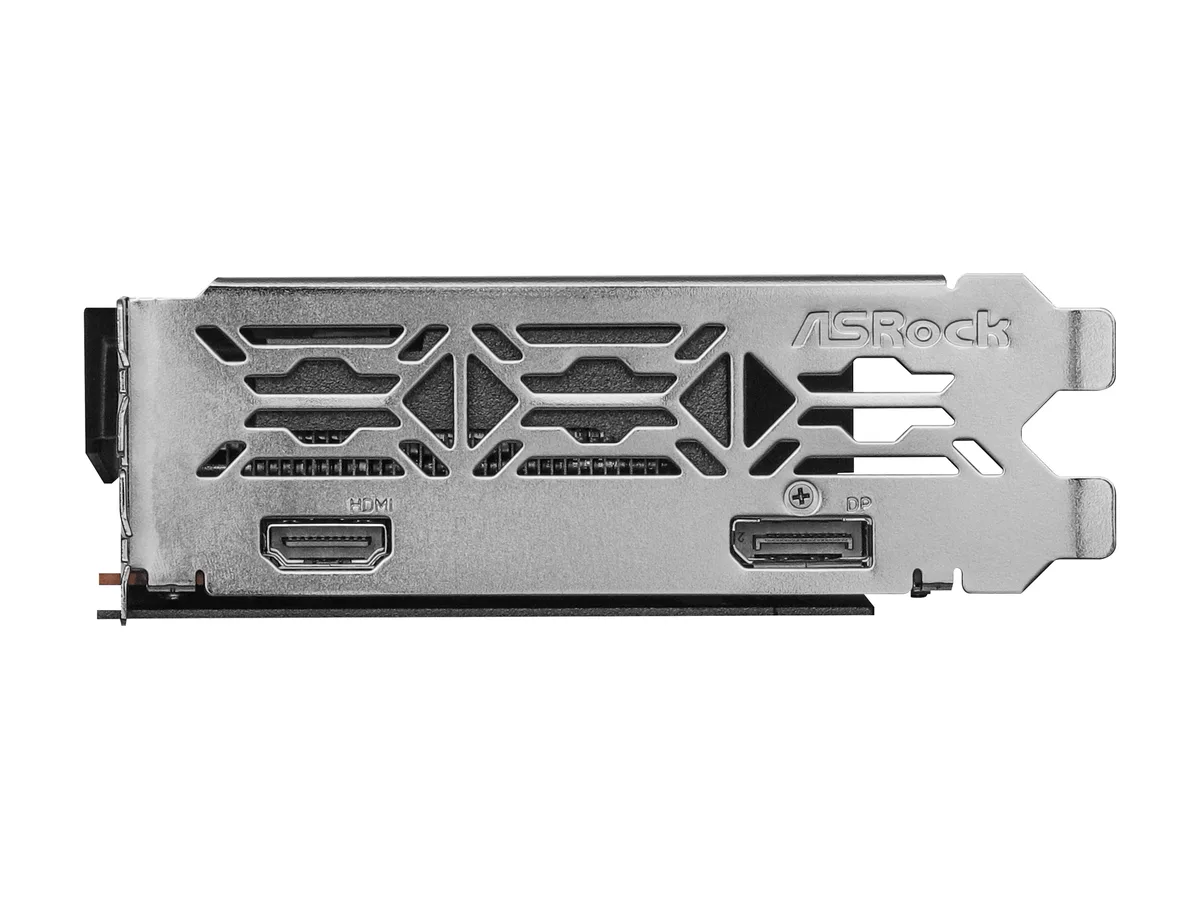

A stylish metal backplate stiffens the PCB and protects components during handling while the dual-slot I/O bracket provides one HDMI 2.1 and one DisplayPort 1.4 output for two monitors at up to 7680 x 4320 resolution. ASRock Tweak 2.0 software allows fan curve and clock adjustments.

Highlights

  • 4GB GDDR6 memory handles 1080p textures smoothly
  • Boost clock reaches 2820 MHz for higher frame rates
  • Dual fans with 0dB mode keep noise low at idle
  • PCIe 4.0 interface doubles bandwidth over previous standard
  • Compact 240 mm length fits small-form-factor builds

Specifications

BrandASRock
SeriesPhantom Gaming D
ModelRX6500XT PGD 4GO
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6500 XT
ArchitectureRDNA 2
Core Clock2365 MHz
Game Clock2650 MHz
Boost Clock2820 MHz
Stream Processors1024
Effective Memory Clock18 Gbps
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4
Max Resolution7680 x 4320
CoolerDouble Fans
Thermal Design Power107W
Recommended PSU Wattage400W
Power Connector8-Pin
HDCP ReadyYes
FeaturesDual Fan Design
Stylish Metal Backplate
Striped Axial Fan
0dB Silent Cooling
Super Alloy Graphics Card
ASRock Tweak 2.0
AMD FidelityFX Super Resolution
Hardware Raytracing
Max GPU Length240 mm

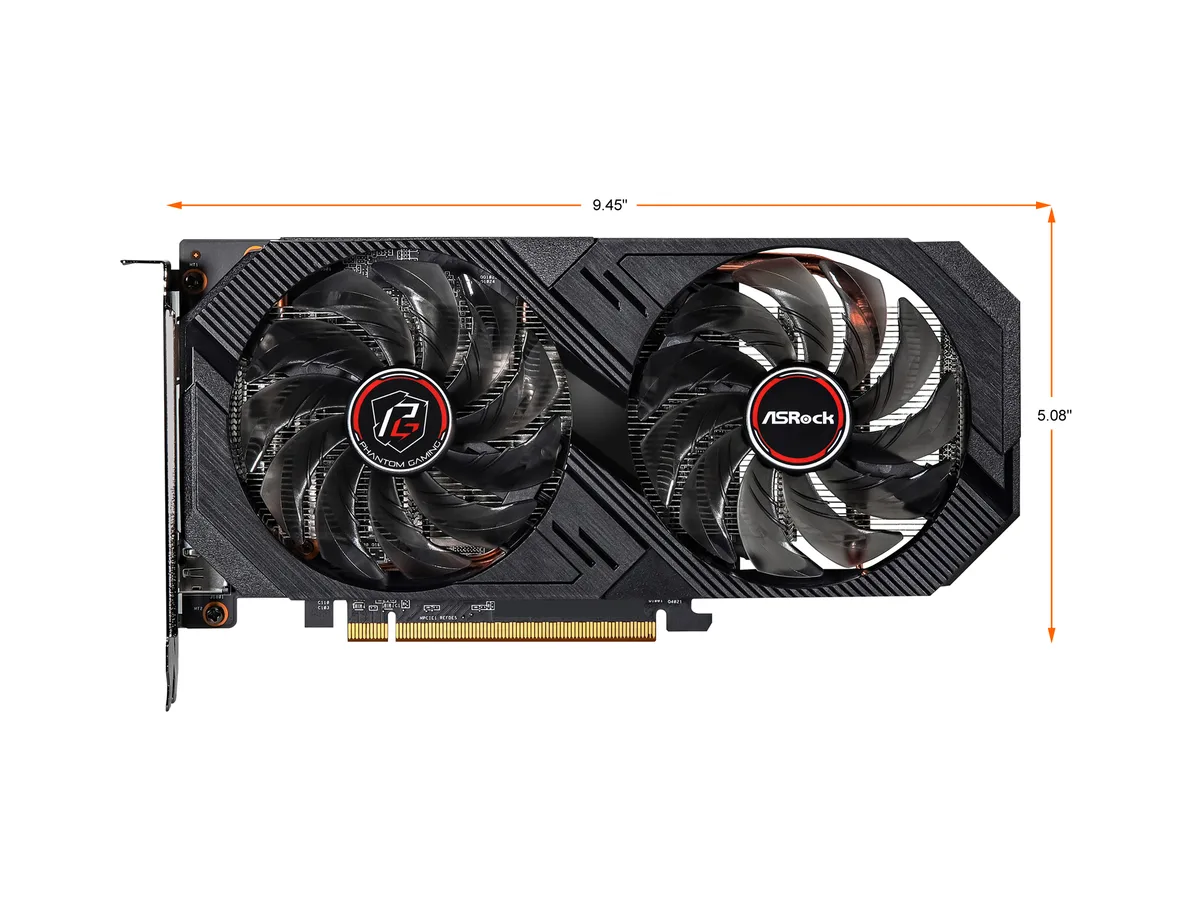

Card Dimensions (L x H)9.45" x 5.08"
Slot Width2 Slots
Shipping weight0.82 kg
Package size300 × 189 × 76 mm

Questions about this item

How loud does the double-fan cooler run under a 107 W load all day?

The card uses a striped axial fan design with 0dB silent cooling that stops the fans at low temperatures, so noise stays minimal during typical workloads.

What power supply and connector must my PC already have for this 107 W card?

A 400 W PSU with one free 8-pin PCIe power connector is required to run the board stably.

Will the PCI Express 4.0 interface slow down if I keep my older PCIe 3.0 motherboard?

The GPU works in a PCIe 3.0 slot at reduced bandwidth; the 64-bit memory bus and 4 GB GDDR6 limit the practical impact for most tasks.
