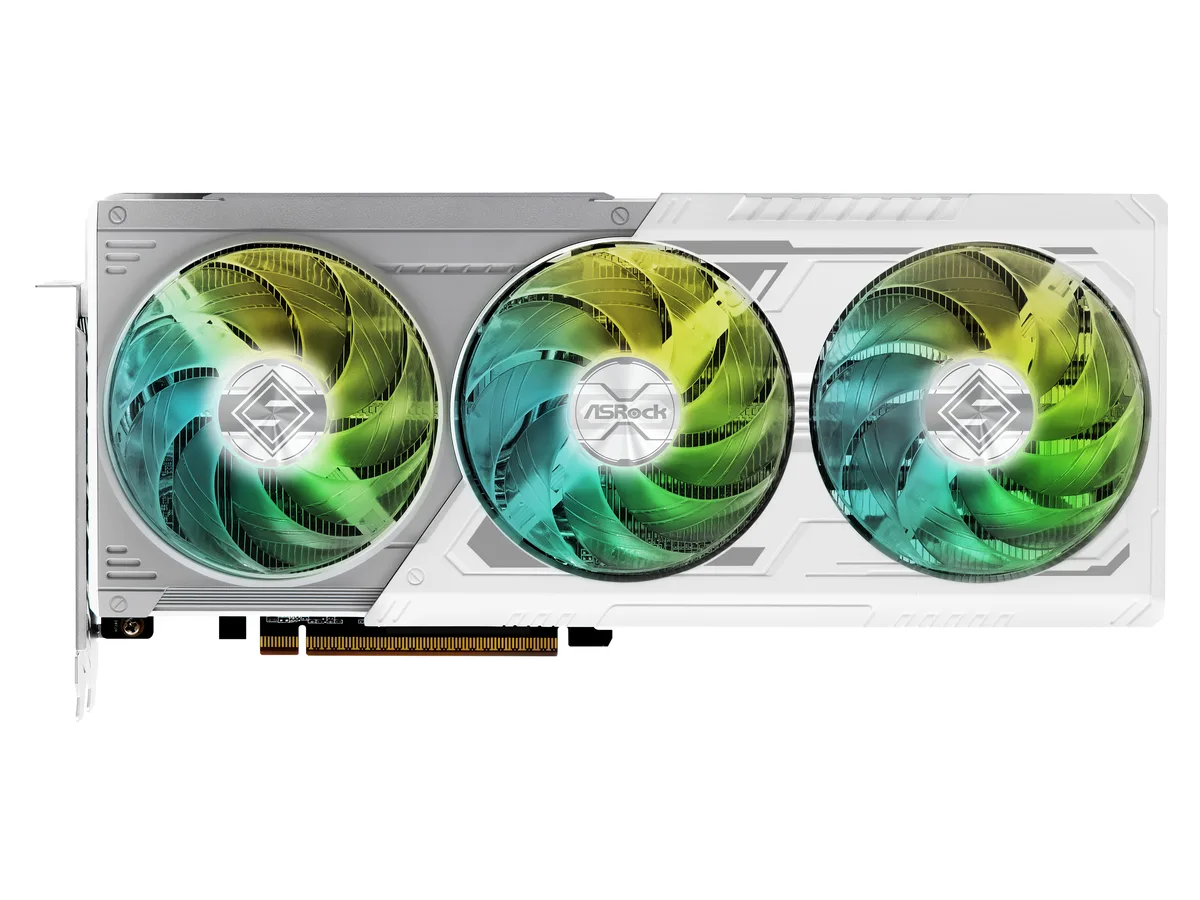

White triple-fan graphics card, 298 x 131 x 58 mm, 2.9 slots

ASRock

ASRock RX9070XT SL 16G Radeon RX 9070 XT graphics card

SKU CH-VM5F-PAA3R MPN RX9070XT SL 16G

Delivers 16GB GDDR6 at 20 Gbps with 4096 stream processors and boost up to 2970 MHz on RDNA 4 architecture

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070 XT
  • ArchitectureRDNA 4
  • Game Clock2400 MHz
  • 16 GB GDDR6 on a 256-bit bus feeds 4K textures at 20 Gbps
  • Boost clock reaches 2970 MHz for higher frame rates in demanding titles
  • HDMI 2.1b plus three DisplayPort 2.1a outputs drive four 8K displays
  • RDNA 4 architecture with 4096 stream processors accelerates ray-traced workloads
  • PCI Express 5.0 x16 interface doubles bandwidth over the previous link standard

Steel Legend Radeon RX 9070 XT 16GB

The ASRock Steel Legend Radeon RX 9070 XT is a PCI Express 5.0 x16 graphics card built on the RDNA 4 architecture. It targets gamers and creators who need 16GB of GDDR6 memory on a 256-Bit interface for 1440p and 4K workloads.

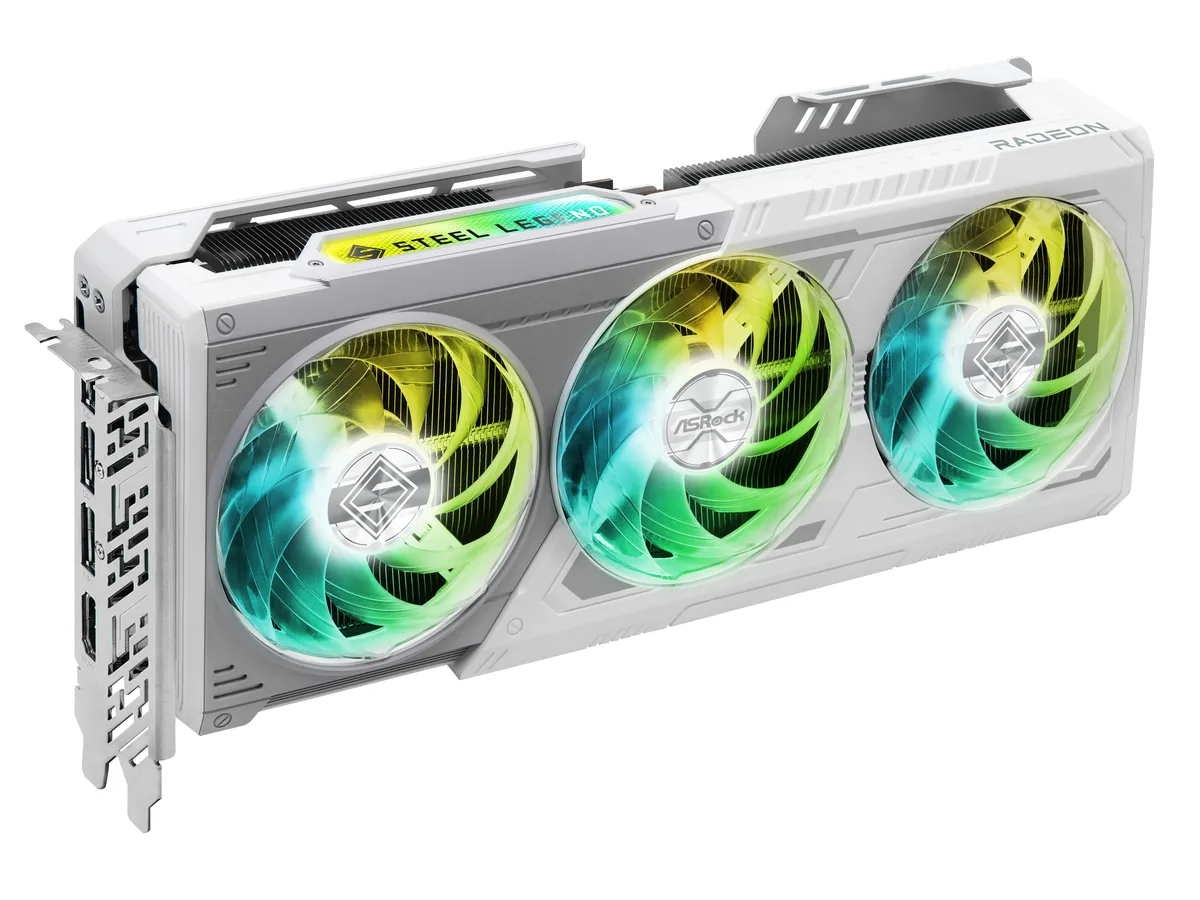

Triple-fan cooler and modern display outputs

A triple-fan thermal solution manages the 304W TDP while the card occupies 2.9 slots. The rear bracket provides one HDMI 2.1b and three DisplayPort 2.1a connectors, enabling up to four simultaneous displays at a maximum resolution of 7680 x 4320.

16GB GDDR6 frame buffer and 800W PSU headroom

The 16GB frame buffer combined with a 20000 MHz effective memory clock delivers bandwidth for high-resolution textures and large creative assets. An 800W power supply is recommended to feed the dual 8-pin connectors, and the 298 mm length fits most ATX chassis.

Highlights

  • 16 GB GDDR6 on a 256-bit bus feeds 4K textures at 20 Gbps
  • Boost clock reaches 2970 MHz for higher frame rates in demanding titles
  • HDMI 2.1b plus three DisplayPort 2.1a outputs drive four 8K displays
  • RDNA 4 architecture with 4096 stream processors accelerates ray-traced workloads
  • PCI Express 5.0 x16 interface doubles bandwidth over the previous link standard

Specifications

BrandASRock
SeriesSteel Legend
ModelRX9070XT SL 16G
Part NumberRX9070XT SL 16G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070 XT
ArchitectureRDNA 4
Game Clock2400 MHz
Boost ClockUp to 2970 MHz
Stream Processors4096
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
ColorWhite
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power304W
Recommended PSU Wattage800W
Power Connector2 x 8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length298 mm
Card Dimensions (L x H)298 x 131 x 58 mm
Slot Width2.9 Slots
Shipping weight1.59 kg
Package size406 × 216 × 97 mm

Questions about this item

Will the triple-fan cooler on this 298 mm card need any maintenance later?

The triple-fan cooler is a sealed assembly; routine care is limited to dusting the heatsink fins and fan blades with compressed air every few months. No user-serviceable parts such as replaceable fan modules or thermal-pad kits are documented for this model.

What is the first limit reached during sustained full-load gaming on the Radeon RX 9070 XT?

The 304 W thermal design power is the primary ceiling; once the GPU hits that power level the boost clock will throttle to stay within the 2.9-slot cooler's dissipation capacity.

How loud and hot does the Steel Legend get when running all day at 304 W?

Under continuous load the card draws up to 304 W through two 8-pin connectors, and the triple-fan cooler exhausts that heat into the case; expect noticeable fan noise and case-temperature rise unless chassis airflow is strong.
