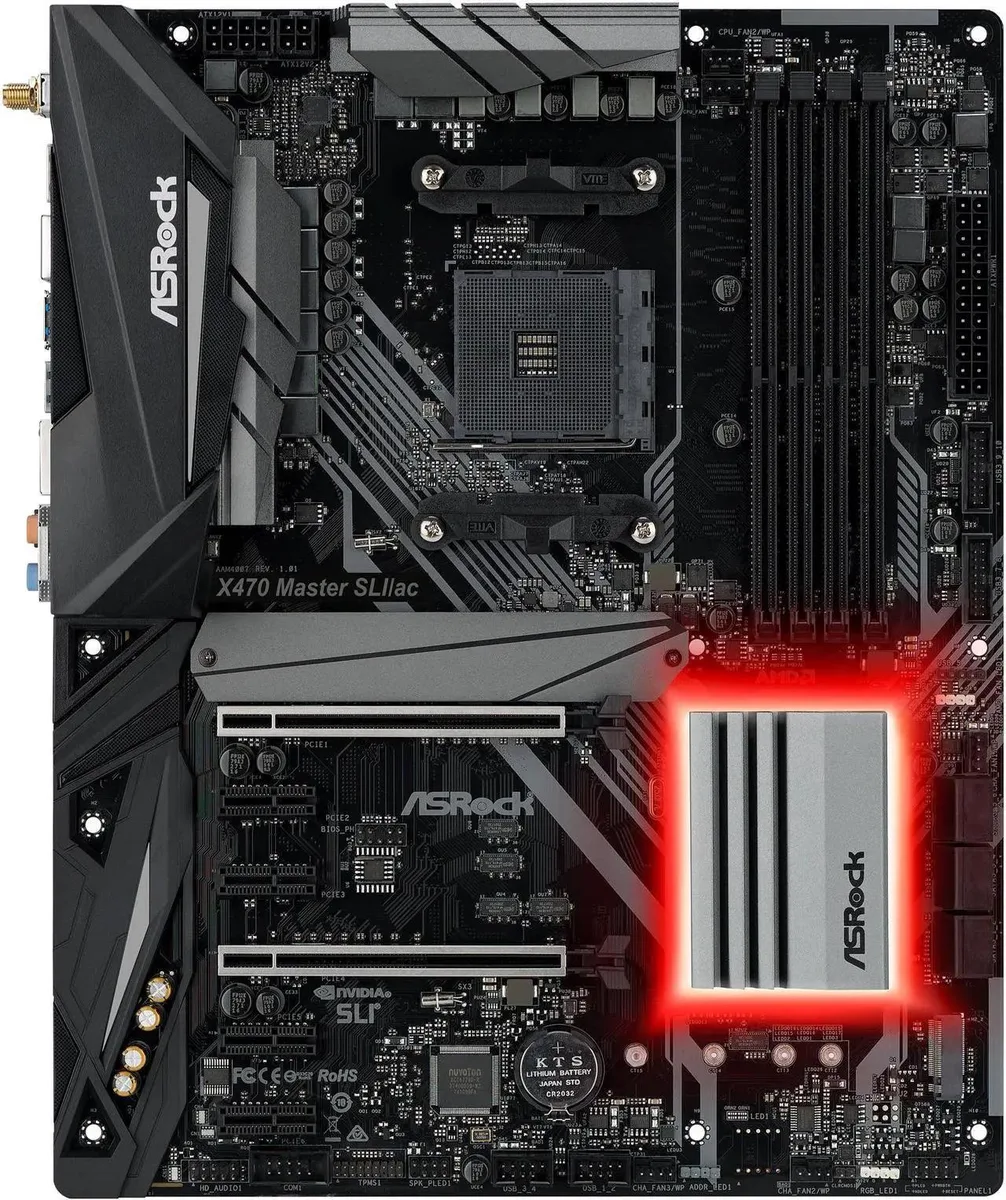

ATX motherboard with black PCB, silver heatsinks, rear I/O shield and bundled Wi-Fi module

ASRock

ASRock X470 Master SLI/AC AMD motherboard

SKU CH-TMN1-0AKV8

AM4 board with X470 chipset, dual PCIe 3.0 x16 slots, 64 GB DDR4 capacity and Intel Gigabit LAN plus 802.11ac Wi‑Fi

  • CPU Socket TypeAM4
  • CPU TypeSupports AMD AM4 Socket Ryzen Series CPUs (Matisse, Picasso,
  • ChipsetAMD Promontory X470
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 266
  • Maximum Memory Supported64GB** ** Due to the operating system limitation, the actual
  • Supports Ryzen 3000 series CPUs on AM4 socket
  • Dual-channel DDR4 memory up to 64GB capacity
  • Ultra M.2 slot with PCIe Gen3 x4 32Gb/s bandwidth
  • Intel Gigabit LAN plus 802.11ac Wi-Fi connectivity
  • 1 channel HD Audio with Realtek ALC892 codec

X470 Master SLI/AC AM4 Platform

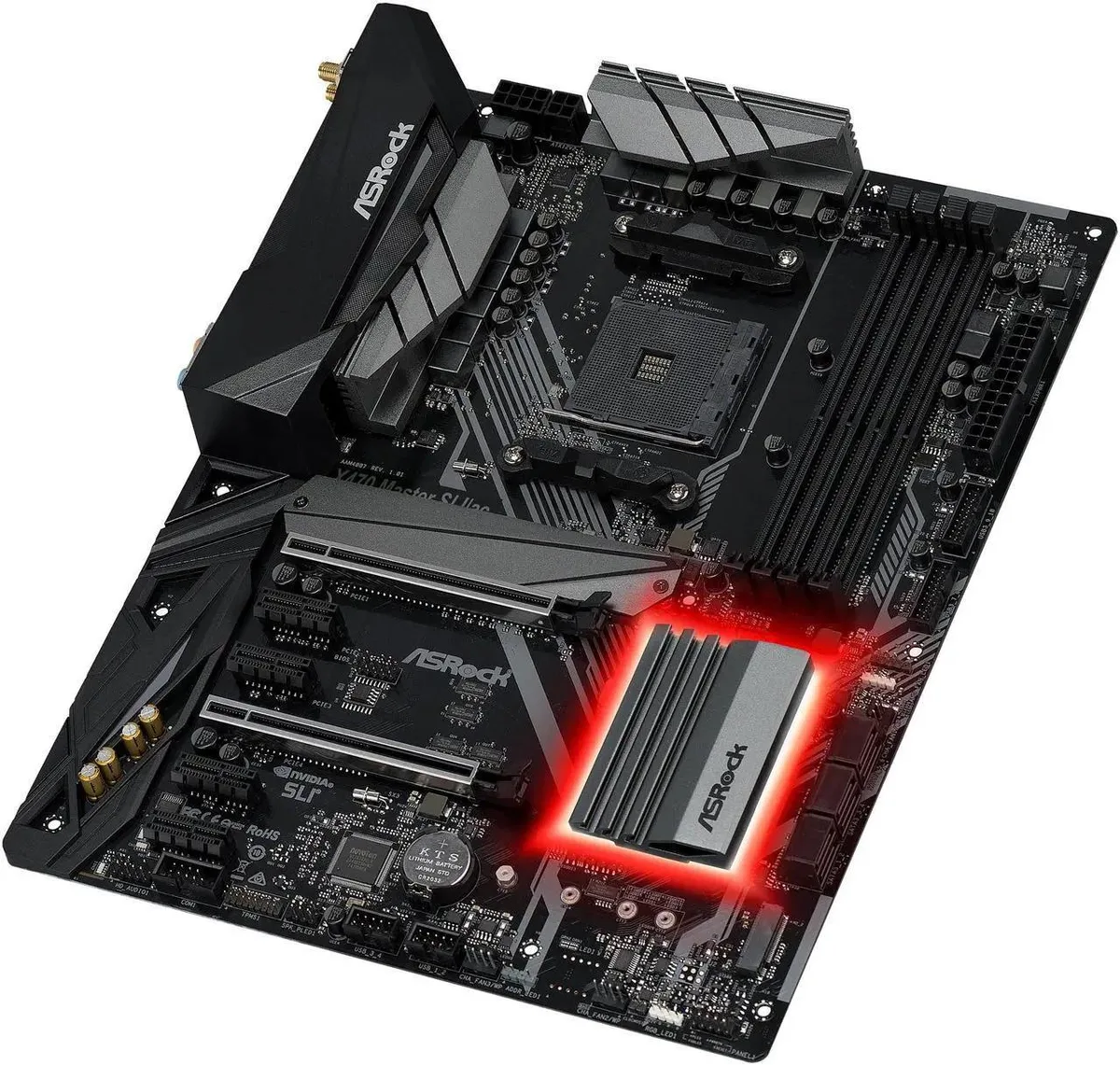

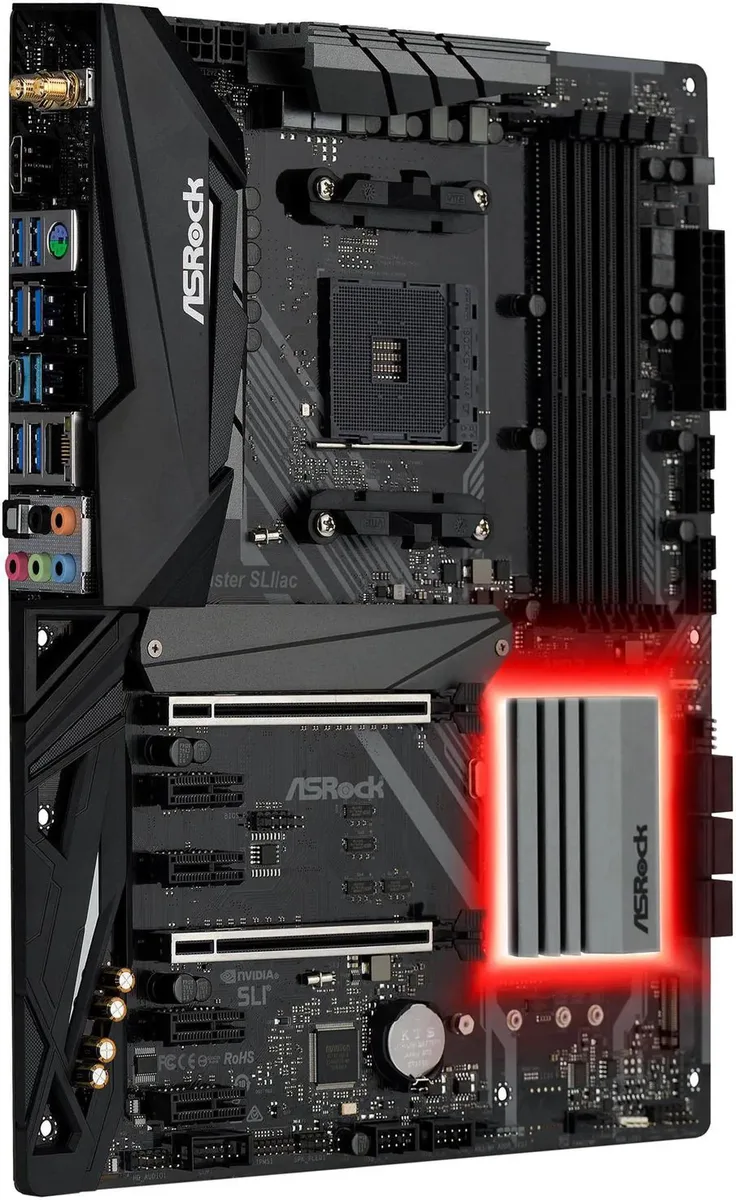

The ASRock X470 Master SLI/AC is an ATX motherboard built around the AMD Promontory X470 chipset for the AM4 socket. It accepts Ryzen processors from the Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge families. The board targets enthusiasts who need multi-GPU support and integrated wireless connectivity in a single package.

PCIe 3.0 x16 and 2.0 x1 Limits

Primary graphics run at PCIe 3.0 x16 from the CPU; a second card drops both slots to x8 and x8. Four PCIe 2.0 x1 slots handle add-in cards such as sound or capture devices. The Ultra M.2 socket (M2_1) delivers up to PCIe Gen3 x4 (32Gb/s) with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge CPUs, while a second M.2 socket (Key E) carries the bundled Wi-Fi 802.11 ac module.

64GB DDR4 Dual-Channel Ceiling

Four 288-pin DDR4 slots support a maximum of 64GB in dual-channel mode. Matisse CPUs officially run 3200/2933/2667/2400/2133 ECC and non-ECC; Pinnacle Ridge and Summit Ridge add 3466+(OC) and 3200(OC). Exceeding 64GB is not possible on this platform, so memory capacity is the decisive specification for builders planning large workloads.

Highlights

  • Supports Ryzen 3000 series CPUs on AM4 socket
  • Dual-channel DDR4 memory up to 64GB capacity
  • Ultra M.2 slot with PCIe Gen3 x4 32Gb/s bandwidth
  • Intel Gigabit LAN plus 802.11ac Wi-Fi connectivity
  • 1 channel HD Audio with Realtek ALC892 codec

Specifications

BrandASRock
ModelX470 Master SLI/AC
CPU Socket TypeAM4
CPU TypeSupports AMD AM4 Socket Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
ChipsetAMD Promontory X470
Number of Memory Slots4x288pin (DDR4)
Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered me
Maximum Memory Supported64GB**
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x16AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (single at x4 (PCIE1))*
* Supports NVMe SSD as boot disks
PCI Express x14 x PCI Express 2.0 x1 Slots
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with Athlon 2xxGE series APU)*
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x2 (10Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID0/1/10
Onboard Video ChipsetIntegrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30 Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 1.4 with HDMI 1.4 Port
Supports 4K Ultra HD (UHD) playback with HDMI Port
* Actual support may vary by CPU
** The Max shared memory 16GB requires 32GB system memory installed.
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel i211AT
Max LAN Speed1Gbps
Wireless LANIntel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x AMD Fan LED Header*
1 x RGB LED Header**
1 x Addressable LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
** Supports in total up to 12V/3A, 36W LED Strip.
*** Supports in total up to 5V/3A, 15W LED Strip.
**** The
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Questions about this item

Which memory speed should I pick for a Ryzen 3000 Matisse CPU on this board?

The specifications list DDR4 3200, 2933, 2667, 2400 and 2133 as supported speeds for Matisse processors, all running in dual-channel mode up to 64 GB total.

What resolution can the HDMI 1.4 port actually deliver when using a Ryzen APU?

The HDMI 1.4 output is rated for a maximum of 4K x 2K at 40 Hz, so 4K at 60 Hz is not available through this port.

What bandwidth does the Ultra M.2 slot provide with a Matisse CPU installed?

With a Matisse processor the Ultra M.2 socket runs at PCIe Gen3 x4, giving up to 32 Gb/s for a compatible M.2 drive.
