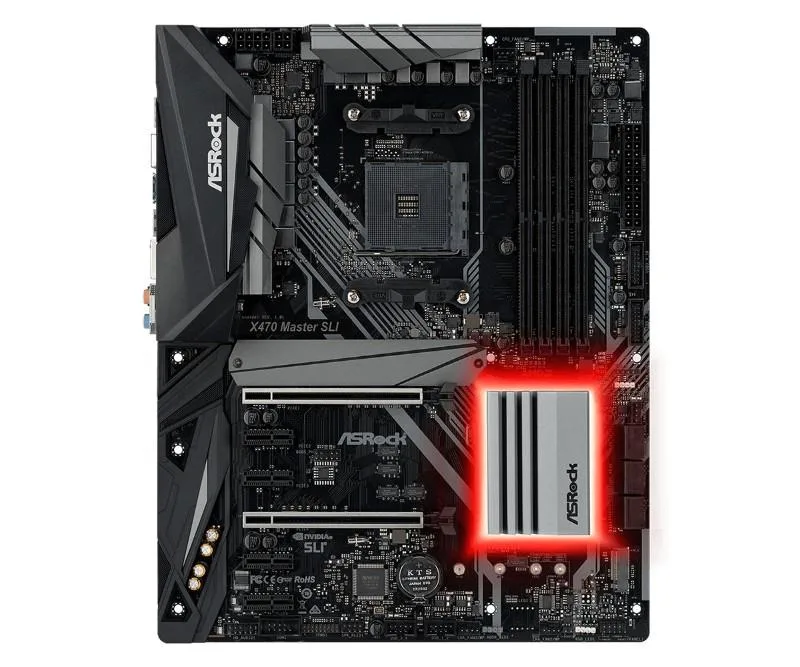

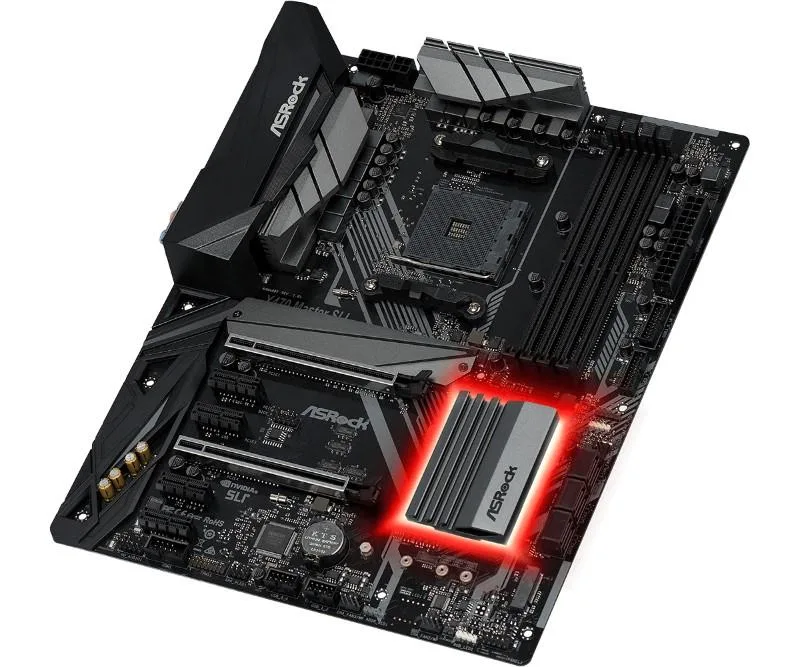

ATX motherboard with black PCB and silver heatsinks

ASRock

ASRock X470 Master SLI AMD motherboard

SKU CH-4EN5-3ACQ0

ATX board with AMD X470 chipset, AM4 socket, four DDR4 slots up to 64 GB, six SATA ports, dual M.2, USB 3.1 Gen 1 and 2.0 headers, plus SLI and CrossFireX support

  • CPU Socket TypeAM4
  • ChipsetAMD X470
  • Form FactorATX
  • AM4 socket works with X470 chipset for processor compatibility
  • Dual-channel DDR4 memory up to 3466 MHz across four slots
  • Six SATA III ports provide storage connectivity
  • 1 channel audio output delivers surround sound
  • CrossFireX and SLI multi-GPU support enables parallel graphics processing

Socket AM4 platform board

The ASRock X470 Master SLI is an ATX motherboard built around the AMD X470 chipset for Socket AM4 processors. It targets builders who want a full-size board with multi-GPU flexibility and plenty of internal expansion. The board delivers a standard ATX layout with dual-channel DDR4 memory support across four DIMM slots.

Dual-channel DDR4 with four DIMM slots

The board provides four DDR4 DIMM slots running in dual-channel mode, supporting speeds from 2133 up to 3466 MHz. Two M.2 slots are available for expansion cards, while six SATA III ports handle storage drives. Front-panel connectivity includes two USB 2.0 and two USB 3.0 headers, plus an HD audio connector. Power delivery uses a 24-pin ATX connector and an 8-pin EPS connector, with three chassis-fan headers and a dedicated CPU-fan header for cooling.

64 GB maximum memory capacity

Maximum supported memory is 64 GB using unbuffered DDR4 modules, with ECC and non-ECC both accepted. The X470 chipset enables CrossFireX, Quad-GPU CrossFireX, SLI and Quad-GPU SLI configurations for multi-graphics setups. On-board audio outputs 7.1 channels. The board includes an EATX power connector alongside the standard ATX and EPS inputs, and carries FCC, CE and ErP certifications.

Highlights

  • AM4 socket works with X470 chipset for processor compatibility
  • Dual-channel DDR4 memory up to 3466 MHz across four slots
  • Six SATA III ports provide storage connectivity
  • 1 channel audio output delivers surround sound
  • CrossFireX and SLI multi-GPU support enables parallel graphics processing

Specifications

CPU Socket TypeAM4
ChipsetAMD X470
Form FactorATX

Questions about this item

How much DDR4 memory can the X470 Master SLI handle before it hits its ceiling?

The board supports up to 64 GB of DDR4 across four DIMM slots running in dual-channel mode.

What does the VRM and chipset cooling sound like when the system runs all day?

The board uses passive heatsinks on the VRM and X470 chipset, so there is no active fan noise from those components.

Which power connectors must my PSU provide for this motherboard to start?

A 24-pin ATX connector and an 8-pin EPS connector are required.
