ASRock

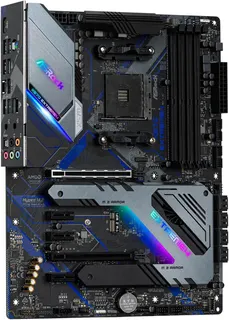

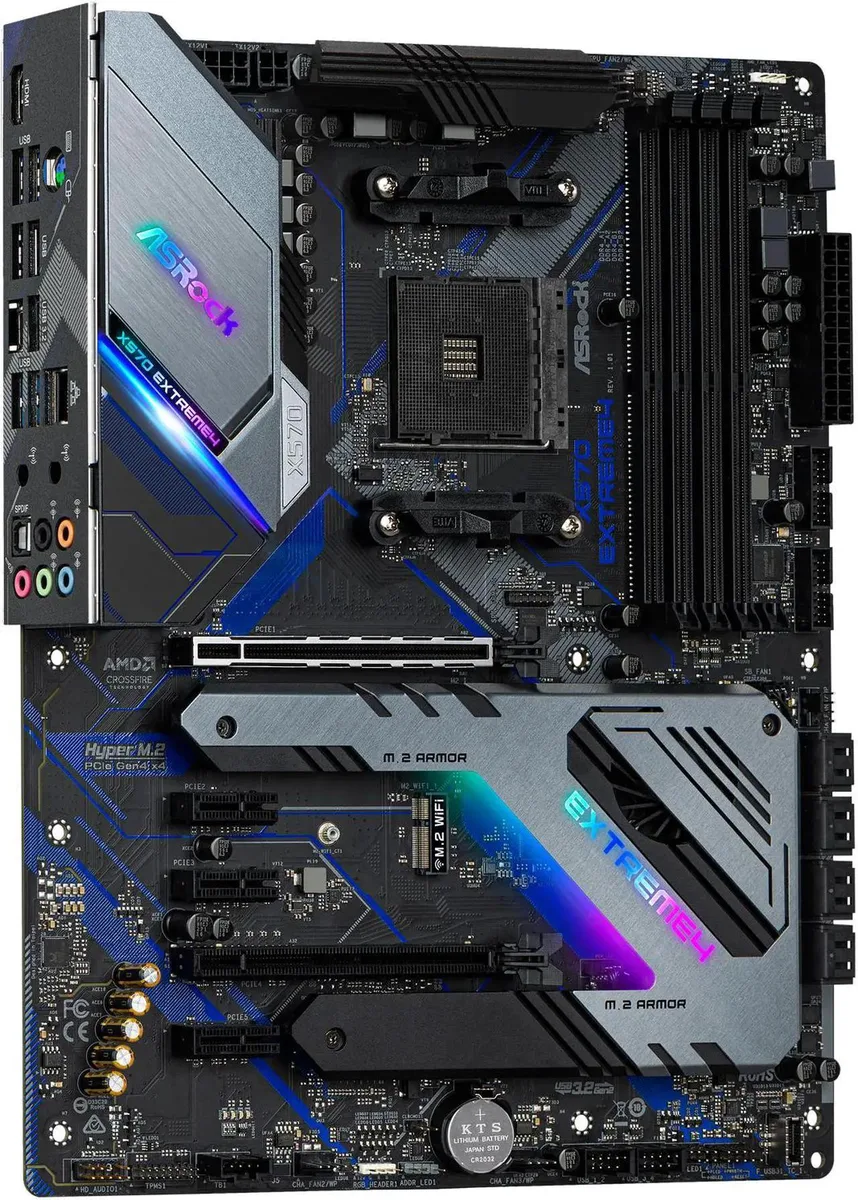

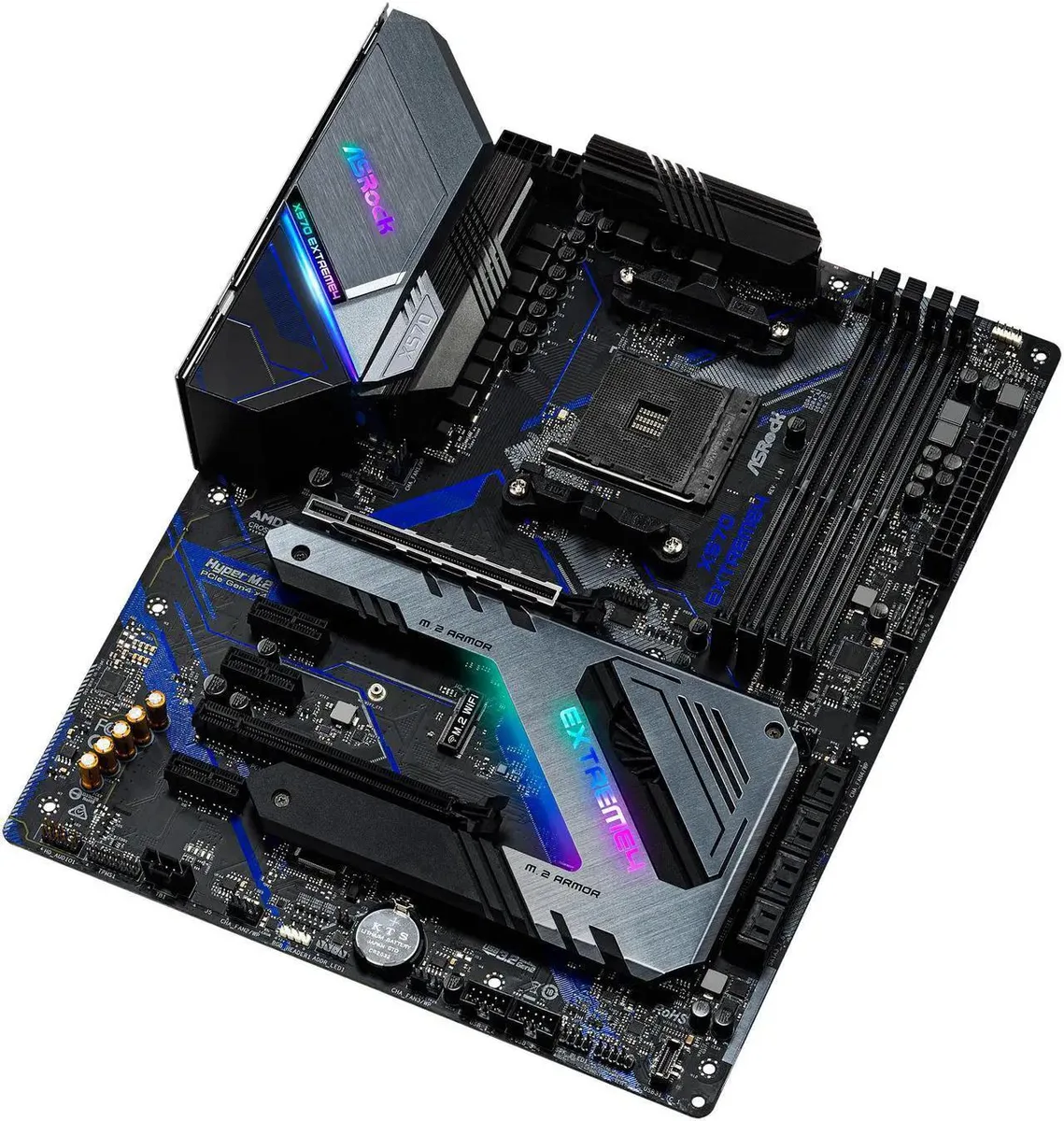

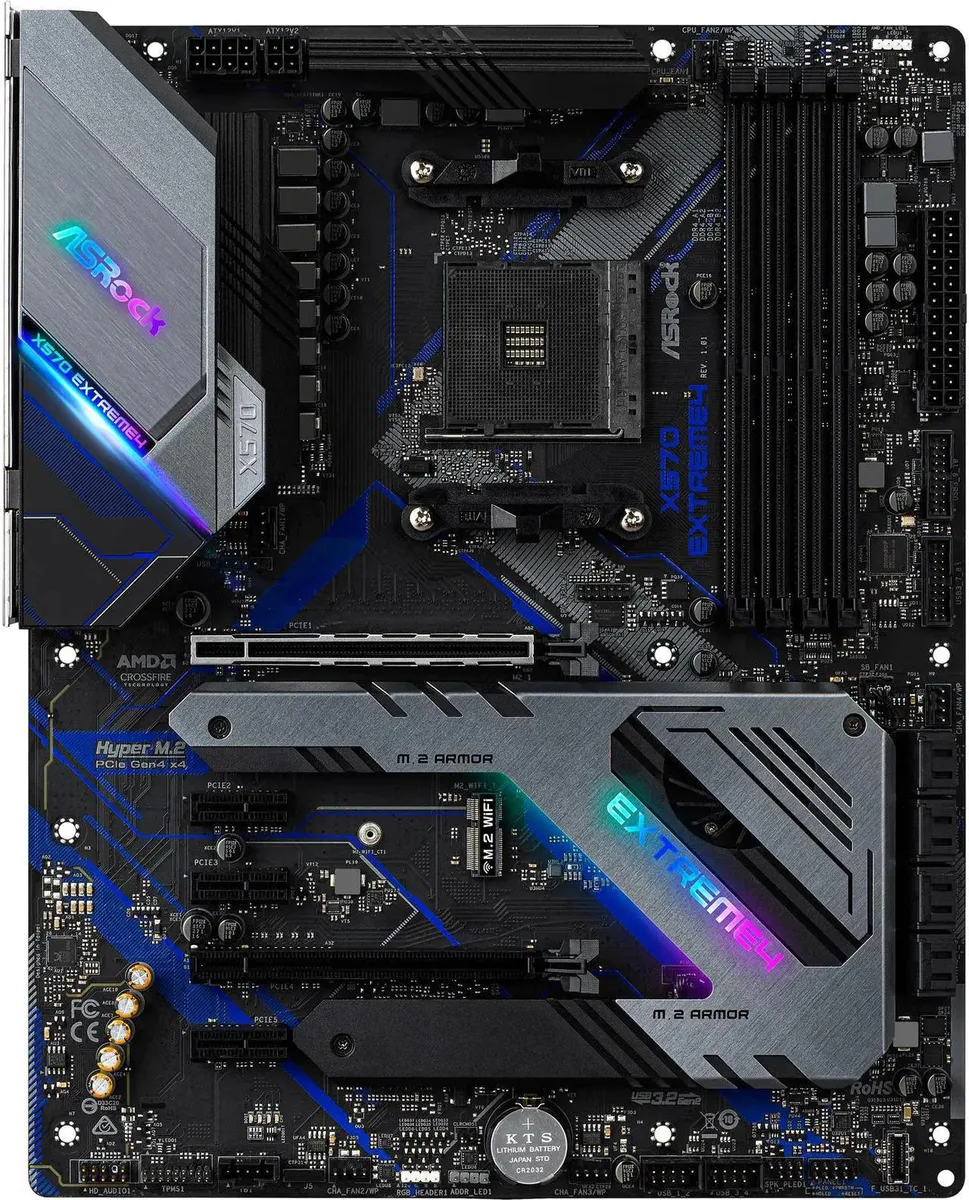

ASRock X570 EXTREME4 AM4 ATX AMD motherboard
ATX motherboard for AM4 Ryzen 2000 and 3000 CPUs with X570 chipset, four DDR4 slots up to 128 GB, two PCIe 4.0 x16 slots, three PCIe 4.0 x1 slots, two Hyper M.2 sockets, eight SATA3 ports.
- CPU Socket TypeAM4
- CPU TypeSupports AMD AM4 socket Ryzen 2000 and 3000 series processor
- ChipsetAMD X570
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400
- Maximum Memory Supported128GB * Due to the operating system limitation, the actual m
- Supports Ryzen 2000 and 3000 series processors with AM4 socket
- 10 power phase design delivers stable voltage to the CPU
- DDR4 memory overclocks to 4666 for high bandwidth
- Two M.2 sockets each run at PCIe 4.0 x4 64Gb/s
- Intel i211AT provides 1Gbps wired network connection
AM4 ATX motherboard for Ryzen 2000 and 3000 series
The ASRock X570 EXTREME4 is an AMD X570 motherboard built for AM4 socket processors. It supports Ryzen 2000 and 3000 series CPUs out of the box. A BIOS update may be required before installing a Ryzen 5000 series processor. The board uses a 10 power phase design and follows the standard ATX form factor.
Builders wanting PCIe 4.0 lanes
This board suits builders who need dual channel DDR4 memory up to 128GB and PCIe 4.0 connectivity from Matisse CPUs. It provides two PCIe 4.0 x16 slots and three PCIe 4.0 x1 slots. Users staying with older Pinnacle Ridge or Picasso CPUs lose PCIe 4.0 support and max DDR4 speeds drop to 3600+(OC) or 3466+(OC) respectively.
Dual M.2 sockets with PCIe 4.0 x4 support
The primary Hyper M.2 socket (M2_1) runs at PCIe 4.0 x4 (64Gb/s) with Matisse CPUs and PCIe 3.0 x4 (32Gb/s) with Pinnacle Ridge or Picasso CPUs. The second Hyper M.2 socket (M2_2) also supports PCIe 4.0 x4 and SATA3. Eight SATA3 6.0Gb/s ports with RAID 0/1/10 round out the storage options.
Highlights
- Supports Ryzen 2000 and 3000 series processors with AM4 socket
- 10 power phase design delivers stable voltage to the CPU
- DDR4 memory overclocks to 4666 for high bandwidth
- Two M.2 sockets each run at PCIe 4.0 x4 64Gb/s
- Intel i211AT provides 1Gbps wired network connection
Specifications
| Brand | ASRock |
|---|---|
| Model | X570 EXTREME4 |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD AM4 socket Ryzen 2000 and 3000 series processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list. |
| Chipset | AMD X570 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock's website for more information. |
| Maximum Memory Supported | 128GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | AMD Ryzen series CPUs (Matisse) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Picasso) - 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 3 x PCI Express 4.0 x1 Slots |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| Serial ATA (SATA) | 8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)* 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.0 Supports HDCP 2.2 with HDMI 2.0 Port Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port Supports Microsoft PlayReady * Actual support may vary by CPU. ** The Max shared |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel i211AT |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x Antenna Ports (on I/O Panel Shield) 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) * Ultra USB Power is supported on USB3_56 ports. * ACPI wake-up function is not supported on USB3_56ports. 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x AMD Fan LED Header* 1 x RGB LED Header** 1 x Addressable LED Header*** 1 x CPU Fan Connector (4-pin)**** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x AMD LED Fan USB Header 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only) * The AMD Fan LED Header is compatible with a regular RGB LED stripe. * The AMD Fan LED Header supports LED str |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) 1 x 4-pin 12V Power Connector (Hi-Density Power Connector) |
| Windows 11 | Supported |
Questions about this item
What size ATX case and power connectors does the X570 EXTREME4 need?
The board follows the standard ATX form factor and requires a 24-pin ATX power connector plus an 8-pin EPS connector for the 10 power phase design.
Which BIOS update step is often missed when installing a Ryzen 5000 series CPU?
A BIOS update is required before the system will post with a Zen 3 Ryzen 5000 processor; flash the latest version from the ASRock support page using the USB BIOS Flashback button on the rear I/O.
Which onboard components typically need replacement after several years of use?
The Realtek ALC1220 audio codec and Intel i211AT gigabit LAN controller are soldered and not user-replaceable; only the socketed CMOS battery and any add-in M.2 or PCIe cards can be swapped later.
