ASRock
ASRock X870 Steel Legend WiFi AMD motherboard AM5 DDR5 256GB
AM5 motherboard with 14+2+1 80A power phases, DDR5 8000+ support to 256GB, PCIe 5.0 x16, dual USB4 Type-C, 2.5Gbps LAN and three M.2 slots
- CPU Socket TypeAM5
- CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- ChipsetAMD X870
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 8000+(OC)
- Maximum Memory Supported256GB
- Supports Ryzen 9000, 8000 and 7000 series CPUs
- 14+2+1 phase power with 80A Dr.MOS for stable delivery
- Four DDR5 slots up to 256GB at DDR5 8000+(OC)
- One PCIe 5.0 x16 and one PCIe 4.0 x16 slot
- Blazing M.2 Gen5x4 128 Gb/s plus two Hyper M.2 Gen4x4
AM5 socket for Ryzen 7000 8000 9000

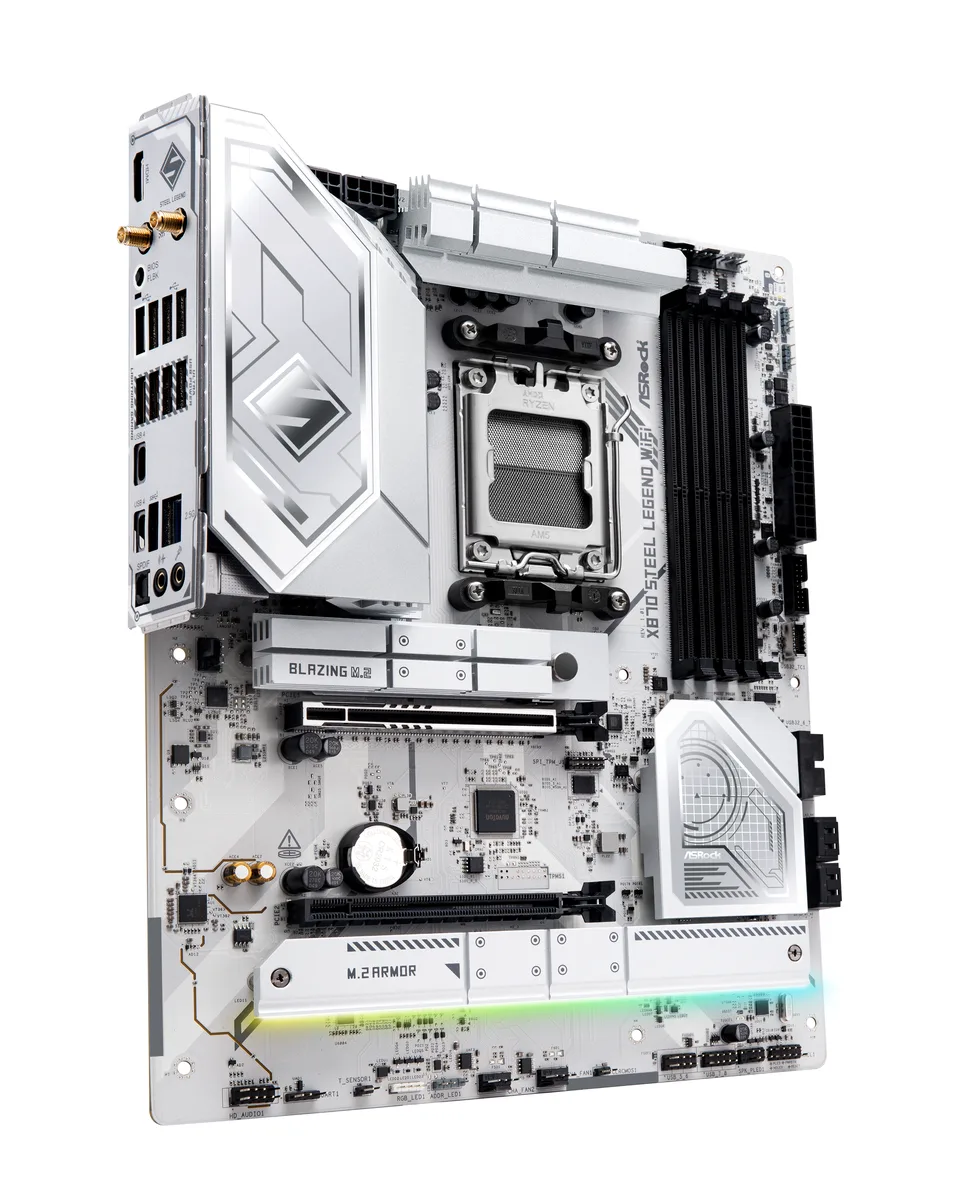

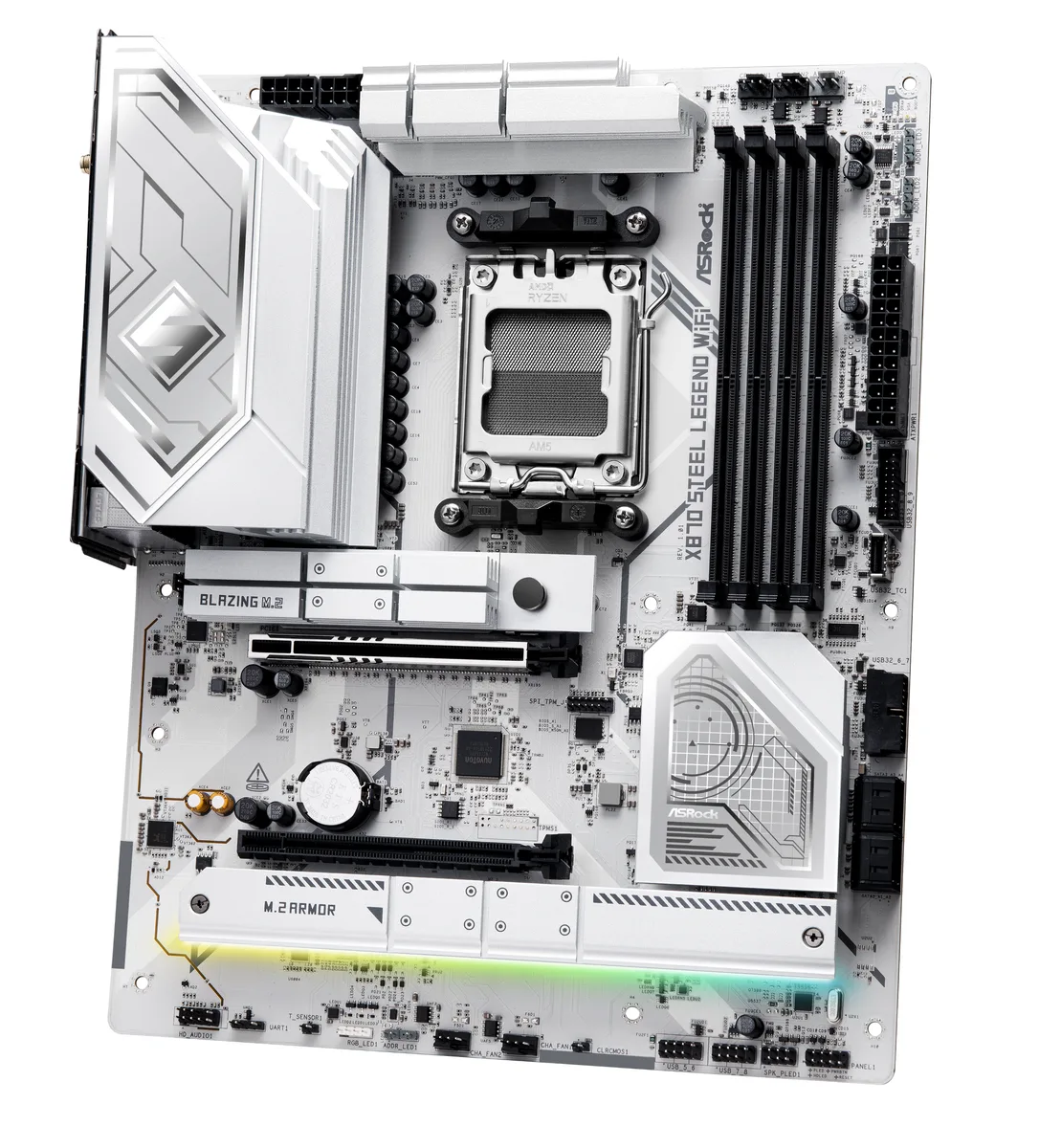

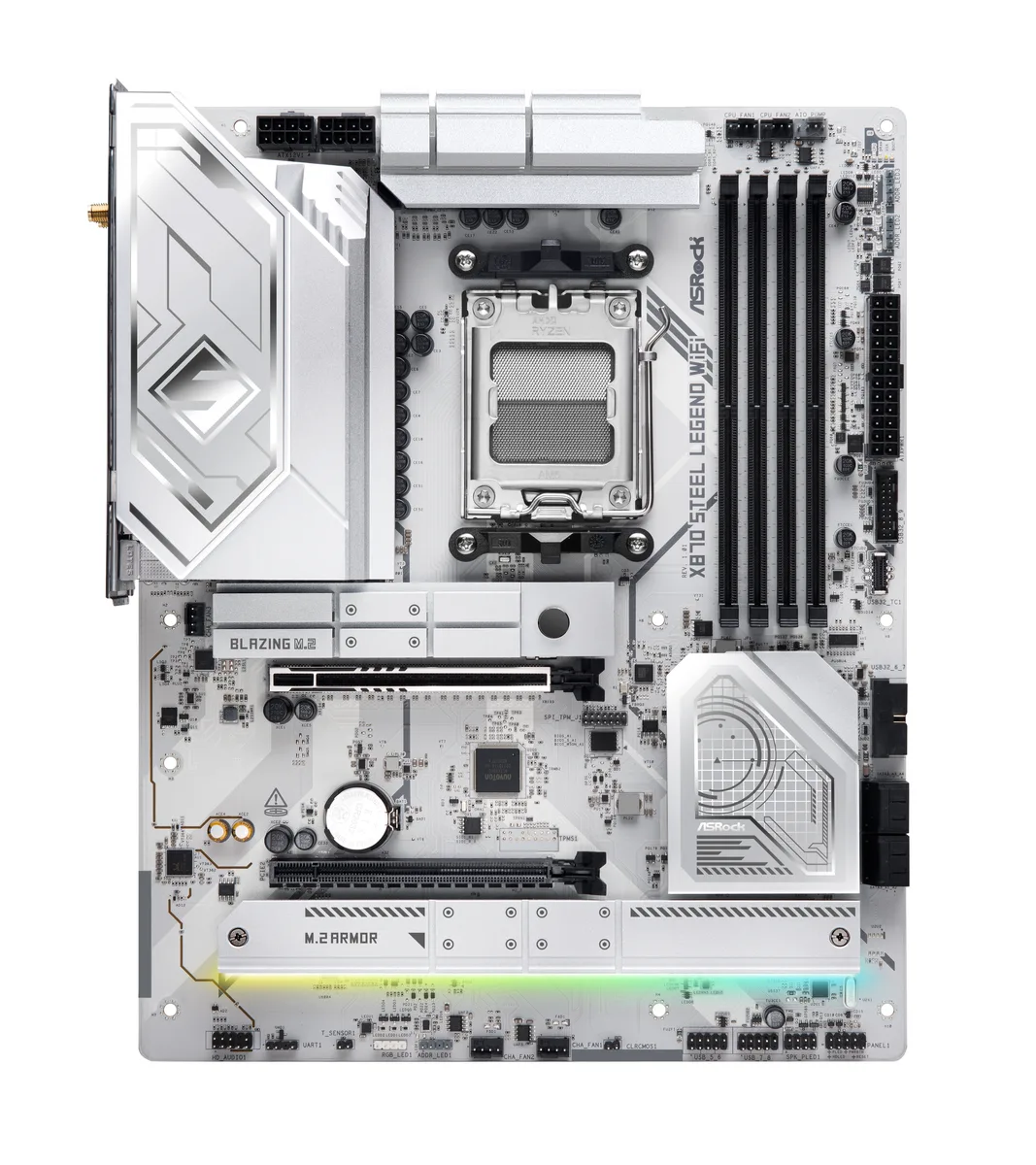

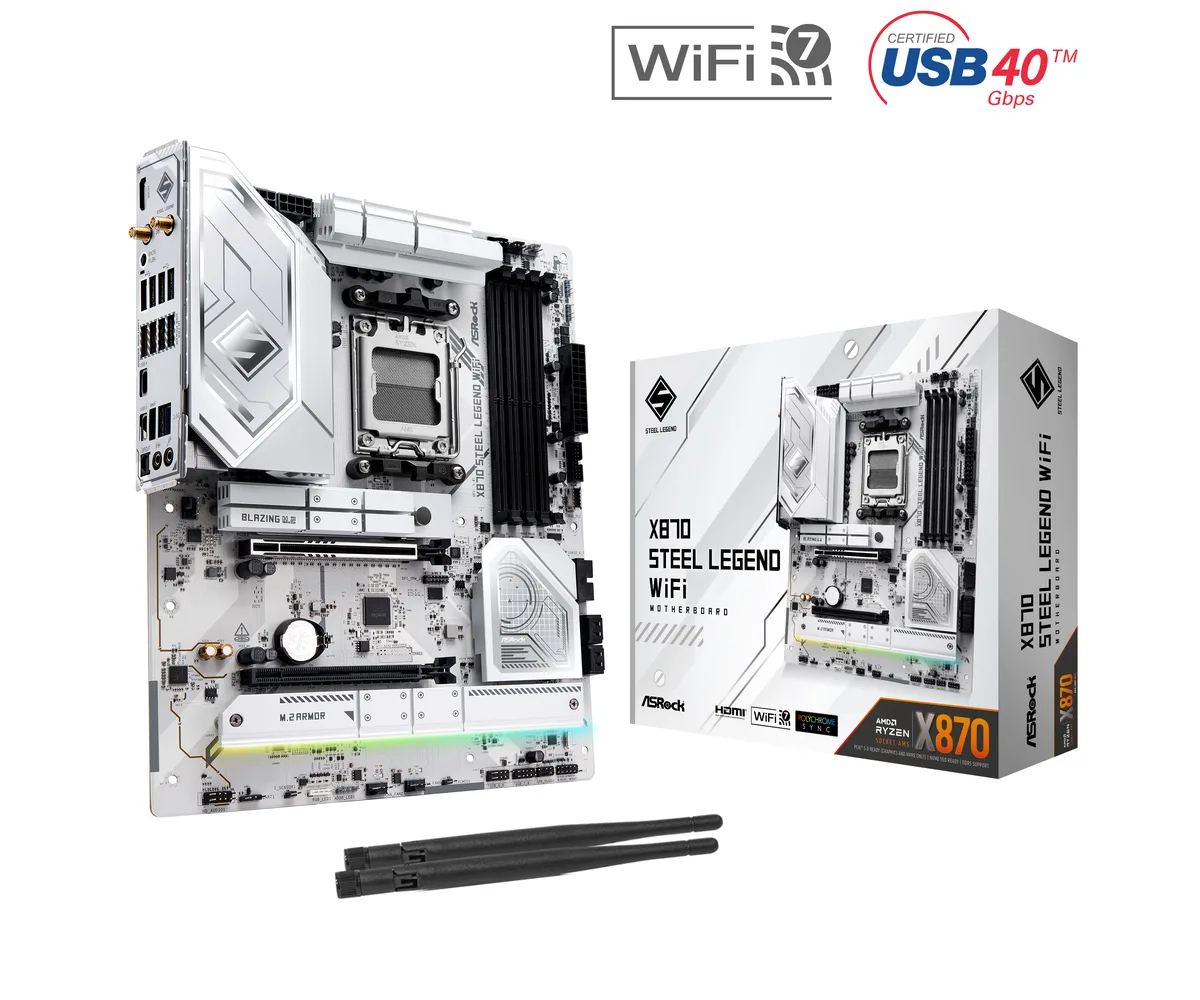

This ATX board pairs the AMD X870 chipset with an AM5 socket that accepts Ryzen 7000 8000 and 9000 series processors. Four DDR5 slots support dual channel memory up to 256GB at 8000+(OC) with AMD EXPO and Intel XMP 3.0 profiles. ECC unbuffered modules are supported.
14 phase 80A DrMOS plus USB4 and Nahimic
A 14+2+1 phase design uses 80A DrMOS for VCore and SOC delivery. Rear I/O includes two USB4 Type C ports and two USB 3.2 Gen2 Type A ports alongside 2.5Gbps LAN. Realtek ALC4082 codec drives 7.1 channel audio enhanced by Nahimic software.
PCIe 5.0 x16 slot speed depends on CPU generation
The primary PCIe 5.0 x16 slot runs at Gen5 x16 with 9000 and 7000 series CPUs, Gen4 x8 with 8000 Phoenix 1 and Gen4 x4 with 8000 Phoenix 2. The second PCIe 4.0 x16 slot is wired for x4 and is disabled when the third M.2 socket is populated.
Highlights
- Supports Ryzen 9000, 8000 and 7000 series CPUs
- 14+2+1 phase power with 80A Dr.MOS for stable delivery
- Four DDR5 slots up to 256GB at DDR5 8000+(OC)
- One PCIe 5.0 x16 and one PCIe 4.0 x16 slot
- Blazing M.2 Gen5x4 128 Gb/s plus two Hyper M.2 Gen4x4
Specifications
| Brand | ASRock |
|---|---|
| Model | X870 STEEL LEGEND WIFI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 8000+(OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO / Intel XMP 3.0 |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
| Other Slots | * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. * If M2_3 is occupied, PCIE2 will be disabled. * Supports NVMe SSD as boot disks - Supports AMD CrossFire - 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks * M2_1 is the first priority for M.2 installation. * M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. * If M2_3 is occupied, PCIE2 will be disabled. |
| Audio Chipset | Realtek ALC4082 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

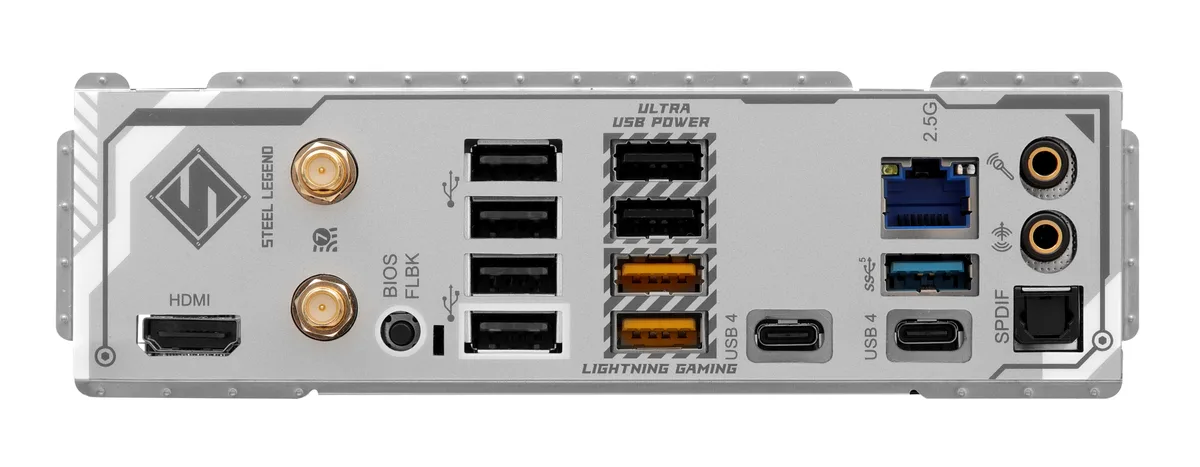

| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Other Connectors | 1 x Thermistor Cable Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). *** CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). *** CPU_FAN2, CHA_FAN1~3 and AIO_PUM |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
| Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Windows 11 | Windows 10 64-bit / 11 64-bit |
| Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Shipping weight | 2.02 kg |
| Package size | 343 × 279 × 76 mm |
Questions about this item
Will a Ryzen 9000 series processor run the top PCIe slot at full Gen5 x16 speed?
Yes, with a Ryzen 9000 or 7000 series CPU the primary slot operates at PCIe 5.0 x16; Ryzen 8000 Phoenix 1 drops to Gen4 x8 and Phoenix 2 to Gen4 x4.
Can I populate all three M.2 sockets and still use the second PCIe x16 slot?
No, installing a drive in the third M.2 socket (M2_3) disables the second PCIe x16 slot (PCIE2).
What DDR5 memory speed can I reach with EXPO modules on this board?
The board validates DDR5 up to 8000+ MT/s overclocked via AMD EXPO profiles across four slots.
