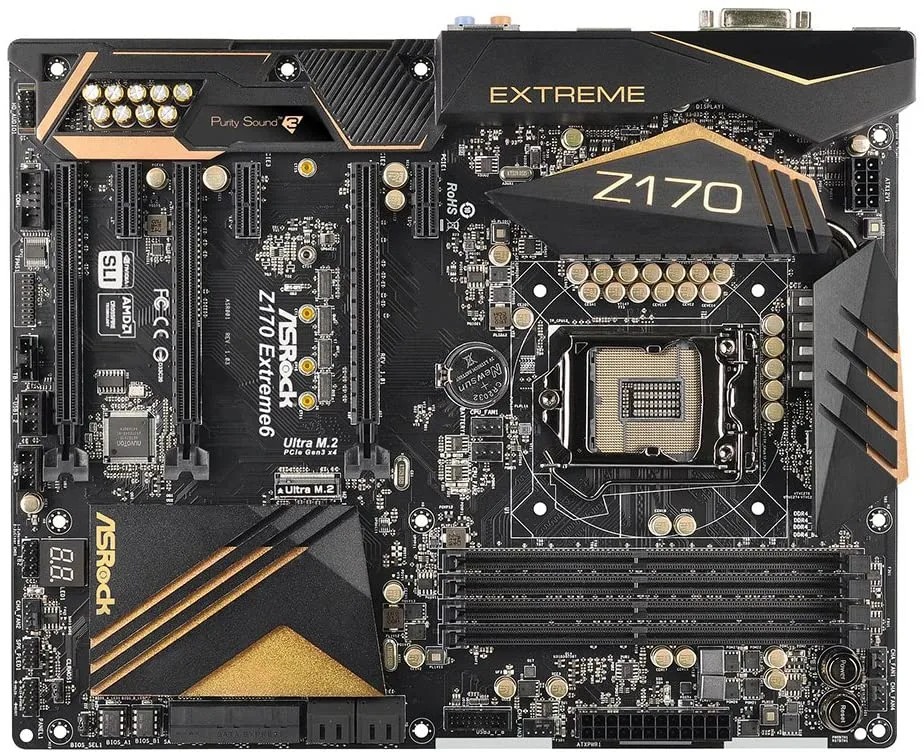

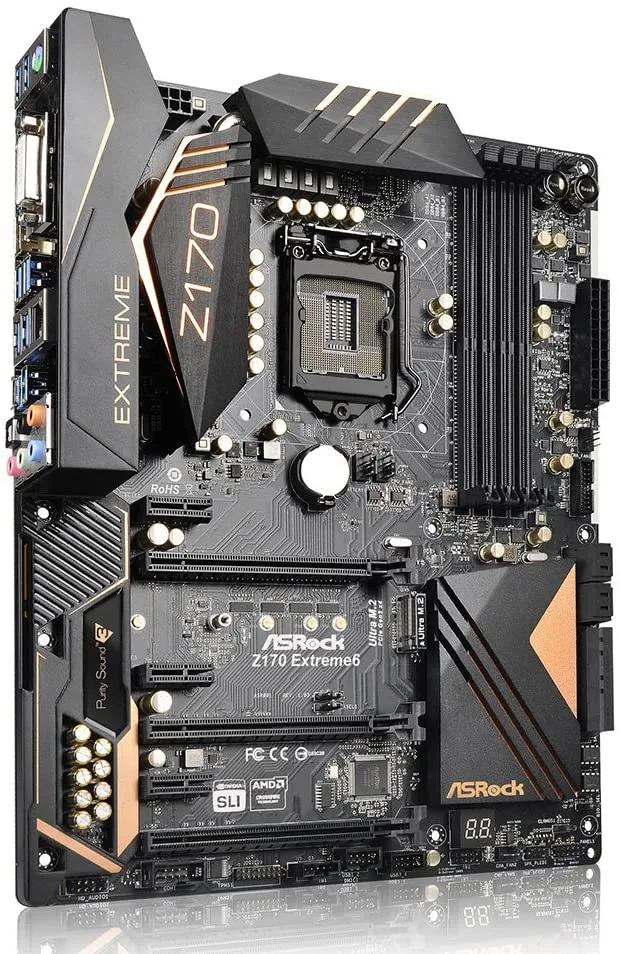

ATX motherboard with black PCB silver heatsinks four DDR4 slots three PCIe x16 slots eight SATA ports

ASRock

ASRock Z170 EXTREME6 LGA1151 Intel motherboard

SKU CH-RRXH-G02GY

ATX board with LGA 1151 socket, Z170 chipset, four DDR4 DIMM slots up to 64 GB, three PCIe 3.0 x16 slots, eight SATA3 ports and Realtek ALC1150 7.1 audio

  • CPU Socket TypeLGA 1151
  • CPU TypeIntel Core 7th Gen (LGA 1151)
  • Supports Intel Core 7th Gen processors via LGA 1151 socket
  • DDR4 memory up to 3600 MHz overclocked across four slots for 64 GB capacity
  • Three PCIe 3.0 x16 slots enable Quad CrossFireX and Quad SLI configurations
  • Eight SATA3 ports plus two SATA Express ports provide extensive storage connectivity
  • Realtek ALC1150 delivers 7.1-channel high-definition audio with Blu-ray support

Socket and chipset

The ASRock Z170 EXTREME6 is an ATX motherboard built on the Intel Z170 chipset with an LGA 1151 socket. It supports Intel Core 7th Gen processors and accepts up to 64 GB of DDR4 memory across four DIMM slots at speeds up to 3600+(OC).

Multi-GPU or single-GPU focus

Enthusiasts who want to run three graphics cards can use the three PCI-Express 3.0 x16 slots configured at x8/x8/x4, while the board also enables Quad CrossFireX and Quad SLI setups. Builders who need more than three full-length PCIe slots or integrated Wi-Fi should look elsewhere.

Storage connectivity

Eight SATA3 ports provide broad drive support, with six of them offering RAID 0, 1, 5 and 10 capability, and two additional SATA Express ports give extra high-speed options.

Highlights

  • Supports Intel Core 7th Gen processors via LGA 1151 socket
  • DDR4 memory up to 3600 MHz overclocked across four slots for 64 GB capacity
  • Three PCIe 3.0 x16 slots enable Quad CrossFireX and Quad SLI configurations
  • Eight SATA3 ports plus two SATA Express ports provide extensive storage connectivity
  • Realtek ALC1150 delivers 7.1-channel high-definition audio with Blu-ray support

Specifications

CPU Socket TypeLGA 1151
CPU TypeIntel Core 7th Gen (LGA 1151)

Questions about this item

How fast can the M.2 slot actually run on the Z170 Extreme6?

The M.2 slot connects through the Z170 chipset and is limited to PCIe 3.0 x4 speeds, so even the fastest PCIe 3.0 drives will hit that ceiling.

What clearance do I need for the ATX board and its PCIe layout?

The board needs a standard ATX case with room for three full-length PCIe 3.0 x16 slots and three x1 slots, plus space around the 24-pin and 8-pin power connectors.

What is the correct order for seating memory in the four DDR4 slots?

Install modules in the grey slots first for dual-channel operation, then add pairs to the black slots; the manual shows the exact slot-colour pairing.
