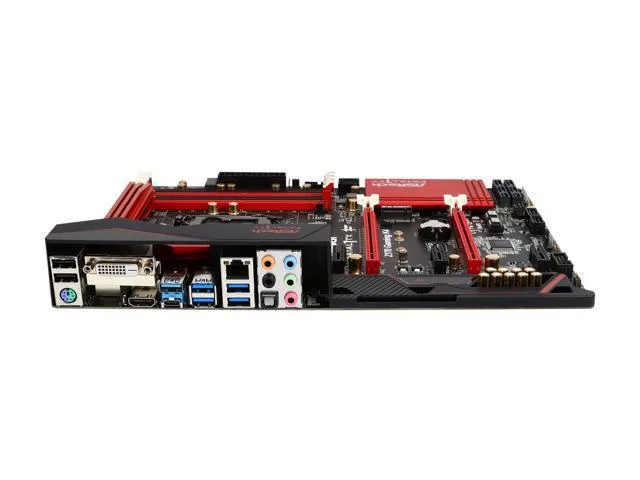

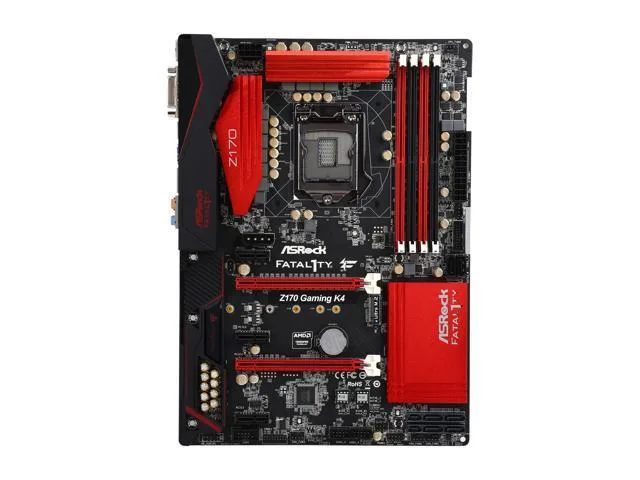

ASRock Z170 Gaming K4 Intel motherboard
LGA 1151 ATX board with Intel Z170 chipset, four DDR4 slots up to 64 GB, dual PCI Express 3.0 x16, six SATA 6Gb/s, one Ultra M.2, Killer E2400 LAN and Realtek ALC1150 7.1 audio
- CPU Socket TypeLGA 1151
- CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel Z170
- Onboard Video ChipsetIntel HD Graphics
- Number of Memory Slots4x288pin (DDR4)
- Supports 64 GB DDR4 memory for heavy multitasking
- Overclockable DDR4 up to 3866 MHz for faster data rates
- Dual PCIe 3.0 x16 slots enable multi-GPU configurations
- Killer E2400 LAN reduces network latency for gaming
- 1-channel Realtek ALC1150 audio delivers immersive sound
Socket LGA 1151 Z170 board
The ASRock Z170 Gaming K4 is an ATX motherboard built around the Intel Z170 chipset for LGA 1151 processors. It accepts Core i7, i5, i3, Pentium and Celeron CPUs with Turbo Boost 2.0 support. Four DDR4 slots take up to 64 GB of memory running at 2133 MHz standard with overclocked profiles up to 3866 MHz. The board provides two PCI Express 3.0 x16 slots and three x1 slots for expansion cards.
Upgrade from older chipsets
Moving to Z170 brings DDR4 support and native SATA 6 Gb/s across six ports plus two SATA Express 10 Gb/s connectors. The single Ultra M.2 slot adds high-speed storage potential, though populating it with a SATA-type M.2 device disables SATA3_0 and the SATA function of SATA3_2_3 and SATA3_4_5. RAID 0, 1, 5 and 10 are available on the SATA array. Killer E2400 networking and Realtek ALC1150 7.1 audio replace older integrated controllers.
Gaming and enthusiast builds
This board suits builders who want Z170 overclocking features, multi-GPU capability via two x16 slots and a full set of SATA ports for mixed storage. Users needing multiple M.2 drives, integrated Wi-Fi or a smaller form factor should consider other models. The ATX layout requires a compatible case and standard power connections.
Highlights
- Supports 64 GB DDR4 memory for heavy multitasking
- Overclockable DDR4 up to 3866 MHz for faster data rates
- Dual PCIe 3.0 x16 slots enable multi-GPU configurations
- Killer E2400 LAN reduces network latency for gaming
- 1-channel Realtek ALC1150 audio delivers immersive sound
Specifications
| Brand | ASRock |
|---|---|
| Series | ASRock Fatal1ty Gaming |
| Model | Z170 Gaming K4 |
| CPU Socket Type | LGA 1151 |
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z170 |
| Onboard Video Chipset | Intel HD Graphics |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 64GB |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
| PCI Express x1 | 3 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| SATA Express | 2 x SATA Express 10Gb/s Connectors**** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and the SATA function of SATA3_2_3 and SATA3_4_5 will be disabled. |
| M.2 | 1 x Ultra M.2 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Killer E2400 Series |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | DVI |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 5 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB Type-C | 1 x USB 3.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
| Other Connectors | 1 x COM Port Header1 x TPM Header1 x Power LED and Speaker Header2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24-pin ATX Power Connector1 x 8-pin 12V Power Connector1 x PCIe Power Connector1 x Front Panel Audio Connector |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 8.6" |
| Power Pin | 24 Pin |
| Features | Gaming ArmorMemory - 15µ Gold Contact in DIMM SlotsVGA Card- 15µ Gold Contact in VGA PCIe Slot (PCIE2)- PCIe Power ConnectorInternet - Killer E2400 LANCooling - XXL Aluminum Alloy HeatsinkAudio - Purity Sound 3Unique FeatureASRock Super Alloy- XXL Aluminum Alloy Heatsink- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike ProtectionASRock Live Update & APP ShopBIOS- 2 x 128MB AMI UEFI Legal BIOS with multilingual GUI support (1 x Main |
| Package Contents | Accessories- Quick Installation Guide, Support CD, I/O Shield- 4 x SATA Data Cables- 1 x Screw for M.2 Socket |
Questions about this item
What case clearance does the ATX form factor of the Z170 Gaming K4 require?
The board follows the standard ATX layout, so it fits any case that accepts ATX motherboards and provides the usual I/O shield cut-out and mounting-hole pattern.
Which step is most often missed when seating the CPU in the LGA 1151 socket?
Align the notches on the processor with the socket keys, lower it gently without pressure, then close the retention lever fully until it clicks under the tab.
What is the maximum DDR4 capacity the four 288-pin slots can hold?
The board supports up to 64 GB of DDR4 memory across its four slots.
