ASRock

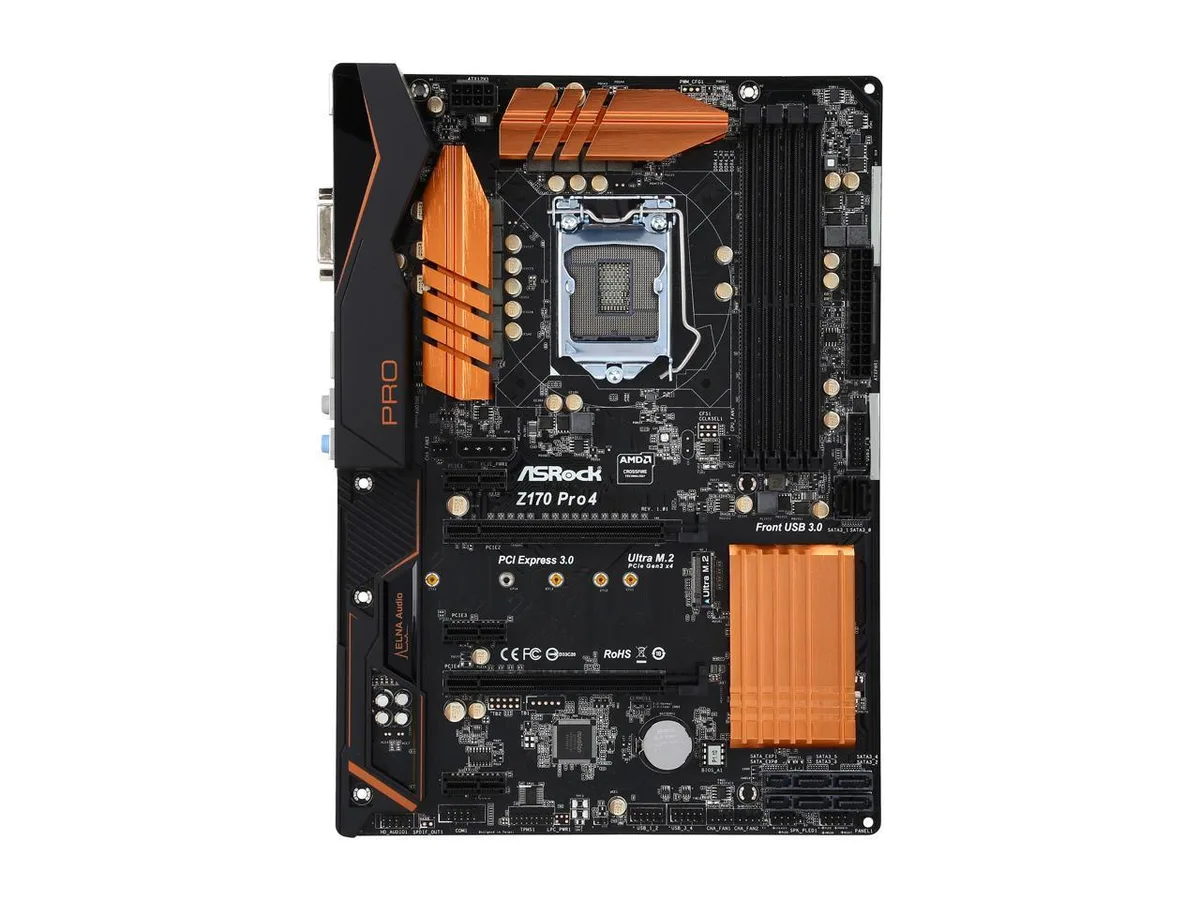

ASRock Z170 Pro4 Intel motherboard LGA 1151 ATX
ATX board for LGA 1151 CPUs with DDR4 memory, dual PCIe x16 slots, six SATA ports and Intel gigabit LAN
- CPU Socket TypeLGA 1151
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel Z170
- Onboard Video Chipset- Supports Intel HD Graphics Built-in Visuals: Intel Quick S
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133
- Supports 6th and 7th Gen Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB across four 288-pin slots
- Two PCI Express 3.0 x16 slots plus three x1 slots for expansion cards
- Six SATA3 6.0 Gb/s ports and two SATA Express 10 Gb/s connectors with RAID 0/1/5/10
- Realtek ALC892 7.1-channel audio and Intel I219-V 1 Gbps LAN
Intel Z170 ATX Motherboard for LGA 1151

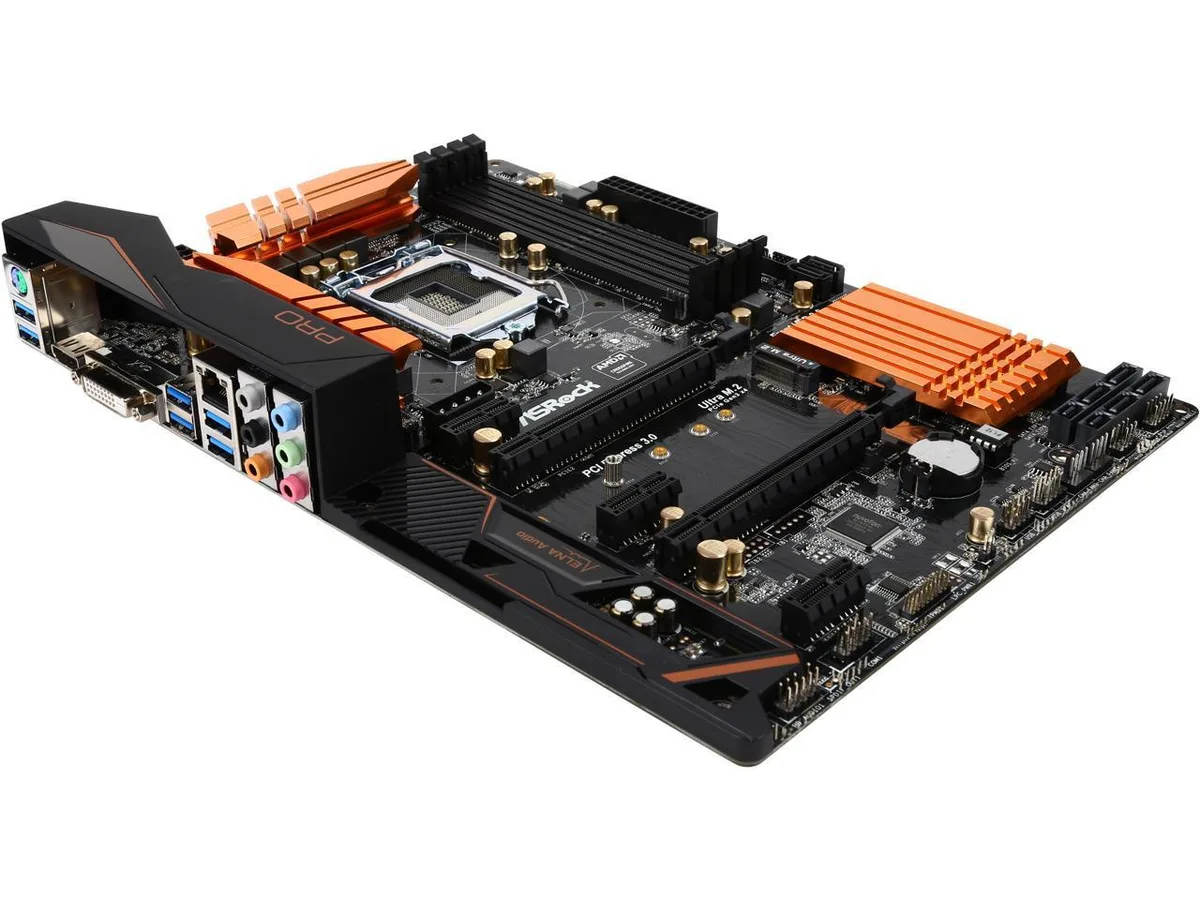

The ASRock Z170 Pro4 is an ATX motherboard built on the Intel Z170 chipset for LGA 1151 processors. It supports 6th and 7th Generation Intel Core i3, i5, i7, Pentium and Celeron CPUs with Turbo Boost Technology 2.0. The board provides four DDR4 memory slots with dual-channel architecture and a maximum capacity of 64GB.
Verify CPU Generation and Memory Compatibility
Confirm that your processor is a 6th or 7th Generation Intel Core, Pentium or Celeron in the LGA 1151 package before ordering. The four 288-pin slots accept DDR4 modules rated up to 3866 MHz when overclocked, with native support for speeds including 2133, 2400, 2800, 2933, 3200 and 3600 MHz. Ensure any M.2 SATA device does not conflict with the SATA3_0 and SATA3_1 ports.
Thermals Noise and Power Draw in Normal Use
The board uses passive heatsinks on the chipset and voltage regulators, so it adds no fan noise of its own. Power draw scales with the installed CPU and memory configuration rather than the platform itself. The Realtek ALC892 codec delivers 7.1 channel audio and the Intel I219-V controller provides 1Gbps LAN connectivity for everyday workloads.
Highlights
- Supports 6th and 7th Gen Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB across four 288-pin slots
- Two PCI Express 3.0 x16 slots plus three x1 slots for expansion cards
- Six SATA3 6.0 Gb/s ports and two SATA Express 10 Gb/s connectors with RAID 0/1/5/10
- Realtek ALC892 7.1-channel audio and Intel I219-V 1 Gbps LAN
Specifications
| Brand | ASRock |
|---|---|
| Model | Z170 Pro4 |
| CPU Socket Type | LGA 1151 |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z170 |
| Onboard Video Chipset | - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1792MB - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compli |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode) |
| PCI Express x1 | 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug |
| SATA Express | 2 x SATA Express 10Gb/s Connectors** **If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled. |
| M.2 | 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* ***Supports ASRock U.2 Kit |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |

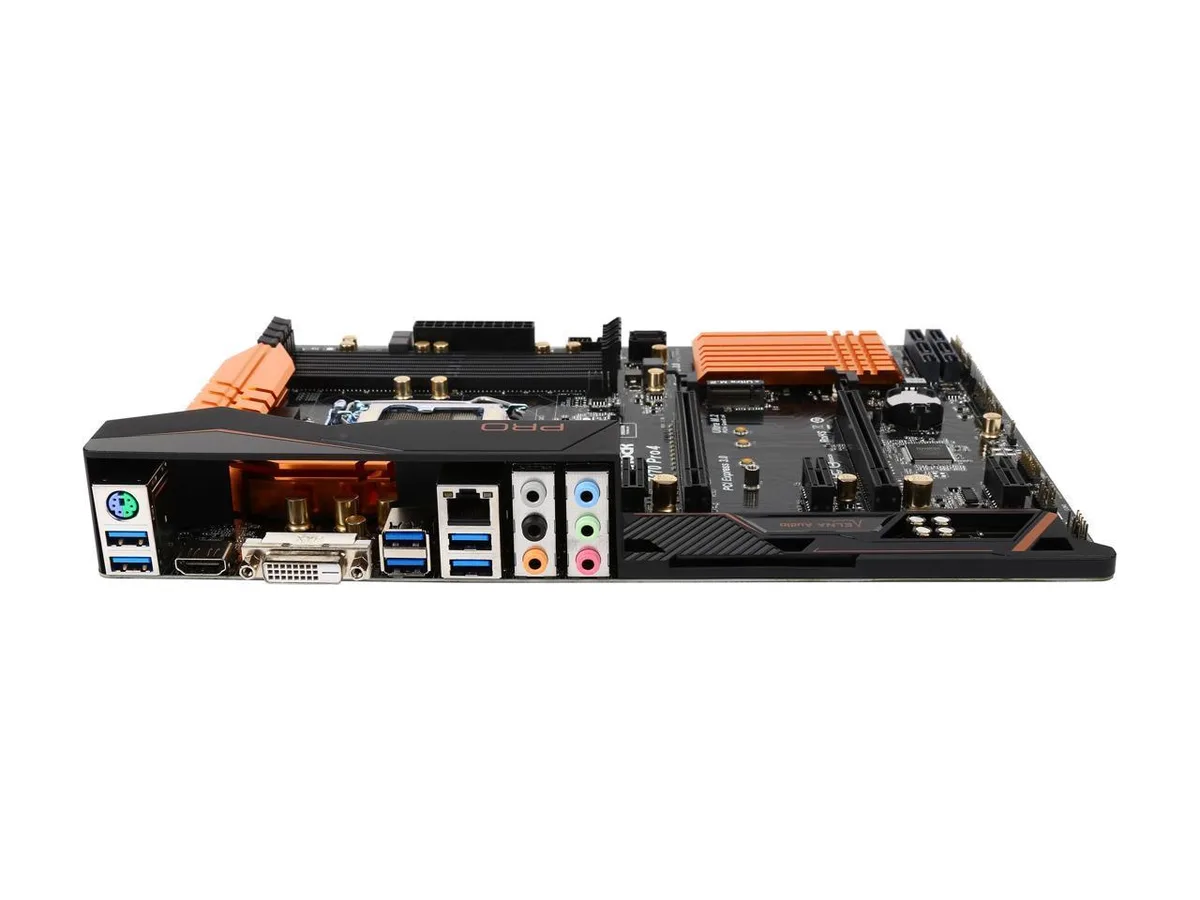

| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Other Connectors | 1 x COM Port Header 1 x Chassis Intrusion Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis Fan Connectors (2 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x PCIe Power Connector 1 x Front Panel Audio Connector |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 8.6" |
| Power Pin | 24 Pin |
| Features | Unique Feature ASRock Super Alloy - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 Support - CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRo |
| Package Contents | Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
Questions about this item
Will this board accept a 6th- or 7th-generation Core i5 or i7?
Yes, the LGA 1151 socket and Z170 chipset support both 6th- and 7th-generation Core i3, i5 and i7 processors.
What DDR4 speeds can I run with four sticks installed?
The four 288-pin slots support DDR4 up to 3866 OC; validated speeds include 3600, 3200, 2933, 2800, 2400 and 2133 in dual-channel mode.
Can I use an M.2 SATA drive and still keep all six SATA ports active?
No, populating the Ultra M.2 slot with a SATA-type M.2 device disables SATA3_0 and SATA3_1, leaving four SATA 6.0 Gb/s ports available.
