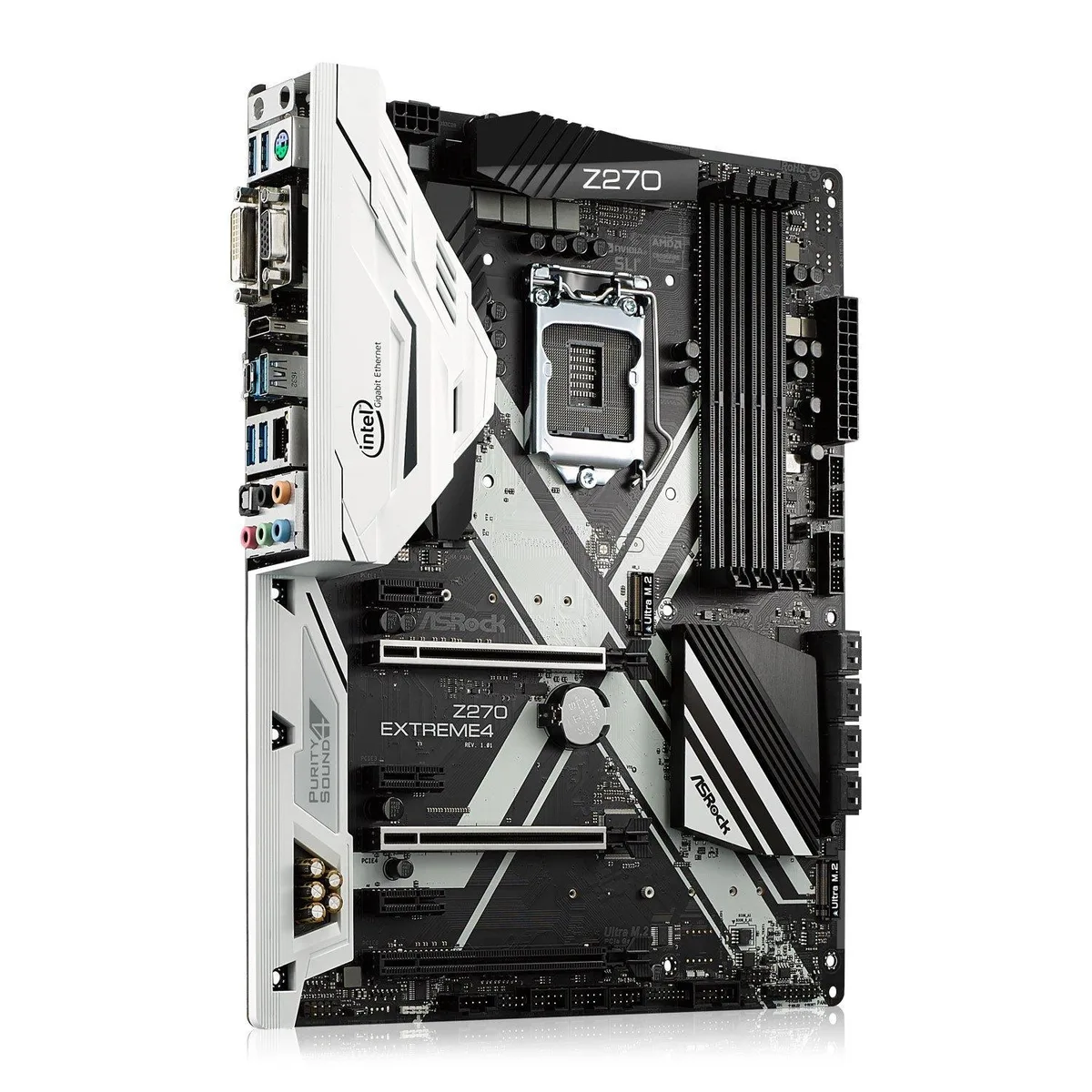

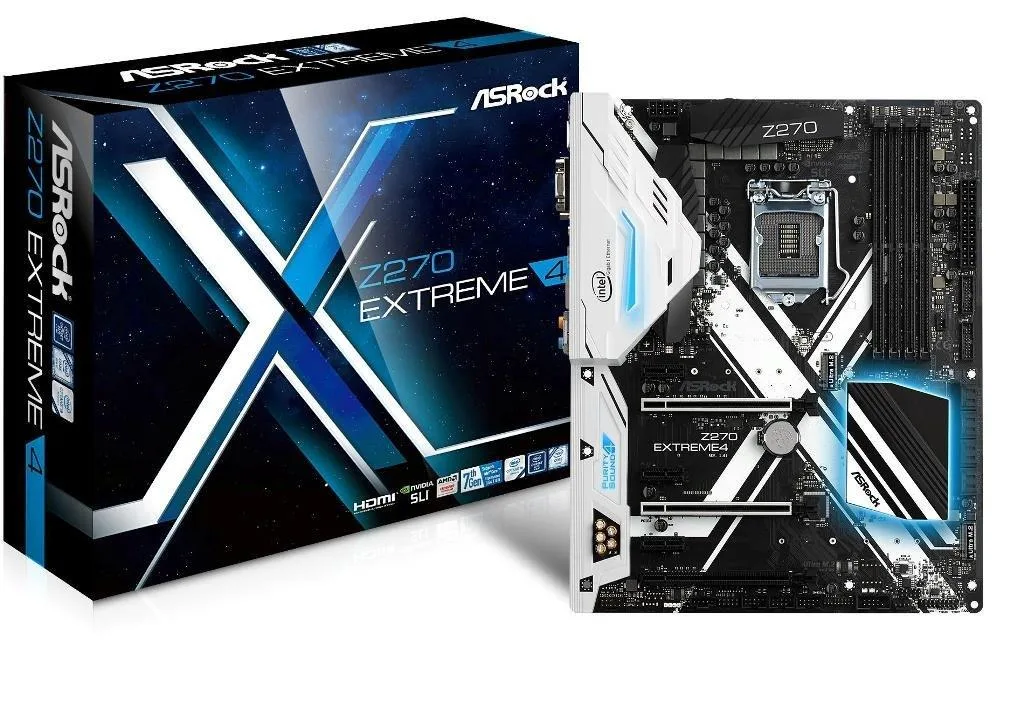

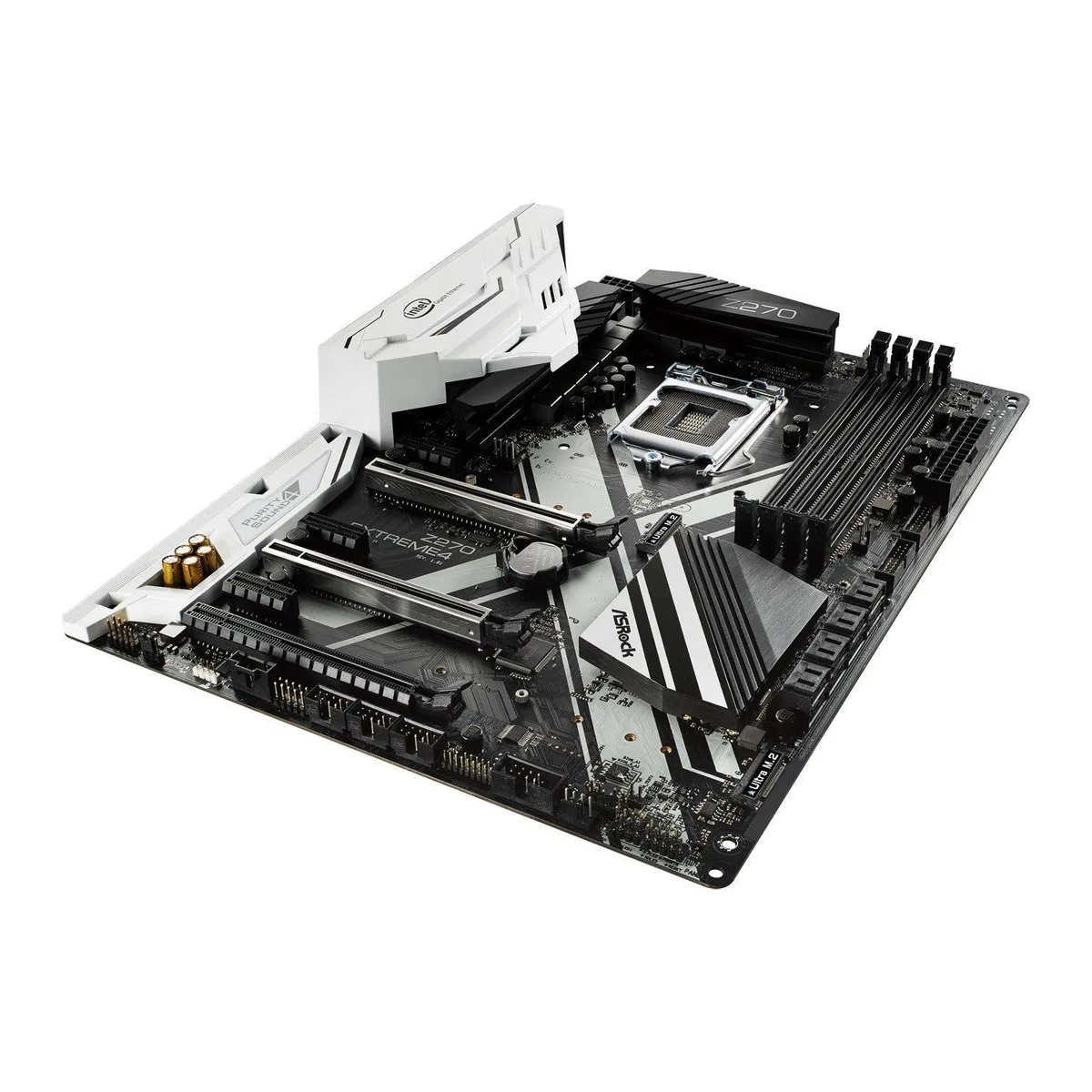

ATX motherboard, black PCB with silver heatsinks, LGA 1151 socket, four DDR4 slots

ASRock

ASRock Z270 Extreme 4 LGA 1151 Intel motherboard

SKU CH-BXTC-0WAY5

An Intel Z270 ATX motherboard with LGA 1151 socket, four DDR4 slots supporting up to 64 GB dual-channel memory and SATA 6Gb/s connectivity

  • Supports 7th and 6th Gen Intel Core processors via LGA 1151 socket
  • Intel Z270 chipset enables overclocking and multi-GPU configurations
  • Four DDR4 slots deliver up to 64 GB dual-channel memory capacity
  • ATX form factor fits standard cases with full expansion layout
  • VR Ready validation ensures compatibility with virtual reality hardware

Z270 board for 6th and 7th Gen Core builds

The ASRock Z270 Extreme 4 fits the LGA 1151 socket and the Intel Z270 chipset. It accepts 6th and 7th Generation Core i7, i5, i3, Pentium and Celeron processors. Four DDR4 slots support up to 64 GB in dual-channel mode. The ATX form factor suits standard desktop chassis.

Standard thermal and power behaviour

The board uses conventional air-cooled heatsinks on the voltage-regulator area and chipset. No liquid-cooling hardware or specialised fan headers are described in the data. Power draw follows the demands of the installed CPU and memory; no specific TDP or idle-wattage figures are supplied. Acoustic output will depend on the case fans and CPU cooler chosen by the builder.

VR-ready validation and SATA connectivity

ASRock labels the model VR Ready after internal compatibility testing with headsets and drivers. The package includes SATA 6 Gb/s ports for high-speed hard drives or SSDs. An HDMI output is provided for integrated graphics use. No additional software utilities or bundled accessories are detailed in the specifications.

Highlights

  • Supports 7th and 6th Gen Intel Core processors via LGA 1151 socket
  • Intel Z270 chipset enables overclocking and multi-GPU configurations
  • Four DDR4 slots deliver up to 64 GB dual-channel memory capacity
  • ATX form factor fits standard cases with full expansion layout
  • VR Ready validation ensures compatibility with virtual reality hardware

Specifications

BrandASRock

Questions about this item

How do I install the CPU into the LGA 1151 socket without bending pins?

Lift the retention arm, align the processor triangle with the socket marker, lower the CPU gently without pressure, close the arm and lock it. The socket has no pins on the board; they are on the processor.

What maintenance will the four DDR4 slots and memory modules need over time?

Reseat modules if the system fails to post, clean gold contacts with isopropyl alcohol and a lint-free cloth, and verify dual-channel population in the manual's recommended slots.

Which limit appears first when the VRM runs sustained loads on the Z270 chipset?

The voltage-regulator temperature rises until thermal throttling reduces power delivery, so add case airflow or a heatsink fan to keep the VRM zone cool.
