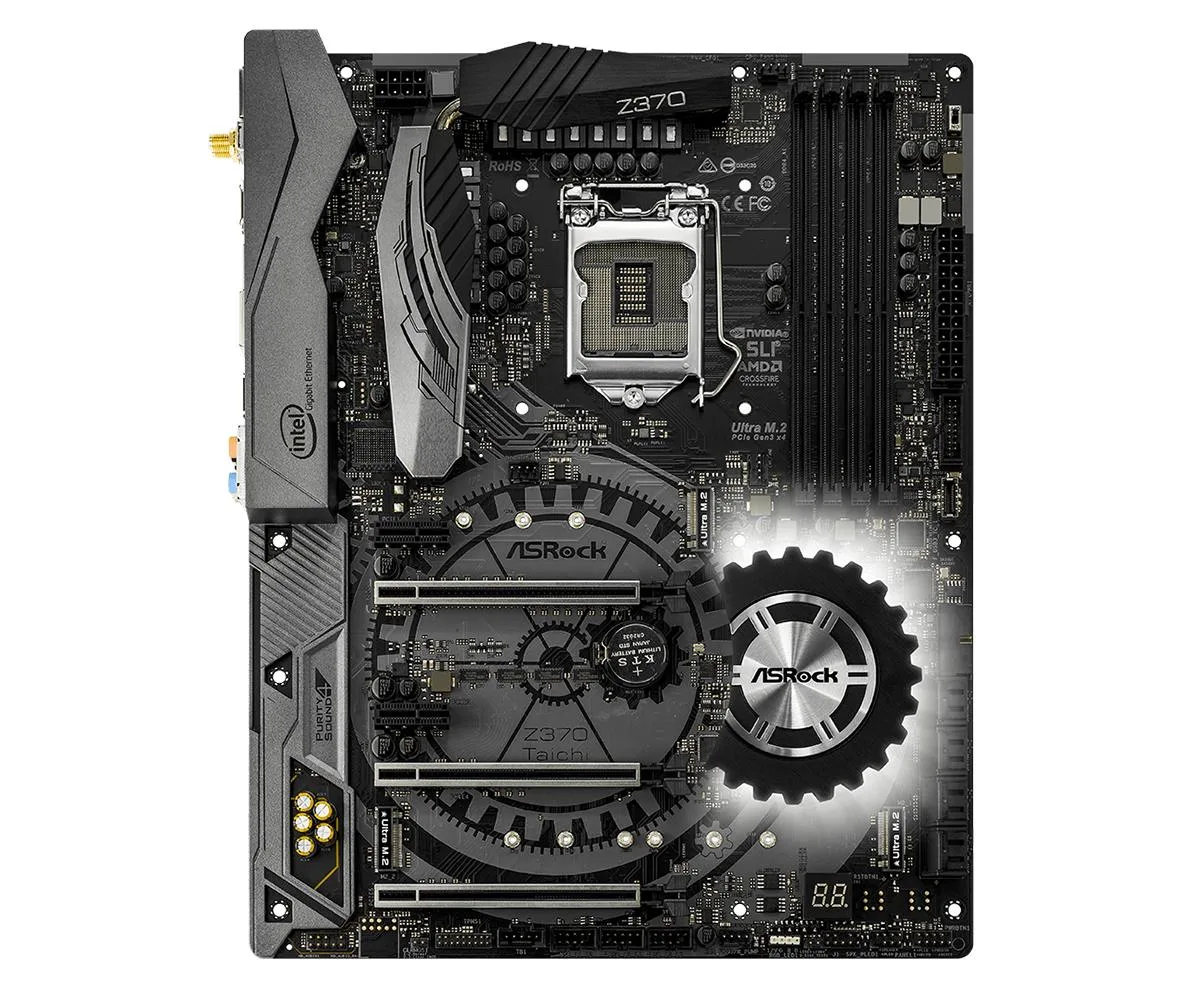

ATX motherboard with black and silver heatsinks and gear motif

ASRock

ASRock Z370 Taichi LGA 1151 Intel Motherboard

SKU CH-GS9F-9P5D9

ATX board for 8th Gen Intel Core CPUs on LGA 1151 with four DDR4 slots up to 64 GB, triple PCIe 3.0 x16 slots, dual Ultra M.2, six SATA 6.0 Gb/s ports, Intel I219-V LAN.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pen
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntel HD Graphics Built-in Visuals and the VGA outputs can b
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • DDR4 memory up to 4333 MT/s overclocked across four slots
  • Three PCIe 3.0 x16 slots for multi-GPU configurations
  • Dual Ultra M.2 sockets with PCIe 3.0 x4 for fast storage
  • Intel I219-V LAN and Realtek ALC1220 7.1 audio

LGA 1151 (300 Series) platform

The board uses the Intel Z370 chipset and accepts 8th Generation Intel Core, Pentium and Celeron processors in the LGA 1151 socket. It is not backward compatible with earlier LGA 1151 CPUs. Four DDR4 slots support up to 64GB in dual-channel mode.

Sustained memory and PCIe throughput

Memory speeds range from 2133 up to 4333+(OC) with supported modules, while 8th Gen CPUs officially run DDR4 at 2666. Three PCI Express 3.0 x16 slots operate at x16, x8/x8 or x8/x4/x4 depending on population, and two Ultra M.2 sockets deliver PCIe Gen3 x4 bandwidth for NVMe SSDs.

SATA 6.0Gb/s and M.2 lane sharing

Six native SATA3 ports plus two ASMedia ASM1061 ports provide RAID 0/1/5/10, NCQ, AHCI and hot-plug support. M2_1 shares lanes with SATA3_0 and SATA3_1, so using that M.2 slot disables those two SATA connectors.

Highlights

  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • DDR4 memory up to 4333 MT/s overclocked across four slots
  • Three PCIe 3.0 x16 slots for multi-GPU configurations
  • Dual Ultra M.2 sockets with PCIe 3.0 x4 for fast storage
  • Intel I219-V LAN and Realtek ALC1220 7.1 audio

Specifications

BrandASRock
ModelZ370 Taichi
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z370
Onboard Video ChipsetIntel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
- DirectX 12
- HWAEncode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG, VC-1
- Max. shared memory 1024MB
* The size of maximum shared memory may vary from different operating systems.
- D
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4333+(OC)*/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock's website for more information.
* 8th Gen Intel CPU supports DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))*
* Supports NVMe SSD as boot disks
PCI Express x12 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE2)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
* M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
* M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
M.22 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Type 22110 M.2 module is supported with either M2_1 or M2_2 socket.
** Supports Intel Optane Technology.
** Supports NVMe SSD as boot disks.
** Supports ASRock U.2 Kit.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Second LAN ChipsetIntel I211-AT
Max LAN Speed2 x 1Gbps
Wireless LANIntel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ452 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
DisplayPort1 x DisplayPort 1.2
USB 3.11 x USB 3.1 Gen2 Type-A Port (10Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Intel Z370) (Supports ESD Protection)
S/PDIF Out1 x Optical
Audio PortsHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Antenna Connectors2 x Antenna Ports
Onboard USB3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel Z370) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142)
Other Connectors1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The Chassis Optional/Water Pump Fan supports the wate
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

Questions about this item

How much power does the ASRock Z370 Taichi draw under sustained load?

The board uses an Intel Z370 chipset and supports 8th Generation Intel Core processors with Turbo Boost 2.0; actual draw depends on the specific CPU and cooler installed.

Which DDR4 memory kits are required for the four 288-pin slots?

Four DDR4 DIMMs up to 64 GB total are supported, with validated speeds from 2133 to 4333+(OC); consult the ASRock memory support list for exact part numbers.

Will my existing LGA 1151 6th or 7th Generation Intel CPU work in this motherboard?

No — the LGA 1151 (300 Series) socket is not backward compatible with older generation LGA 1151 CPUs; only 8th Generation Core, Pentium and Celeron processors are supported.
