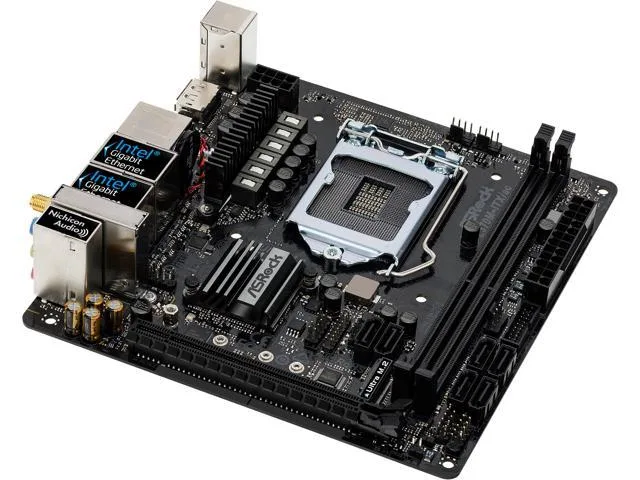

Compact Mini-ITX board with black PCB and silver I/O shield

ASRock

ASRock Z370M-ITX/ac Intel motherboard

SKU CH-QSWA-XBQ4X

Mini ITX board for 8th Gen Intel Core on LGA 1151 with dual LAN, Wi-Fi 802.11 ac and DDR4 up to 32 GB

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pen
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z370
  • Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 up to 32 GB maximum capacity
  • Ultra M.2 slot enables PCIe 3.0 x4 NVMe storage
  • Dual Intel LAN controllers I219-V and I211-AT
  • Realtek ALC892 codec delivers 7.1-channel HD audio

Z370 Mini ITX for 8th Gen Builds

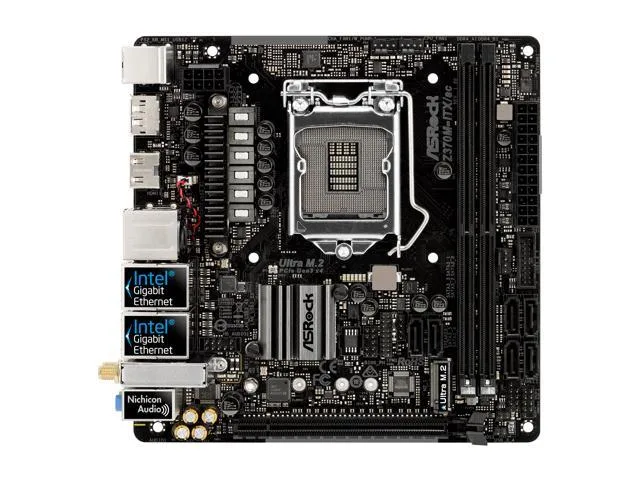

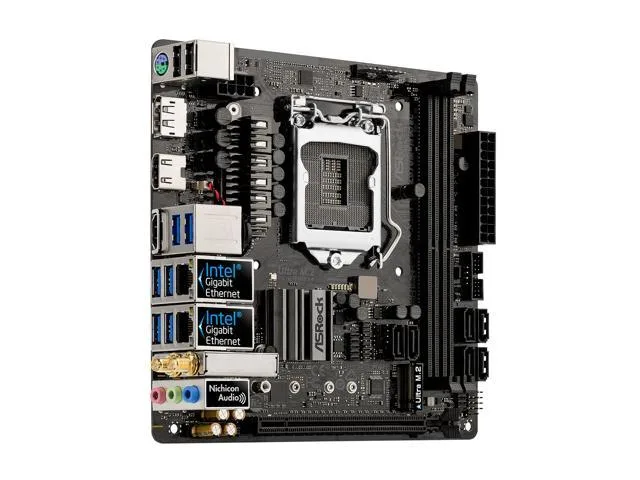

The ASRock Z370M-ITX/ac is a Mini ITX motherboard built on the Intel Z370 chipset. It supports 8th Generation Intel Core, Pentium and Celeron processors in the LGA 1151 (300 Series) socket. The board provides two DDR4 memory slots, a single PCI Express 3.0 x16 slot and dual Intel LAN controllers. Integrated Wi-Fi 802.11 ac is included via a vertical M.2 Key E module.

Check CPU Socket and Memory List

Verify that your processor is an 8th Generation Intel Core, Pentium or Celeron for LGA 1151 (300 Series); older LGA 1151 CPUs are not supported. Consult the vendor Memory Support List for qualified DDR4 modules and maximum speeds. The two 288-pin slots accept up to 32 GB in dual-channel mode. If you populate the Ultra M.2 socket with a SATA-type M.2 device, one SATA3 connector will be disabled.

Thermals Noise and Power Draw

The compact layout concentrates the VRM and chipset heat in a small area, so case airflow must reach the board directly. Dual Intel LAN chips (I219-V and I211-AT) add minimal load. Realtek ALC892 7.1-channel audio draws little power. The bundled Wi-Fi 802.11 ac module and single PCI Express 3.0 x16 slot keep overall board power modest under typical desktop workloads.

Highlights

  • Supports 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 up to 32 GB maximum capacity
  • Ultra M.2 slot enables PCIe 3.0 x4 NVMe storage
  • Dual Intel LAN controllers I219-V and I211-AT
  • Realtek ALC892 codec delivers 7.1-channel HD audio

Specifications

BrandASRock
ModelZ370M-ITX/ac
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z370
Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics - DirectX 12 - HWAEncode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG, VC-1 - Max. shared memory 1024MB * The size of maximum shared memory may vary from different operating systems
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 4000+(OC)*/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133* Please refer to Memory Support List on ASRock's website for more information. * 8th Gen Intel CPU supports DDR4 up to 2666.
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) * Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN ChipsetIntel I219-V
Second LAN ChipsetIntel I211-AT
Max LAN Speed2 x 1Gbps
Wireless LANIntel 802.11 ac Wi-Fi Module Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
PS/21 x PS/2 keyboard/mouse port
HDMI2 x HDMI
RJ452 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
DisplayPort1 x DisplayPort 1.2
USB 3.16 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.02 x USB 2.0 Ports (Supports ESD Protection)
Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Antenna Connectors2 x Antenna Ports
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x TPM Header 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x Chassis Fan Connector (4-pin) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) * The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. 1 x Front Panel Audio Connector
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector
FeaturesUnique Feature:ASRock Super Alloy - Premium 60A Power Choke - Dual-Stack MOSFET (DSM) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB - High Density Glass Fabric PCB Intel 802.11 ac Wi-Fi ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP ShopBIOS Feature:- 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCST, CPU Internal PLL Voltage Multi-adjustmentSupport CD:-
Package ContentsAccessories:- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock Wi-Fi 2.4/5 GHz Antennas - 1 x Screw for M.2 Socket

Questions about this item

What comes in the box and what must I buy separately?

The board ships with a bundled Wi-Fi 802.11 ac module installed in the M.2 Key E slot. You must purchase an LGA 1151 (300 Series) CPU, DDR4 memory, storage and a power supply separately.

Which memory speed should I choose for this Z370 board?

8th Gen Intel CPUs officially support DDR4 up to 2666. Higher listed speeds such as 3200 or 4000 require overclocking and a compatible kit from the ASRock Memory Support List.

What does the Ultra M.2 slot's 32Gb/s figure mean for a real NVMe drive?

The slot runs PCIe 3.0 x4, so a Gen3 x4 NVMe SSD can reach its rated sequential throughput and serve as a boot device.
