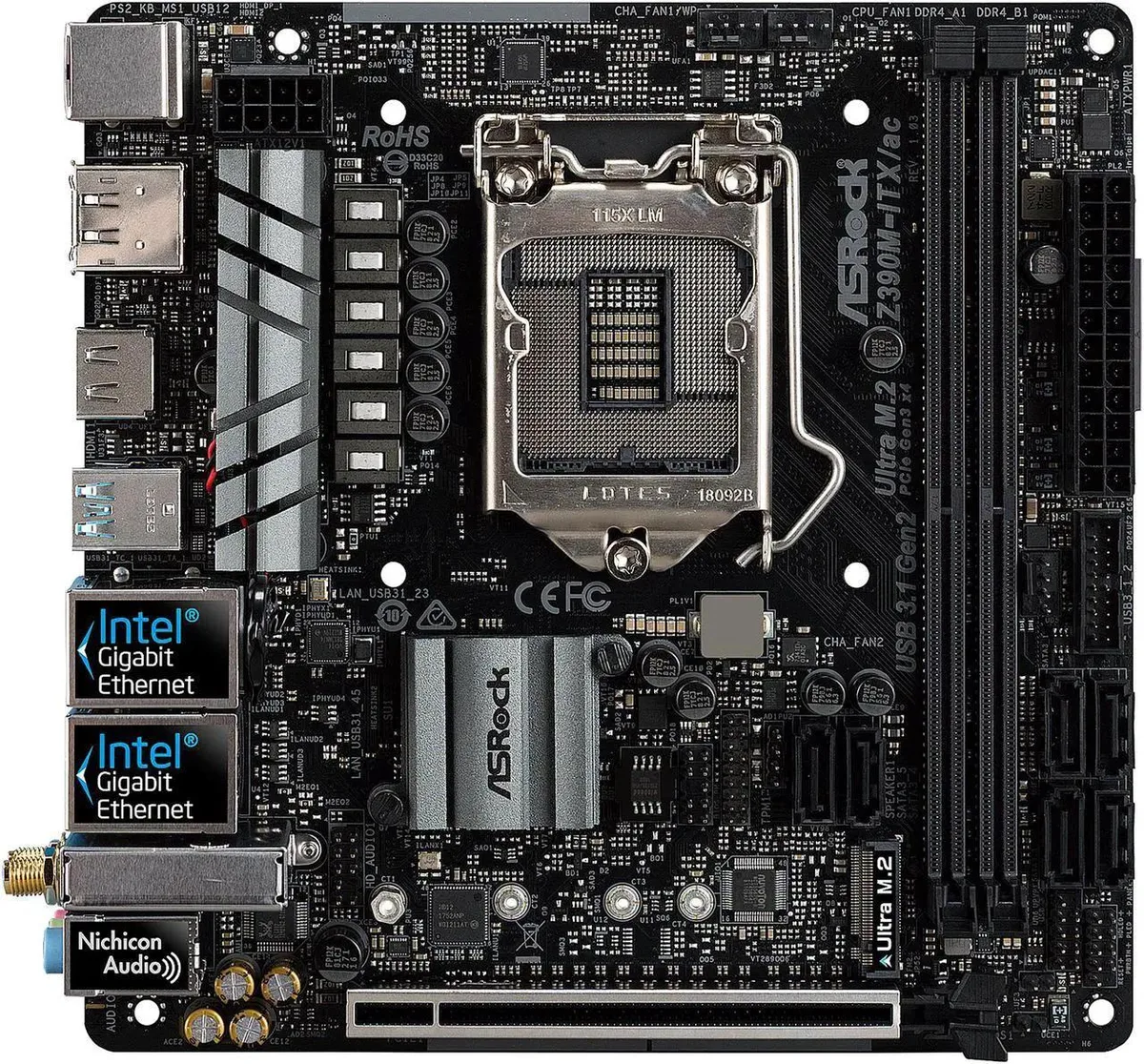

Compact Mini-ITX board, black PCB, silver I/O shield, CPU socket and two vertical DDR4 slots visible

ASRock

ASRock Z390M-ITX/ac LGA 1151 Intel motherboard

SKU CH-QVVQ-0V75A

Mini ITX board for 8th and 9th Gen Intel Core CPUs with DDR4 up to 4000 MT/s, Ultra M.2, six SATA3 ports, Intel I219-V LAN and 802.11ac Wi-Fi

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th and 8th Gen Intel Core processors (Socket 1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z390
  • Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Compact Mini ITX form factor fits small chassis builds
  • Dual-channel DDR4 memory up to 4000 MHz overclocked speeds
  • Ultra M.2 slot with PCIe 3.0 x4 for fast NVMe storage
  • Intel I219-V Gigabit LAN plus bundled 802.11ac Wi-Fi module

Compact Z390 board for small-form-factor builds

The ASRock Z390M-ITX/ac is a Mini-ITX motherboard built on the Intel Z390 chipset with an LGA 1151 socket that accepts 8th and 9th generation Intel Core processors. It provides two DDR4 memory slots supporting dual-channel operation up to 32 GB and a single PCI Express 3.0 x16 slot for a graphics card. An Ultra M.2 socket handles M Key drives from 2230 to 2280 lengths, and six SATA3 connectors offer RAID 0, 1, 5 and 10. Onboard Intel I219-V LAN, Wi-Fi 802.11 ac and Realtek ALC892 7.1 channel audio complete the platform.

Suited to compact overclocking rigs.

This board suits builders who want Z390 overclocking features in a Mini-ITX footprint and need integrated Wi-Fi 802.11 ac plus wired networking. It will not work with 6th or 7th generation LGA 1151 processors despite the shared socket, so owners of those CPUs must choose a 100 or 200 series board instead. Users requiring more than two memory slots, multiple PCIe x16 slots or front-panel USB 3.1 Gen 2 headers should look at larger ATX or micro-ATX Z390 models.

The LGA 1151 (300 Series) socket decides

Only 8th and 9th generation Intel Core CPUs fit this socket; earlier LGA 1151 processors are physically identical but electrically incompatible and will not boot. Verify your processor generation before purchase, as no BIOS update can enable older chips on the Z390 chipset.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Compact Mini ITX form factor fits small chassis builds
  • Dual-channel DDR4 memory up to 4000 MHz overclocked speeds
  • Ultra M.2 slot with PCIe 3.0 x4 for fast NVMe storage
  • Intel I219-V Gigabit LAN plus bundled 802.11ac Wi-Fi module

Specifications

BrandASRock
ModelZ390M-ITX/ac
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th and 8th Gen Intel Core processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z390
Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Three graphics output options: DisplayPort 1.2 and 2 x HDMI ports
Supports Triple Monitor
Supports HDMI with max. re
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 4000+(OC)*/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
M.21 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Supports Surge Protection
LAN ChipsetIntel I219-V
Second LAN ChipsetIntel I211-AT
Max LAN Speed2 x 1Gbps
Wireless LANIntel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
PS/21 x PS/2 keyboard/mouse port
HDMI2 x HDMI
RJ452 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
DisplayPort1 x DisplayPort 1.2
USB 3.15 x USB 3.1 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
USB 1.1/2.02 x USB 2.0 Ports (Supports ESD Protection)
USB Type-C1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Antenna Connectors2 x Antenna Ports
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x Chassis Fan Connector (4-pin)
* The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Ports (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- Premium 60A Power Choke
- Dual-Stack MOSFET (DSM)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB
Intel 802.11 ac Wi-Fi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS Feature:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock Wi-Fi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket

Questions about this item

What PCIe generation does the single x16 slot use, and what bandwidth does that cap the GPU at?

The board provides one PCI Express 3.0 x16 slot running in x16 mode, so a graphics card is limited to PCIe 3.0 bandwidth.

What physical clearance does the Mini-ITX form factor and the vertical M.2 Key E slot with bundled Wi-Fi module require in a case?

The board fits any Mini-ITX chassis, but the vertical M.2 Key E socket occupies the rear I/O area, so the case must allow a module to protrude upward from the motherboard edge.

How is the bundled Wi-Fi 802.11 ac module installed, and what step do builders often miss?

Insert the module into the vertical M.2 Key E socket, secure it with the screw, then attach the two antenna cables to the gold connectors on the module before fitting the I/O shield.
