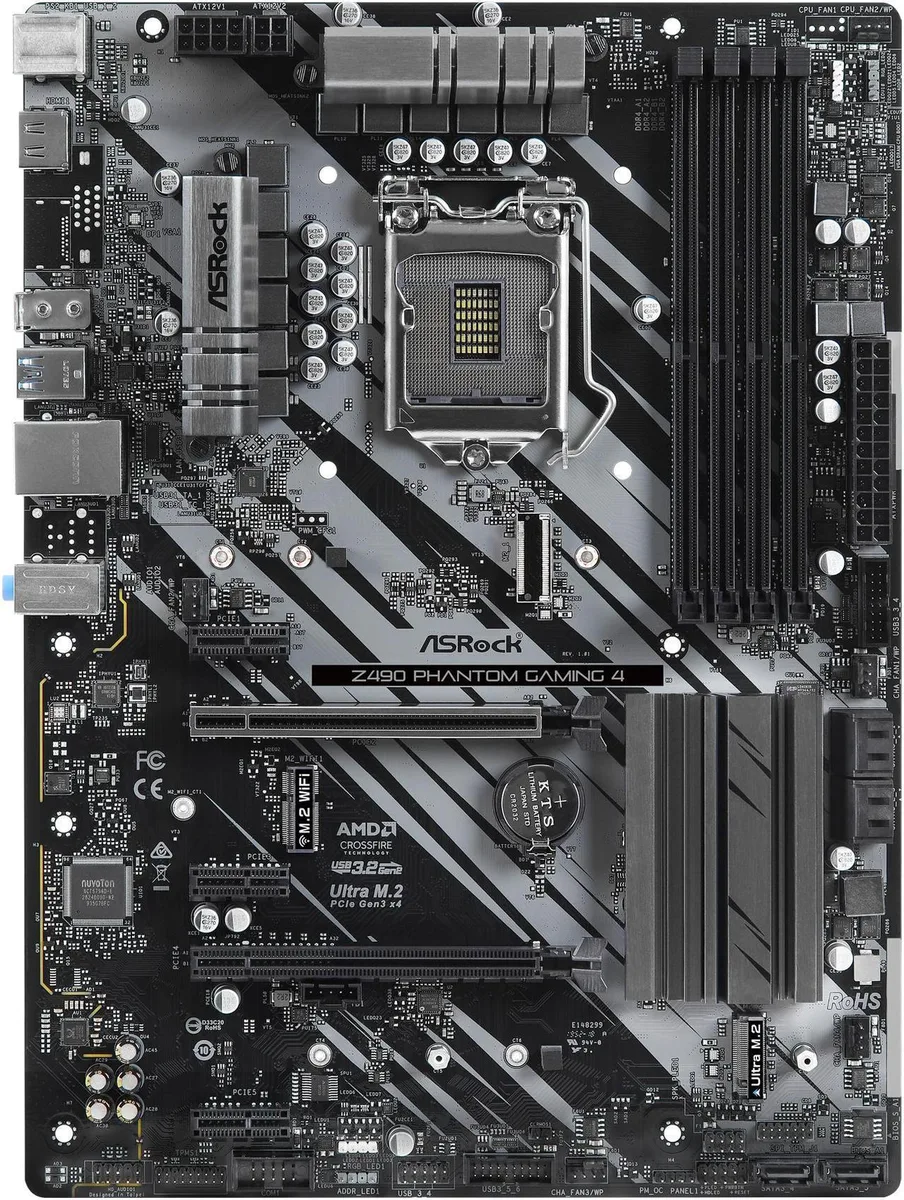

ATX motherboard with black and grey heatsinks and reinforced PCIe slots

ASRock

ASRock Z490 Phantom Gaming 4 Intel motherboard

SKU CH-H8AJ-3C7VB

An Intel Z490 ATX motherboard for 10th Gen Core processors, offering four DDR4 slots up to 128 GB, dual PCIe 3.0 x16 slots, three PCIe 3.0 x1 slots, one Ultra M.2 socket.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z490
  • Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • DDR4 memory up to 4400+(OC) with 128GB maximum capacity
  • Dual PCI Express 3.0 x16 slots for multi-GPU configurations
  • Ultra M.2 socket with PCIe Gen3 x4 32Gb/s bandwidth
  • Realtek ALC1200 7.1 channel audio with RAID 0/1/5/10 support

Z490 Chipset for 10th Gen Intel Core

The ASRock Z490 Phantom Gaming 4 uses the Intel Z490 chipset and LGA 1200 socket to support 10th Generation Intel Core processors. Four DDR4 slots accept up to 128 GB of non-ECC memory with a wide range of validated speeds. Dual-channel architecture and Turbo Boost Technology 3.0 are supported.

PCIe Layout and Storage Options

Two PCI Express 3.0 x16 slots run at x16 or x16 and x4 when both are populated. Three PCI Express 3.0 x1 slots add expansion room. One Ultra M.2 socket takes 2260, 2280 or 22110 modules with PCIe Gen3 x4 or SATA 6.0 Gb/s signalling. A second M.2 Key E socket accepts 2230 Wi-Fi/BT modules with Intel CNVi. Six SATA3 ports support RAID 0, 1, 5 and 10 via Intel Rapid Storage Technology 17.

Realtek ALC1200 7.1 Audio

The onboard Realtek ALC1200 codec delivers 7.1-channel audio for gaming and media. Integrated Intel UHD Graphics outputs function only with processors that include integrated graphics. Hardware-accelerated decode covers AVC/H.264, HEVC/H.265 8-bit and 10-bit, VP8 and VP9. Intel Optane Technology is supported for compatible modules.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • DDR4 memory up to 4400+(OC) with 128GB maximum capacity
  • Dual PCI Express 3.0 x16 slots for multi-GPU configurations
  • Ultra M.2 socket with PCIe Gen3 x4 32Gb/s bandwidth
  • Realtek ALC1200 7.1 channel audio with RAID 0/1/5/10 support

Specifications

BrandASRock
ModelZ490 Phantom Gaming 4
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z490
Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
* VP9 10bit and VC-1 are for decode only.
* VP8 and VP9 encode are not supported by Windows OS.
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Co
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupports DDR4 4400+(OC)*/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported128GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)*
* Supports NVMe SSD as boot disks
PCI Express x13 x PCI Express 3.0 x1 Slots
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17
Audio ChipsetRealtek ALC1200
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports2 x Antenna Mounting Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip.
2 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip.
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the wa
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.8"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
1 x 4-pin 12V Power Connector

Questions about this item

Which Intel processor must I already have for the LGA 1200 socket on this Z490 board?

A 10th Gen Intel Core processor with an integrated GPU is required if you plan to use the onboard VGA output; the socket itself accepts any 10th Gen Core CPU.

Will my existing DDR4 3200 modules run at their rated speed alongside the board's higher OC profiles?

Yes, DDR4 3200 is listed as a supported non‑OC speed, so installed modules will operate at 3200 MT/s without manual overclocking.

How can I confirm the M.2 SSD is running at PCIe 3.0 x4 after installation?

In the BIOS advanced storage screen the M2_2 slot should show a PCIe 3.0 x4 link and the drive model; Windows Device Manager will also report a Gen3 x4 NVMe controller.
